With today's technology you can expect more from garage door automation. Tempo features a fast opening speed, smooth up and down door operation, and a bright LED light for convenience. This supercharged motor has the power to lift single and double garage doors. And, for your peace of mind, Tempo offers advanced safety features plus a 7-year/20,000 cycle warranty.
Please Note: This does not include the rail. Ideal for when you need to replace your motor head and can still use your existing rail.
Features:
- Fast Opening Speed
- Safety without compromise
- Secure & Reliable Access Control

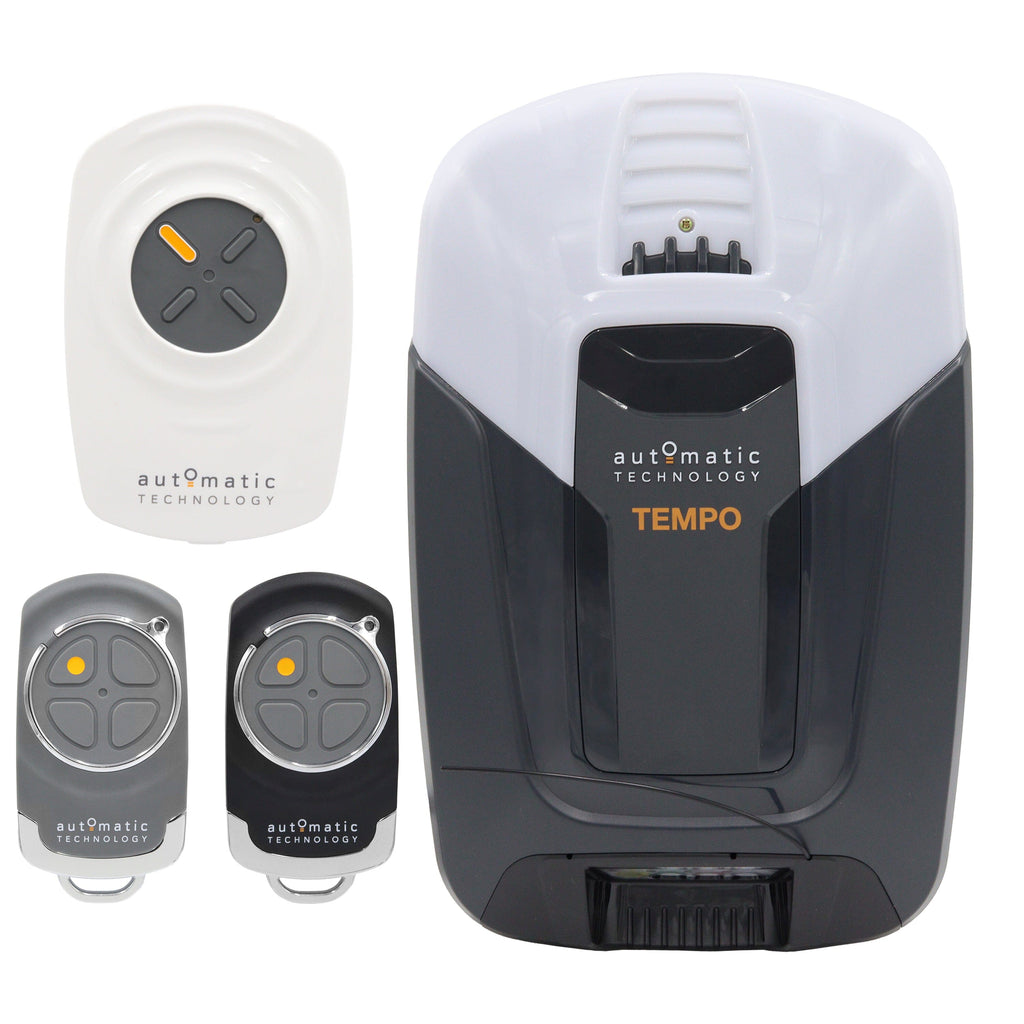

Included:

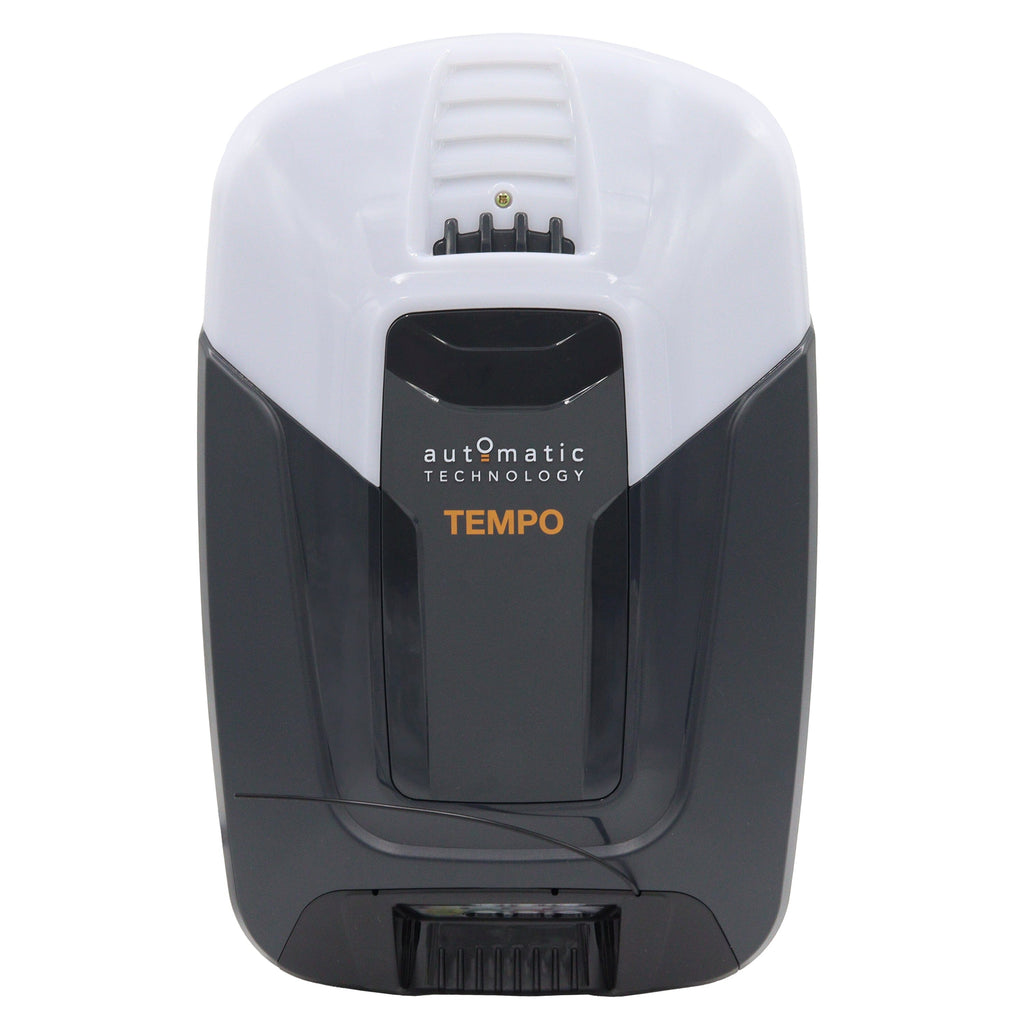

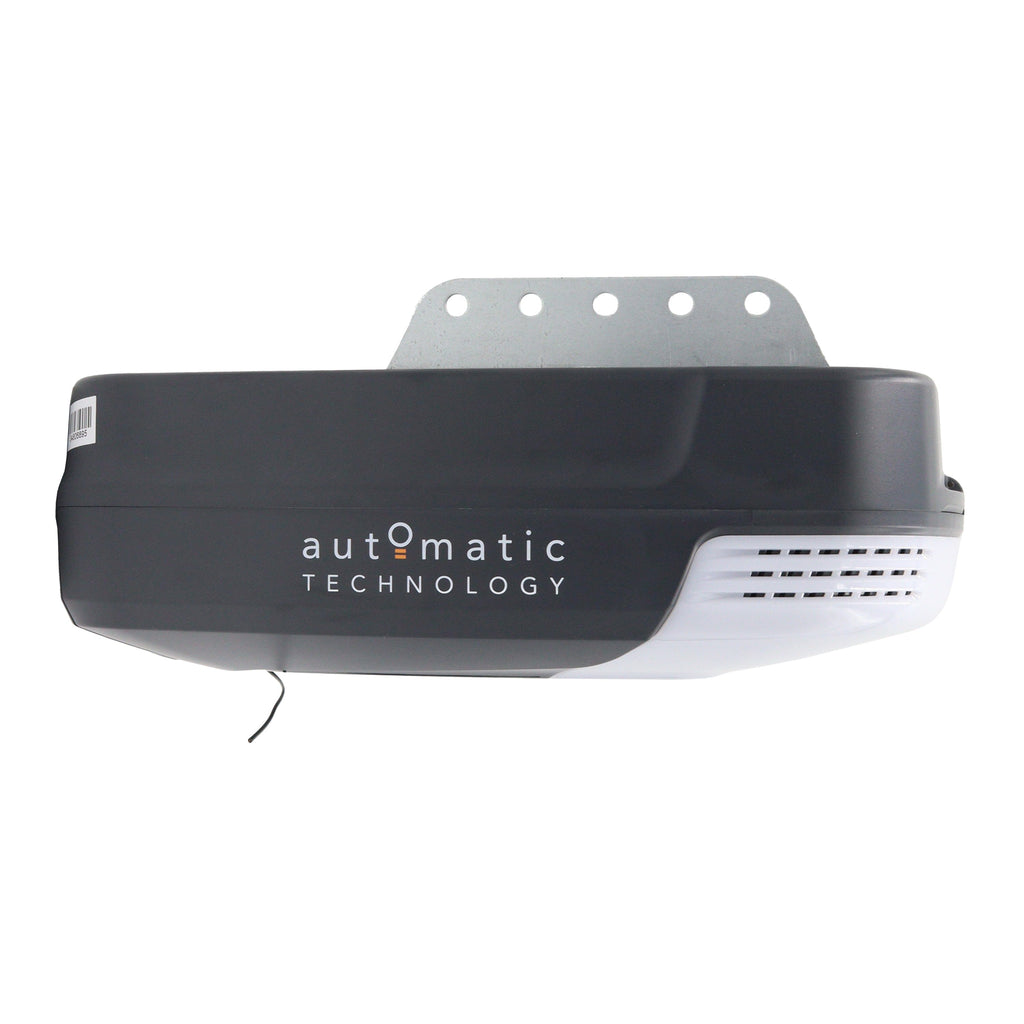

- 1 x ATS-2 Tempo Opener

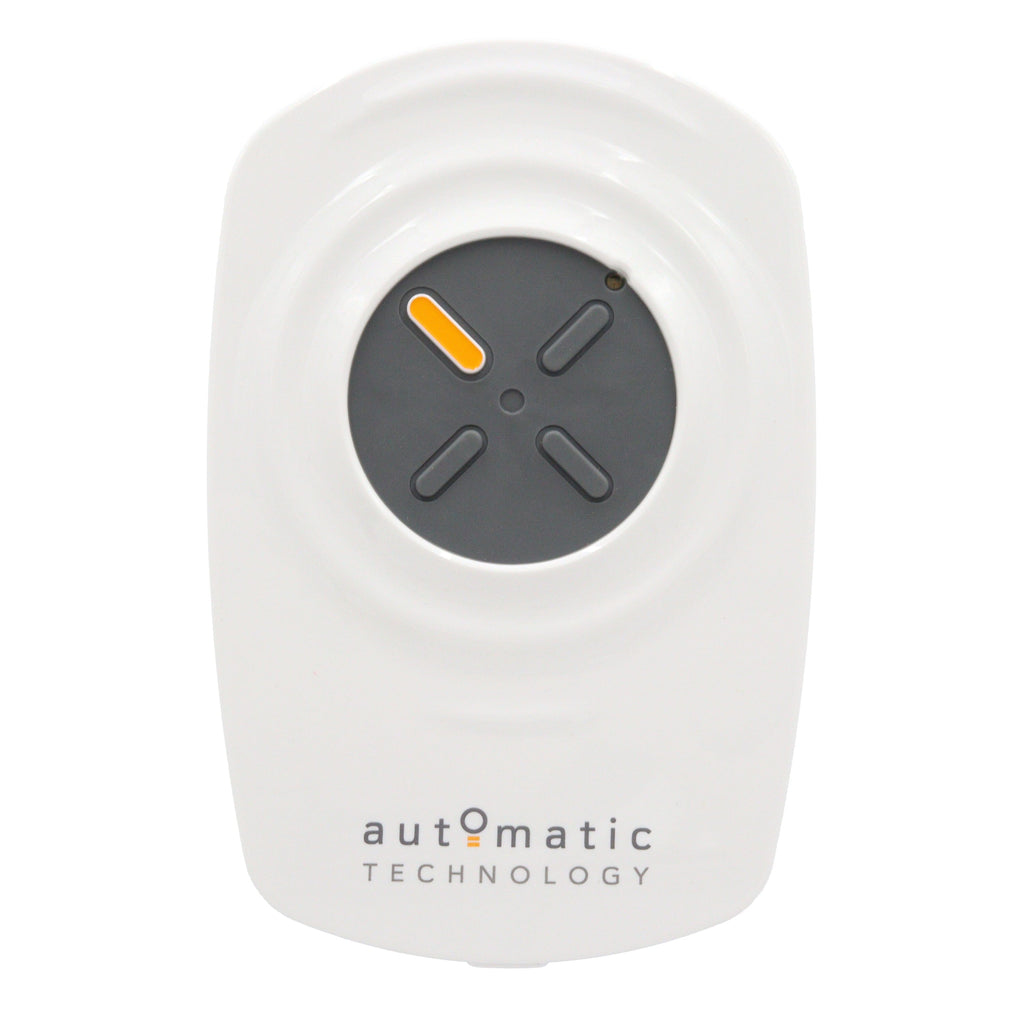

- 1 x WTX-6V1 Wall mounted TrioCode128 Remote Button

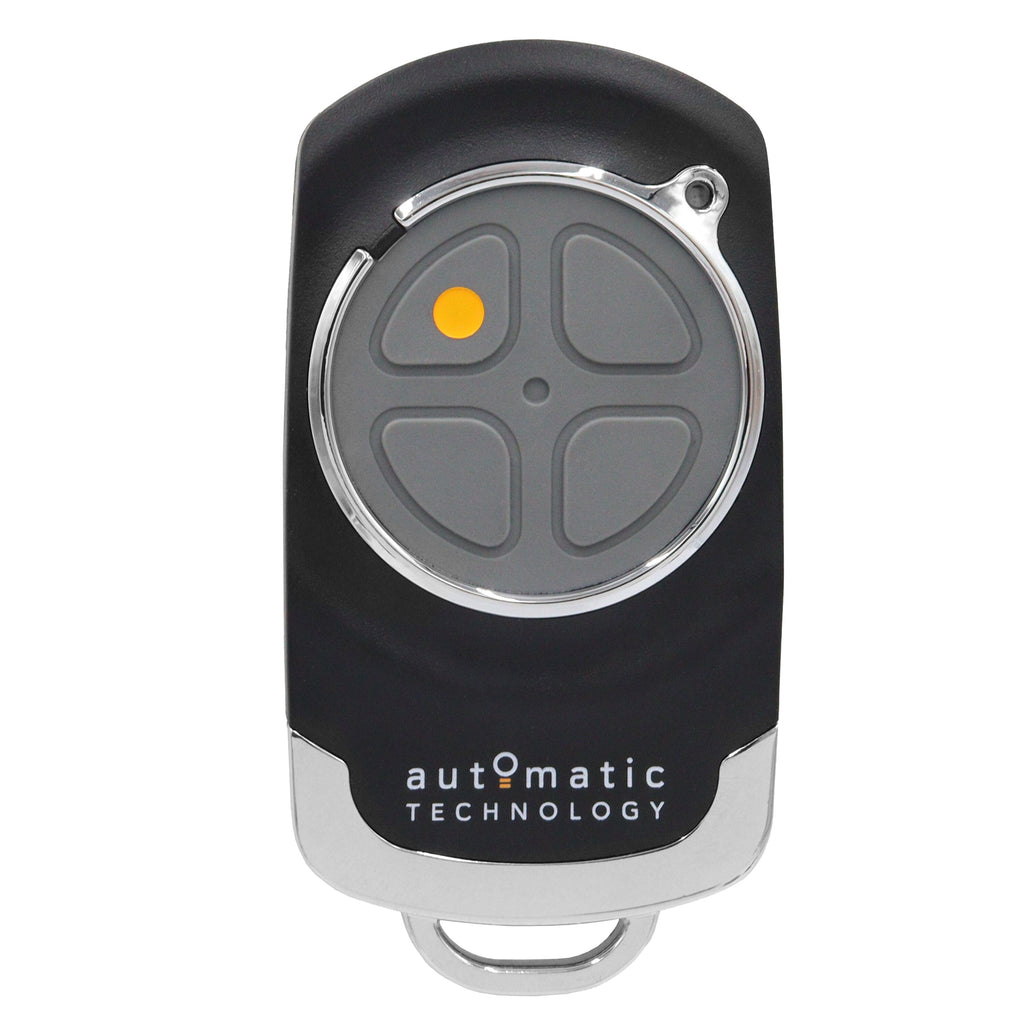

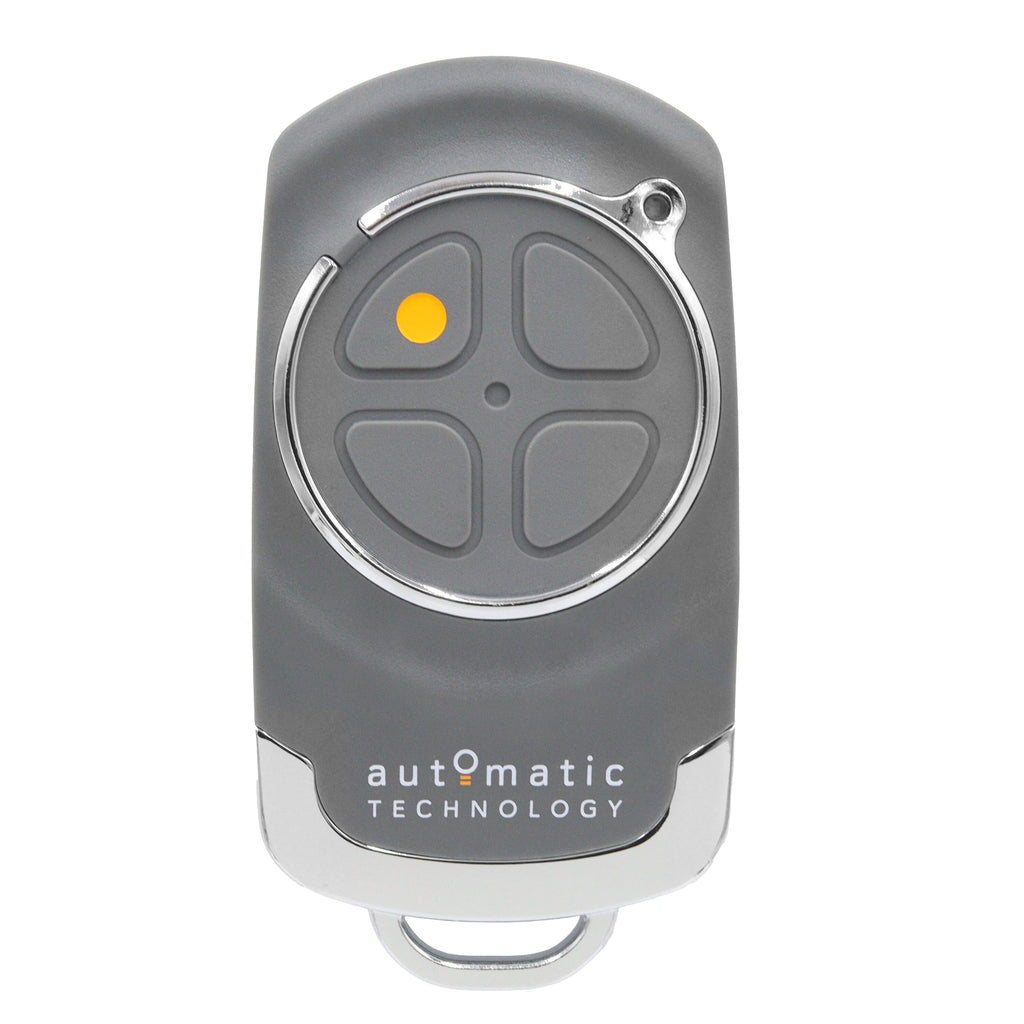

- 2 x PTX-6v1 Remotes
- 1 x Door Attachment Arms
- 1 x Installation Instructions
- 7 Years/20,000 Cycles Manufacturers Warranty*
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
| Short Term Peak Force | 1100N |
| Maximum Door Weight | Up to 200kg |
| Maximum Recommended Door Size | 18m2 |
| Minimum Head Room Requirement | 57mm |
| Rated Frequency | 50Hz/60Hz |
| Rated Power Input | 165W |
| Rated Voltage Range |
230-240V a.c. 50Hz
|
| Receiver Type |
Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz)
|
| Coding System | TrioCode128, code hopping |
| Code Combinations | 3.4x1038 code combinations |
| Transmitter Capacity |
64
|
| Main Light | LED (Light Emitting Diodes) |
| Network Connectivity | Compatible (Requires Smart Phone Kit) |
