Important Safety Update:
Standards Australia have now made it a requirement for any automated door that is able to be controlled by a smart device to be fitted with safety/PE beams. Our full range of beams can be found by clicking here and if you are unsure which model will suit your motor, please contact us any time.

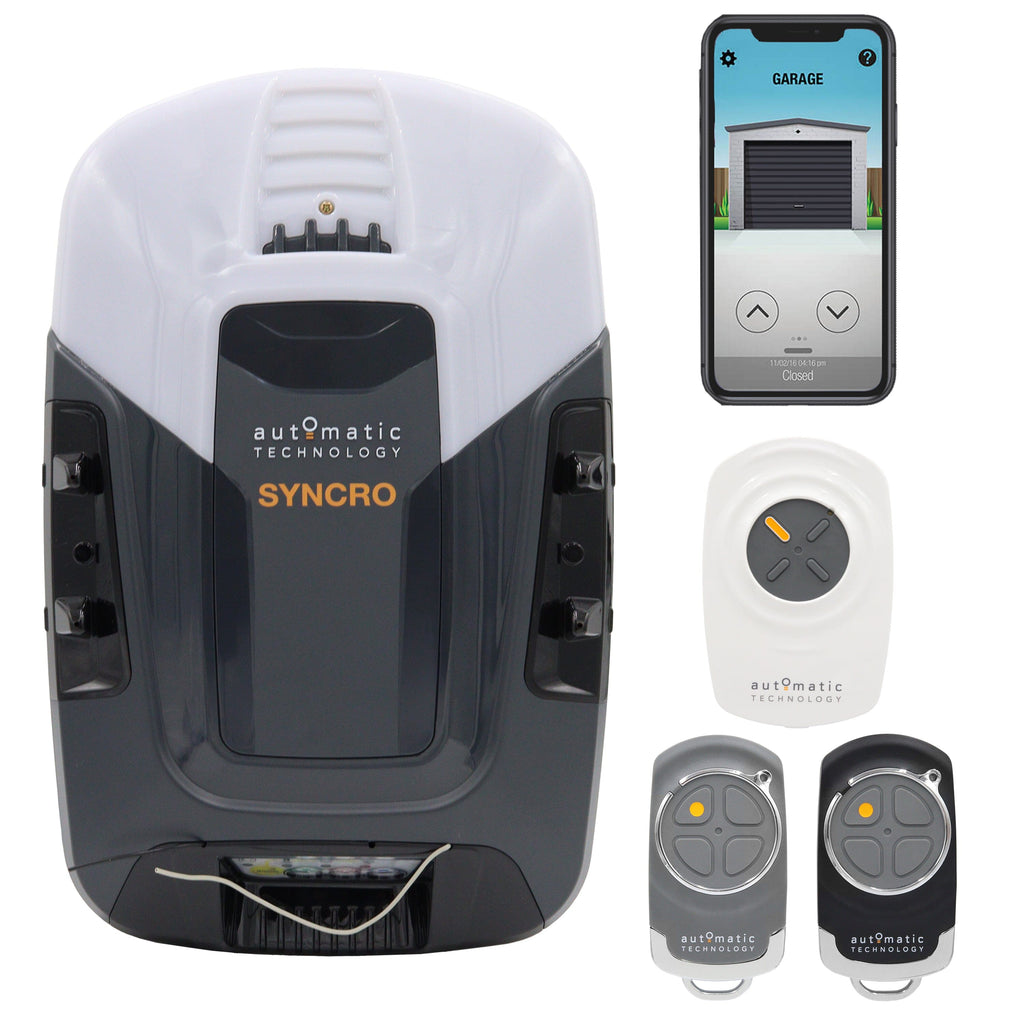

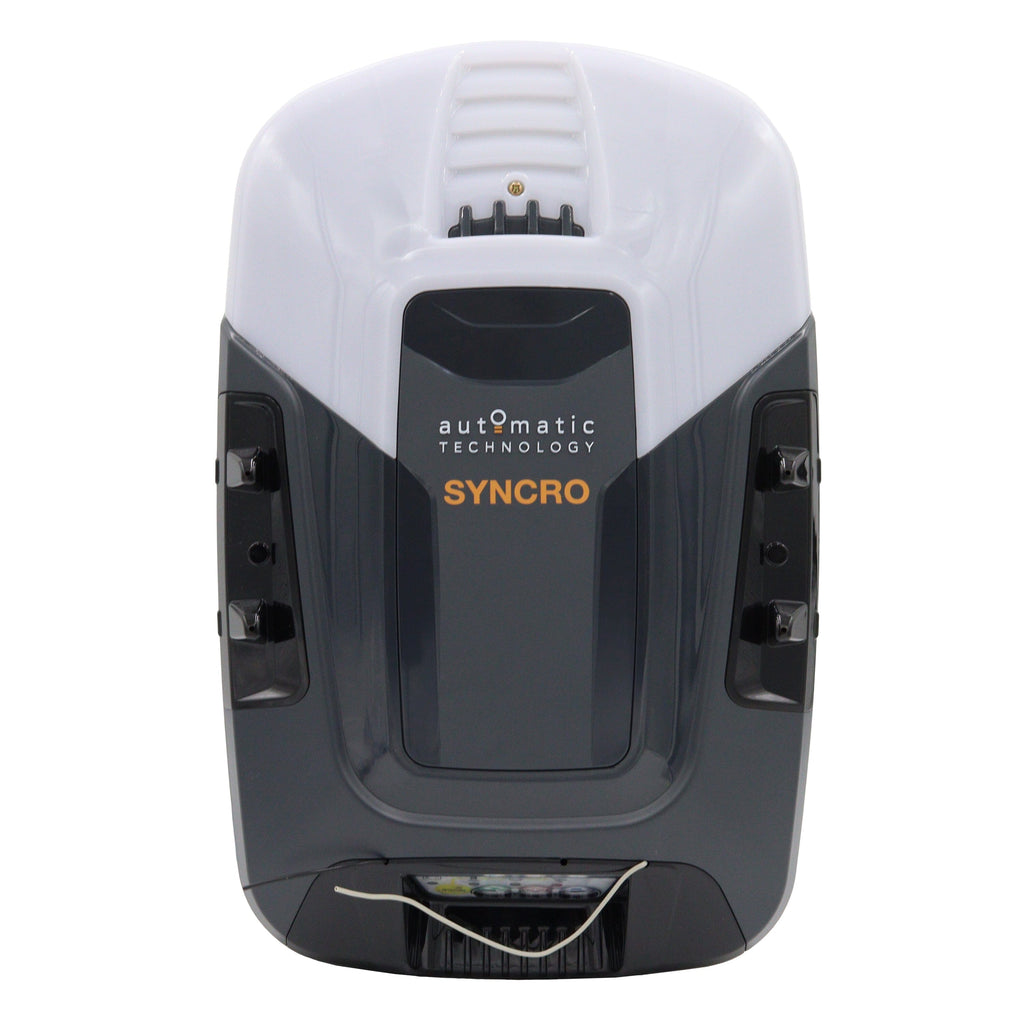

Syncro takes the convenience of automation a step further. You can monitor, control, and schedule access to your garage, anytime, anywhere, with your smartphone#.
With a fast opening speed, SyncroTM makes getting in and our of your garage a breeze. This top of the range model includes enhanced safety features and is backed by a 7-year warranty.
# subject to cellular and Wifi connection and availability. Phone not included.
From the 1st of December 2020, the Standards Australia has issued an important change to the standard regarding the installation of Safety Beams when a new smart opener or hub is installed.
Safety Beams are now compulsory with the sale of any Smart opener device.
ATA strongly supports this position as it eliminates potential hazards, making your garage door safer for you and your family.
Please Note: This does not include the rail. Ideal for when you need to replace your motor head and can still use your existing rail.
Features:
- Fast Opening Speed
- Safety without compromise
- Secure & Reliable Access Control

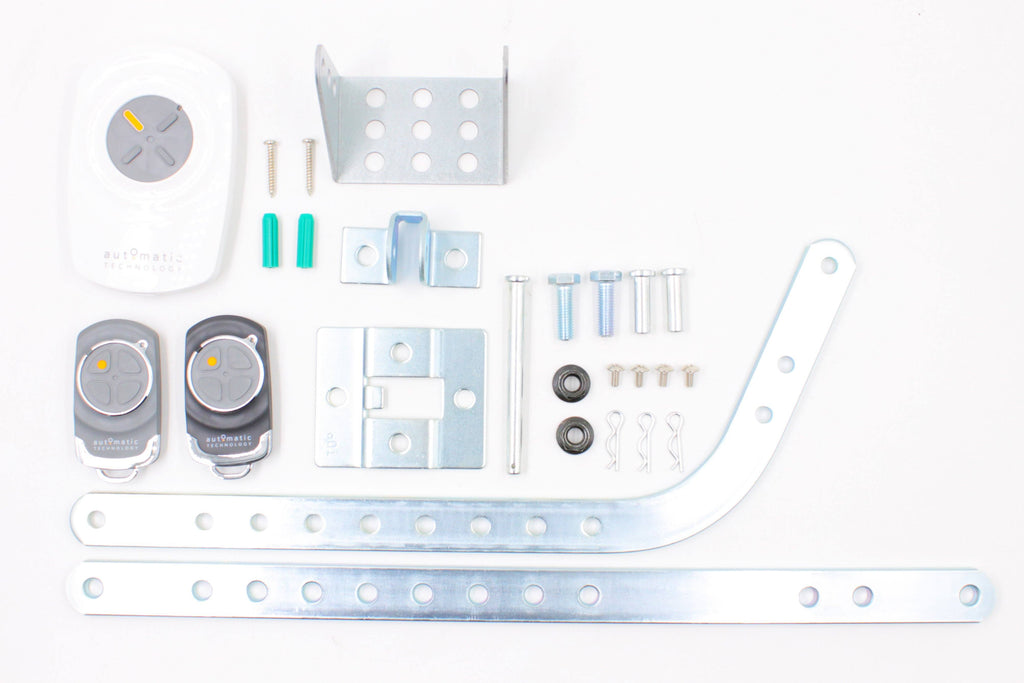

Included:

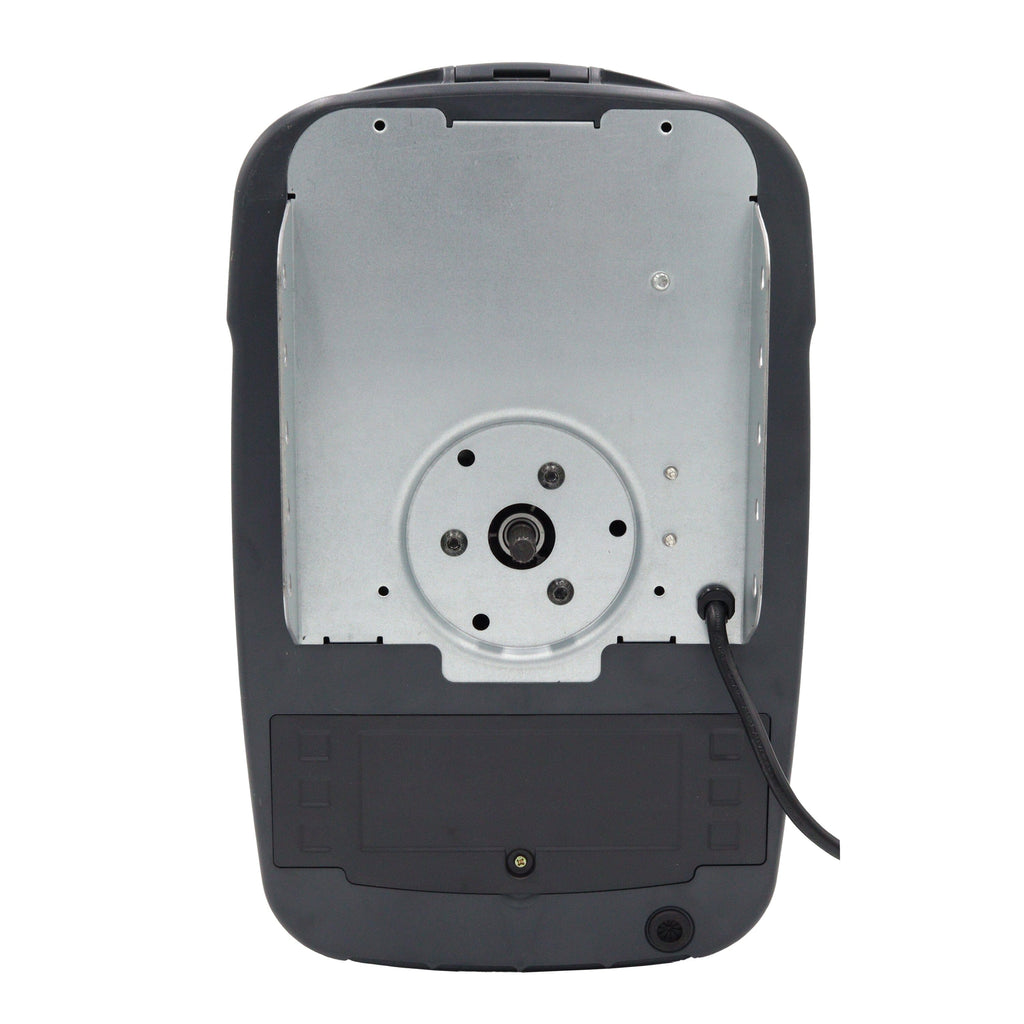

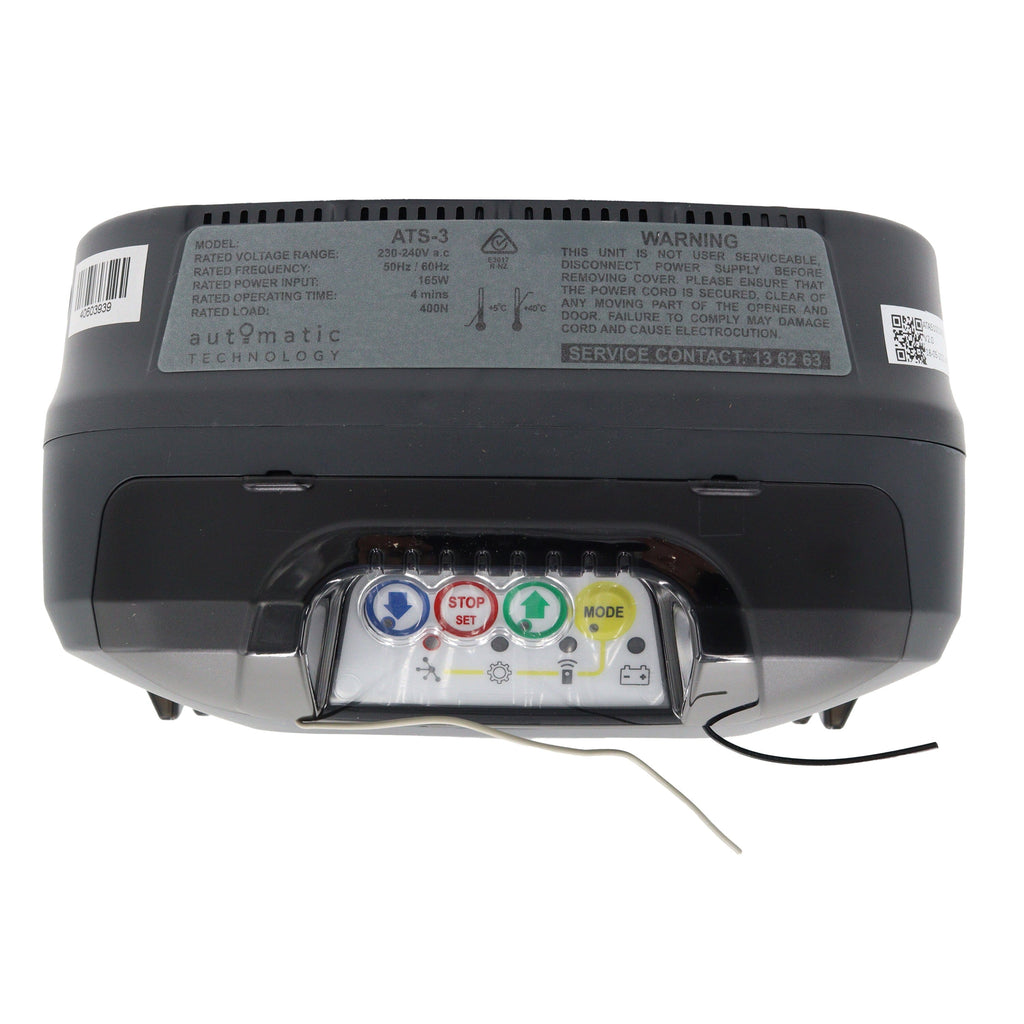

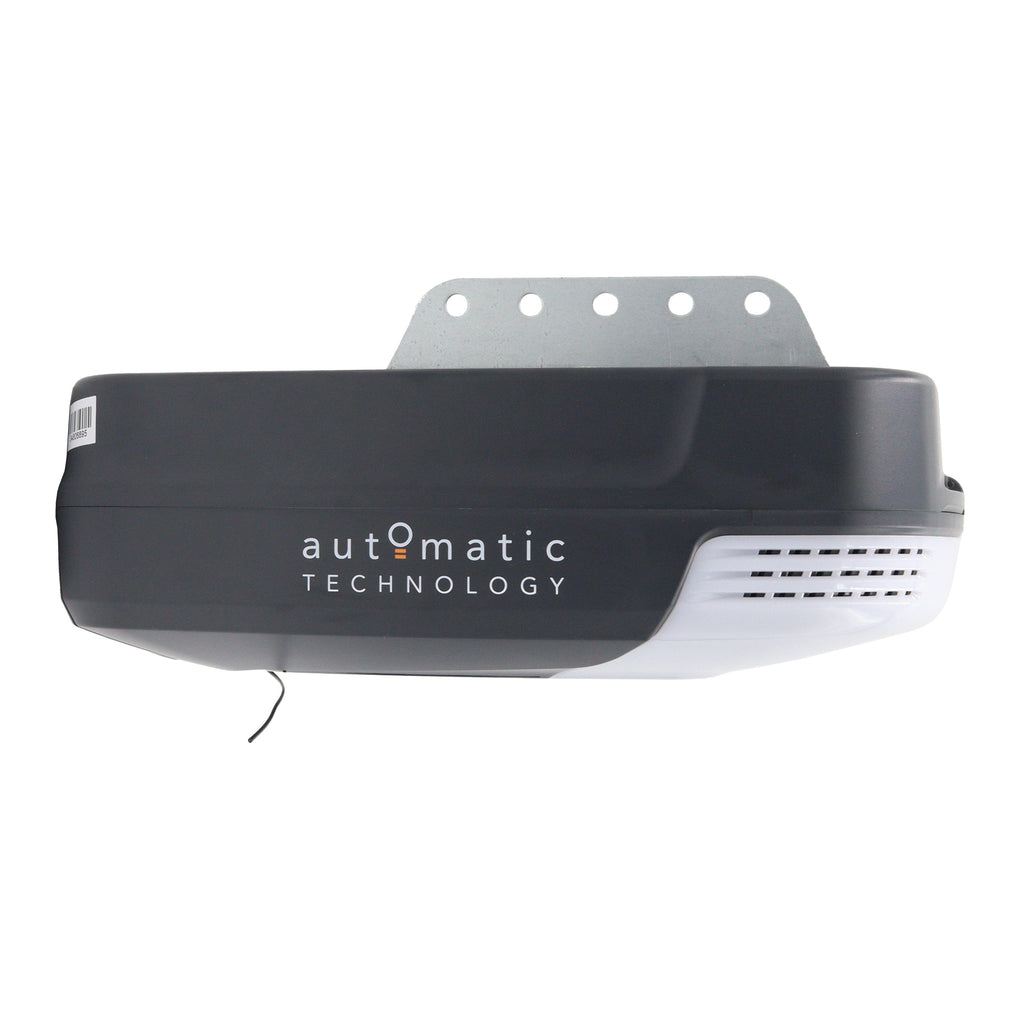

- 1 x ATS-3 Syncro Opener

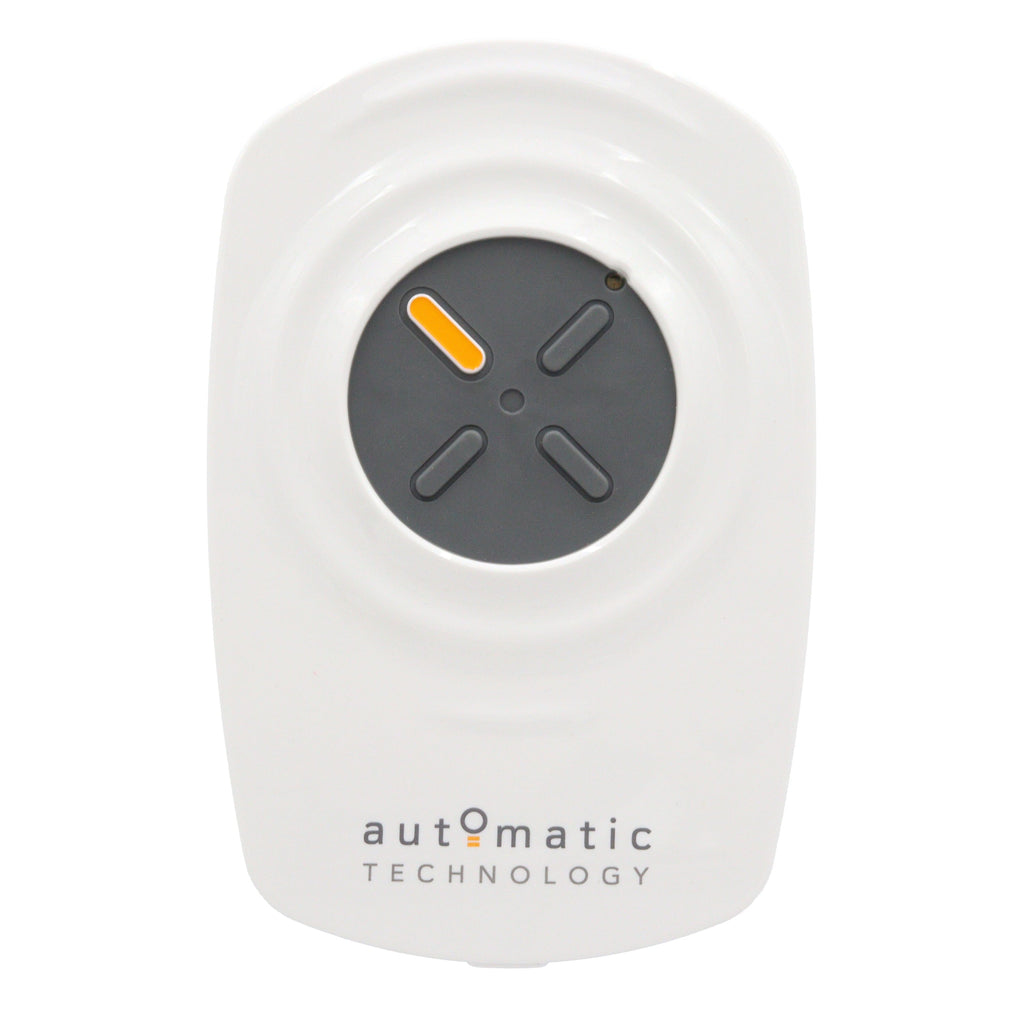

- 1 x WTX-6V1 Wall mounted TrioCode128 Remote Button

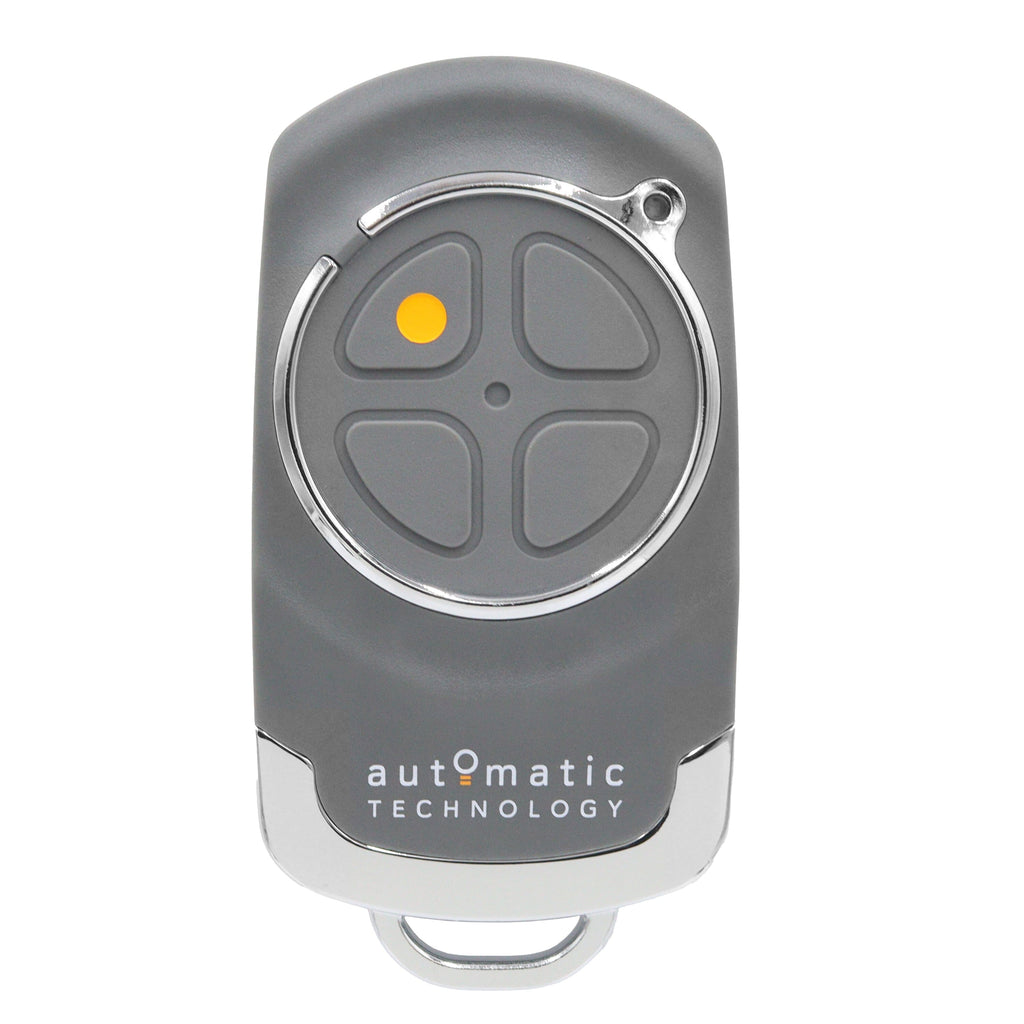

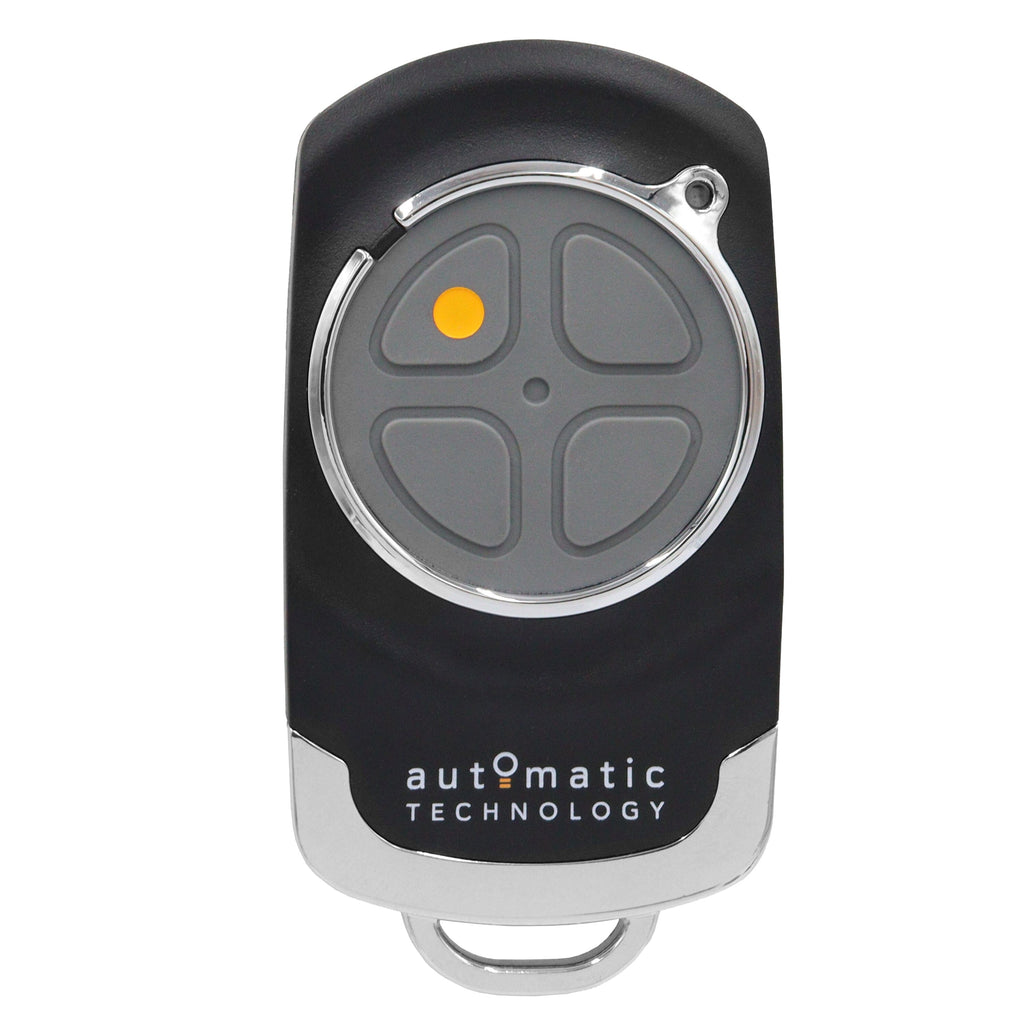

- 2 x PTX-6v1 Remotes
- 2 x Door Attachment Arms
- 1 x Accessory & Hardware Pack
- 1 x Installation Instructions
- 7 Years/20,000 Cycles Manufacturers Warranty*
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
| Short Term Peak Force | 1100N |
| Maximum Door Weight | Up to 236kg |
| Maximum Recommended Door Size | 18m2 |
| Minimum Head Room Requirement | 57mm |
| Rated Frequency | 50Hz/60Hz |
| Rated Power Input | 165W |
| Rated Voltage Range |
230-240V a.c. 50Hz
|
| Receiver Type |
Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz)
|
| Coding System | TrioCode128, code hopping |
| Code Combinations | 3.4x1038 code combinations |
| Transmitter Capacity |
64
|
| Main Light | LED (Light Emitting Diodes) |
| Network Connectivity | Smart Phone Ready |
WARNING! This product may contain a button/coin cell battery. To prevent possible SERIOUS INJURY or DEATH:
- Keep new and used batteries out of reach of children at all times.
- Do not use the product if the battery compartment is damaged or doesn’t close securely.
- Dispose of used batteries immediately and safely - even flat batteries can cause harm.
- Do not ingest the battery. Chemical burn hazard.
- Act fast if you suspect a battery has been swallowed or inserted - severe or fatal injuries can occur within 2 hours.
- Seek immediate medical attention or call:
– Australia: Poisons Information Centre on 13 11 26
– New Zealand: National Poisons Centre on 0800 764 766
