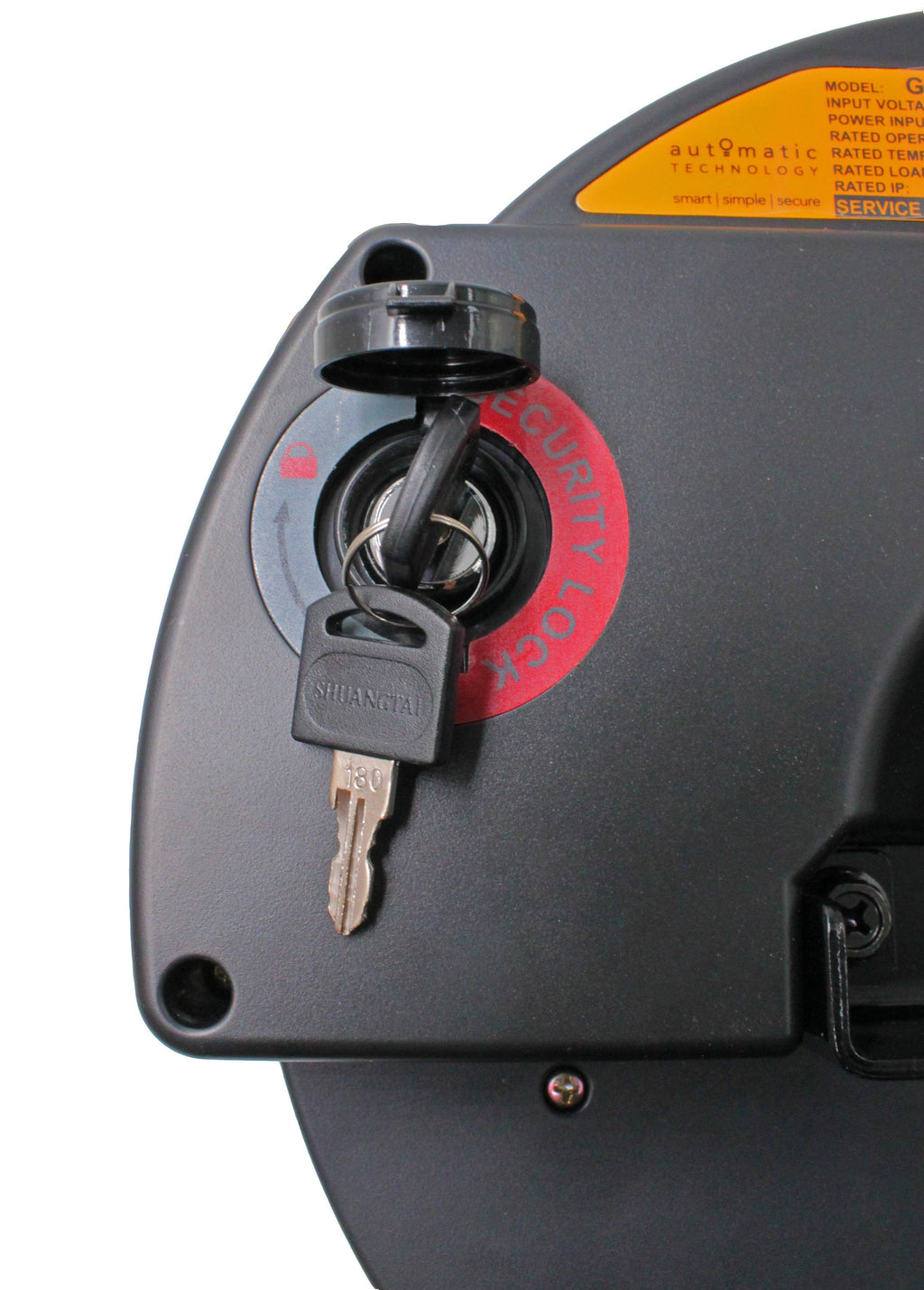

Standard features also include Intelligent Safety System, Door Profiling and Automatic Technology's own TrioCode transmitter system. This opener will tell you when it's due for a service and prevents unauthorised entry with a built-in lockout system. If you need a solution to last in all weather conditions then this is the opener for your door.
Features:
- Easy to install
- Quiet and efficient to run
- TrioCode 128 Technology
- Automatic Limit Positioning System
- Weather Resistant
- Slim Fit

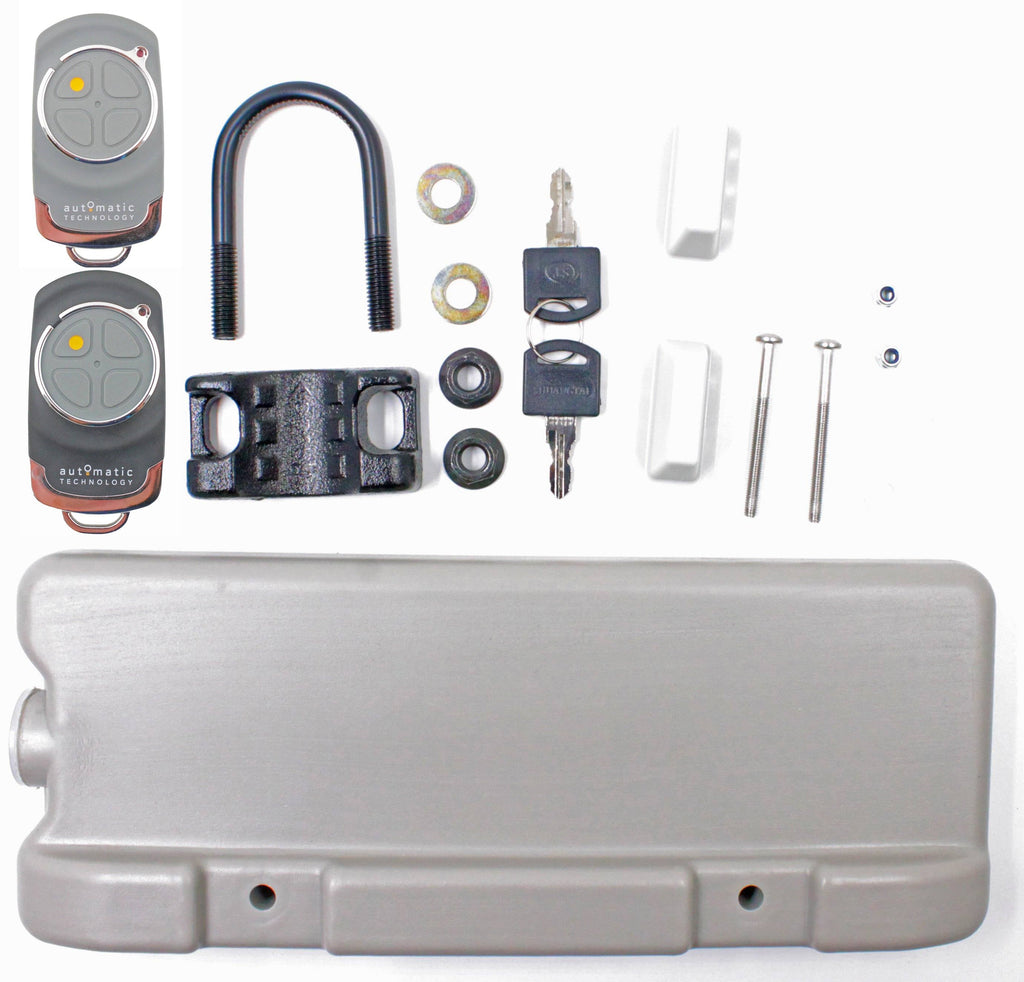

Included:

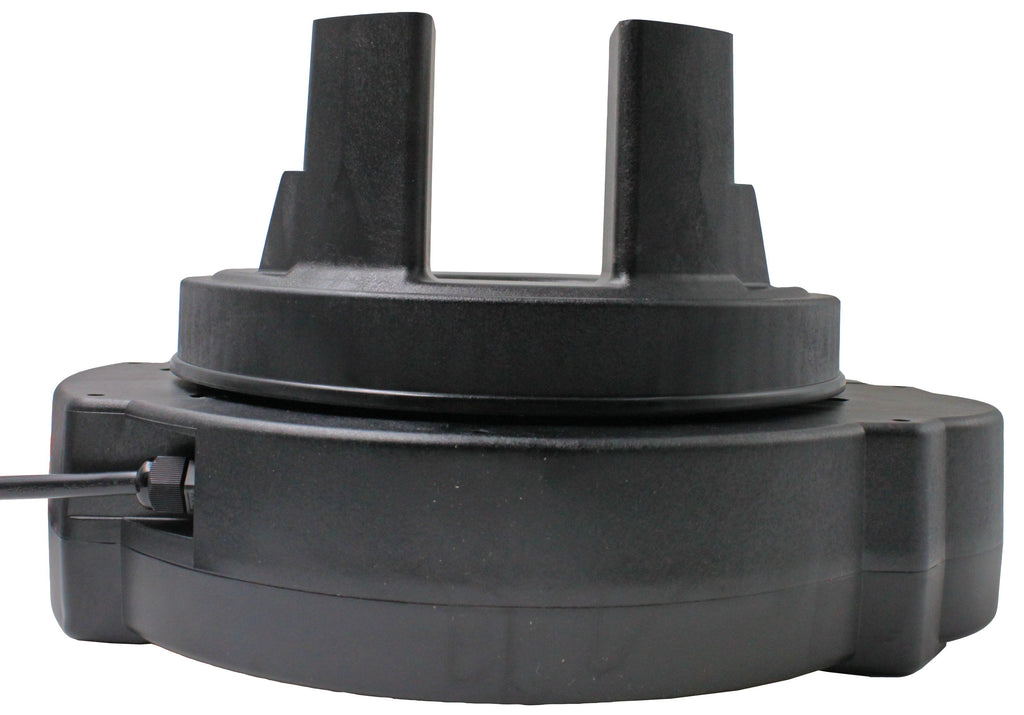

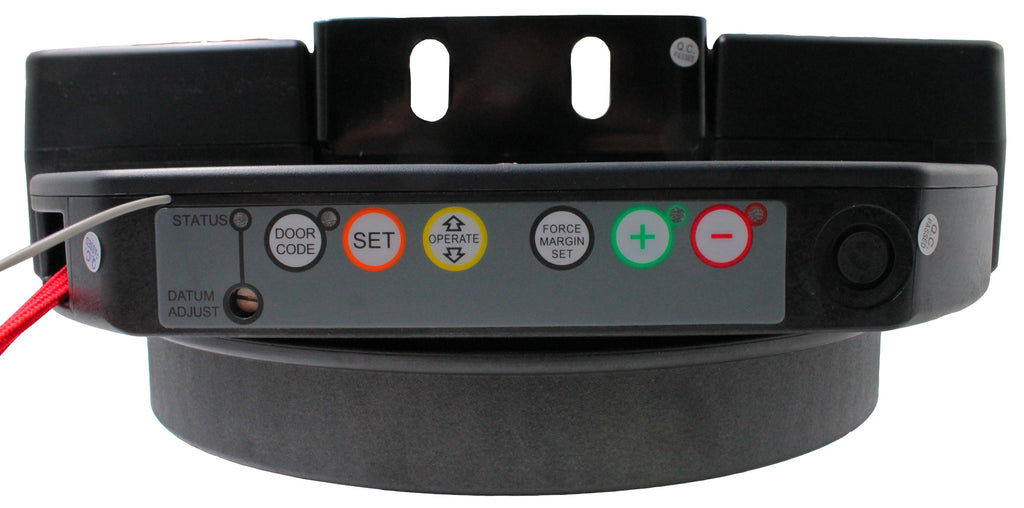

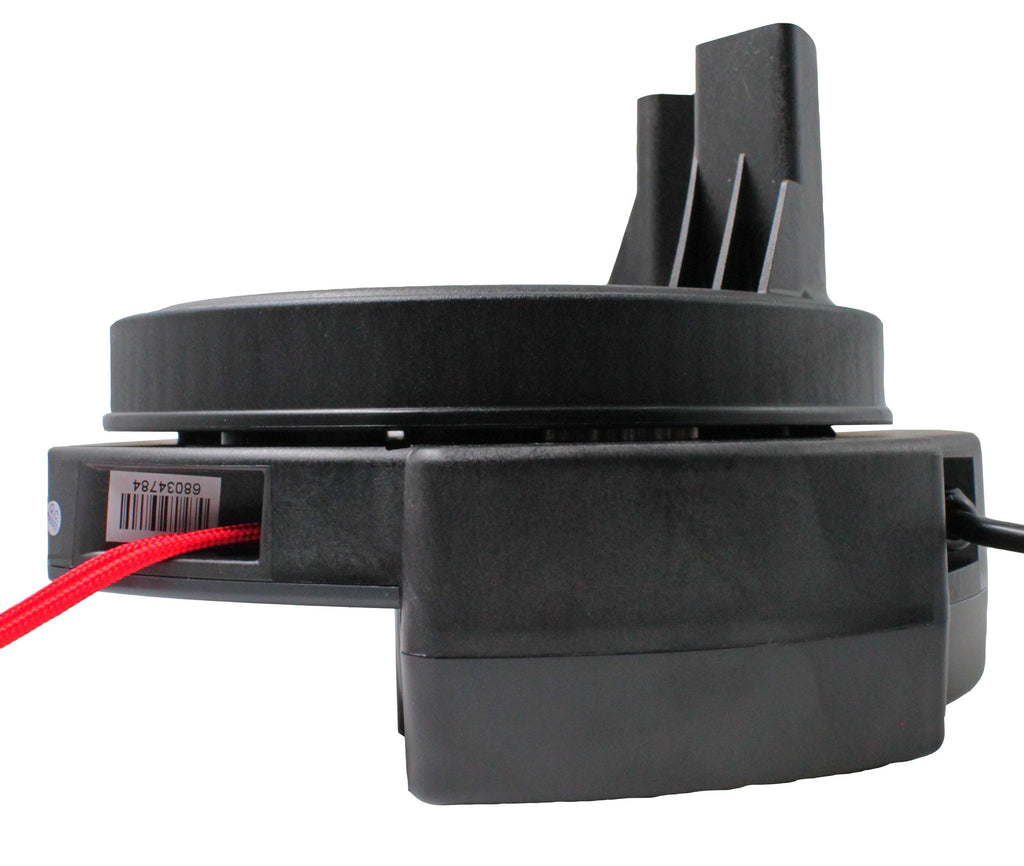

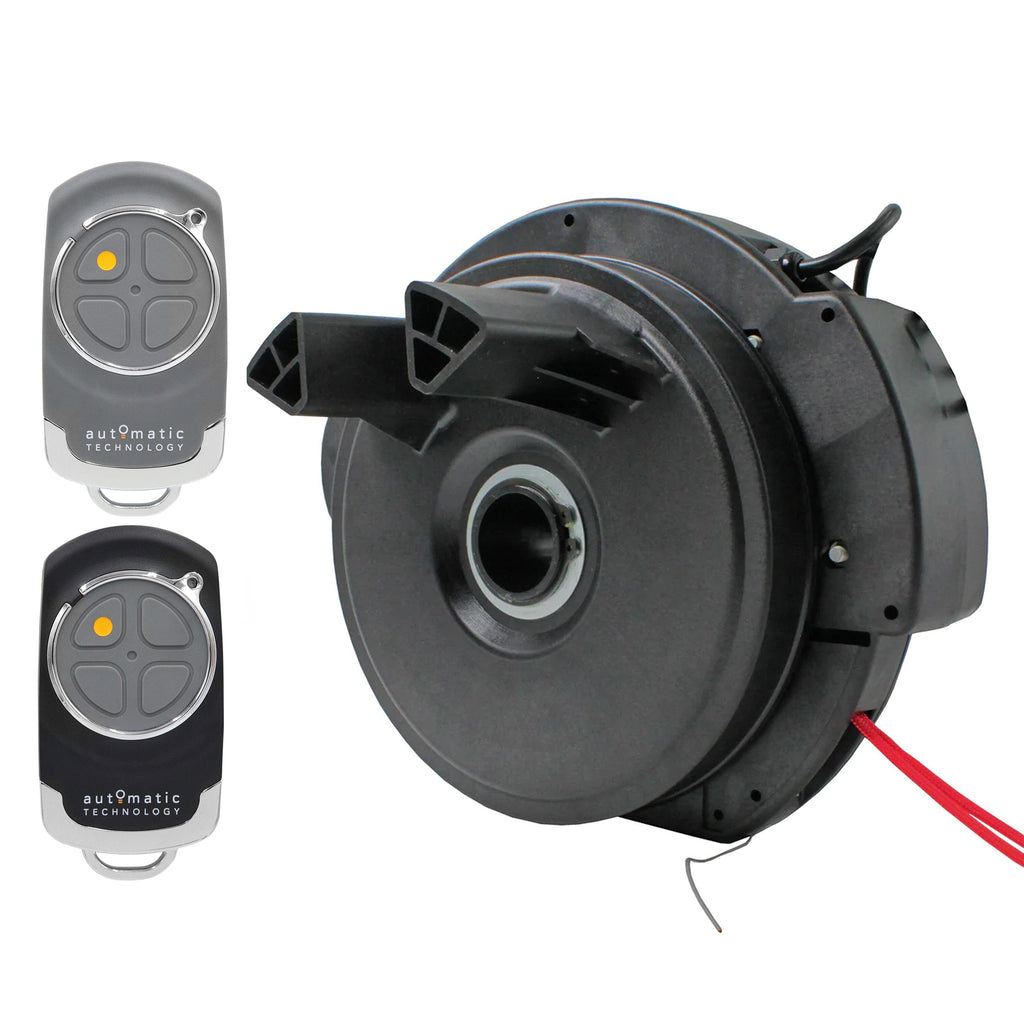

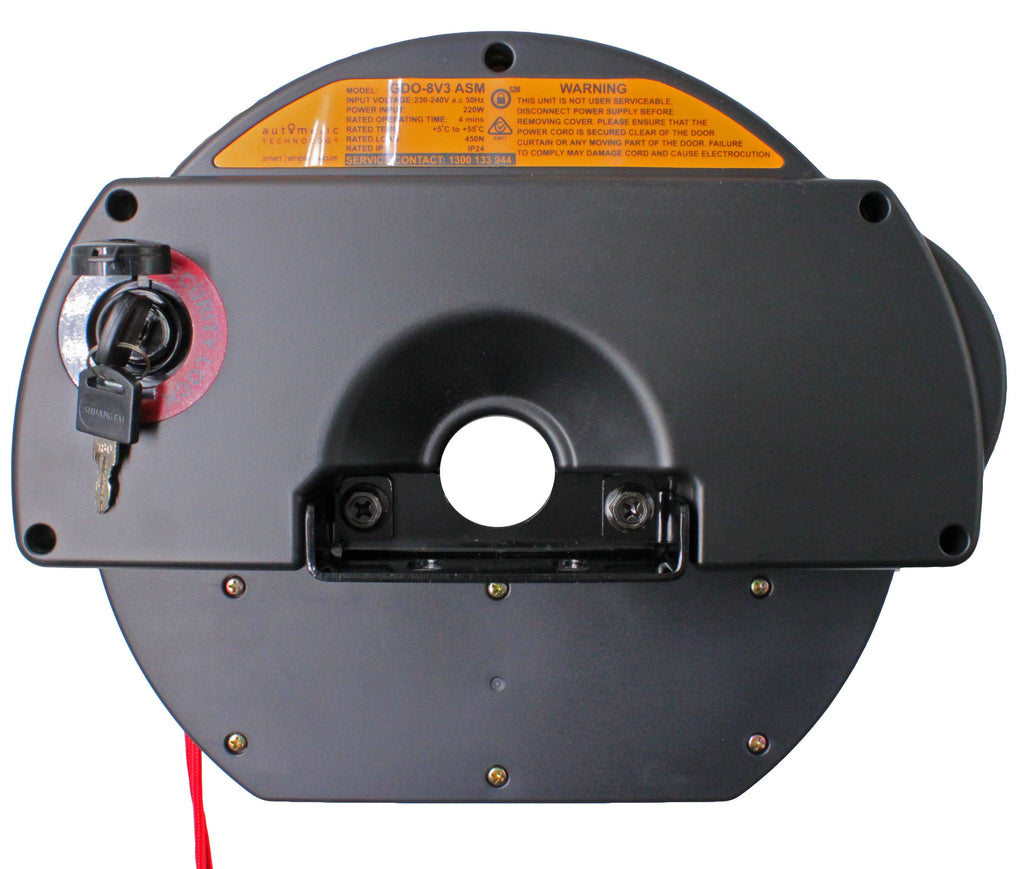

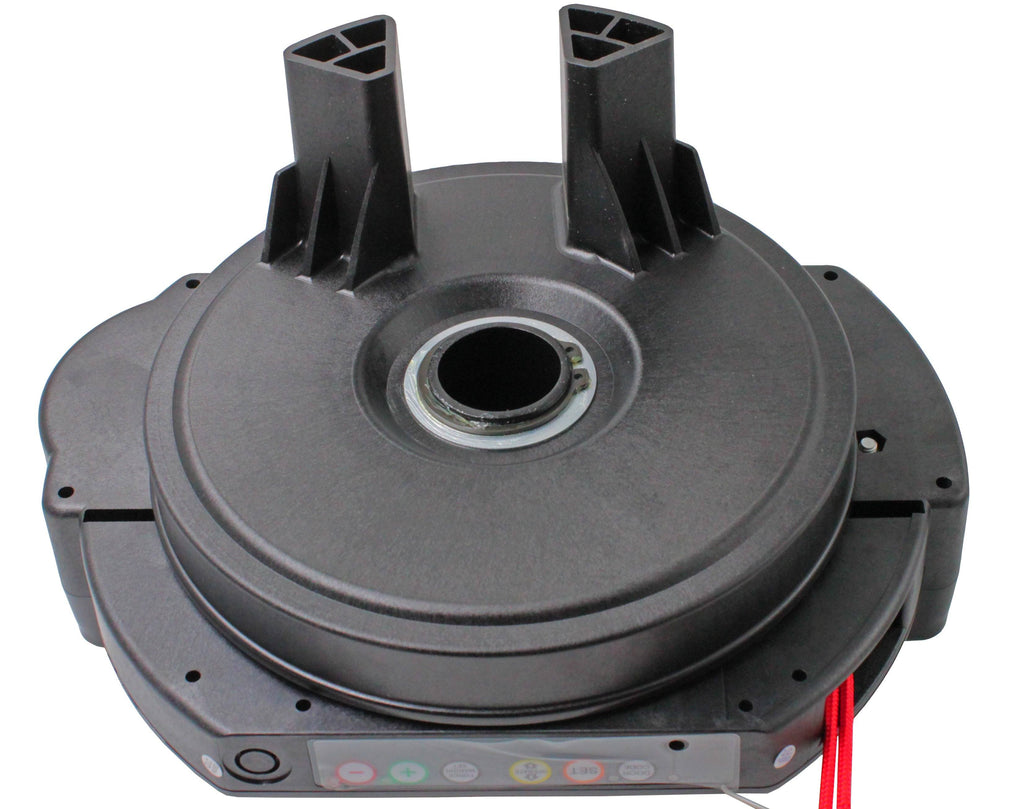

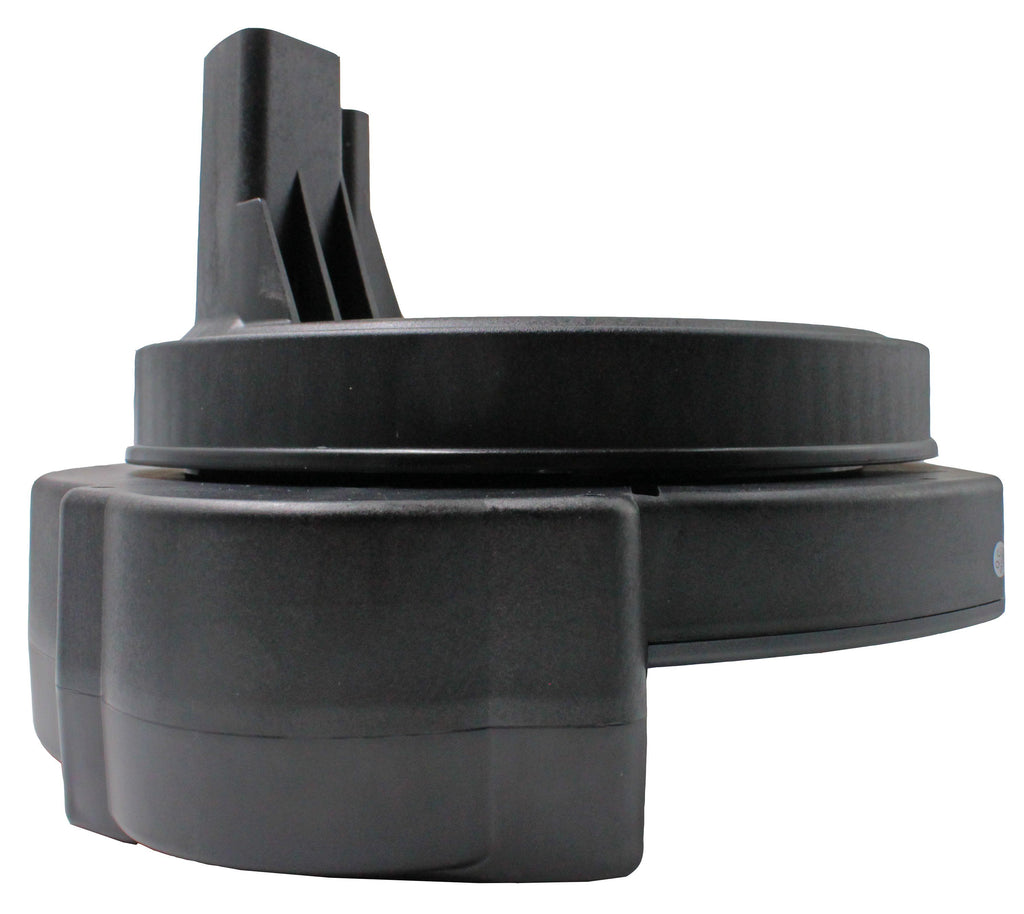

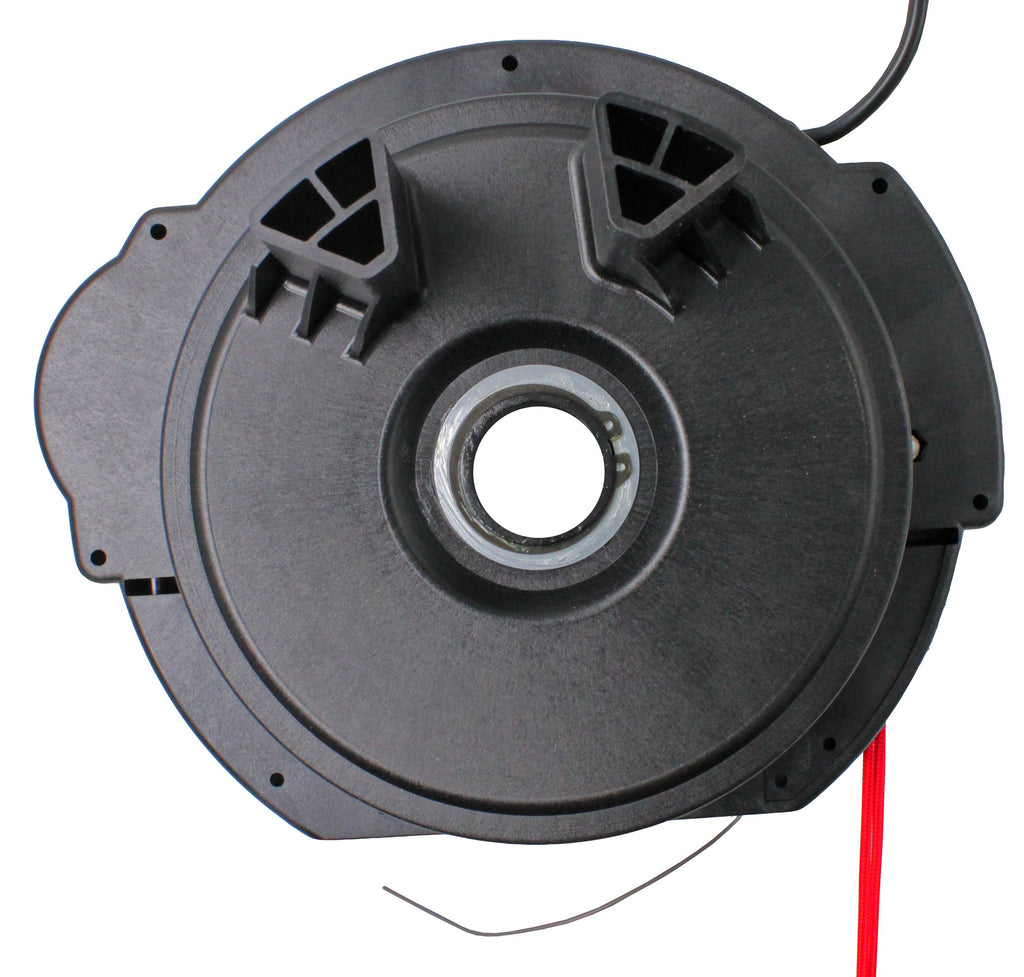

1 x GDO-8v3 Motor (GEN 2)
2 x PTX5v2 Remotes
1 x Installation Instructions
2 Years Manufacturers Warranty*
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
| Power supply: | 230 - 240Va.c. 50Hz |
| Maximum Door Height: | 3.25 turns of the drum wheel (approx. 3000mm) |
| Maximum Door Weight: | 100kg |
| Maximum Door Area: | 16.5m2 |
| Minimum sideroom: | 40mm |
| Lift Force: | 450N |
| Nominal force: | 120N (12kg) |
| Receiver type: | Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz) |
| Remote Memory Capacity: | 8 |
| Coding System: | TrioCode 128 Type |
| Coding type: | Code Hopping |
| Number of code combinations: | Over 100 billion random codes |
| Transmitter battery: | CR2032 (3 Volts) |
| Courtesy light: | Light Module (Optional) |
| Network connectivity: | Not Available |
