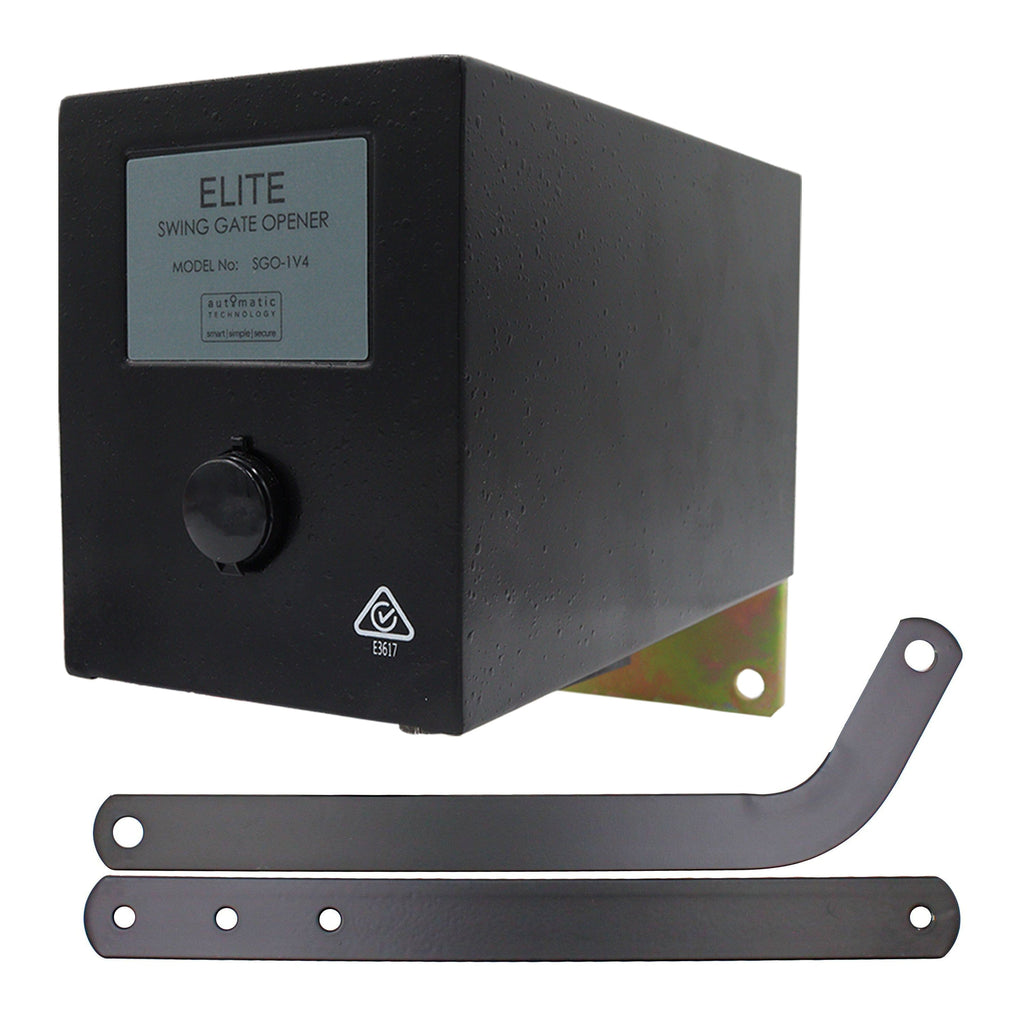

A proven design that has endured for over 15 years, the performance and strength of the Elite® SGO-1 has made it an industry icon. This unassuming looking opener features a powerful DC motor, robust gearing, articulated arms for smooth operation, and configurability with 2, 3 or 5 wire installs.

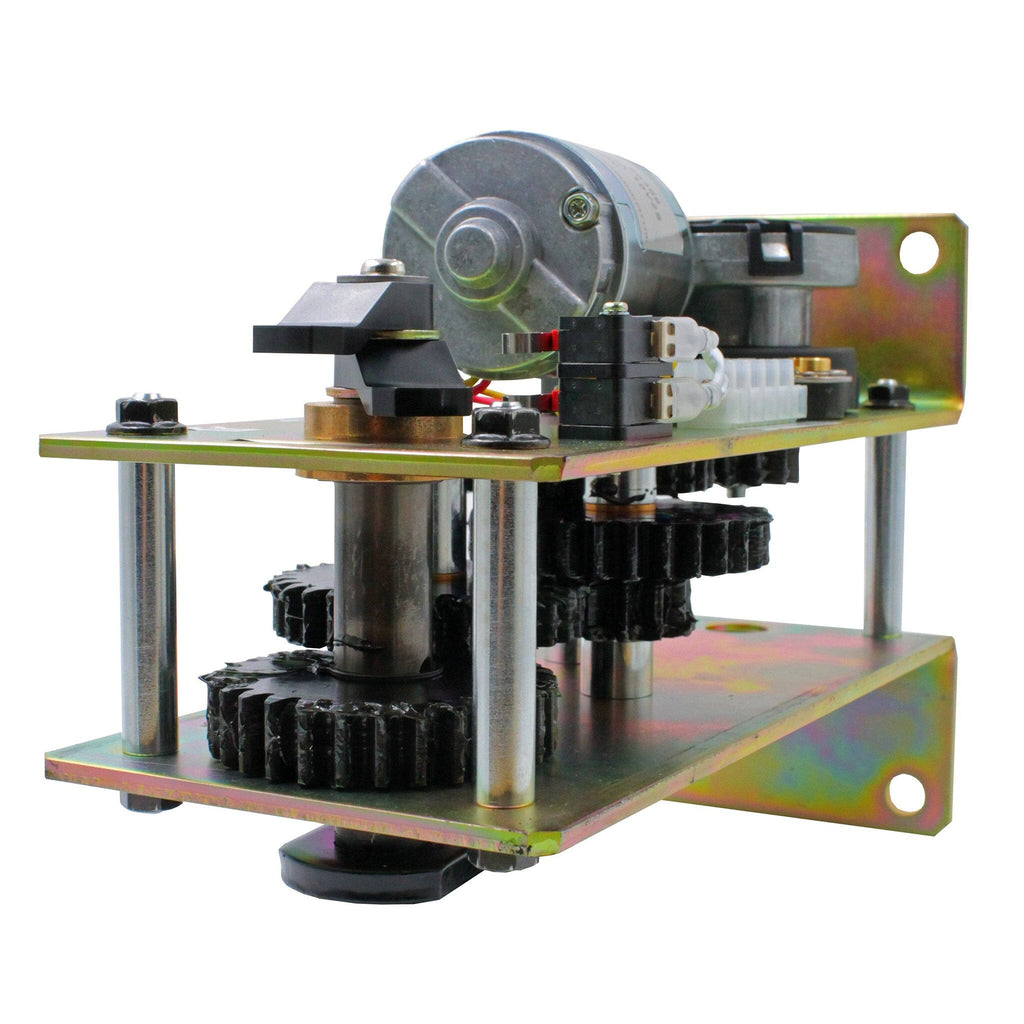

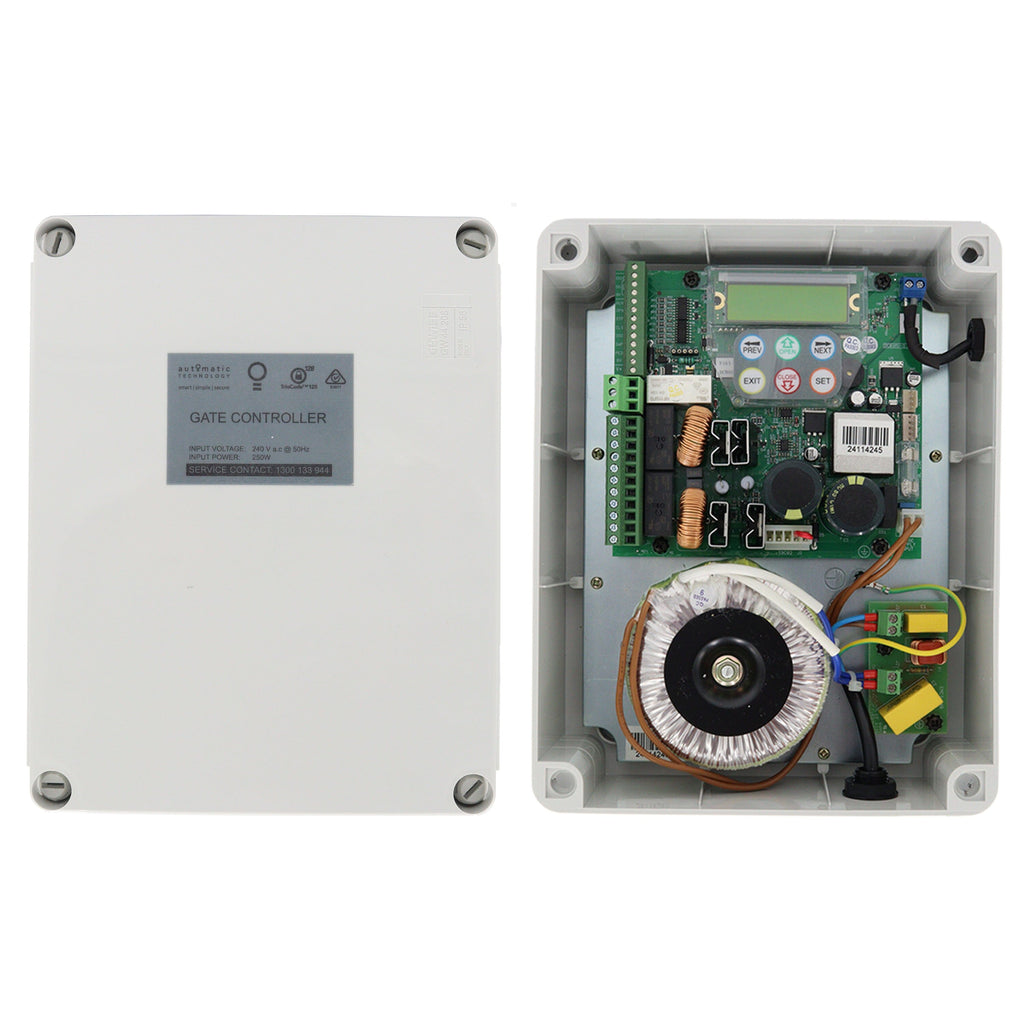

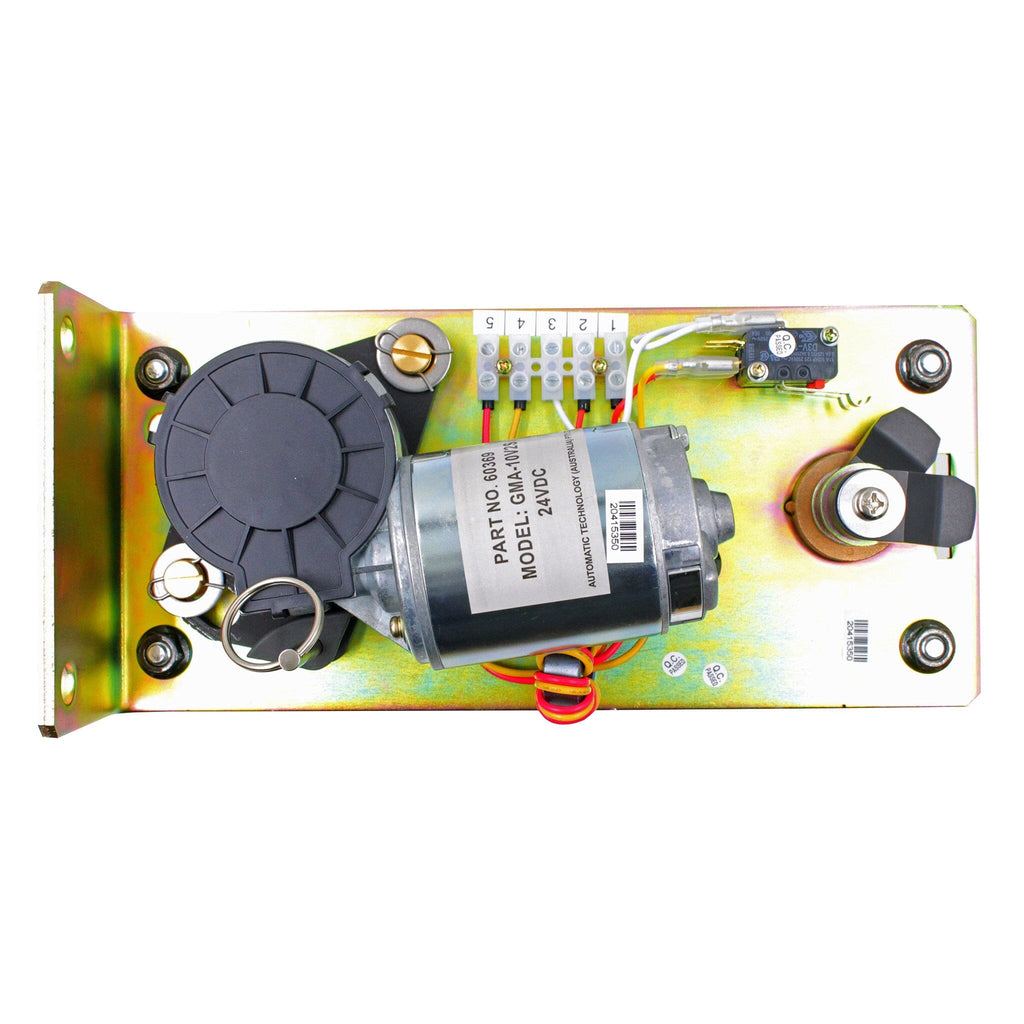

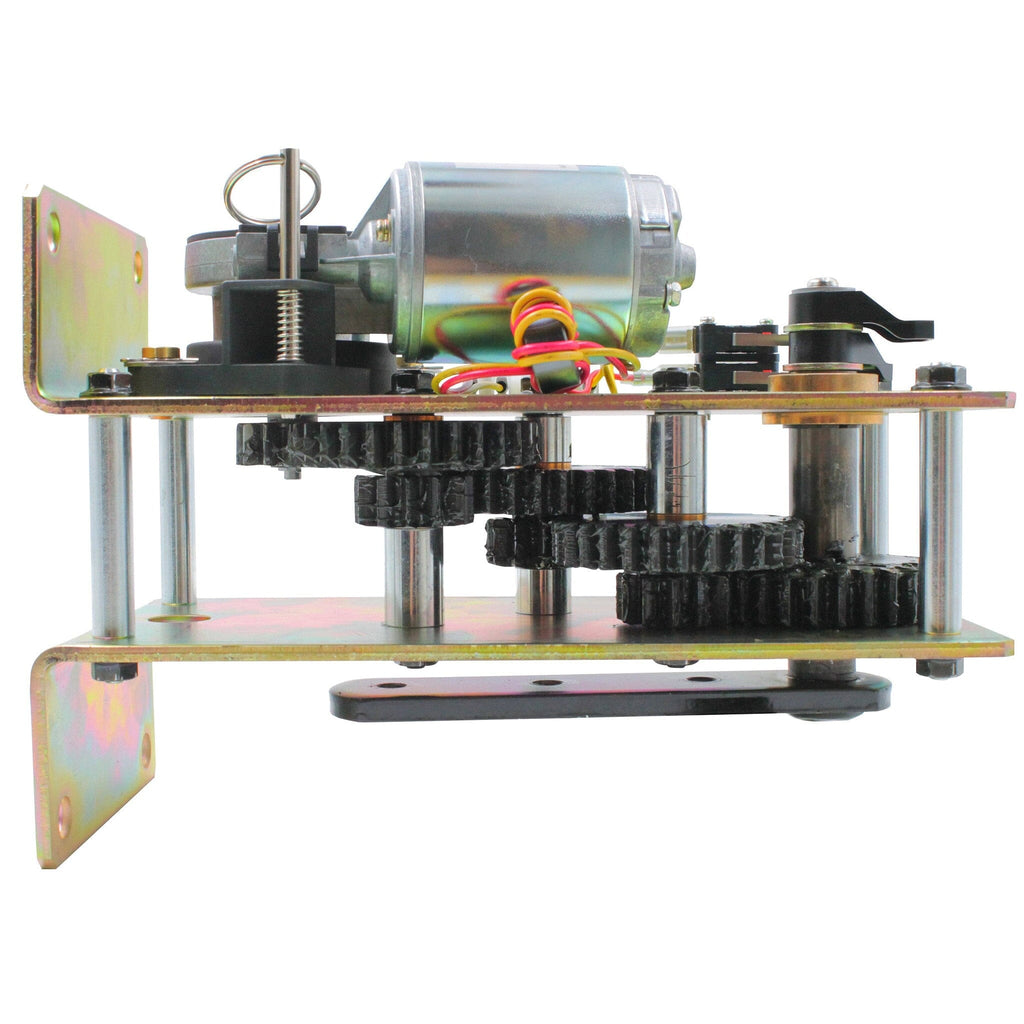

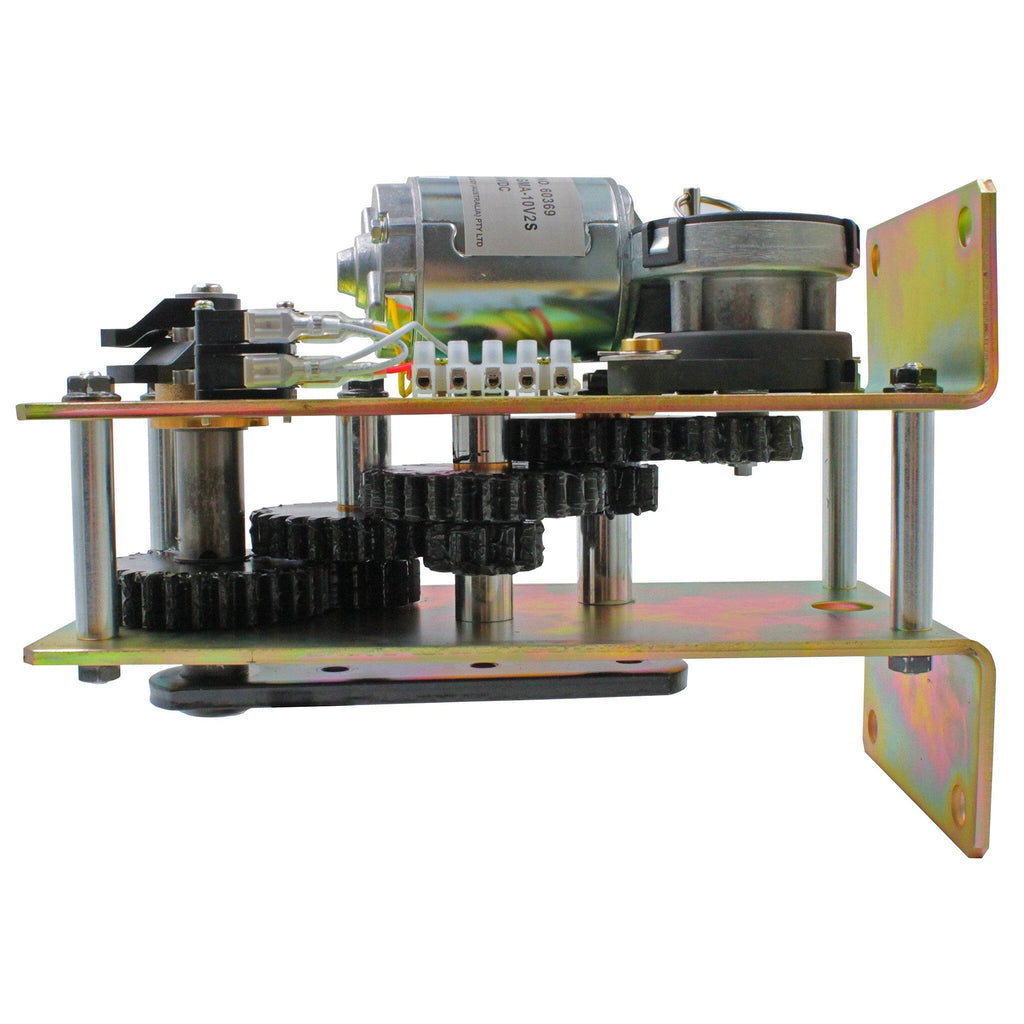

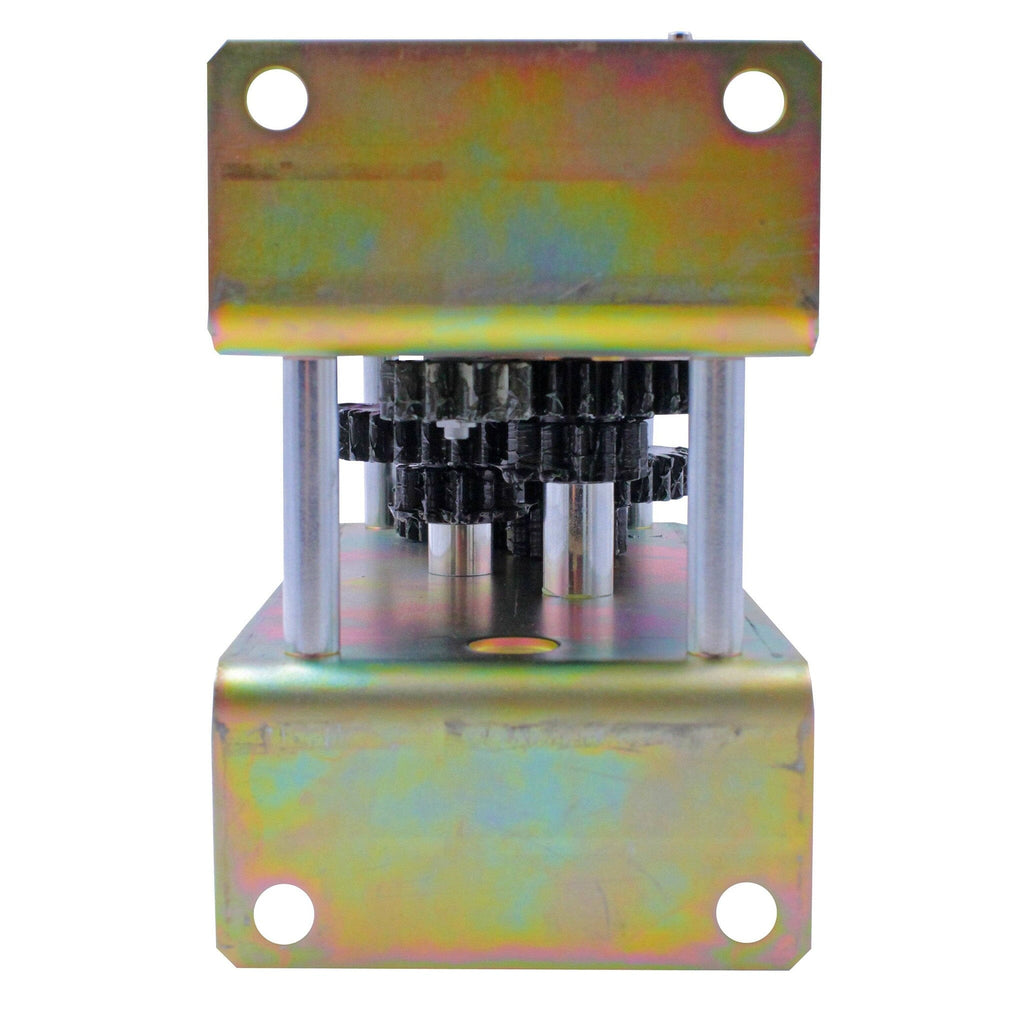

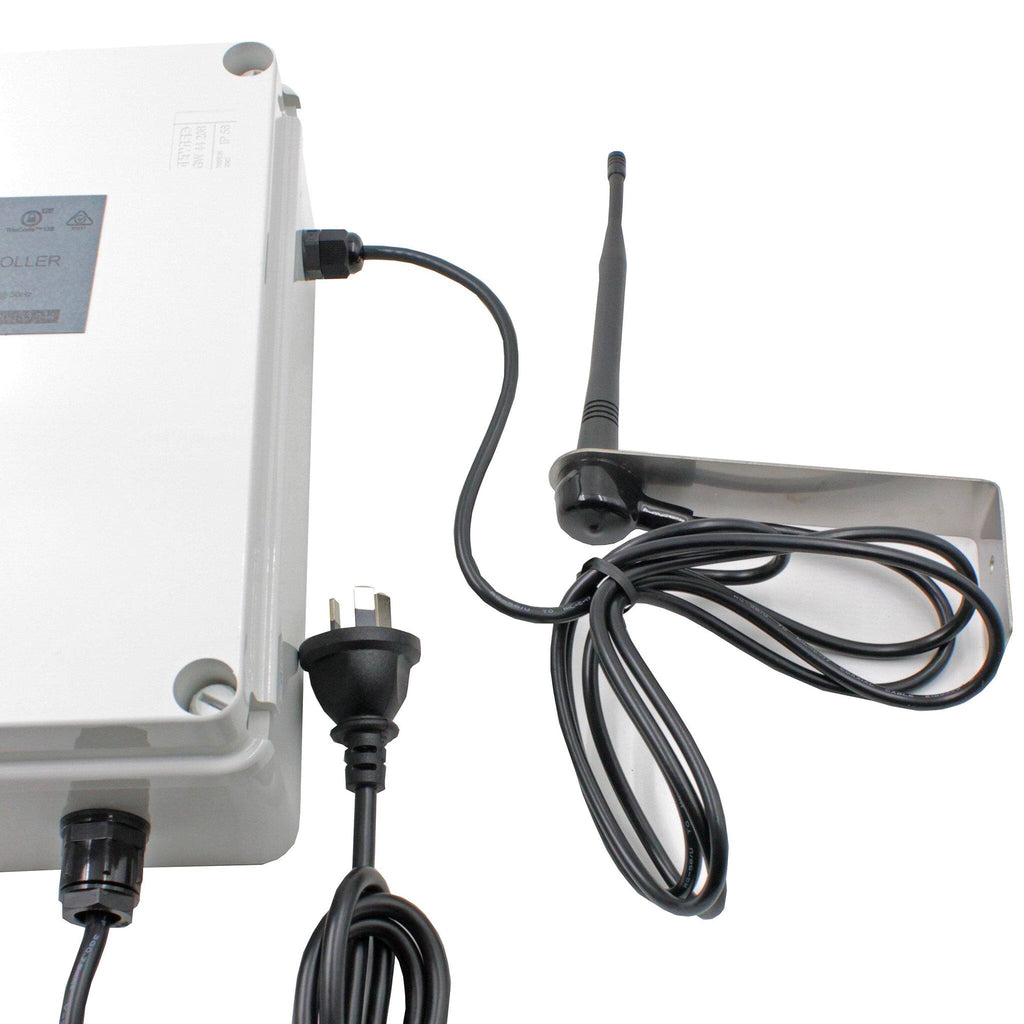

The Elite® SGO-1 is tough, weather-resistant and built for Australian conditions. At its heart is a powerful DC motor linked to a robust, low maintenance gearbox. This power is transferred to the articulated drive arms, which offer smooth operation and reduced stress on the entire installation. Rounding out this reliability mix are highly effective micro-switch limits that reduce complication and enhance longevity. When paired with our DCB-05 Control System it provides a host of operating modes and variations in performance to suit your needs.
With the advance of solar technology, it makes great sense to save money, reduce your carbon footprint, and simplify the complexity of some installs.

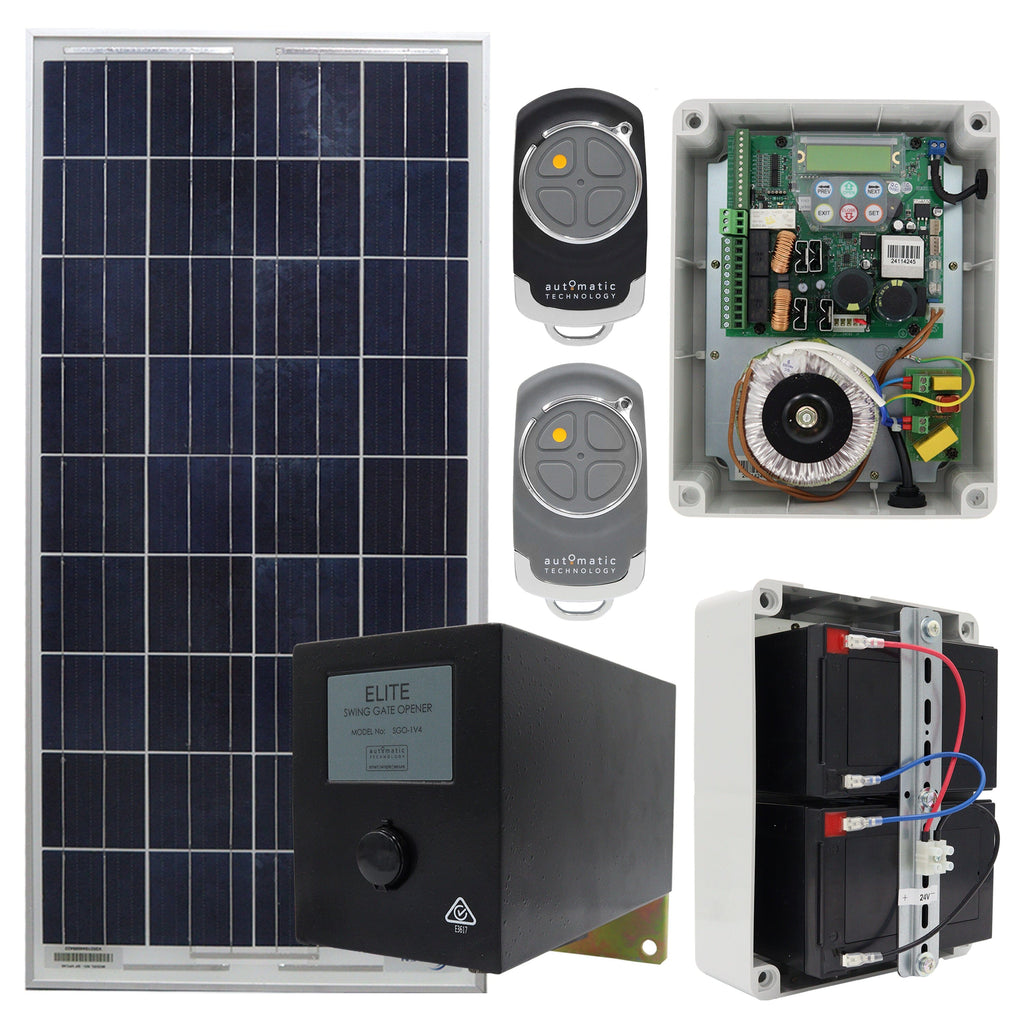

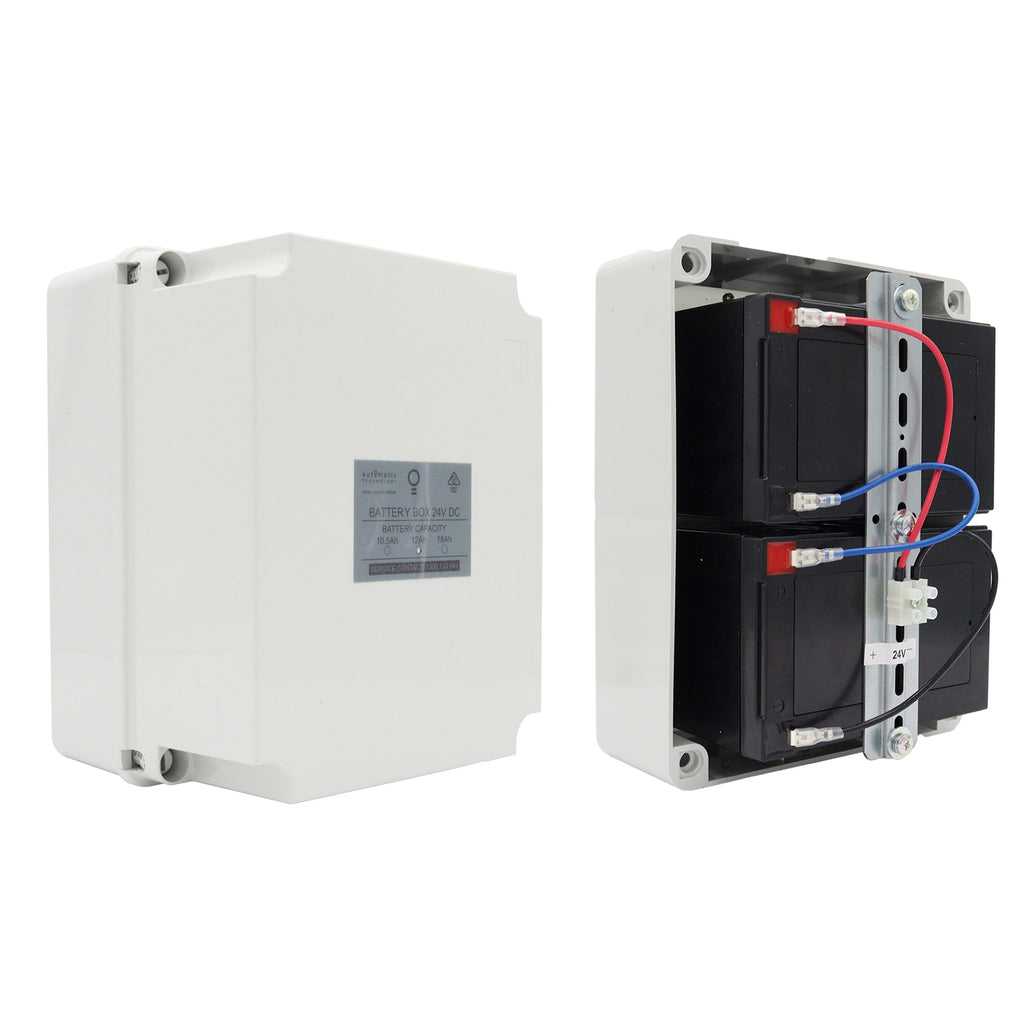

Your gate opener can be powered continually using the sun€™s energy through ATA's SmartSolar Ready Solar Power system. The system€™s efficient design requires only a single solar panel per opener, and incorporates a battery system so your opener works at night or during bad weather.
Smart Phone Control is available as an upgrade option. This innovative feature allows you to control and monitor your gate remotely from your smartphone - from anywhere as long as wifi is within range.
Also offering a wide range of accessories to choose from, such as safety beams for to ensure the gate does not close if there is something in the way and backlit digital keypads for added convenience and secure access.
1 x Drive Arm
2 x Accessory Pack
1 x Installation Instructions
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Travel speed |
8° per second
|
|
|
|
|
|
|
|
|
|
|
|
|
| SmartSolarV2 Technical Specifications* | Garage Door | Sliding Gate | Swing Gate |
| Load Voltage | 24 | 24 | 24 |
| Load Continuous Current | 3 - 5A | 5A | 5 - 10A |
| Number of Cycles per Day | 10 | 10 | 10 |
| Average Cycle Time (Opening and Closing) | 40 seconds | 90 seconds | 72 seconds |
|
Max. Standby Current Without P.E. Beams With P.E. Beams With 2 x P.E. Beams |
100mA 180mA - |
100mA 180mA - |
100mA 180mA 260mA |
|
Average total consumption current per day Without P.E. Beams With P.E. Beams With 2 x P.E. Beams |
2.75 - 3Ah 4.66 - 4.8Ah - |
3.7Ah 5.55Ah - |
3.4 - 4.4Ah 5.31 - 6.3Ah 7.23 - 8.23Ah |
|
Average total consumption current per hour Without P.E. Beams With P.E. Beams With 2 x P.E. Beams |
0.11 - 0.13A 0.194 - 0.2A - |
0.16A 0.23A - |
0.14 - 0.18A 0.22 - 0.26A 0.3 - 0.343A |
| Recommended storage battery capacity / voltage | 10.5Ah/24v | 12Ah/24V | 12 - 18Ah/24V |
| Wire Gauge and Length from Battery to Charger board (max) | 18AWG, 3m | 18AWG, 3m | 18AWG, 3m |
| Solar panel average rated output generation time per day (winter months) | 4 hours | 4 hours | 4 hours |
| Solar Panel Output voltage / current | 18V / 1.19A | 18V / 1.75A | 18V / 1.75A |
