Garage/Gate Photo Beam/Safety Beam Wired PE Sensor

Out of stock

Remote Pro

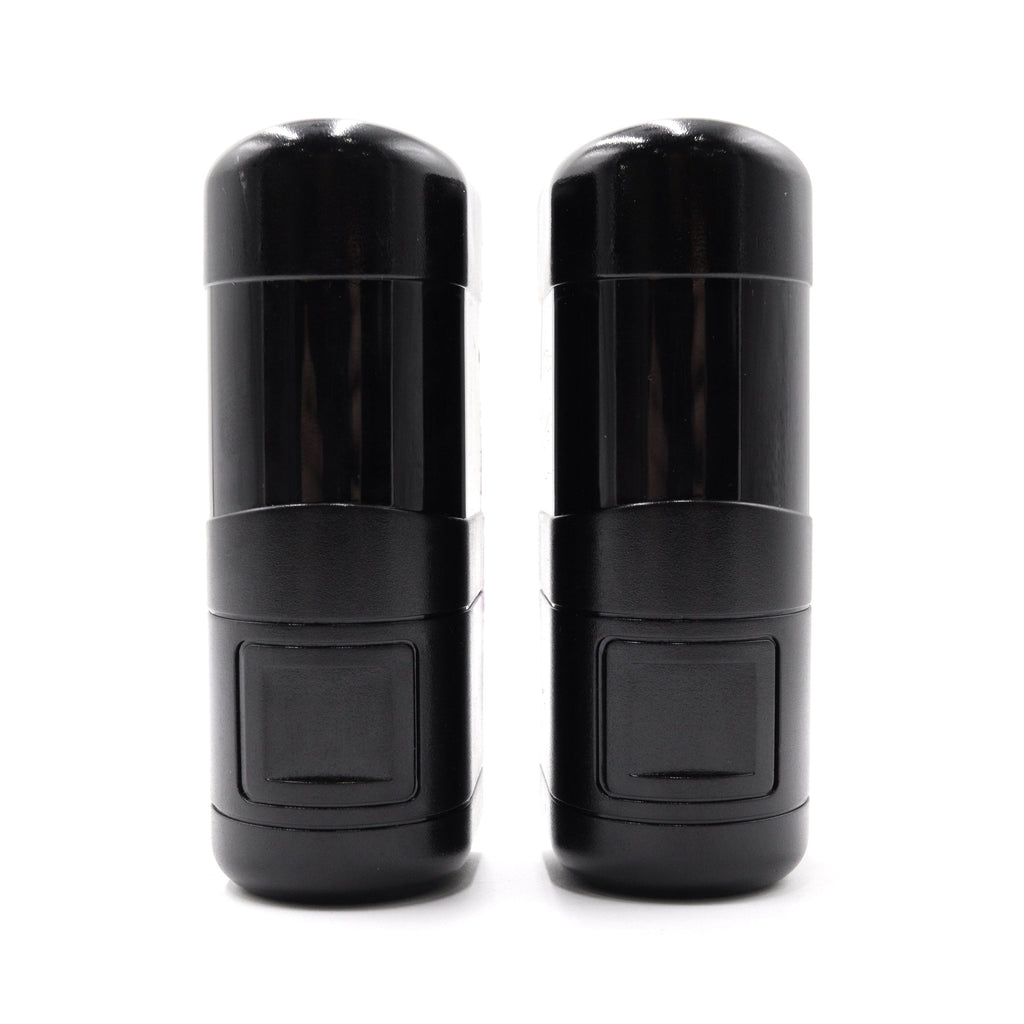

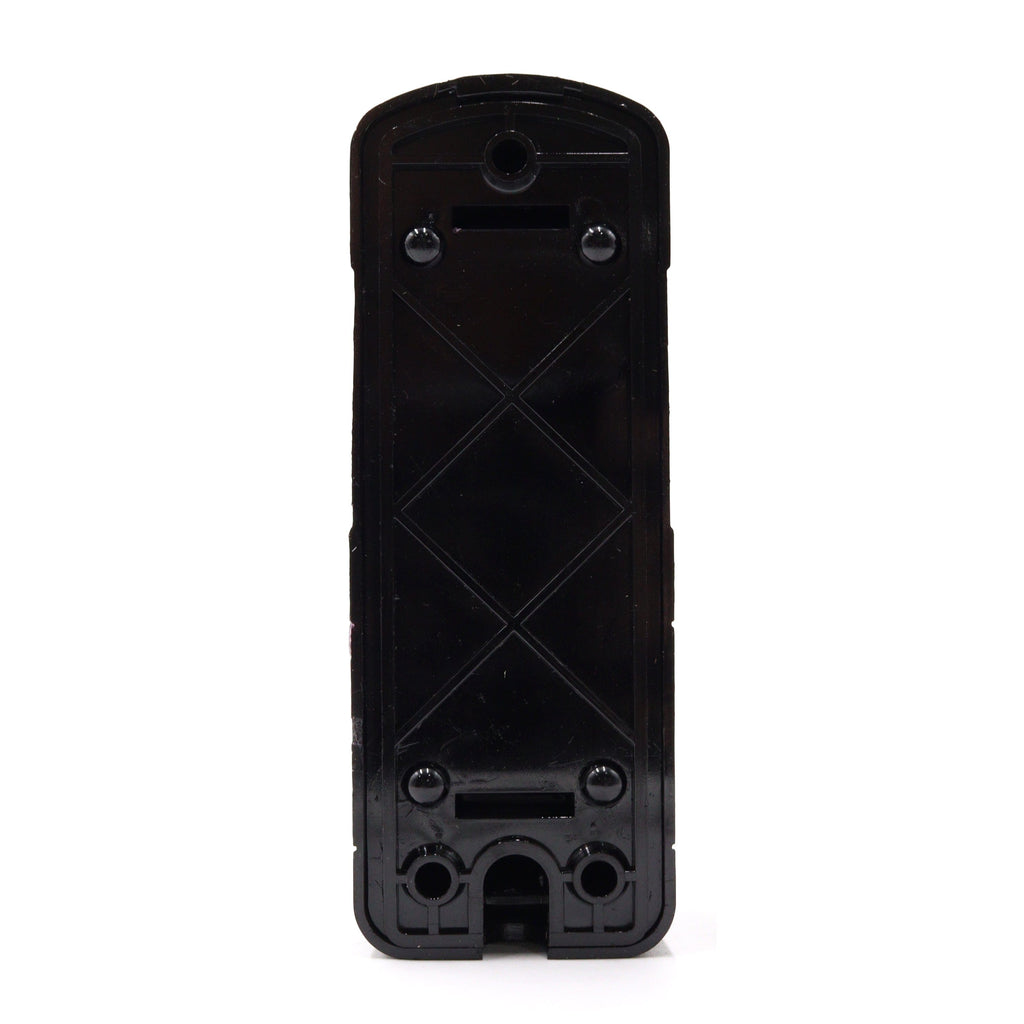

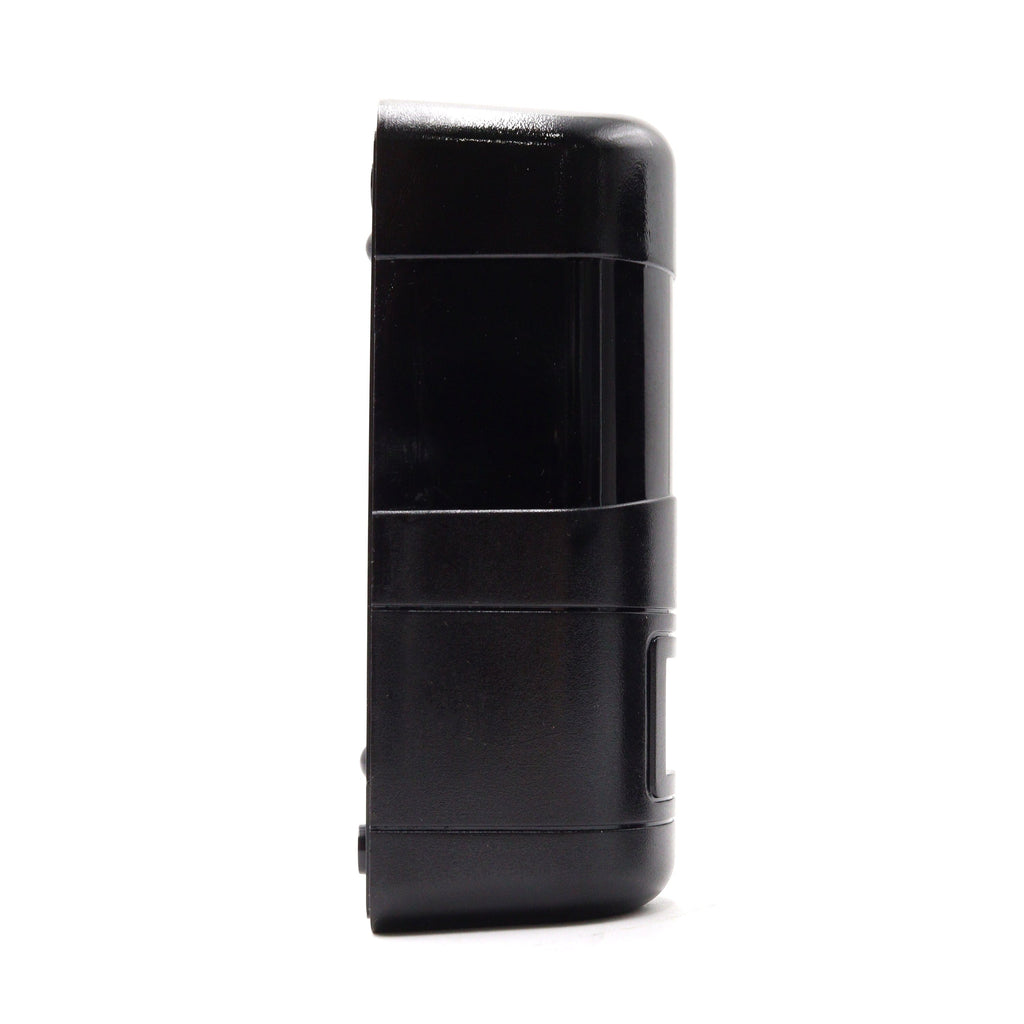

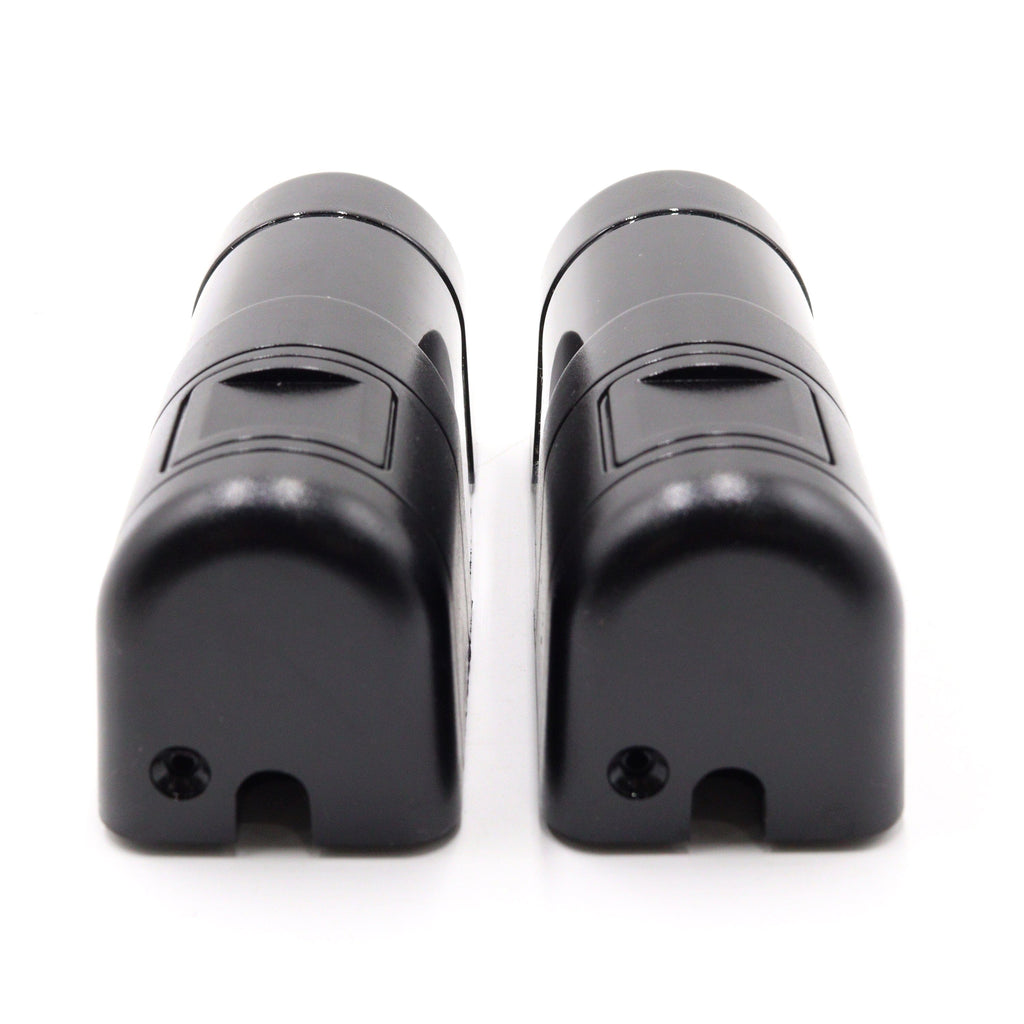

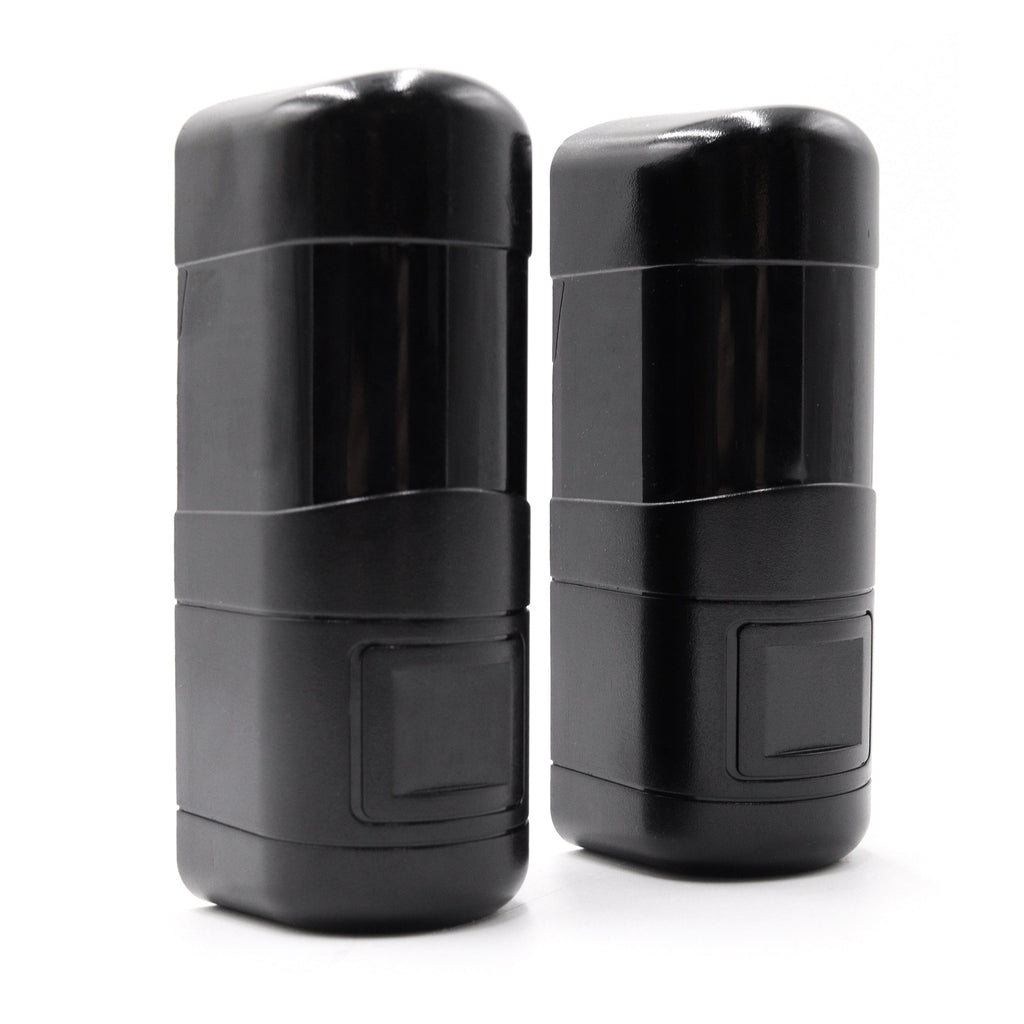

The package includes an infrared transmitter photocell and an infrared receiver photocell, both enclosed in a durable plastic box equipped with a high-power infrared filter. These photocells can be attached to a post by welding or screwing, or directly mounted on a wall using the supplied plugs and screws. Additionally, the connecting cables can be routed through the bottom of the box for a seamless installation.

Technical Specifications:

  • Working Voltage: DC/AC - 12-24V
  • Working Current: Transmitter: ≤30mA; Receiver: ≤50mA
  • Infrared Wavelength: 890nm
  • Operating Distance: ≥12M
  • Adjusting Angle of PCB: ±90°
  • Receiver Relay Contact Output: Max. 1A at 24V DC
  • Operating Temperature: -20℃~+60℃
  • IP: IP54


  • 1x Transmitter Photocell
  • 1x Receiver Photocell
  • 6x Self Tapping Screws
  • 6x Expansion Plugs
  • 2x Post Screws
