Genuine Elsema 915MHz Multicode Receiver 2CH

Out of stock

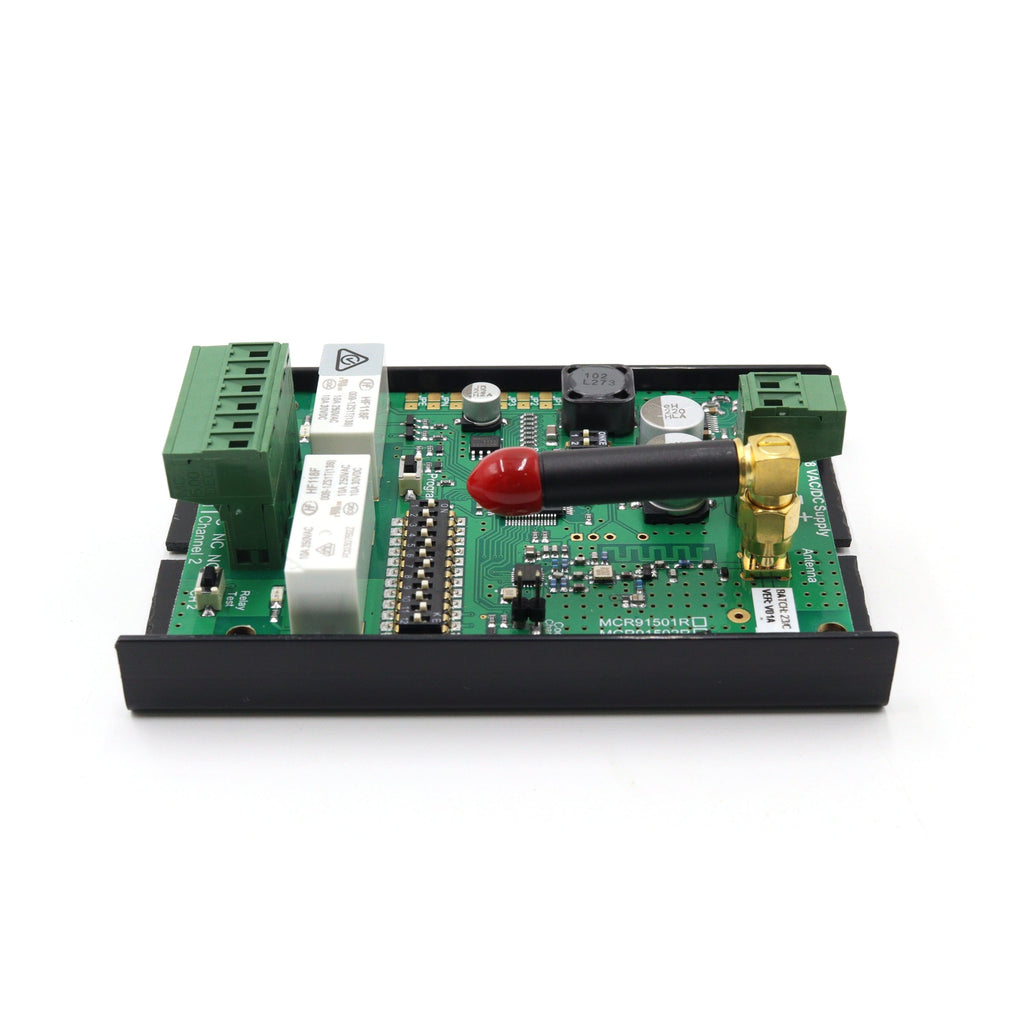

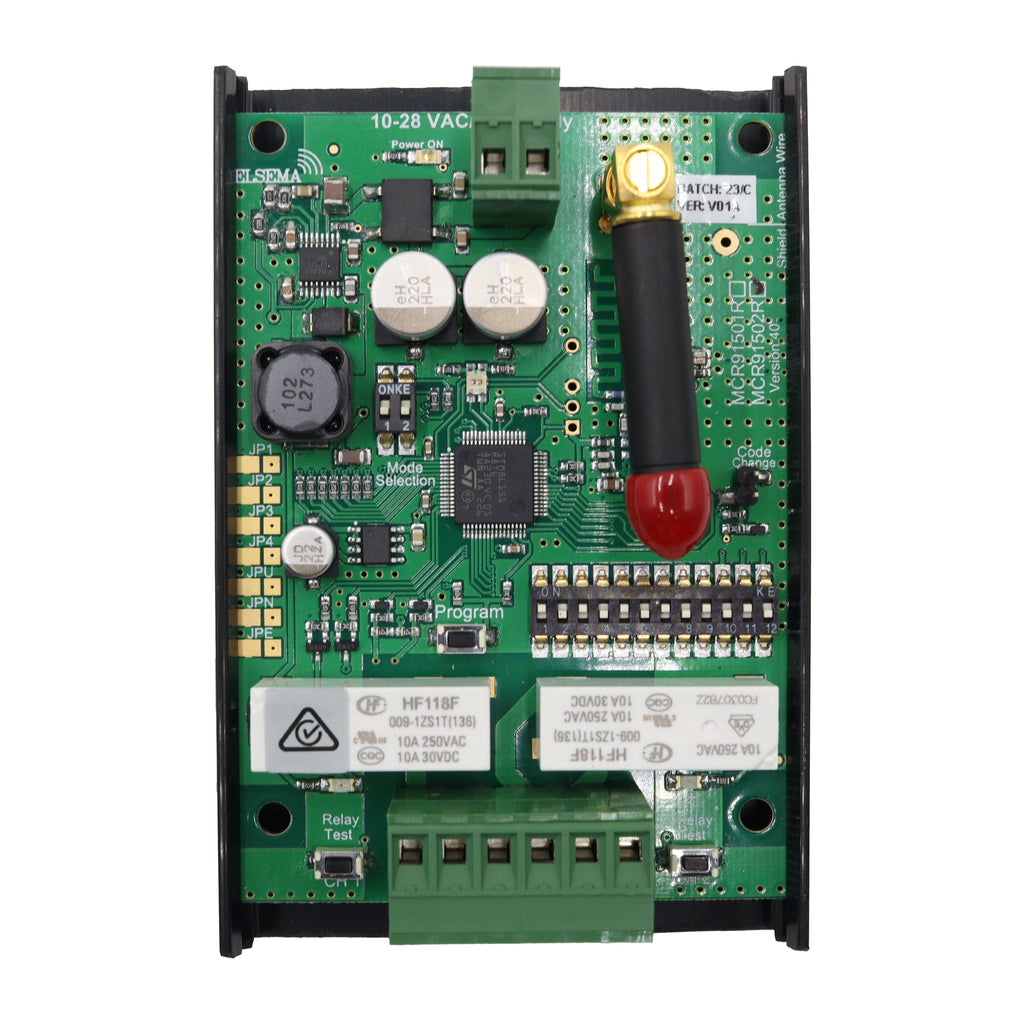

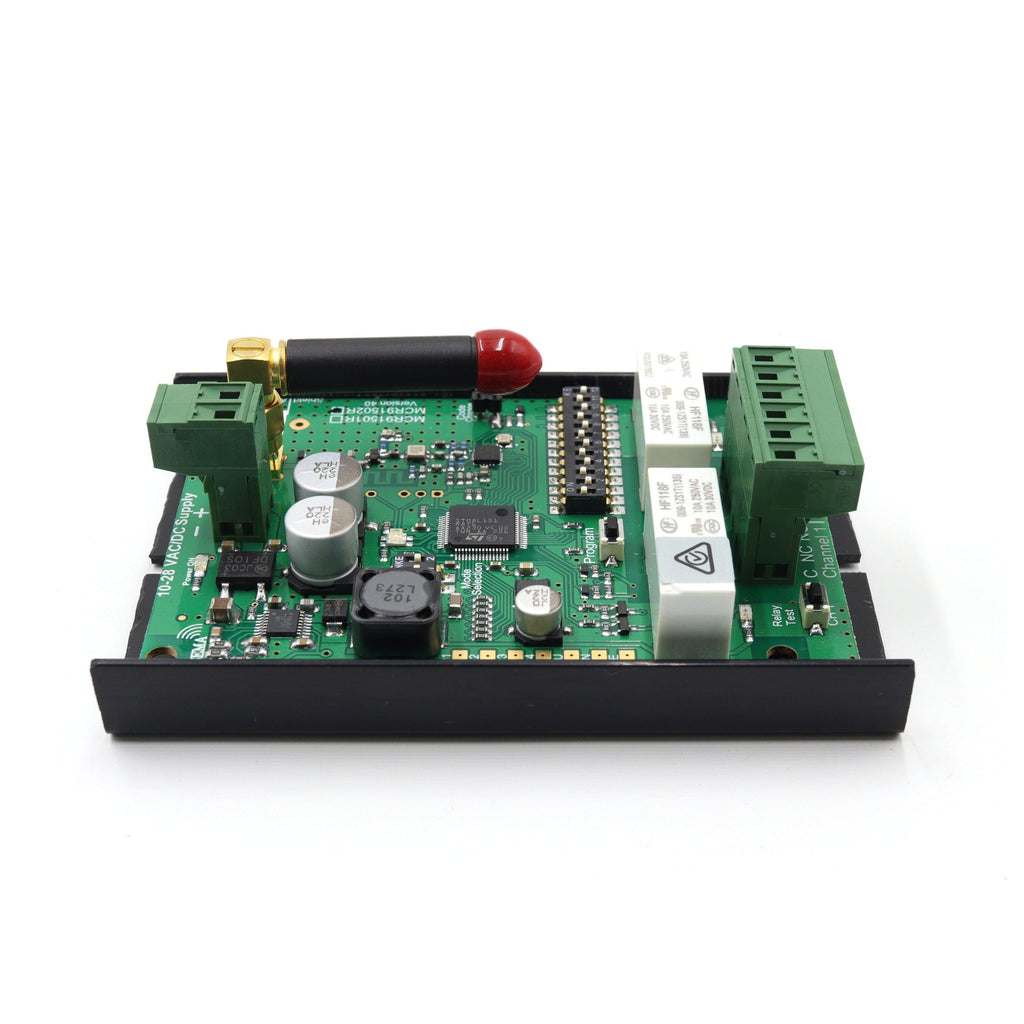

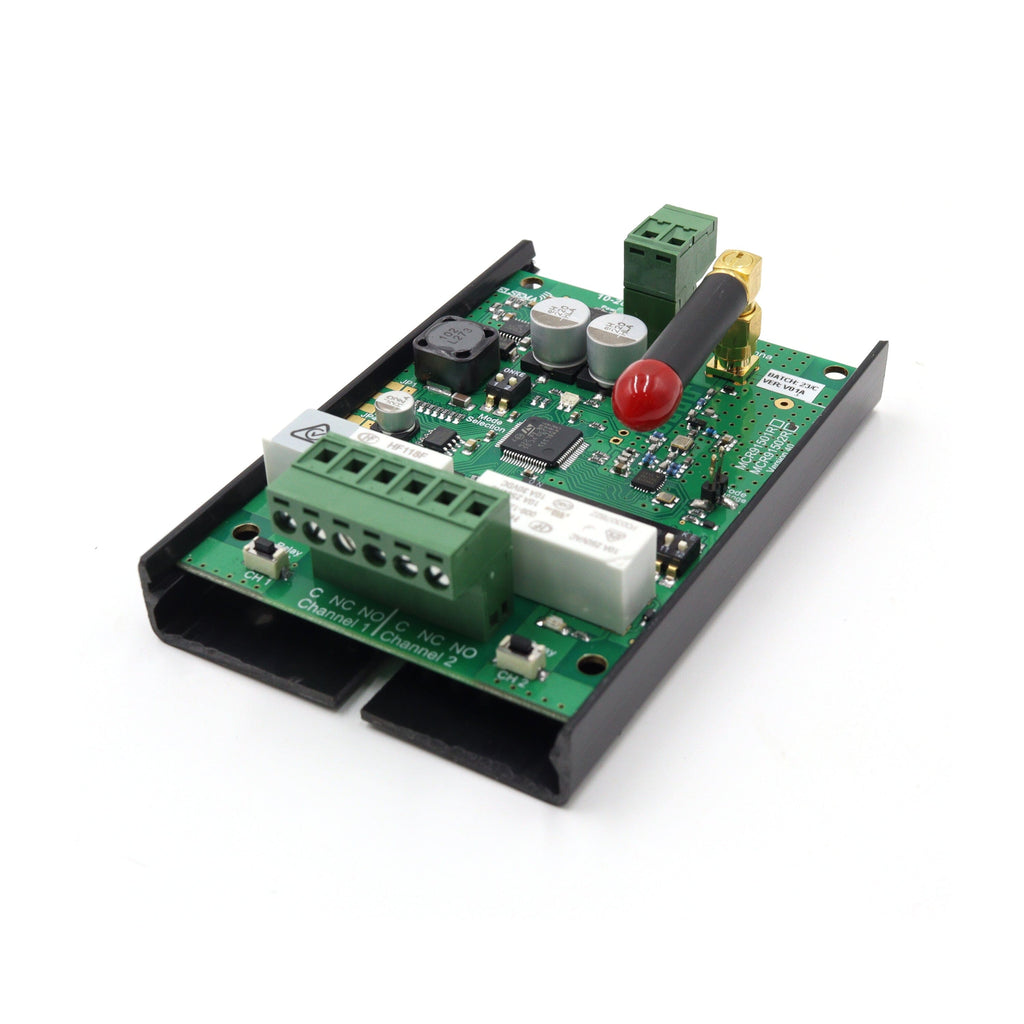

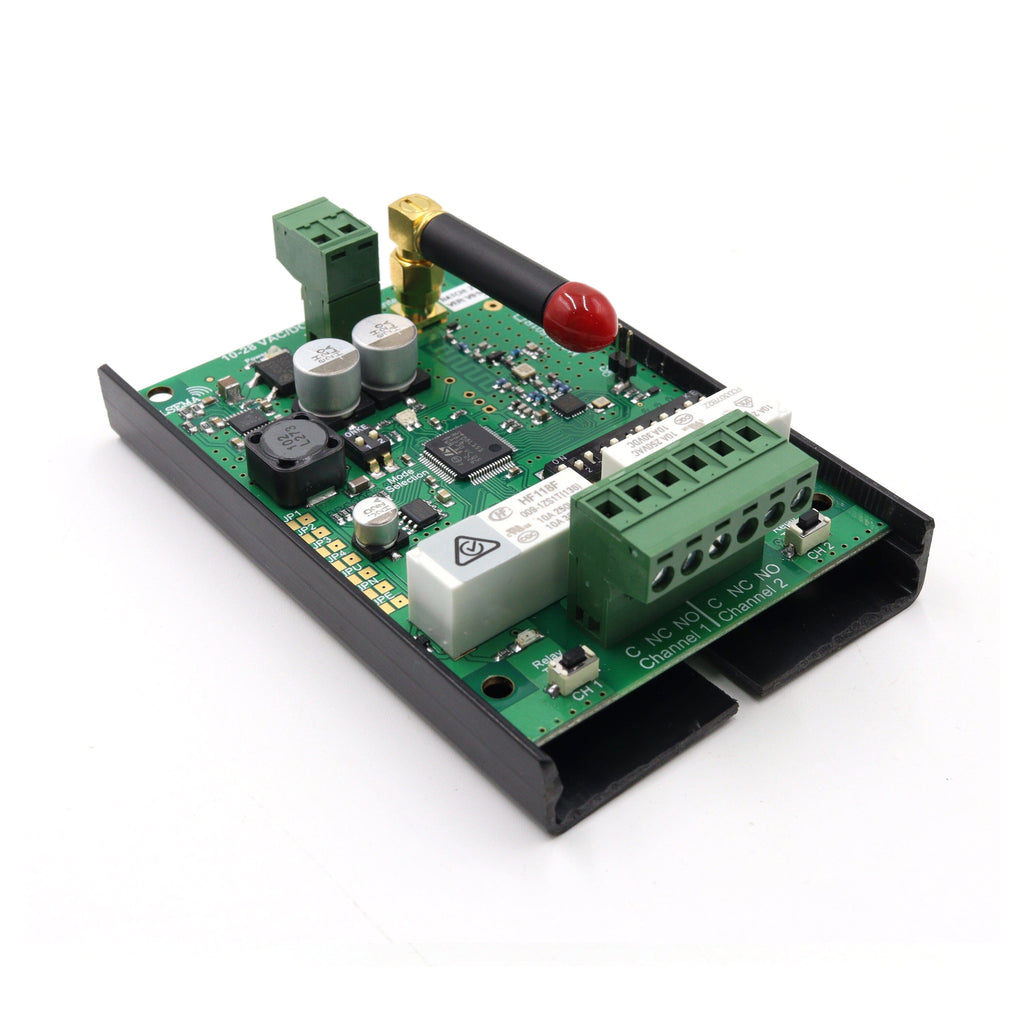

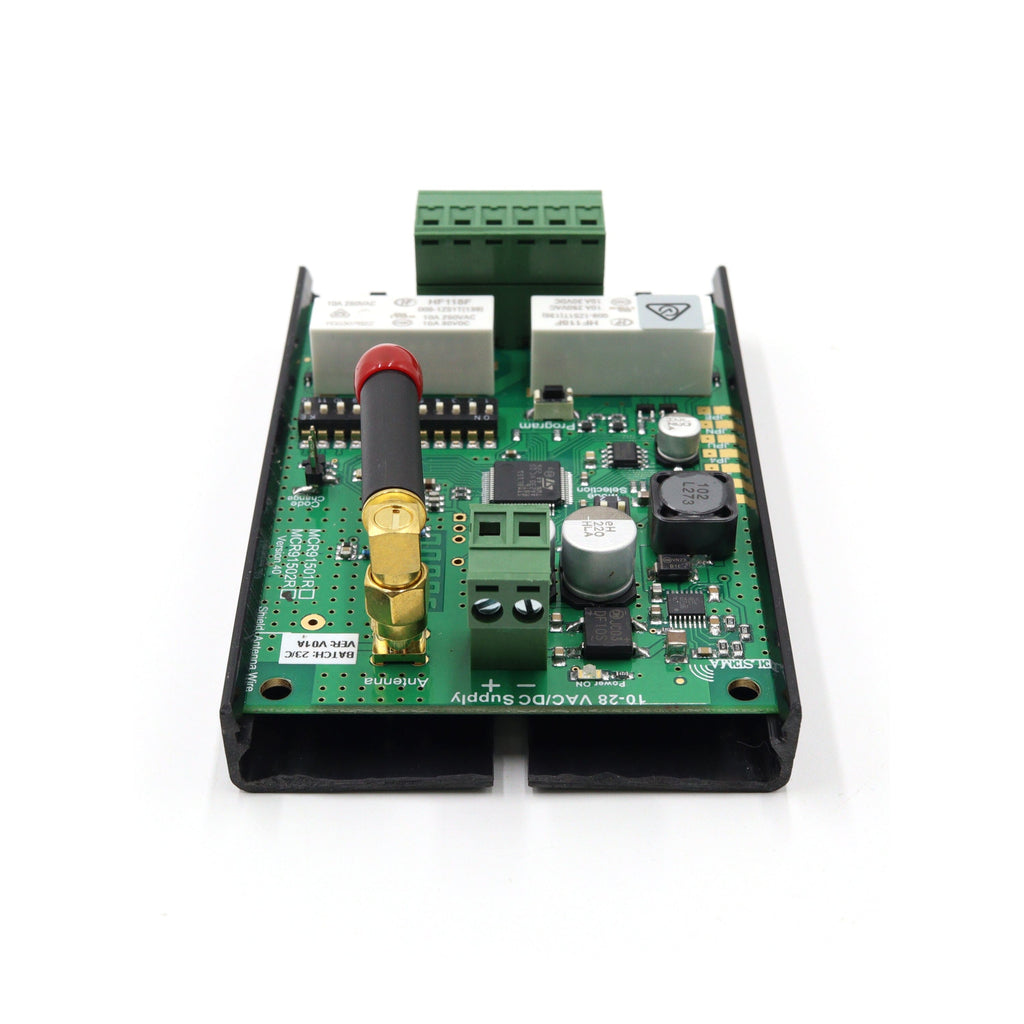

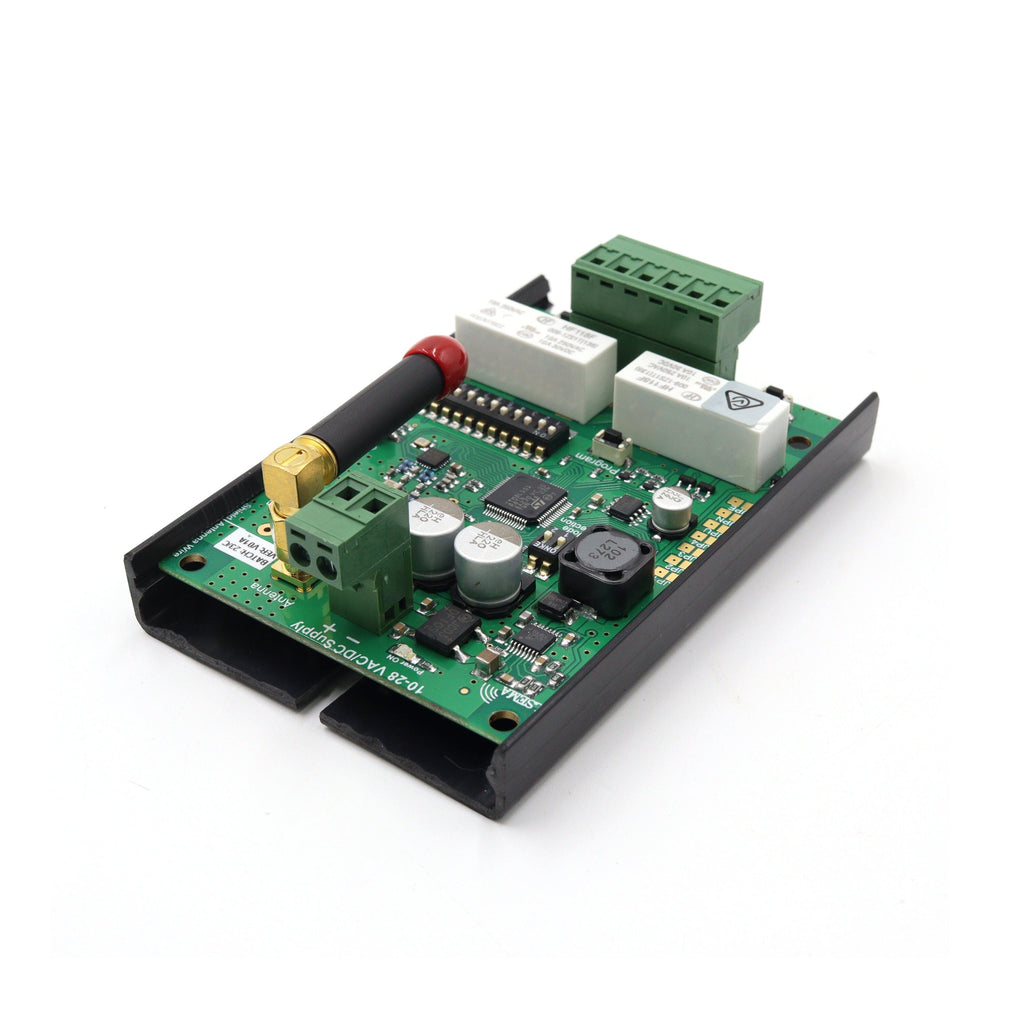

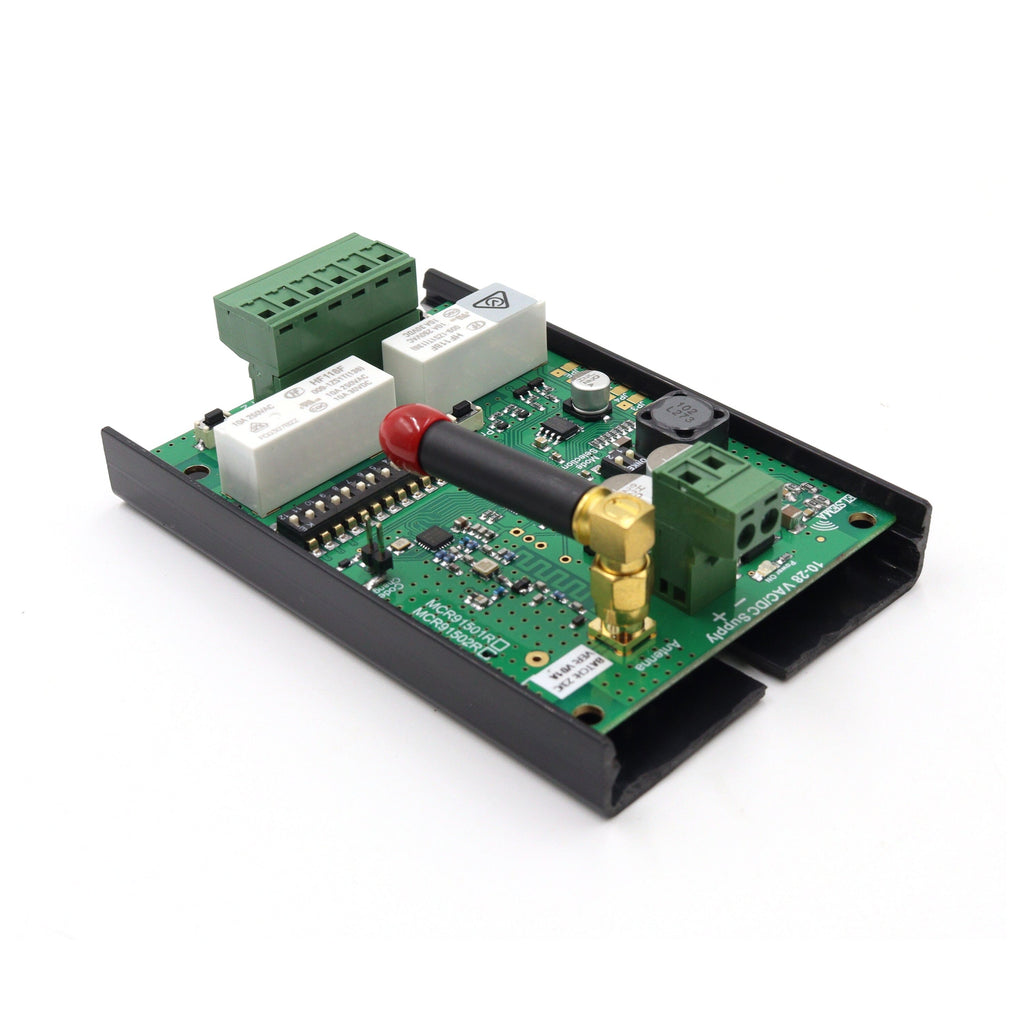

The Elsema Multicode 915MHz 2-Channel Receiver MCR91502R is engineered for top-tier performance in industrial automation applications. Ideal for controlling cranes, winches, and wireless cement truck operations, this receiver offers unmatched reliability and functionality.


  • Advanced Frequency Hopping Technology: Utilises Fast Frequency Hopping (FFH) technology to operate on multiple frequencies, significantly reducing the risk of interference and jamming.
  • Dual Digital Coding: Supports both 12-way dip switch coding and encrypted coding, providing over 17 billion possible codes for high-security applications.
  • Versatile Power Supply: Wide operating supply voltage range of 10-28 Volts AC/DC ensures compatibility with various power sources while maintaining low current consumption.
  • Multiple Operation Modes: Offers user-selectable momentary and latching modes, allowing customisation based on specific application needs.
  • High Stability and Accuracy: Crystal-controlled for precision, ensuring consistent and reliable performance.
  • Easy Installation: Features pluggable terminal blocks, a high-quality SMA antenna connector, and a quick mount system (QM100), facilitating straightforward and secure installation.
  • Visual Signal Confirmation: Equipped with an on-board red LED to indicate signal reception, providing immediate visual feedback.
  • High Output Capacity: Provides a single relay output rated at 8 Amps at 240VAC, suitable for heavy-duty applications.
  • Broad Compatibility: Compatible with all Elsema MCT915xx series transmitters, enhancing versatility and ease of use.

Why Choose the Elsema Multicode 915MHz 2-Channel Receiver MCR91502R?

  • Advanced Interference Protection: The combination of FFH and Multicode Technology (MCT) ensures that the receiver remains free from interference, even in environments with multiple transmitters operating in close proximity.
  • Enhanced Security: With the option for encrypted coding, this receiver offers robust protection against unauthorised access and signal duplication.
  • Industrial-Grade Reliability: Built for industrial environments, this receiver delivers consistent performance under demanding conditions, making it ideal for critical applications.
  • Ease of Use: Designed with user convenience in mind, the receiver is easy to set up and operate, reducing downtime and enhancing operational efficiency.

Product Specifications:

  • Dimensions: 150 x 100 x 73mm (external), 125 x 75 x 55mm (internal)
  • Weight: 0.22 kg
  • Enclosure Material: ABS and Polycarbonate
  • Color: Grey

Technical Specifications:

  • Supply Voltage: 10-28 Volts AC/DC
  • Coding Options: 12-way dip switch or encrypted coding
  • Output: Single relay output, rated at 8 Amps at 240VAC
  • Frequency: 915MHz
  • Compatible Transmitters: All Elsema MCT915xx series
  • LED Indicator: Red LED for signal reception
  • Mounting: Pluggable terminal blocks, SMA antenna connector, quick mount system (QM100)
