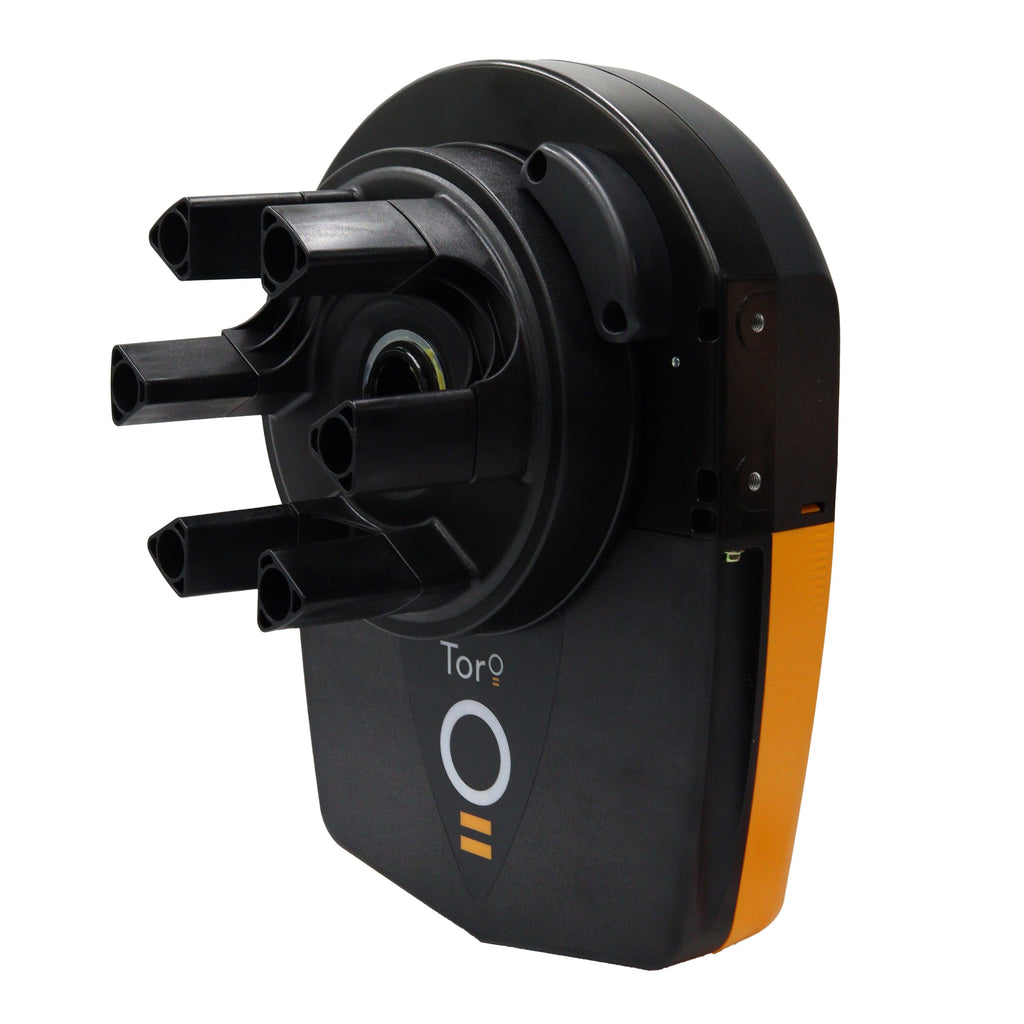

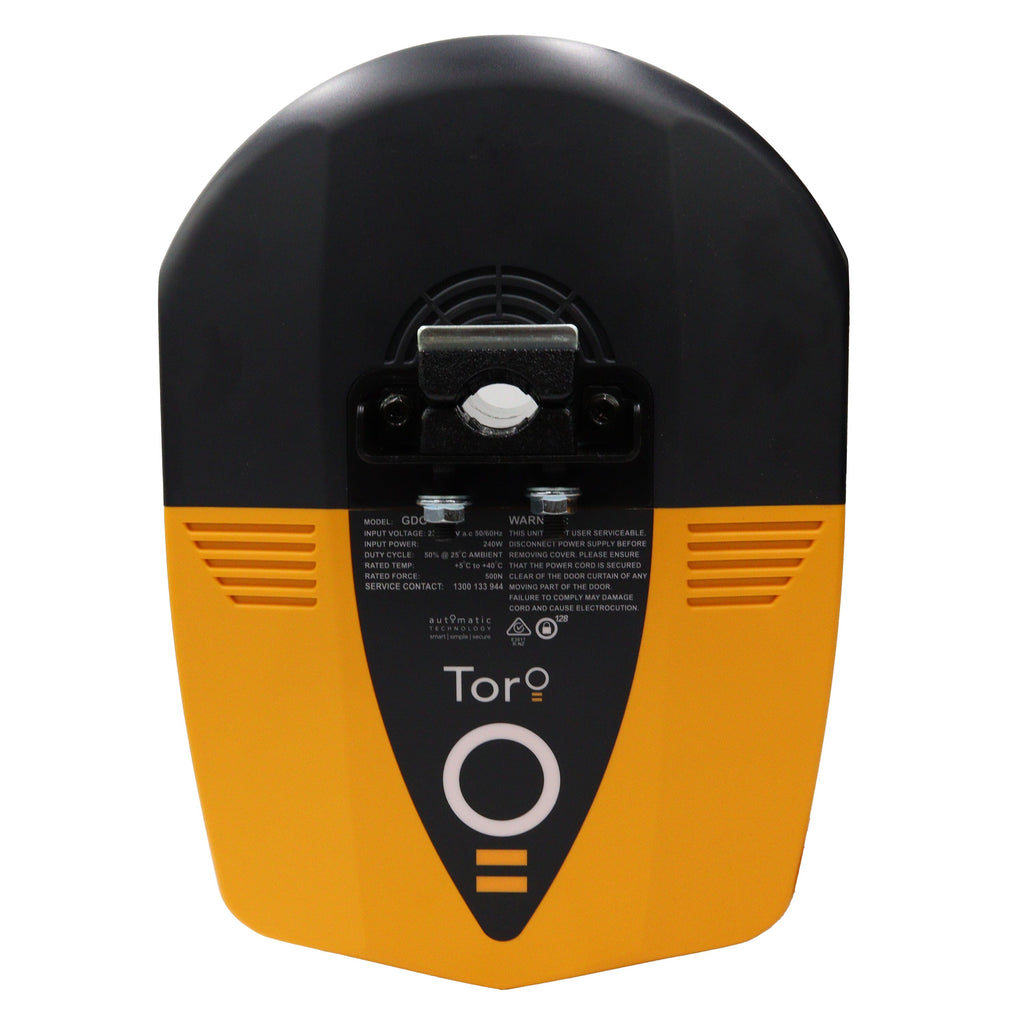

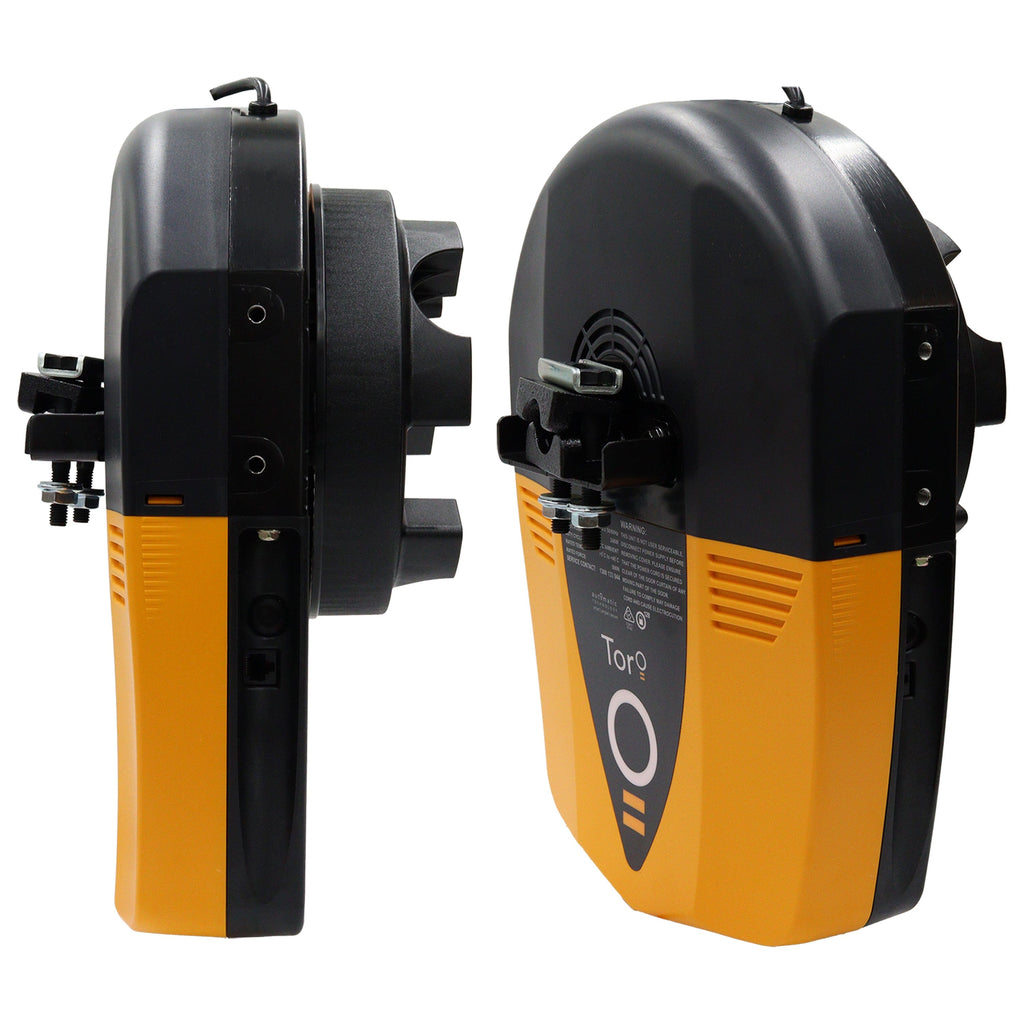

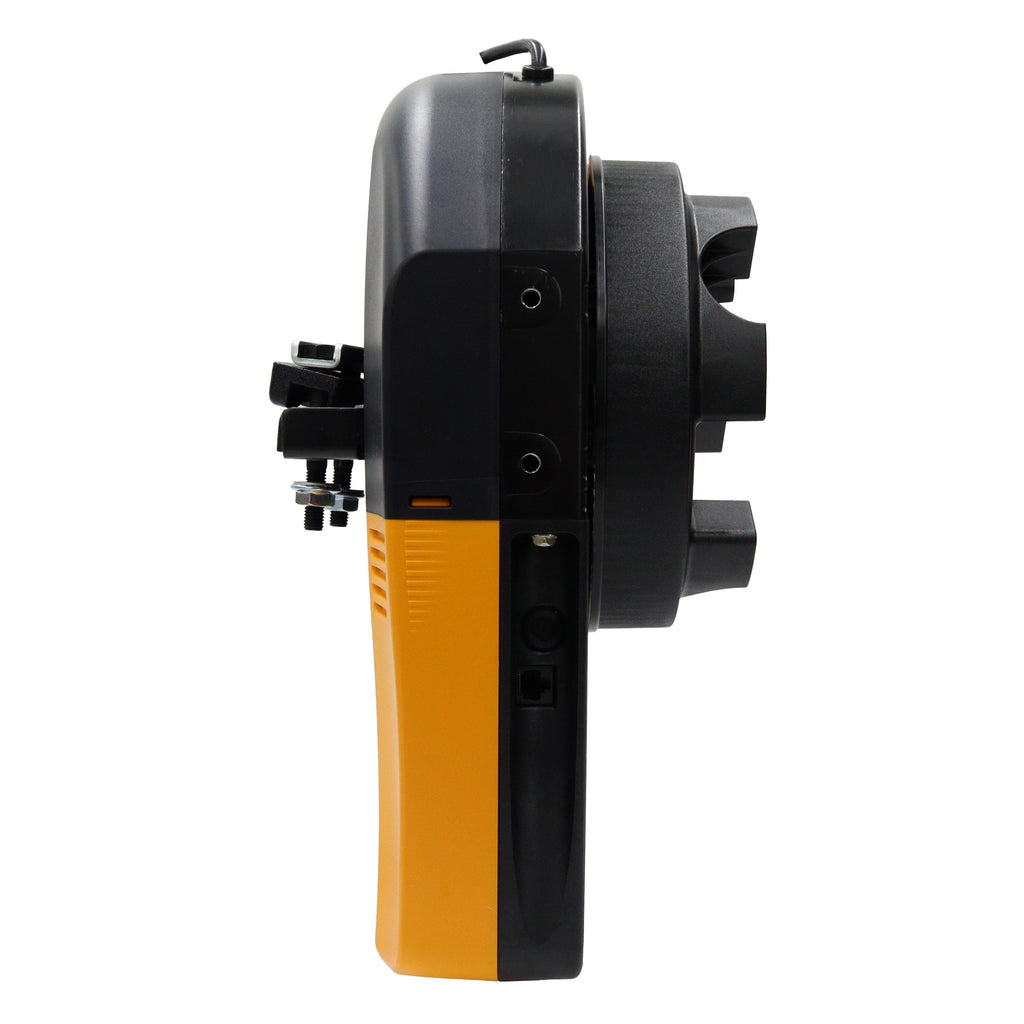

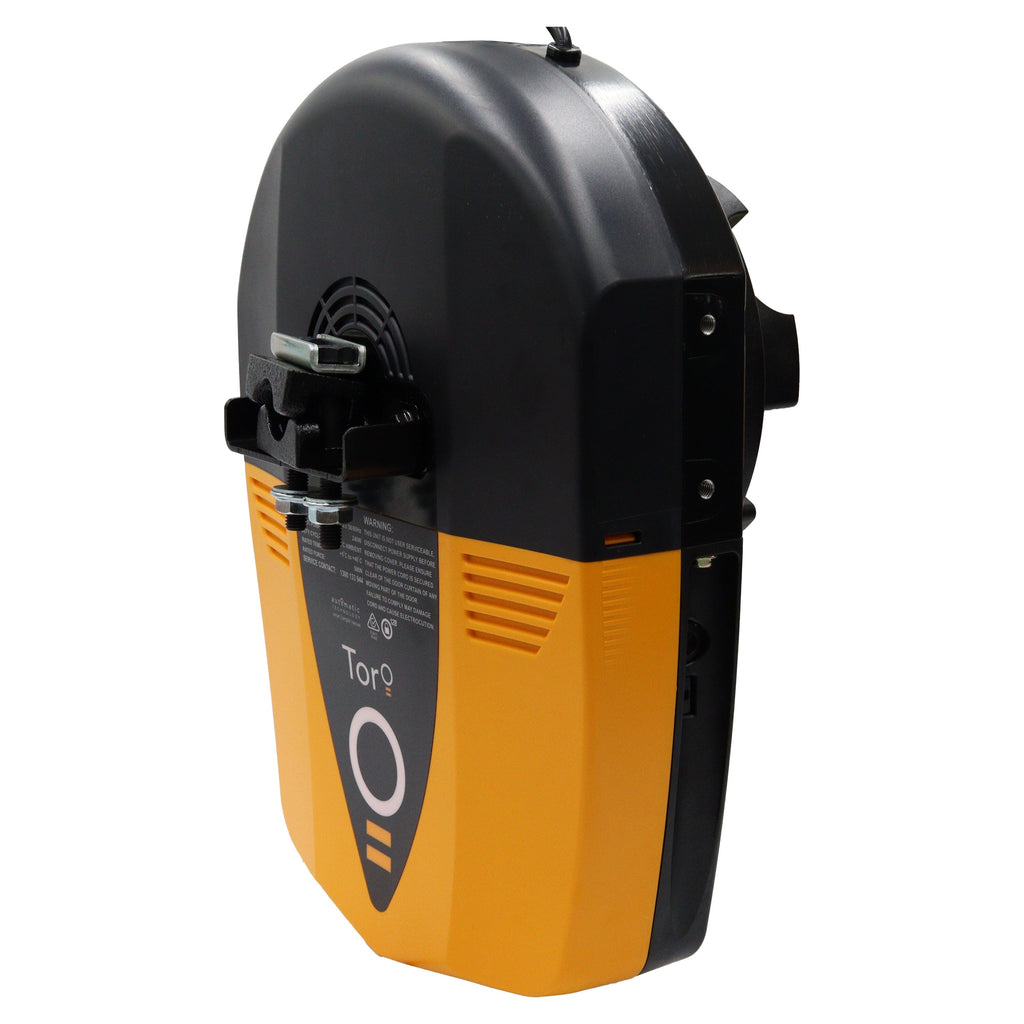

The Toro® offers sophisticated commercial roller door opening technology and superior pulling power. With built-in Battery Back-up and a wall-mounted control panel you can program a variety of operating modes for your security and safety.
A marriage of immense power and sophisticated logic controls, the Toro® can cater for roll-up doors up to 28m2 and high duty cycles. The logic control system, with LCD screen, can manage up to 511 TrioCode Garage Door Remotes, and offers time clock controlled access programs, adjustable speed and obstruction settings. A full complement of controlling inputs and outputs are standard, including compatibility with up to three Wireless Safety Beams systems simultaneously. Rounding this out is Soft Start/Soft Stop, Door Profiling, Intelligent Safety System and variable Auto Close settings.
Features:
- Secure & Reliable Transmitters
- Battery Back Up
- Powerful Motor
- Logic Controls with LCD Screen

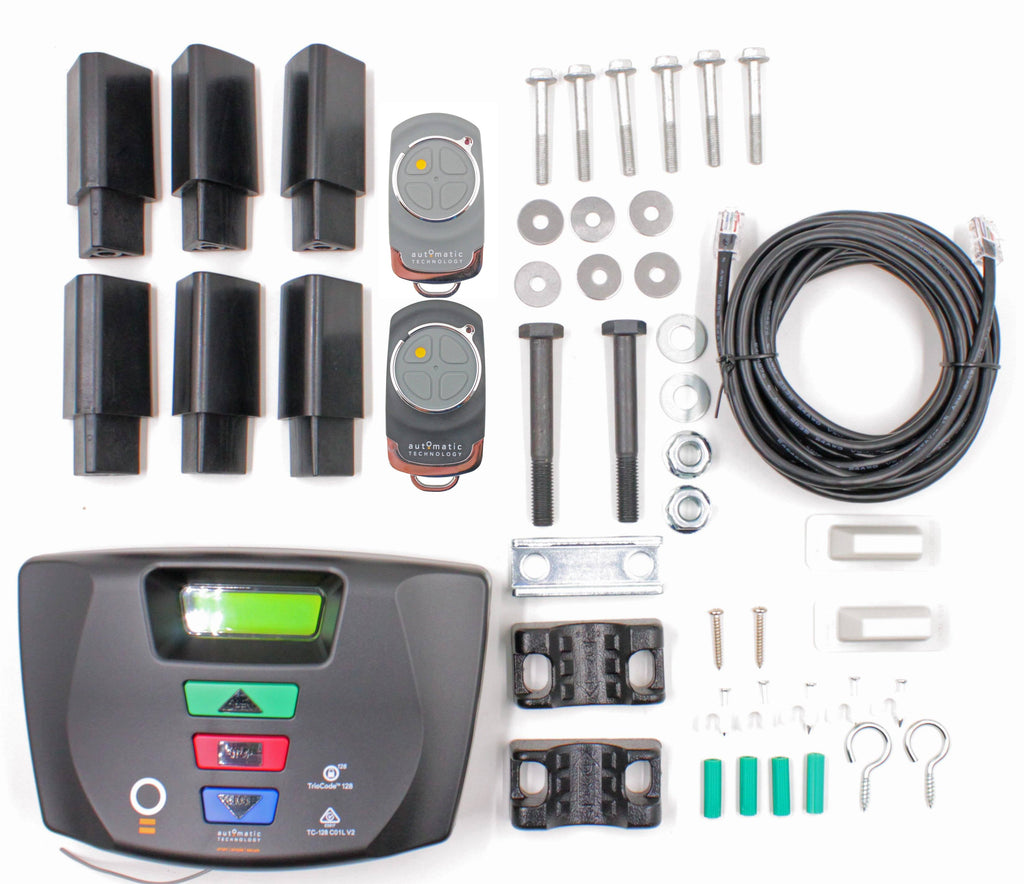

Included:

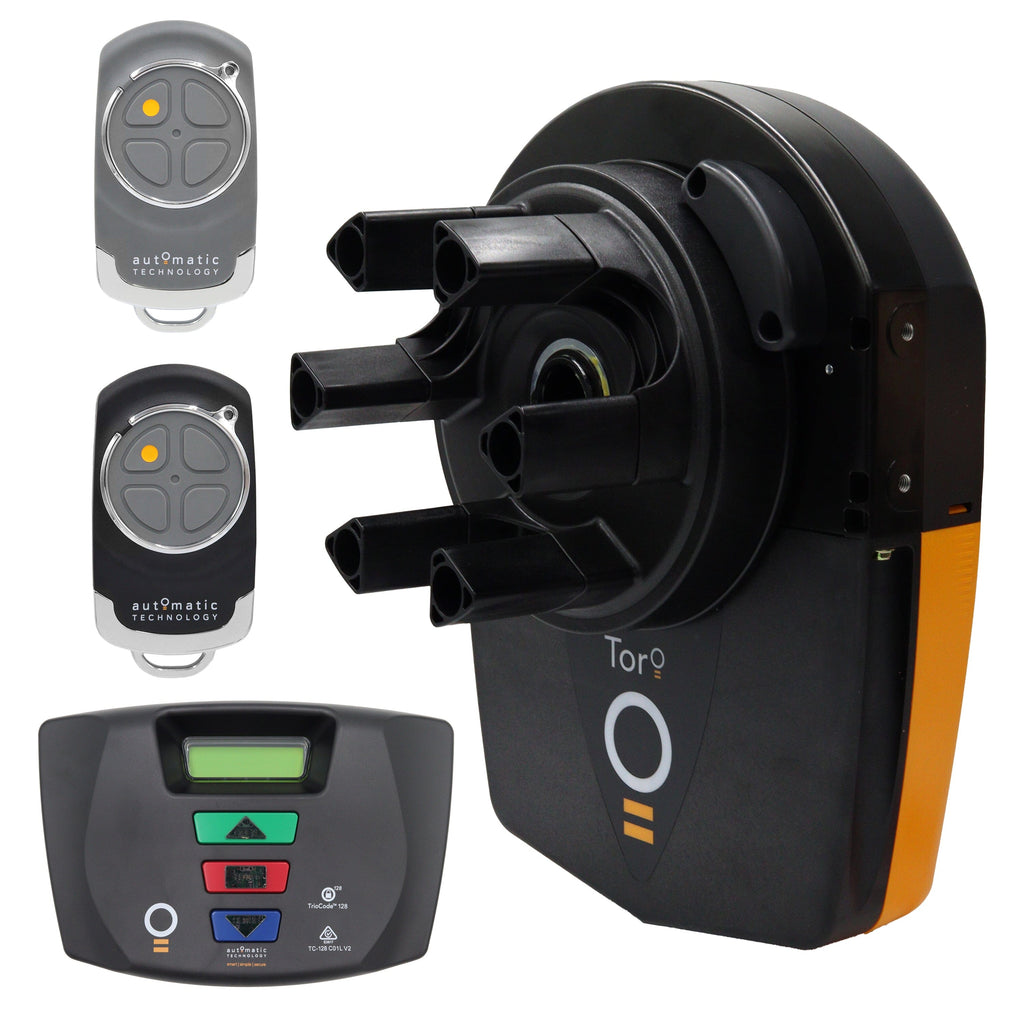

1 x GDO-10V3 Toro Motor w/ Battery Back Up
2 x PTX-5V2 Remotes

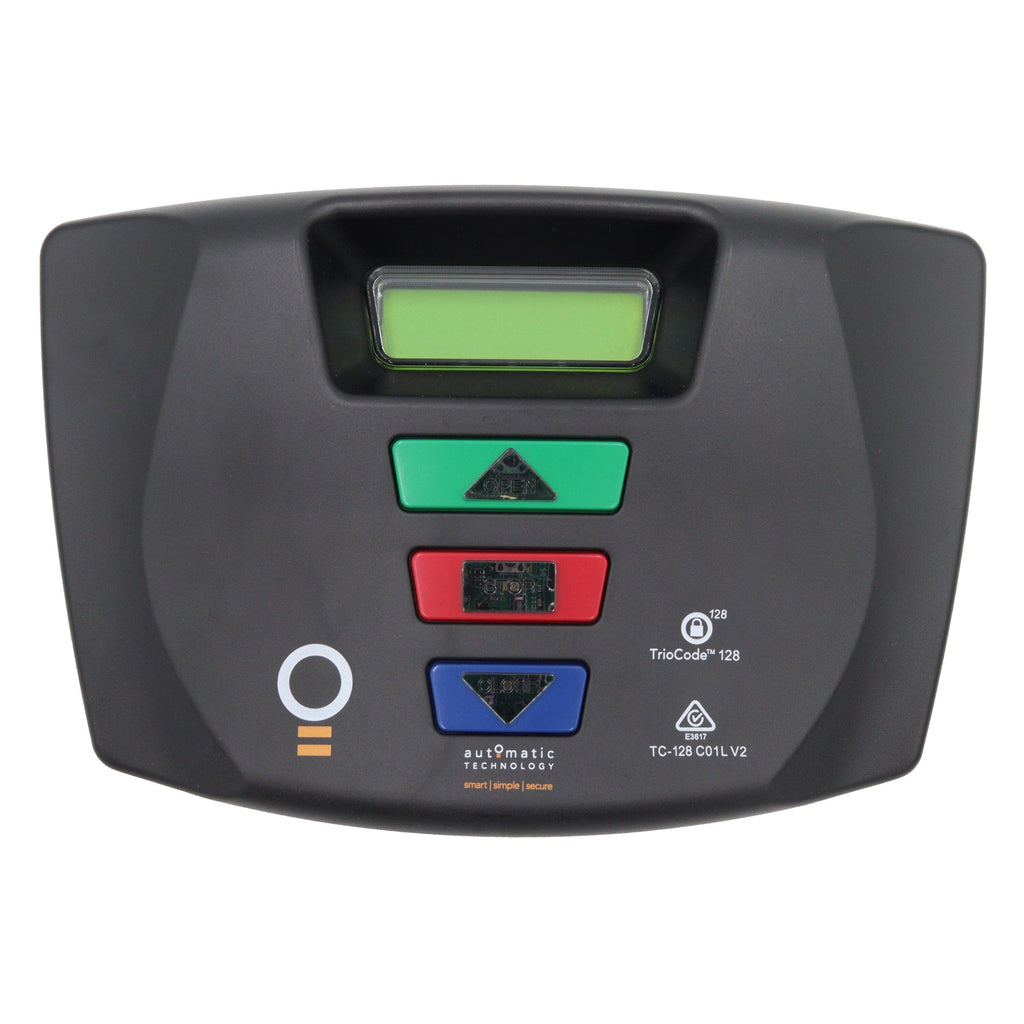

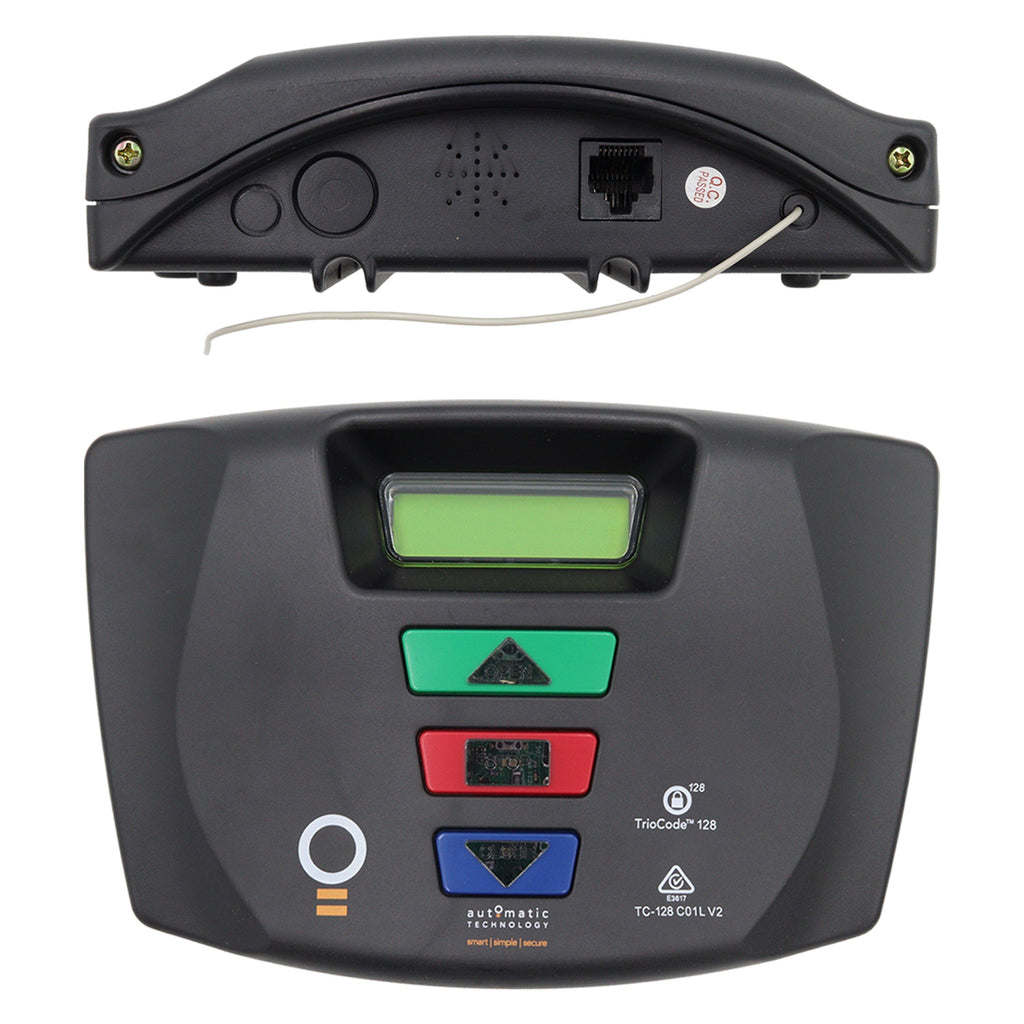

1 x LCD Control Panel
1 x Communication Cable
2 x Locking Bar Cover
6 x Fork Extension
5 x Cable Clips
2 x Screw Eye
2 x Self Tapping Screw 6 X 25
4 x Plastic Wall Plug 6.9 x 25
1 x Installation Instructions
2 Years Manufacturers Warranty*
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
| Motor Type | 24V DC |
| Short term peak force | 1000N |
| Rated Duty Cycle | 100% |
| Standby Power | 2.8W |
| Motor Power | 150W |
| Max Door Weight kg | 270KG# |
| Max Door * Size m2 | 28m2 |
| Wind-locked door** m2 | 22m2 |
| Minimum Side room mm | 140mm (right hand side) / 127mm (left hand side) |
| Left hand or right hand side installation | Yes |
| Maximum Door Opening | 5100mm H / 5500mm W |
| Warranty | 2 years |
| Wireless Safety Beam | Yes (optional) |
| Courtesy Light | No |
| Battery Back up | Yes (included) |
| Safety Beam Compatibility | Yes (optional) |
| Remotes Included | 2 x PTX-5v2 |
| Wall Button | Incorporated in LCD wall unit |
| Transmitter Capacity | 511 |
| Protocol | TrioCode 128 and Tritran + |
