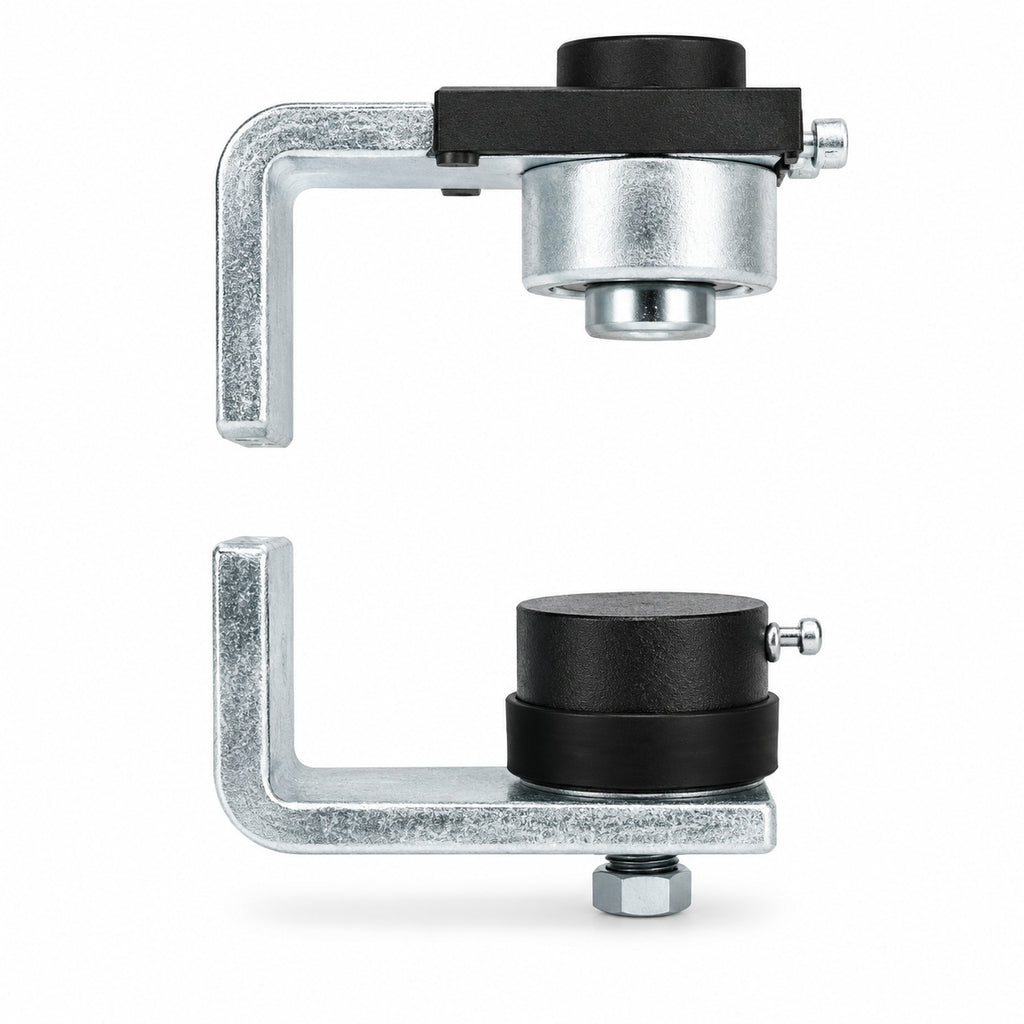

This heavy-duty adjustable pintle hinge carries swing gates on a Ø70 mm pin riding a ball bearing plate, giving smooth, low-friction rotation under load. Height adjustment of 100-112 mm lets you set and correct gate alignment after installation.
Made from galvanised steel for outdoor durability, it suits heavier residential, commercial and industrial swing gates where smooth operation and long service life matter.
Key Features
- Ø70 mm pintle riding a ball bearing plate for smooth rotation
- Height adjustable (100-112 mm) for precise gate alignment
- Galvanised steel construction
- Carries heavy swing gates with low friction
- Adjustable after installation to correct gate sag
- Stainless steel and INOX versions available on request

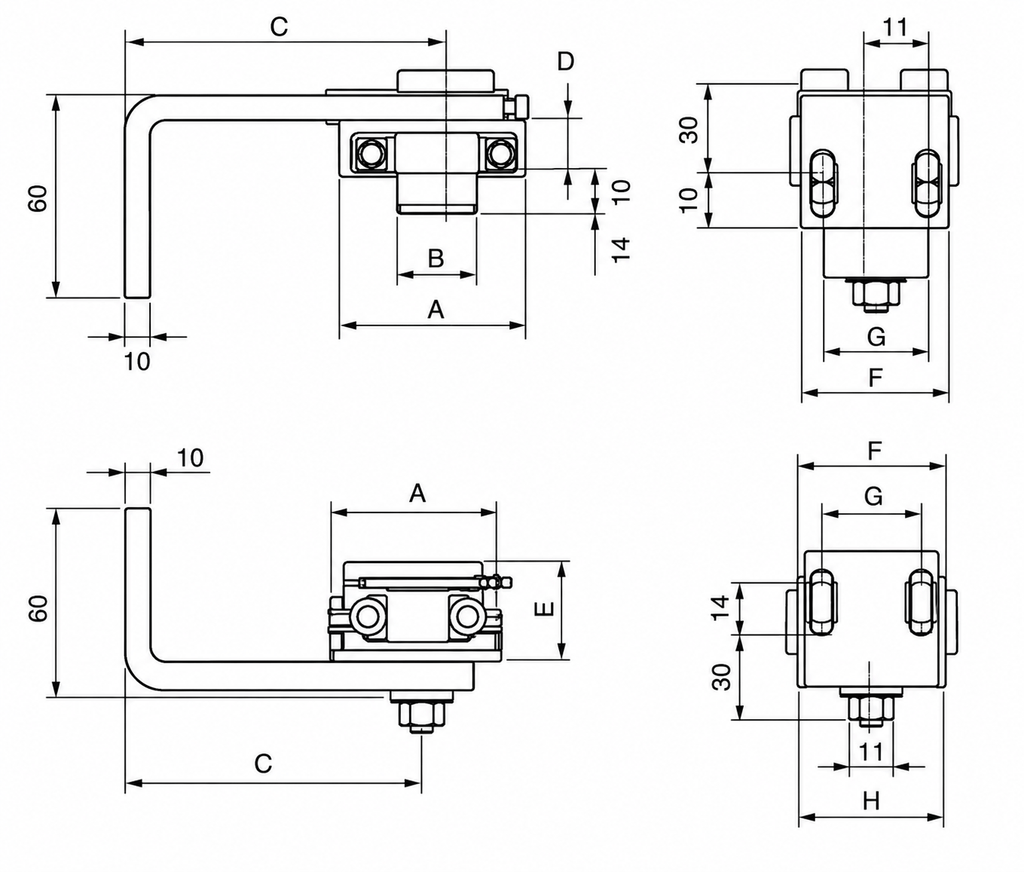

Specifications
- Model: 166
- Material: Galvanised steel
- A: 70 mm
- B: 30 mm
- C (adjustment): 100-112 mm
- D: 26 mm
- E: 39 mm
- F: 60 mm
- G: 39 mm
- Weight: 3.32 kg
Applications

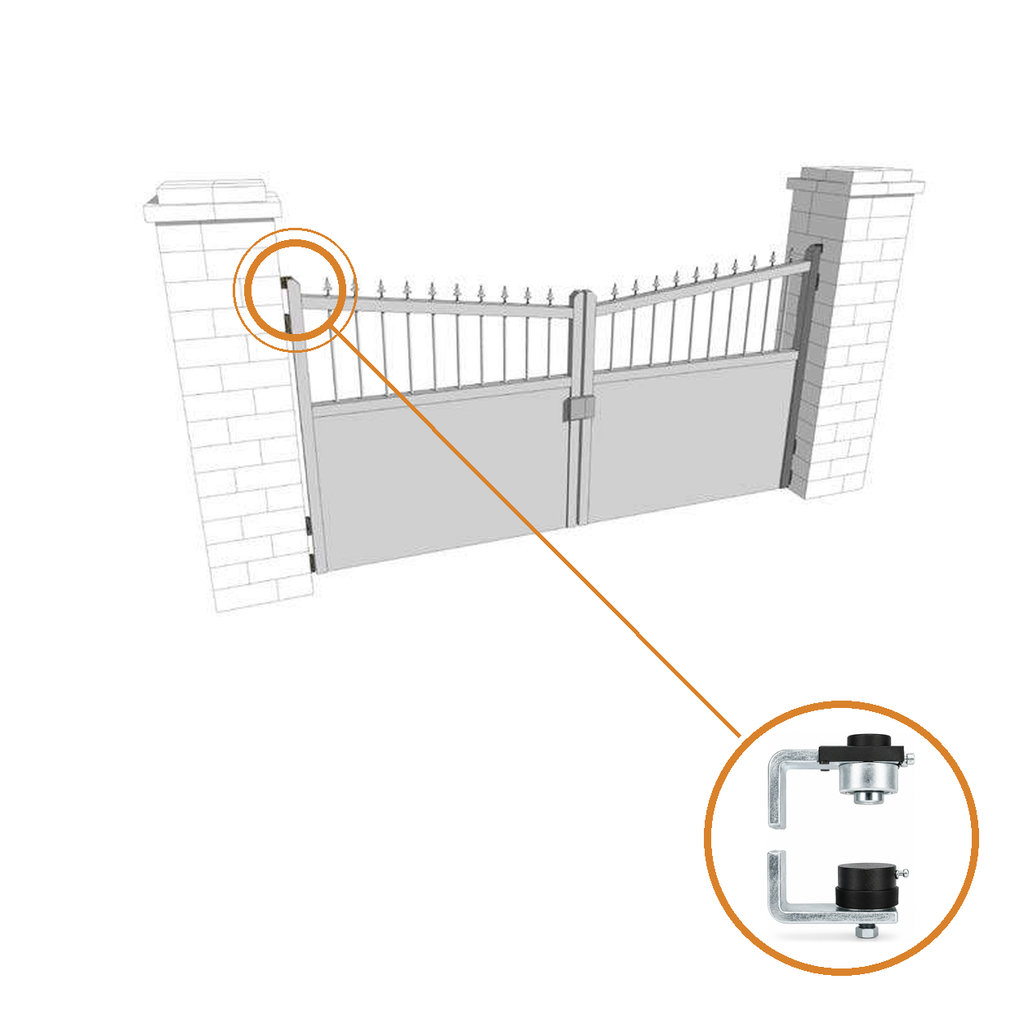

- Heavy swing gates
- Driveway gates
- Commercial gate installations
- Industrial gate systems
