The Automatic Technology ATS-1 combines affordable garage door control with the smooth and reliable operation that Automatic Technology is known for. The ATS-1 is designed for domestic, sectional single or double garage doors up to 15m2. Featuring a 700N DC Motor with soft start and stop, courtesy LED lights and an exceptionally quiet belt c-rail. Designed to make garage door automation easy.
Purchase Options
This garage door motor is available in two configurations: with a rail included for a complete setup, or without a rail for those who already have a compatible rail. Choose the option that best fits your installation needs.

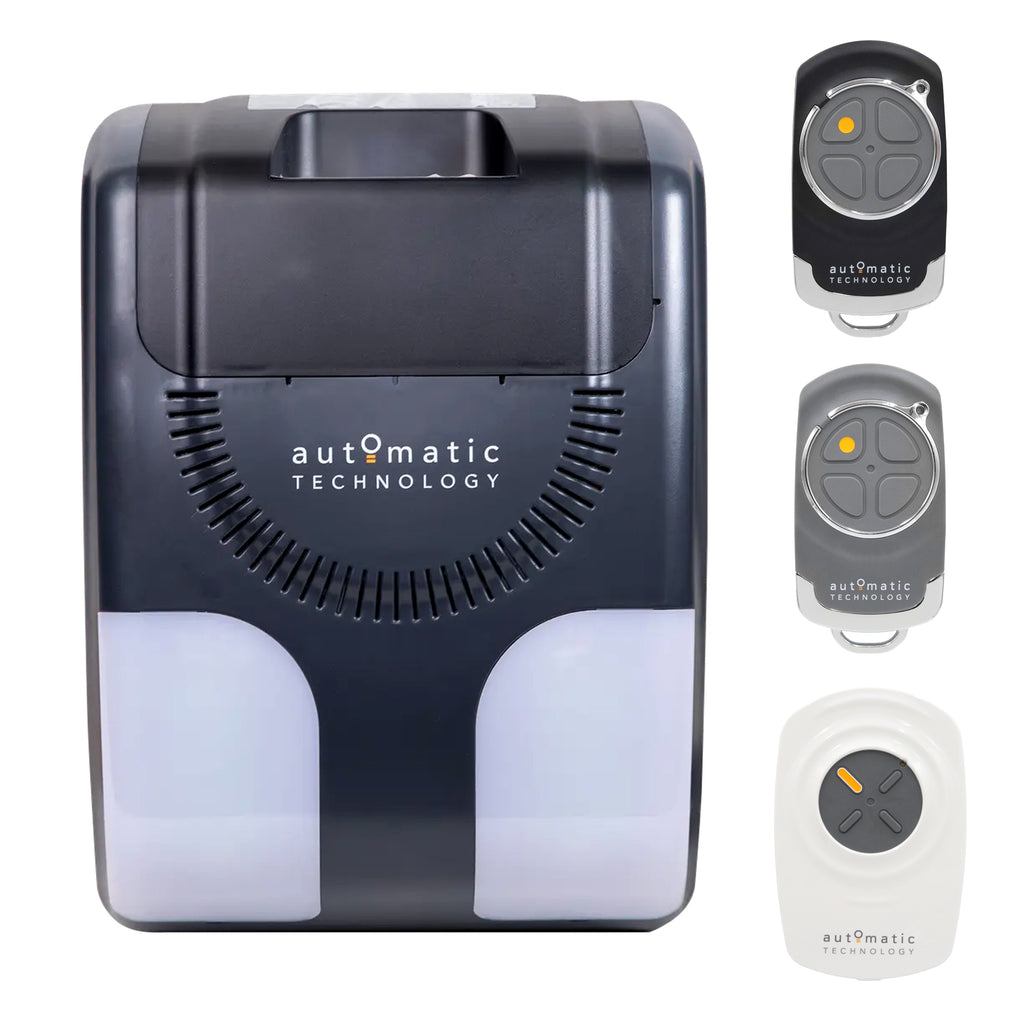

- 1 x ATA ATS-1 Opener
- 2 x ATA PTX-6 Remotes
- 1 x ATA WTX-6v1 Wall Button
- 1 x ATA Belt Rail (dependent on which configuration option is chosen)
-
Auto-reverse functionality
The ATS-1 opener offers an auto-reverse function giving you peace of mind that the door will reverse if it comes into contact with an obstruction. It can also detect any unauthorised attempts to force the door open and resist entry accordingly.
Soft start and stop technology
By utilising a gradual acceleration and deceleration technique at the beginning and end of each cycle, the ATS-1 opener minimises the pressure on both the door and the opener. This helps to prolong the door's lifespan while also providing ensuring a continuous quiet performance.
-
Fast, powerful motor
The ATS-1's DC motor generates a peak pulling force of 650N, allowing it to reliably lift garage doors up to 100kg of weight.
Soft start and stop technology
If you're dealing with low headroom in your garage then the ATS-1 opener is for you. ATS-1 required just 57mm of clearance between the ceiling and the highest point that the door travels.
-
Vacation Mode
Never fret that someone is breaking in to your home again with ATS-1's Vacation Mode feature. Once in Vacation Mode the ATS-1 opener will be completely locked to all other remotes while you're away until you return and use your Master remote to unlock it.
-
Service Reminder
Similar to a car, your garage opener needs to undergo regular maintenance to ensure its warranty and functionality are kept in tip-top condition. However, even better than your car, Automatic Technology openers come equipped with an audio and visual warning system that notifies you when maintenance is required, making it easier to keep up with maintenance.
- Power Supply: 230V - 240V. 50Hz
- Rail Headroom: 25mm
- Minimum headroom: 57mm
- Short Term Peak force: 700N
- Rated Force: 400N/40kg
- Nominal force: 200N/20kg
- Typical Travel Speed: 180mm / per second
- Receiver Type: Multi-frequency UHF FM
- Receiver Code Storage Capacity: 64 X 4-button Transmitters
- Coding System: Triocode 128
- Coding Type: 128 Bit Rolling Code
- Number of Code combinations: 3.4 x 10³⁸ Codes
- Transmitter Battery: CR2032 (3 Volts)
- Courtesy Light: LED (Light Emitting Diodes)
- Warranty: 5 year / 10,000 cycles*
Warranty Disclaimer
* To receive the full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual.
WARNING! This product may contain a button/coin cell battery. To prevent possible SERIOUS INJURY or DEATH:
- Keep new and used batteries out of reach of children at all times.
- Do not use the product if the battery compartment is damaged or doesn’t close securely.
- Dispose of used batteries immediately and safely - even flat batteries can cause harm.
- Do not ingest the battery. Chemical burn hazard.
- Act fast if you suspect a battery has been swallowed or inserted - severe or fatal injuries can occur within 2 hours.
- Seek immediate medical attention or call:
– Australia: Poisons Information Centre on 13 11 26
– New Zealand: National Poisons Centre on 0800 764 766
