ATA Elite SGO-1v4 Single Swing Gate Motor/Opener Kit

In stock




Free Shipping (FREE): 2-10 Business Days
Tracked Shipping ($6): 1-5 Business Days
Express Shipping ($12): 1-3 Business Days
Express Shipping - Garage/Gate Motors ($80): 1-3 Business Days
Motor Manual

Motor Brochure


A proven design that has endured for over 15 years, the performance and strength of the Elite® SGO-1 has made it an industry icon. This unassuming looking opener features a powerful DC motor, robust gearing, articulated arms for smooth operation, and configurability with 2, 3 or 5 wire installs.

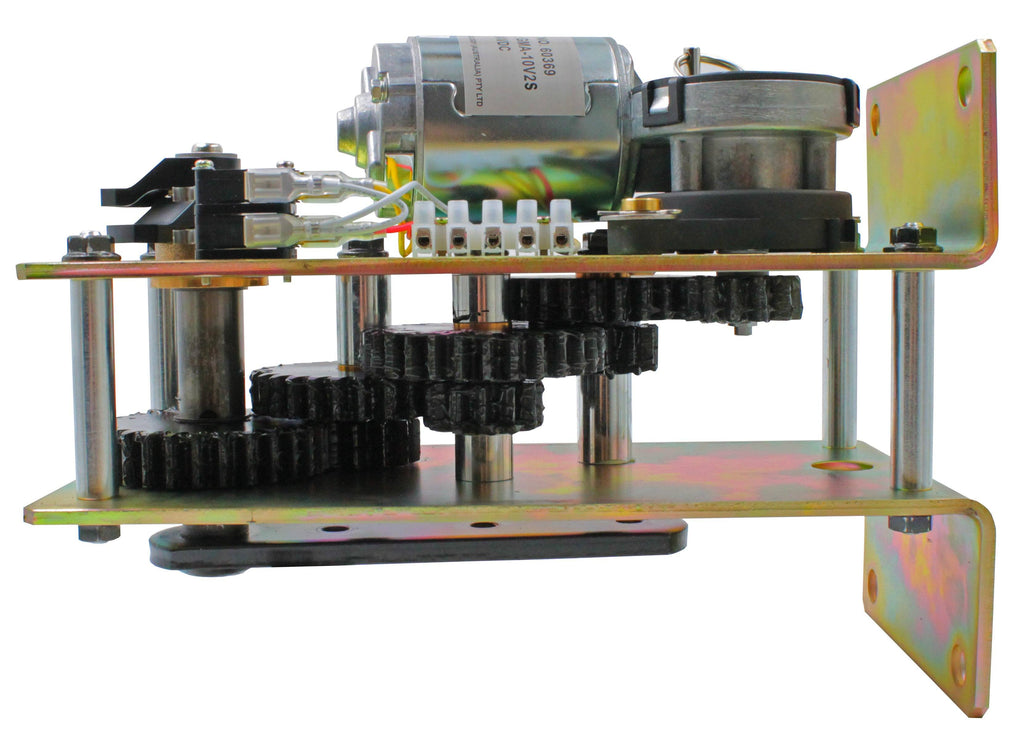

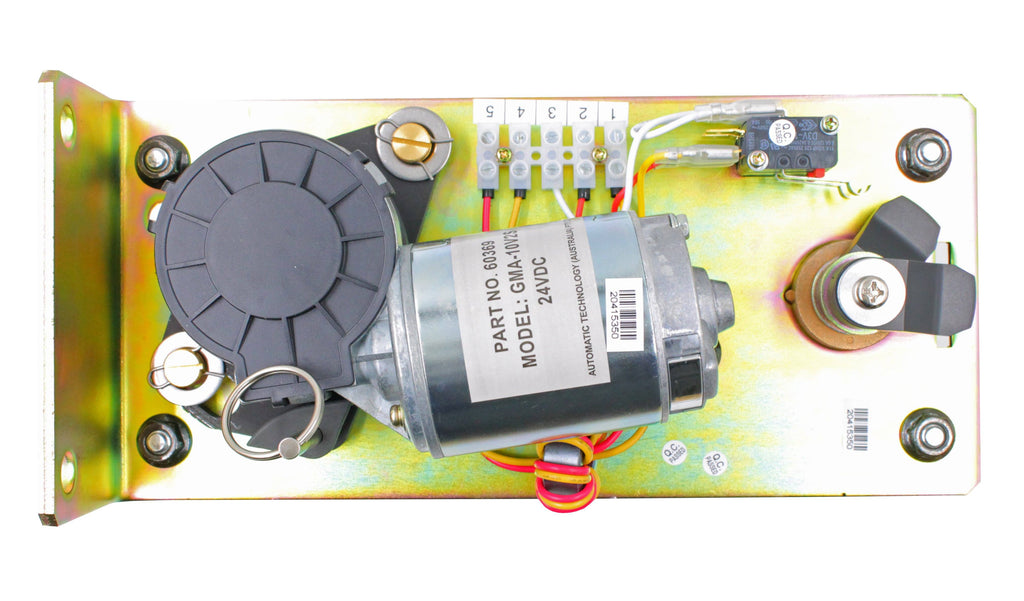

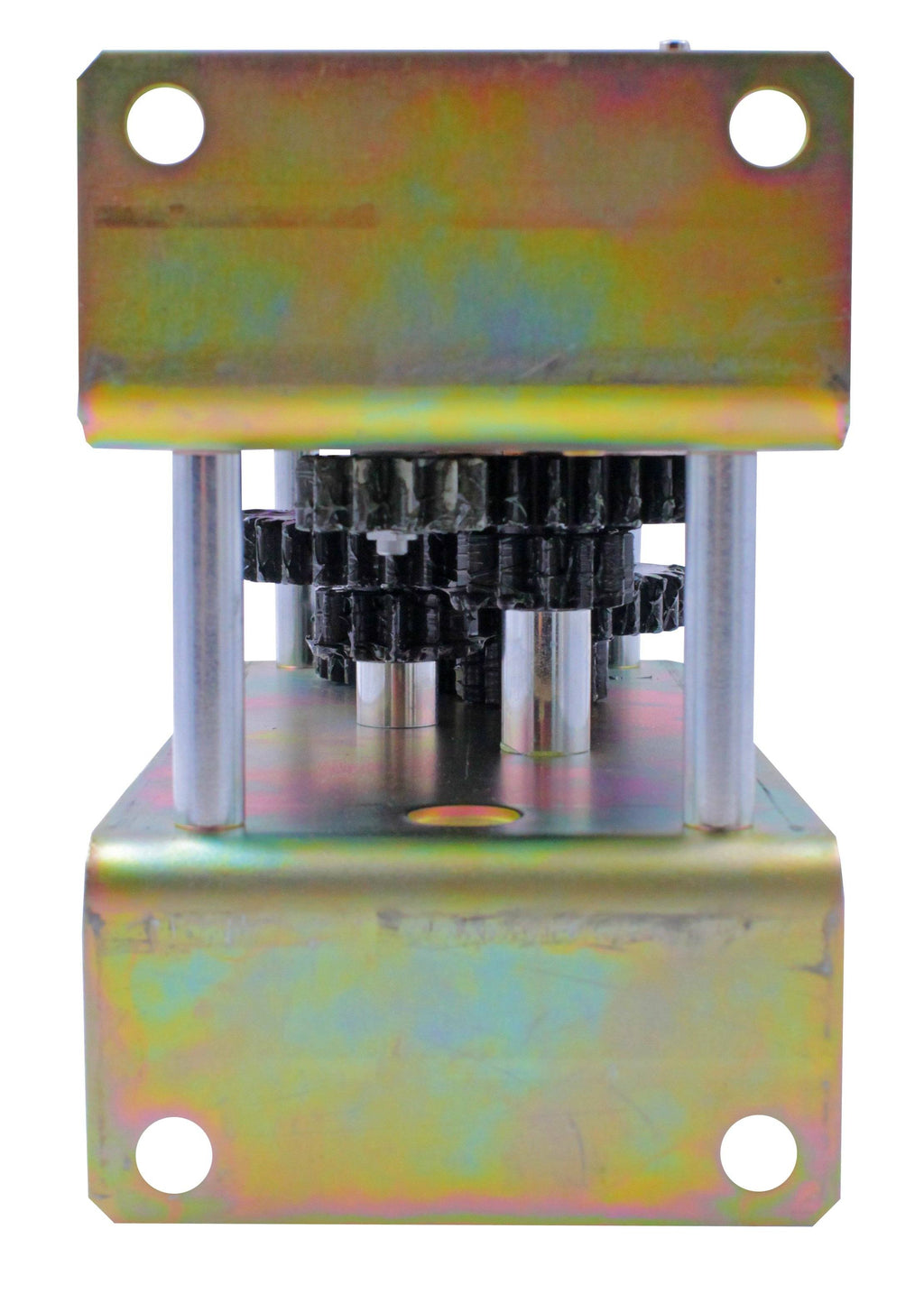

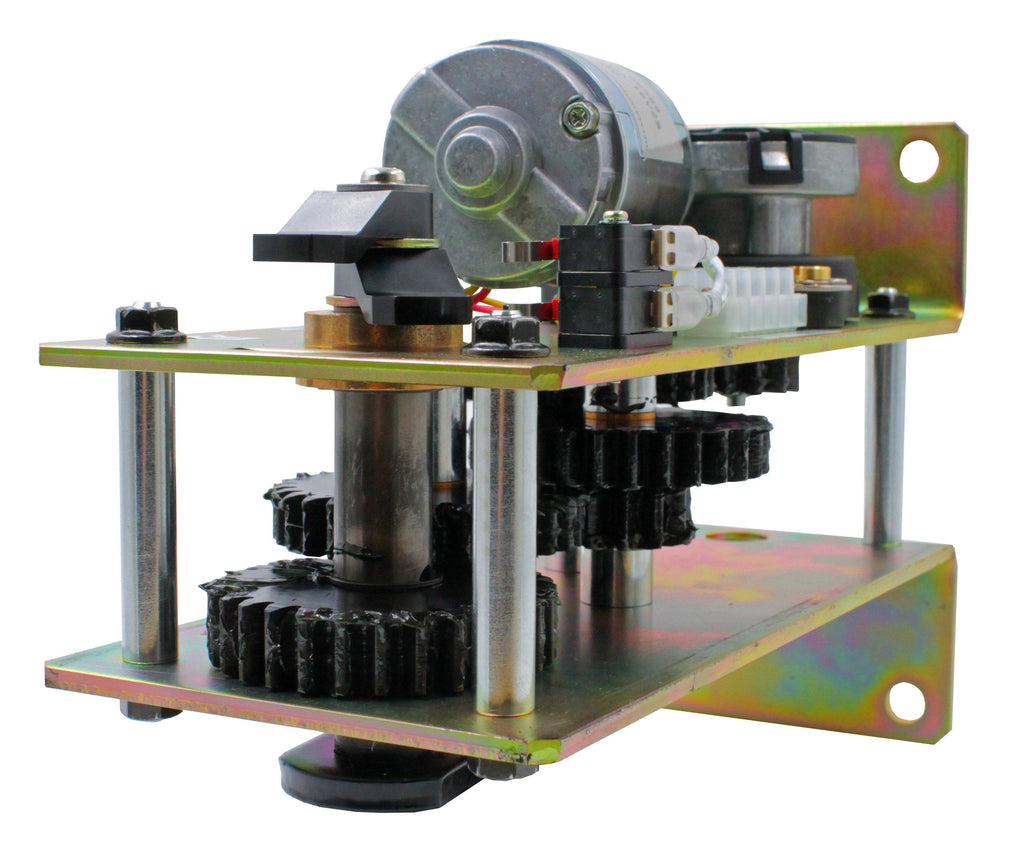

The Elite® SGO-1 is tough, weather-resistant and built for Australian conditions. At its heart is a powerful DC motor linked to a robust, low maintenance gearbox. This power is transferred to the articulated drive arms, which offer smooth operation and reduced stress on the entire installation. Rounding out this reliability mix are highly effective micro-switch limits that reduce complication and enhance longevity. When paired with our DCB-05 Control System it provides a host of operating modes and variations in performance to suit your needs.

Smart Phone Control is available as an upgrade option. This innovative feature allows you to control and monitor your gate remotely from your smartphone - from anywhere as long as wifi is within range.

Also offering a wide range of accessories to choose from, such as safety beams for to ensure the gate does not close if there is something in the way, backlit digital keypads for added convenience and secure access, battery back up and SmartSolar package.

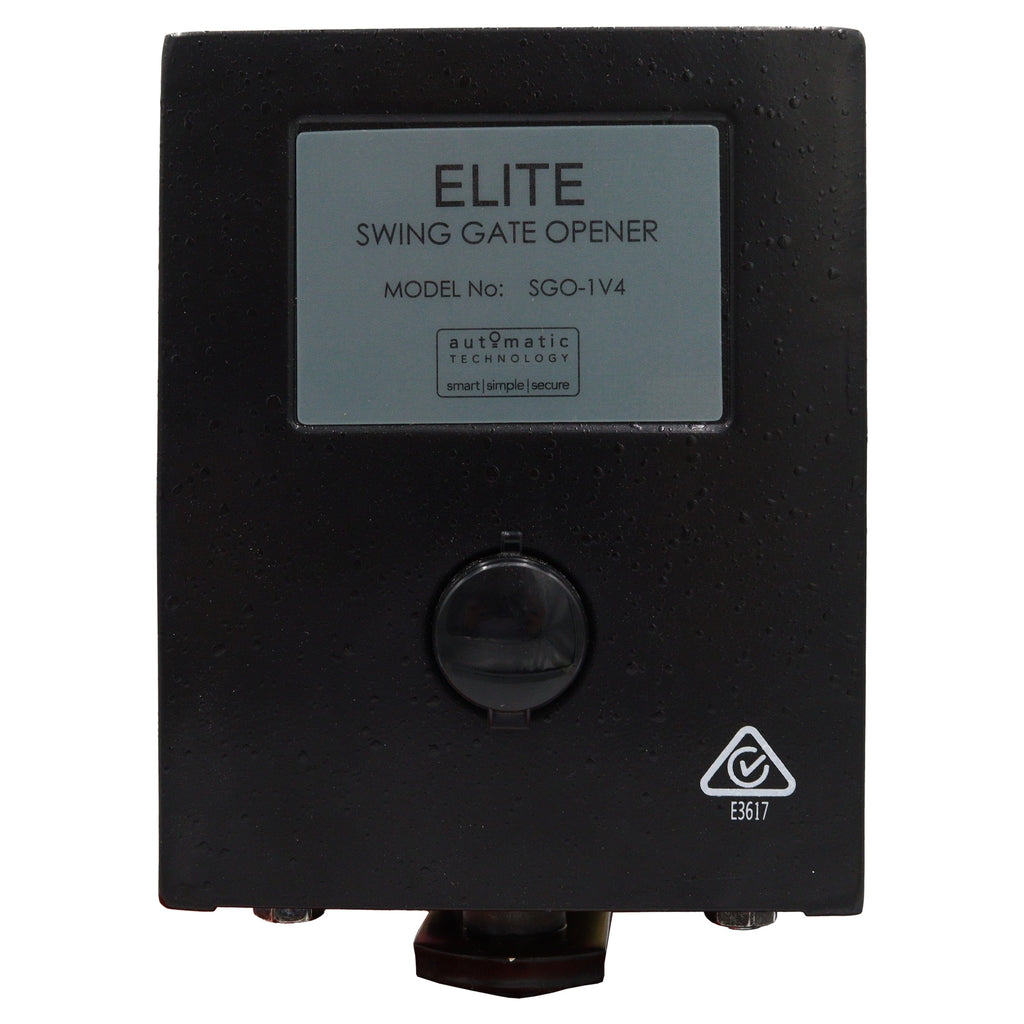

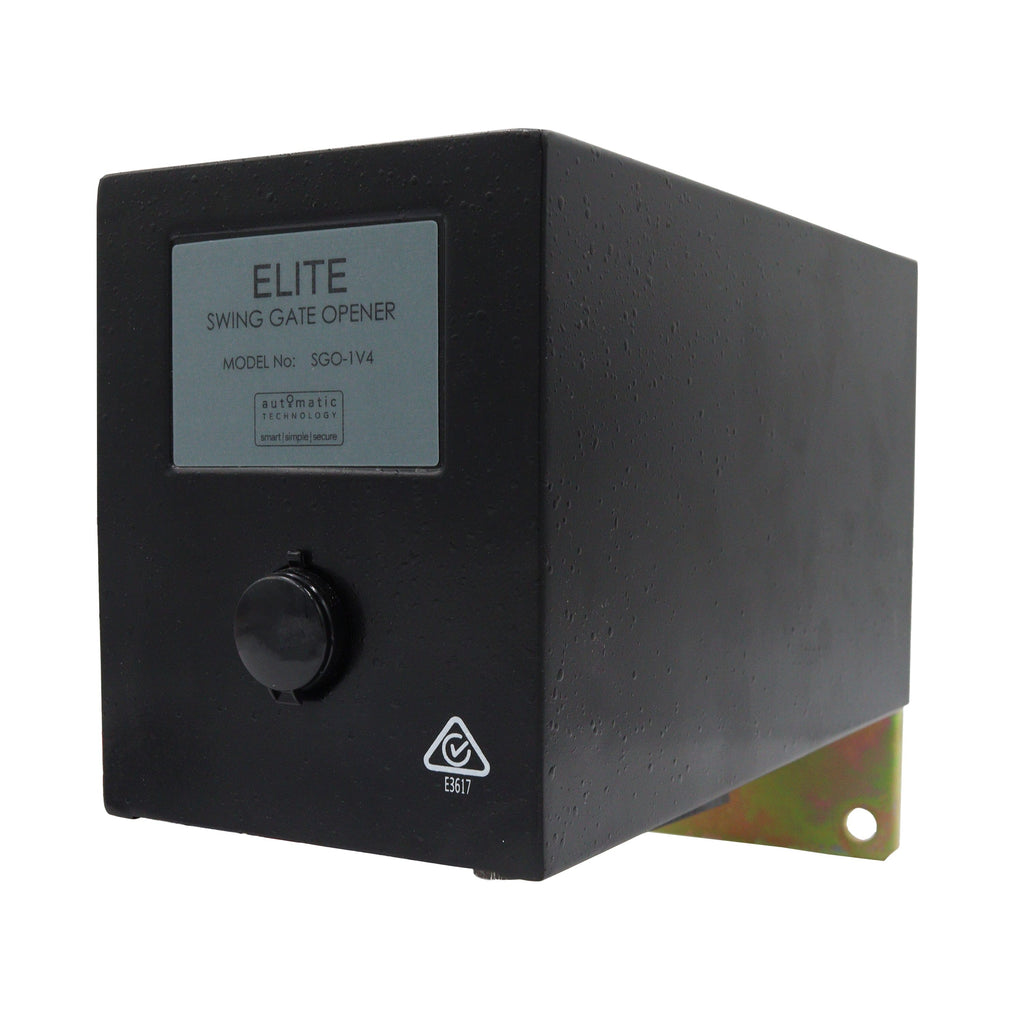

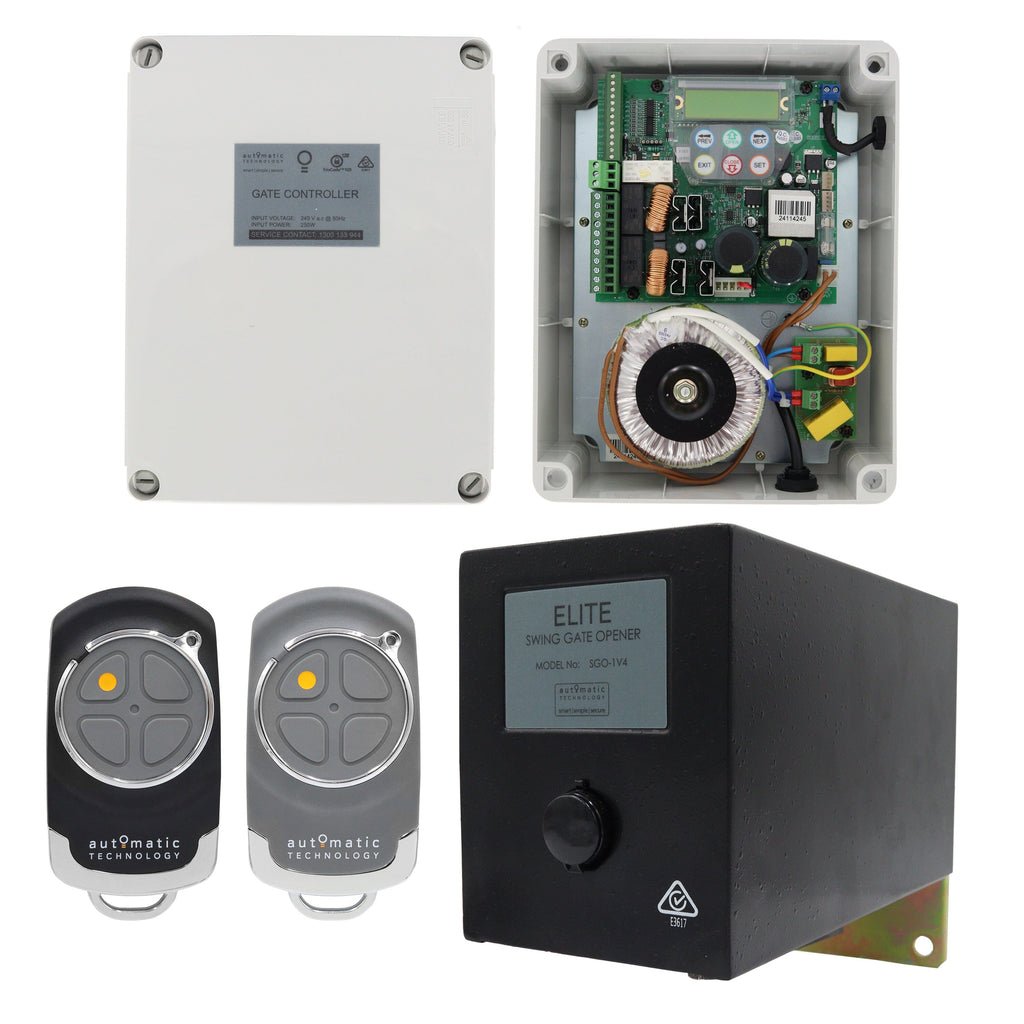

1 x Elite SGO-1v4 Motor

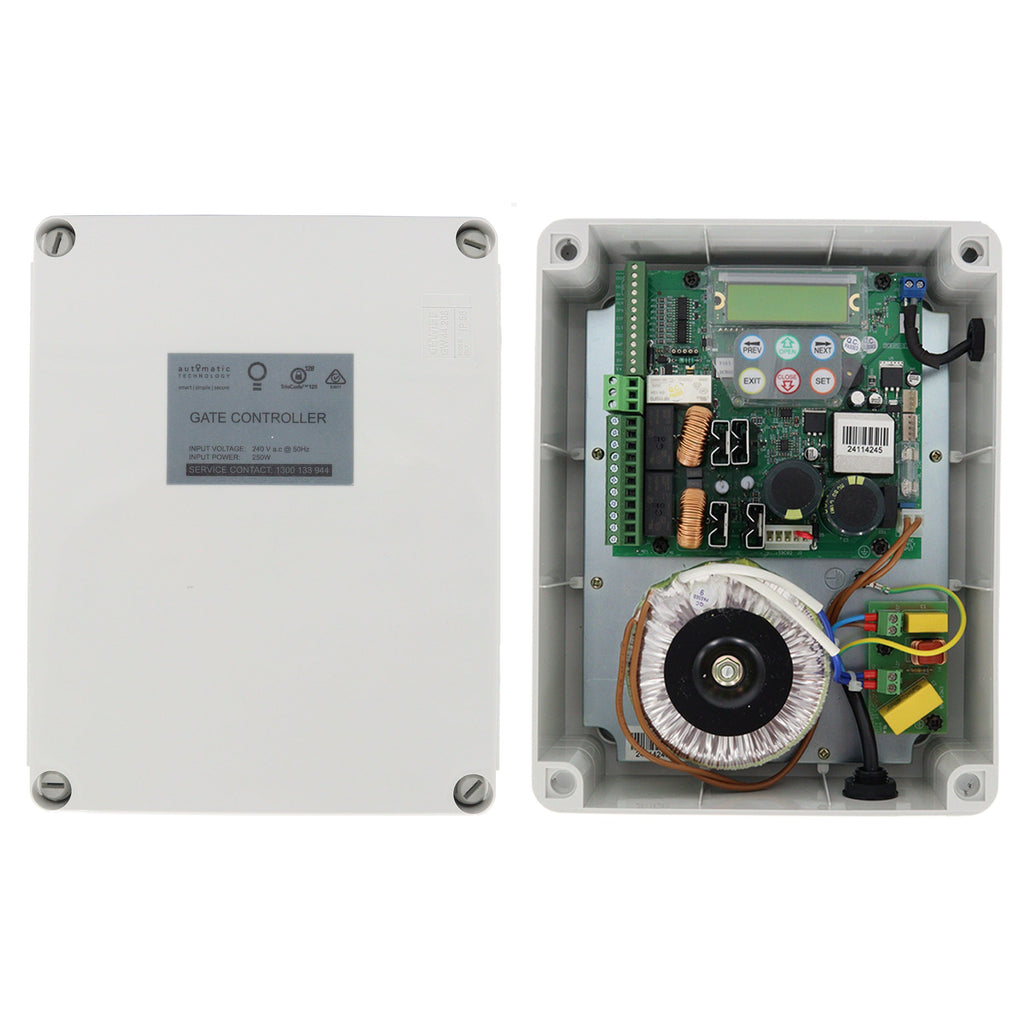

1 x DCB-05V2 Control Board

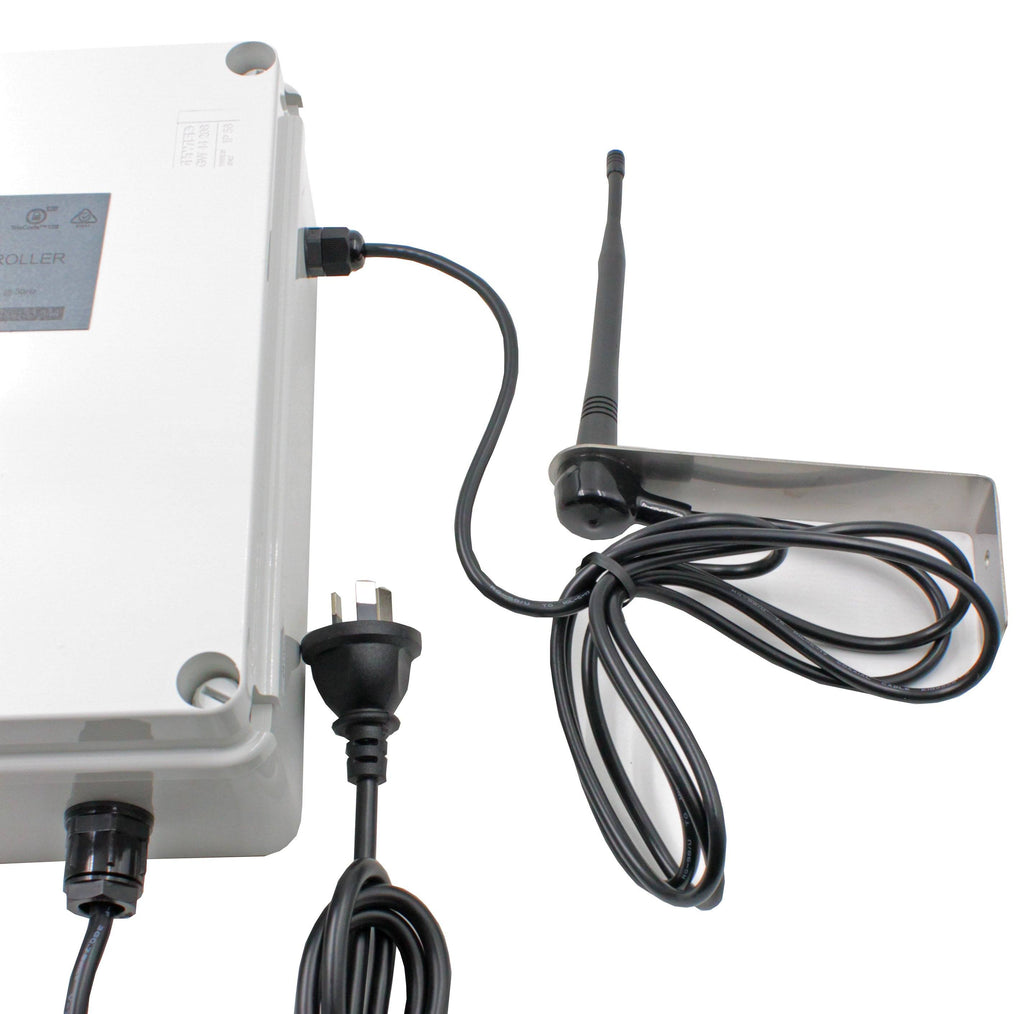

1 x Control Board Weather Proof Box
4 x Control Board Mounts

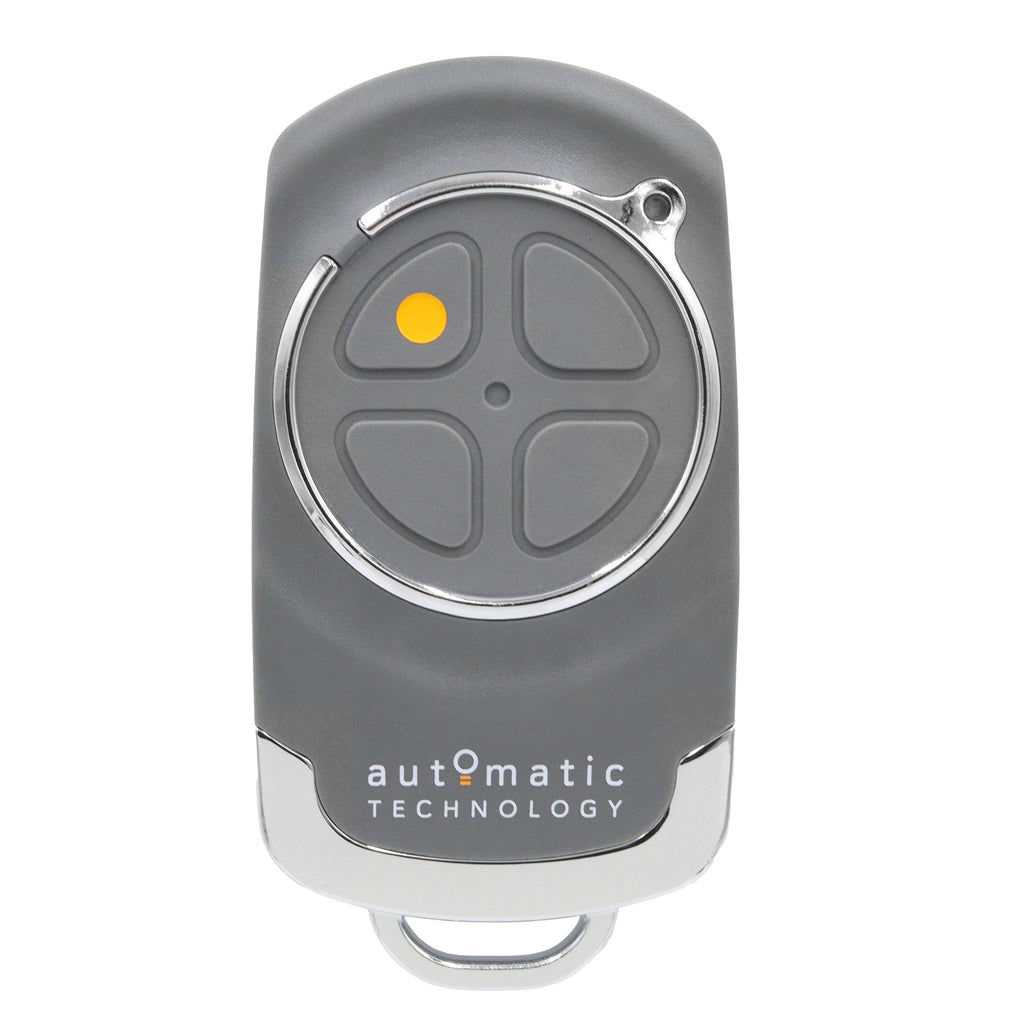

2 x PTX-5v2 Remotes

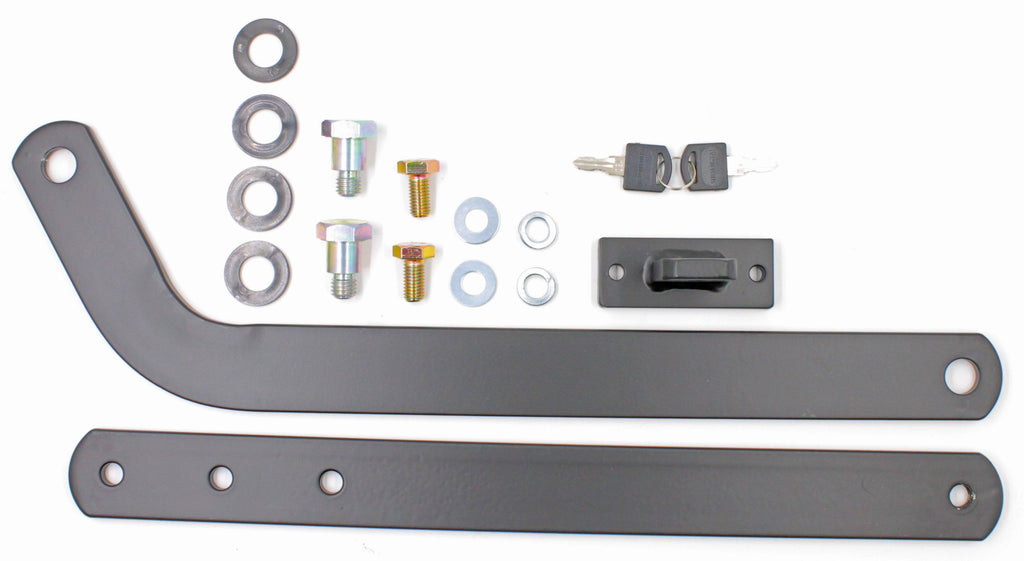

1 x Safety Slave Arm
1 x Drive Arm
2 x Accessory Pack
1 x Installation Sheet
1 x Installation Instructions

Motor Type
Maximum gate weight
Up to 300 kg
Maximum gate width
4 m
Driving force
200 N
Power Supply Voltage
230 €“ 240 Vac 50Hz
Travel speed 8° per second
Dimensions (w x h x d)
275mm H x 250mm W x 170mm D
Weather resistance rating
Motor type
24 DC Permanent Magnet
2 years / 5,000 cycles
Please Note International shipping is not available
