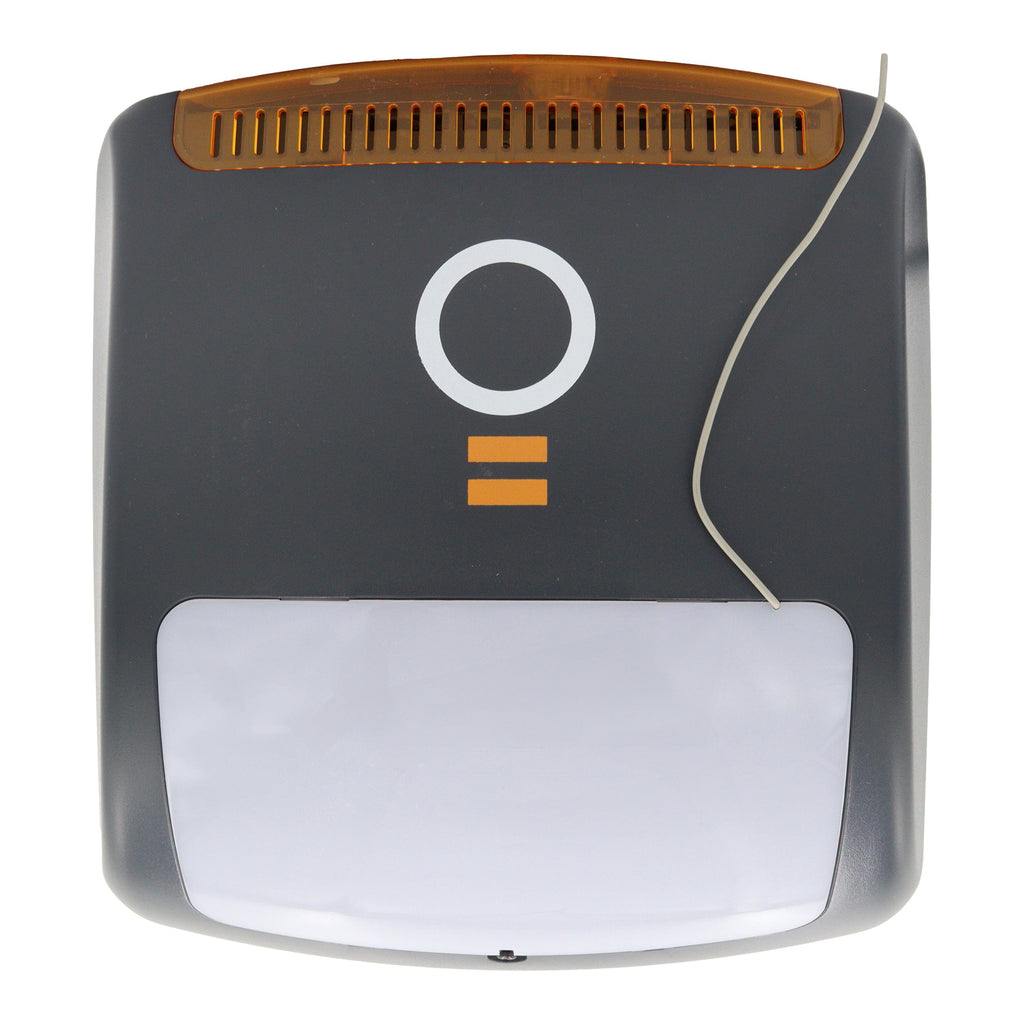

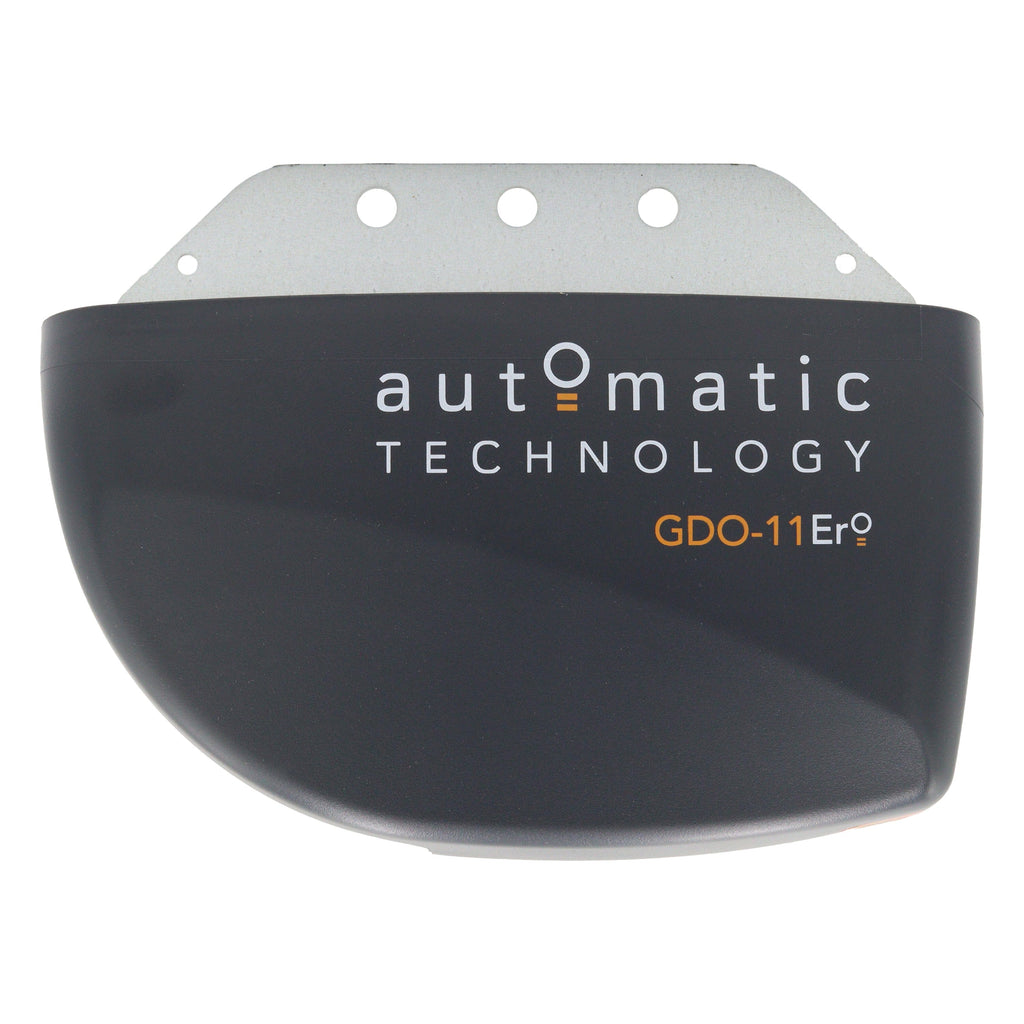

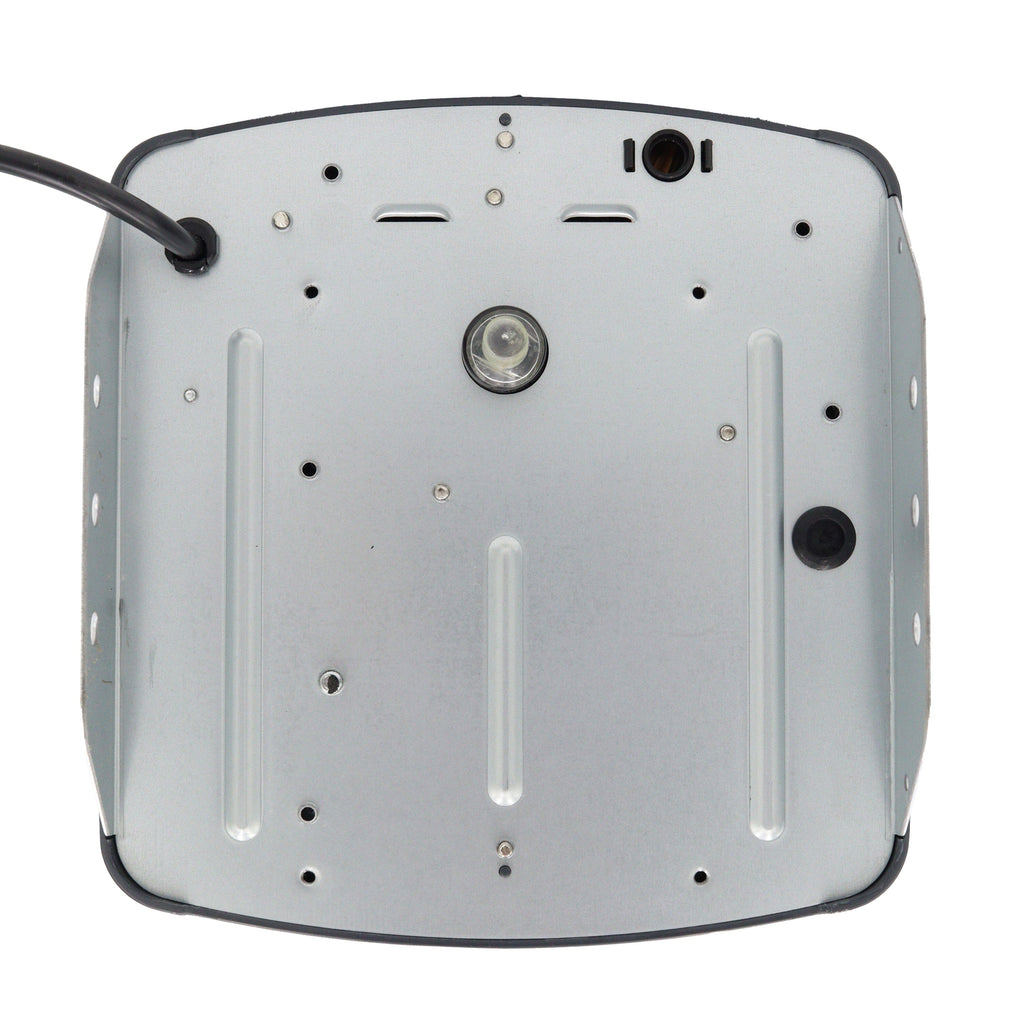

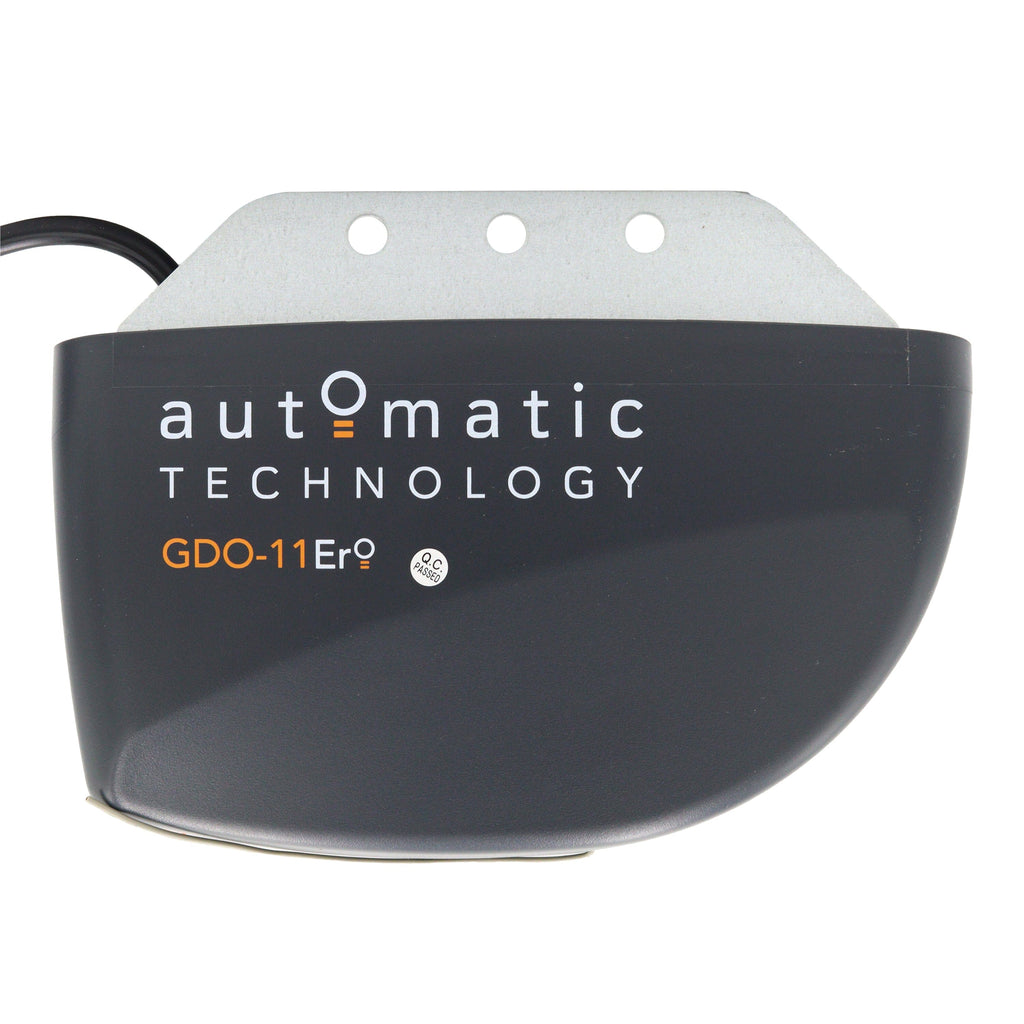

ATA GDO-11V3 Ero Sectional Garage Motor/Opener (No Rail)

In stock




Free Shipping (FREE): 2-10 Business Days
Tracked Shipping ($6): 1-5 Business Days
Express Shipping ($12): 1-3 Business Days
Express Shipping - Garage/Gate Motors ($80): 1-3 Business Days
Motor Manual

Motor Brochure

Quick Operation Guide

The Ero® garage door opener offers great value for money. With important features included, Ero®'s 650N motor will drive most standard residential sectional doors.

It's the choice for new homebuyers and for all the right reasons. It comes standard with the important features of TrioCode, Intelligent Safety System, Door Profiling and Soft Start/Soft Stop. It also includes a Standard Courtesy Light, and conveniently a service indicator to remind you when your door needs servicing.

Please Note: This does not include the rail. Ideal for when you need to replace your motor head.


  • Soft Start/Soft Stop
  • Intelligent Safety System
  • Door Profiling
  • TrioCode™128
  • Safety Beams Ready (optional)
  • Courtesy Lights
  • Service Indicator
  • Ventilation Mode
  • Vacation Mode
  • Auxiliary Output

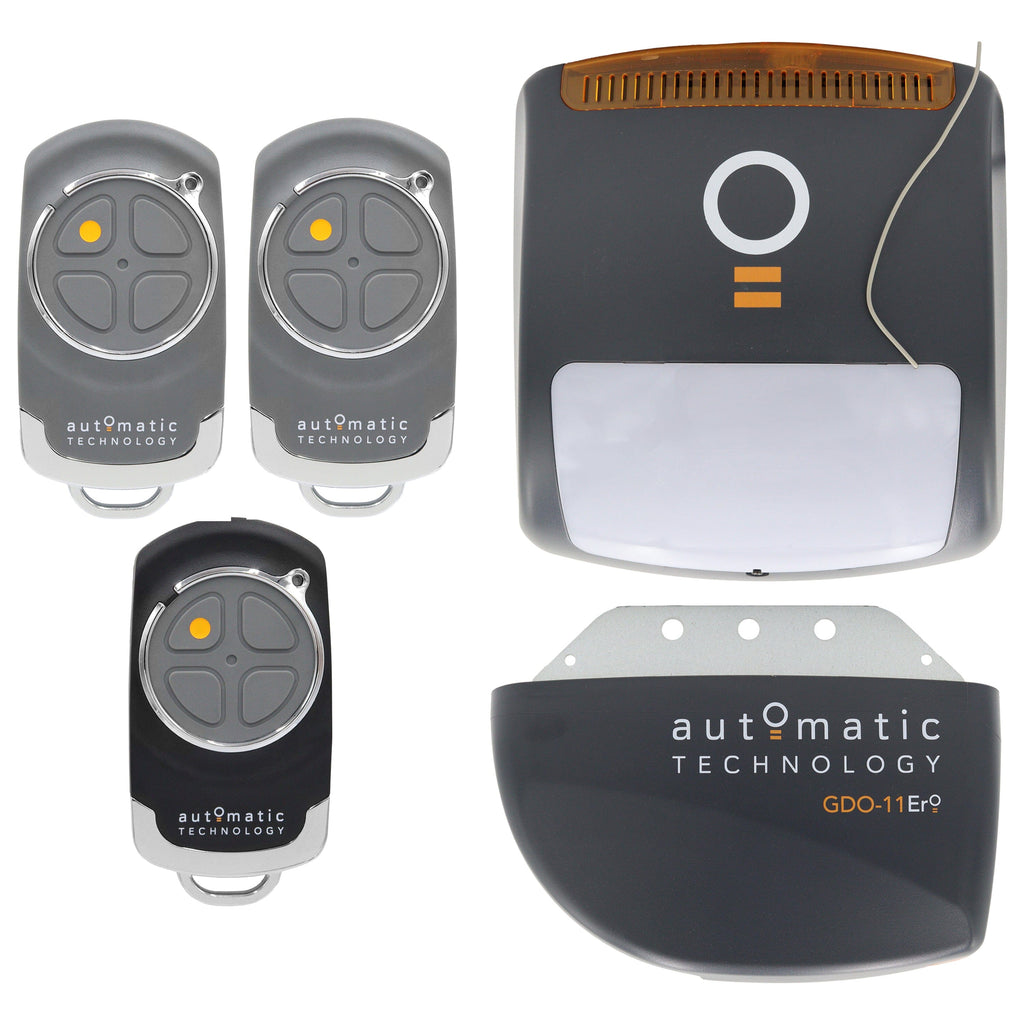

    Remotes Included: 3 (PTX-5v2)

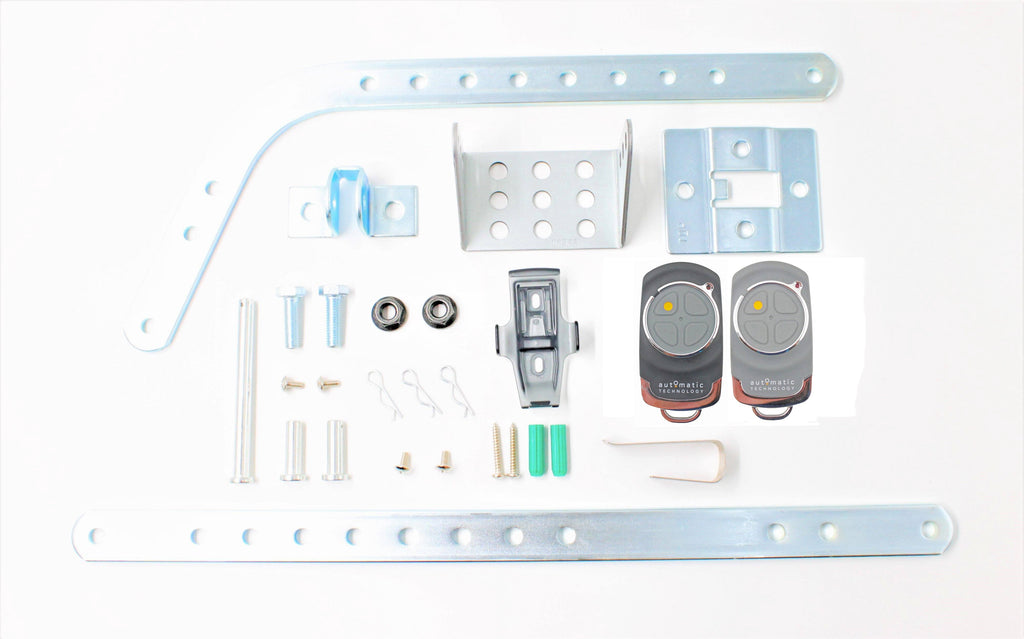

    • 1 x GDO-11V3 Ero Opener
    • 2 x Door Attachment Arms
    • 1 x Accessory & Hardware Pack
    • 5 Years/10,000 Cycles Manufacturers Warranty*

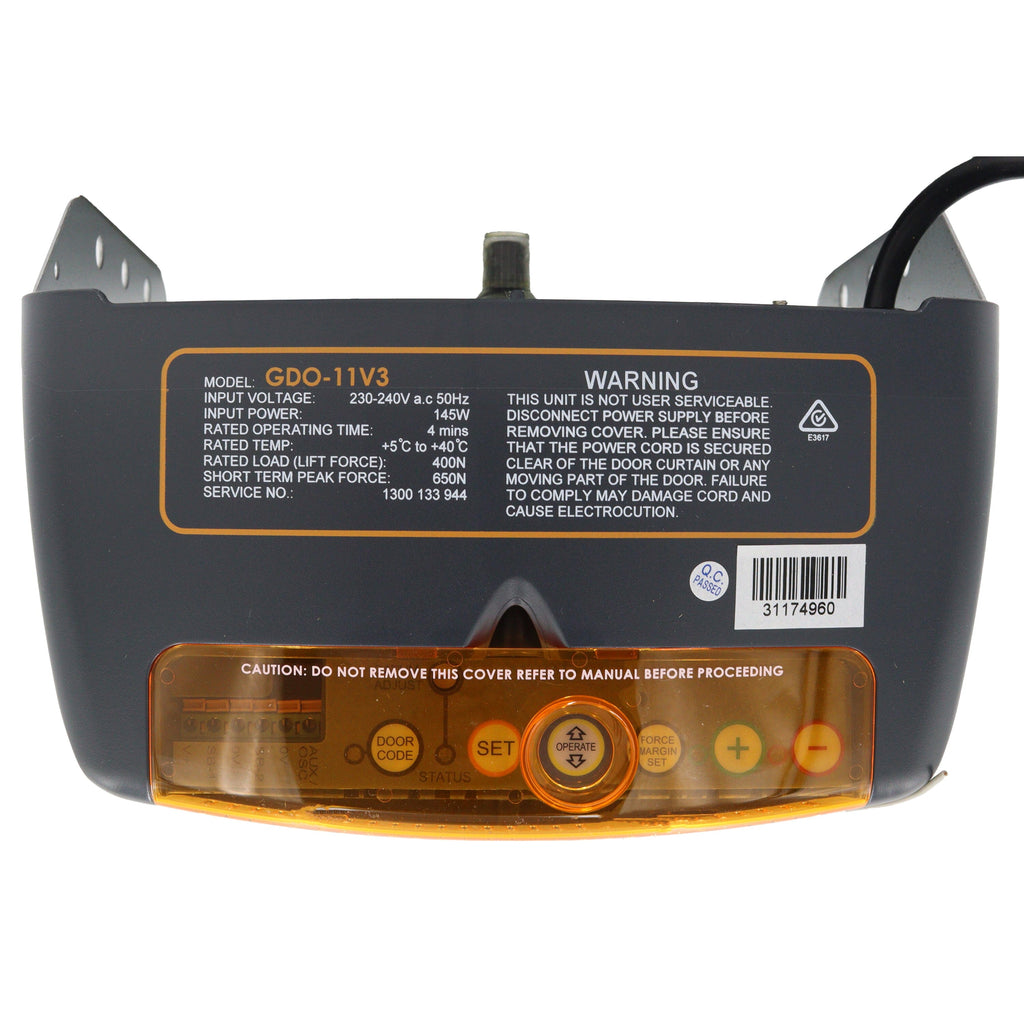

    Peak pulling force 650N
    Maximum Door Weight Up to 100kg
    Maximum Recommended Door Size 13.5m2
    Typical Travel Speed 140mm/sec
    Motor Type 24V DC Permanent Magnet
    Motor Power 100W
    Input Voltage
    230-240V a.c. 50Hz
    Operating Frequency
    Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz)
    Coding System TrioCode™128, code hopping
    Code Combinations 3.4x1038 code combinations
    Transmitter Capacity
    Courtesy Light 1 x Festoon Globe
    Safety Beam Compatibility 1 x 2-wire Safety Beams
