Motor Brochure

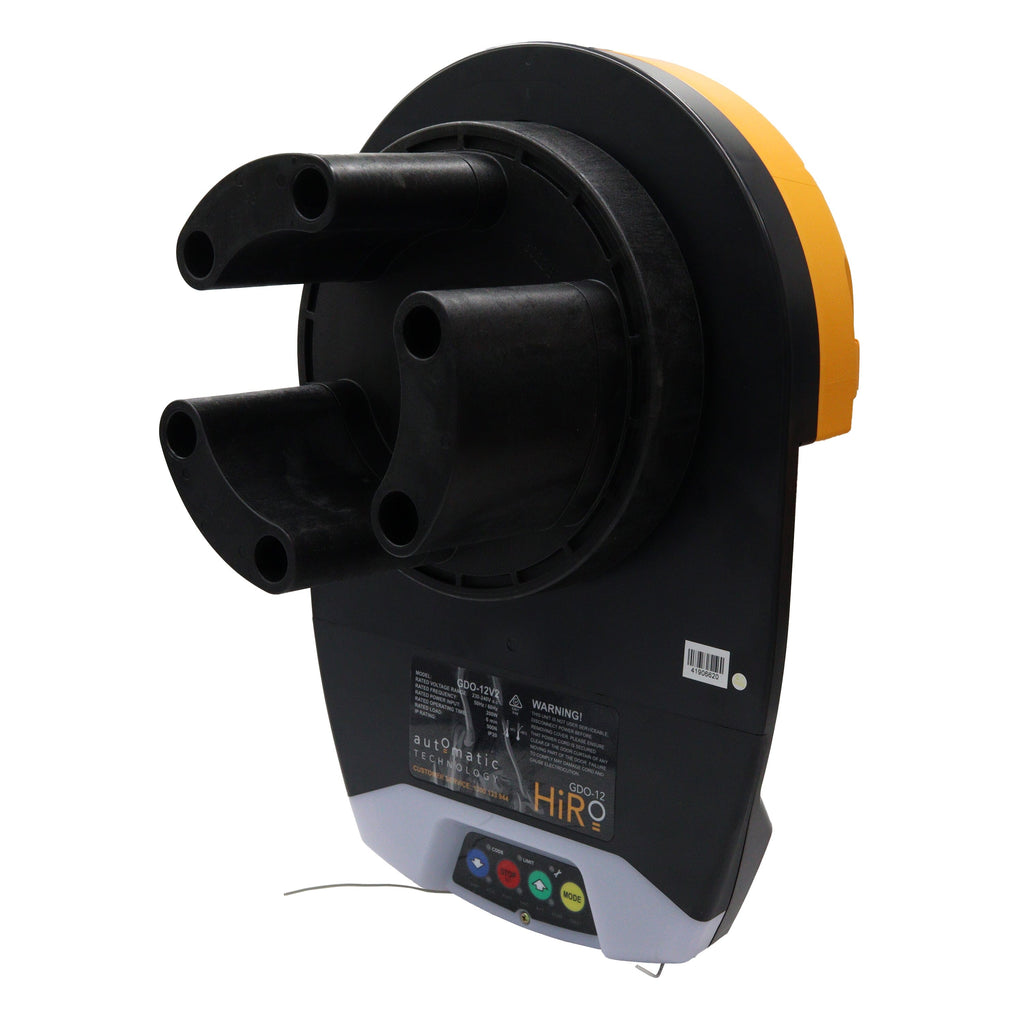

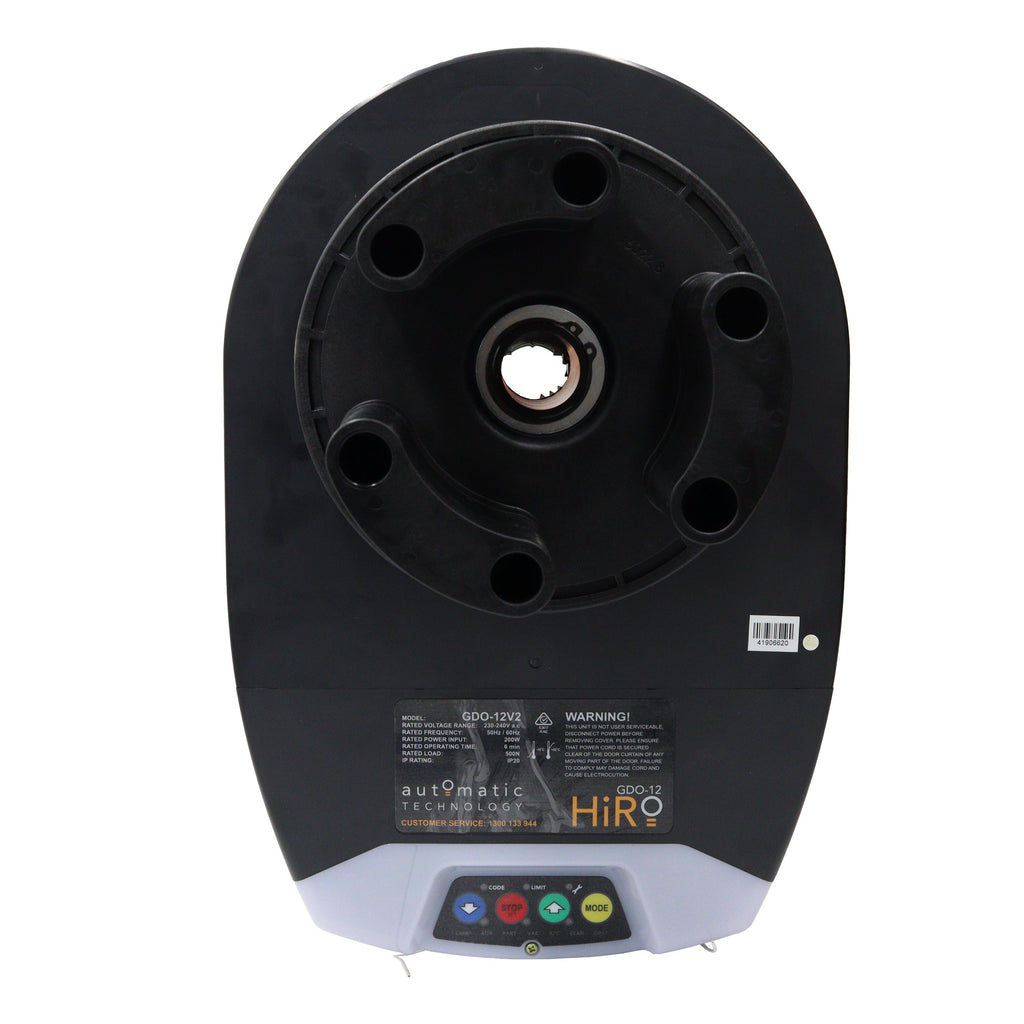

HiroTM is not only the slimmest and most powerful openers in the range, it paves the way in control and connectivity delivering smart phone control in light commercial applications (as an optional upgrade).
If you need to operate a very large roller door or a wind-locked door, or have a site with low side room requirement, HiroTM is the ideal choice.
Features:
- 1400 Short term peak force to reliably operate large doors up to 28m2*, wind-locked + doors up to 22m2**
- Slim fit design (35mm only from the edge of the curtain to the edge of the bracket)
- Variable opening speed
- Smart phone compatible
- Optional slide-on or wall mount battery back up
- Large removable forks suits most drum wheels
- Courtesy LED light

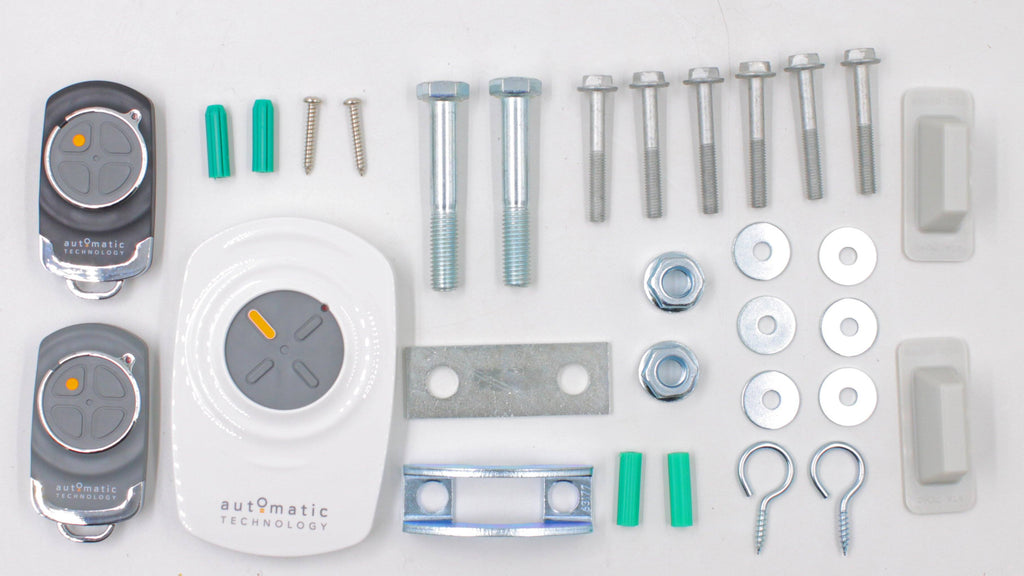

Included:
1 x GDO-12V1 Hiro Motor
2 x PTX-6V1 Remotes
1 x WTX-6V1 Wireless Wall Button
1 x Installation Instructions
1 x Accessories Pack
2 Years Manufacturers Warranty*
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
| Motor Type | 24V DC |
|
Short term peak force
|
1400N
|
|
Drum rotation
|
6
|
|
Standby Power
|
<1W
|
|
Opening speed (mm/sec)
|
90/102/118
|
|
Max Door Weight kg
|
270#
|
|
Max Door * Size m2
|
28
|
|
|
22
|
|
Minimum Side room mm
|
35
|
|
Left hand or right hand side installation
|
Yes
|
|
Removable Fork Length mm
|
108
|
|
Warranty
|
2 year/10,000 cycles
|
|
Smart Phone Control
|
Yes (optional)
|
|
Courtesy Light
|
Yes (LED) |
|
Battery Back up
|
Yes (optional)
|
|
Safety Beam Compatibility
|
1 set wireless/ 2 sets 2-wire 3 sets total
|
|
Remotes Included
|
2 x PTX-6v1
|
|
Wall Button
|
Included
|
|
Key Switch
|
Yes (optional)
|
|
Transmitter Capacity
|
64
|
|
Protocol
|
TrioCode 128 and Tritran +
|
