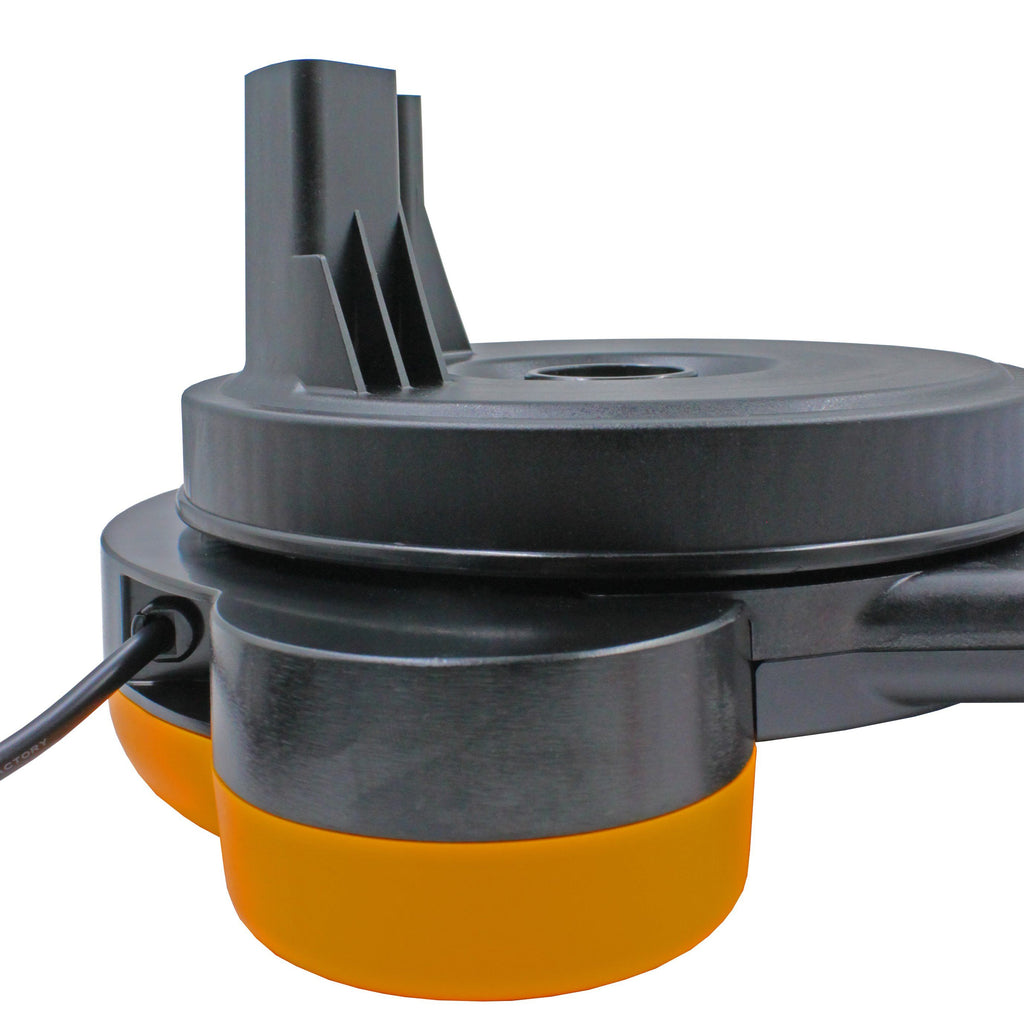

The Series 2 EasyRoller® takes forward the impressive reputation earned by this series of openers over the past decade. This version incorporates bright LED courtesy lighting and compatibility with Safety Beams. The Service Indicator lets you know when it is time to service your door. This is in addition to TrioCode128 transmitters, Soft Start/Soft Stop operation, advanced door profiling and obstruction sensing for secure and safe operation.
This model is also smart ready which allows the ATA Smart Hub Kit to be plugged in and allow the motor to be controlled with your smart phone.
Features:
- Easy to install
- Quiet and efficient to run
- TrioCode 128 Technology
- Automatic Limit Positioning System
- Automatic courtesy light
- Vacation Mode
- Pedestrian Mode
- Automatic Close Function
- Suits Doors up to 16.5 m2
- Left or Right Mounting

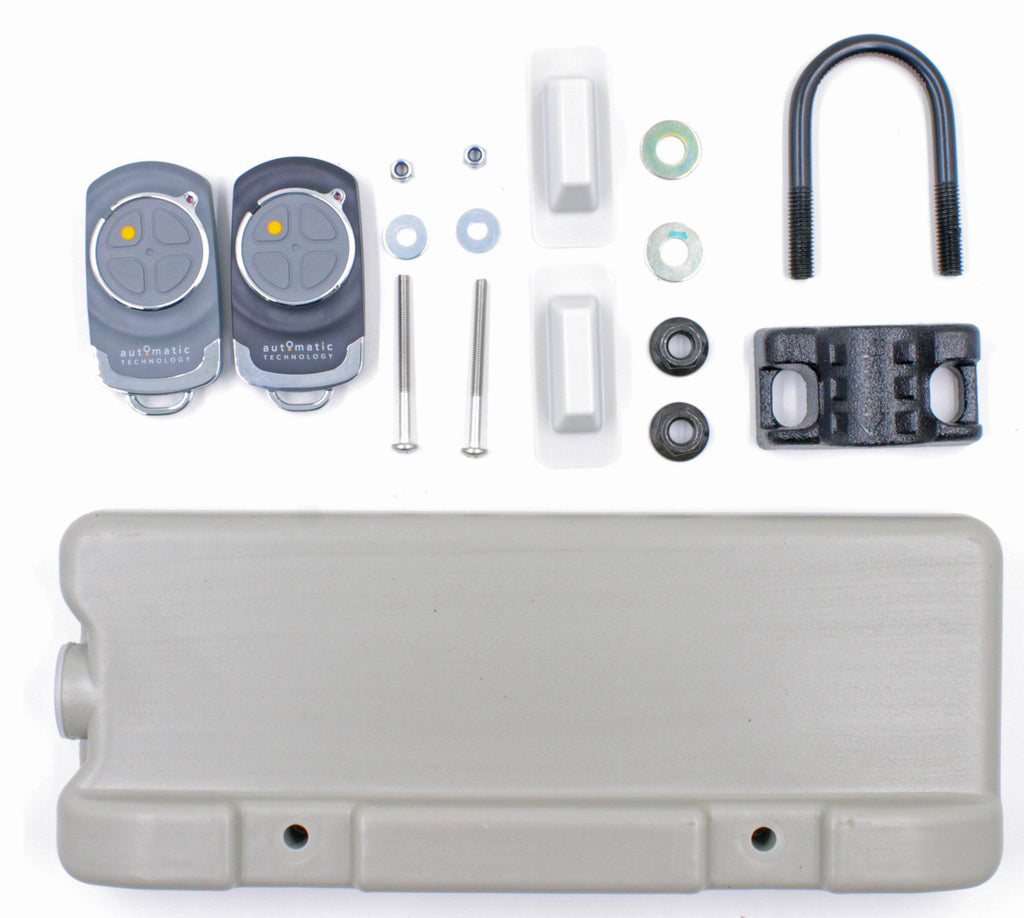

Included:

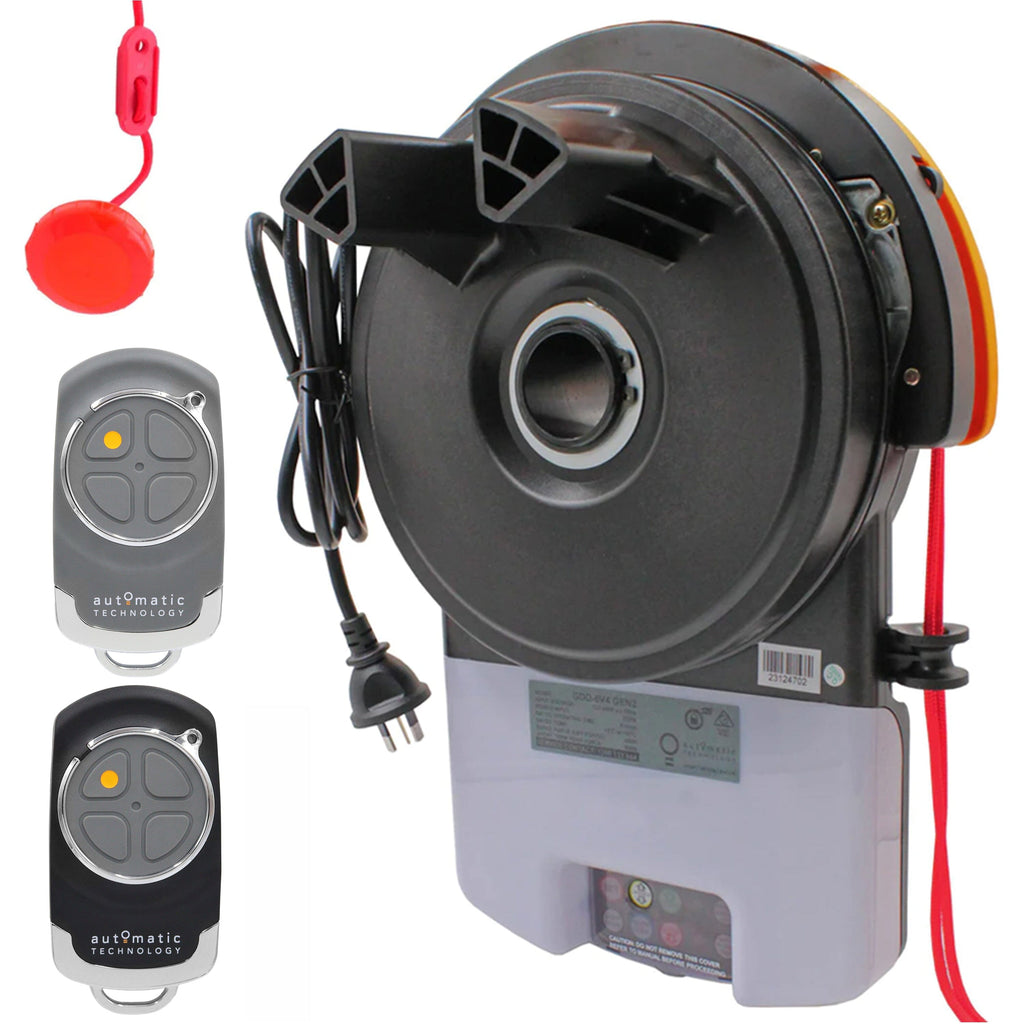

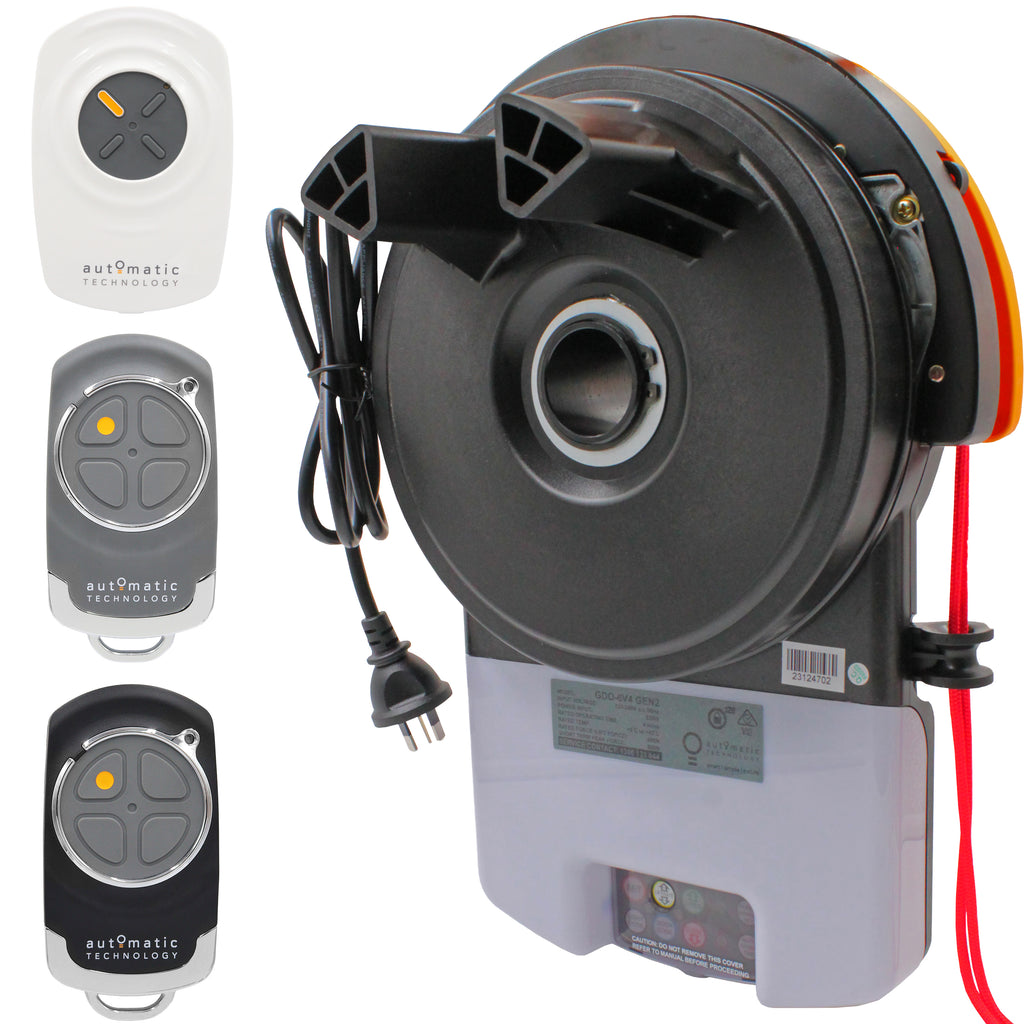

1 x GDO-6v4 Motor (GDO-6 GEN 2)
2 x Locking Bar Covers
1 x Mounting Hardware
1 x ATA EAT2v2 Corded Remote
2 x PTX-6v1 Remotes
1 x Weight Bar
7 Years/20,000 Cycle Manufacturers Warranty*
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
Specifications:
| Peak pulling force | 600N |
| Maximum Door Weight | 110kg |
| Maximum Recommended Door Size | 16.5m2 |
| Minimum Side Room Requirement | 40mm |
| Motor Type | 24V DC Permanent Magnet |
| Motor Power | 100W |
| Input Voltage |
230/240 Volts AC
|
| Operating Frequency |
Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz)
|
| Coding System | TrioCode128, code hopping |
| Code Combinations | 3.4x1038 code combinations |
| Storage Capacity |
64 Remotes
|
| Courtesy Light | 2 x LED |
| Safety Beam Compatibility | 2 x Wireless/2-wire Safety Beams |
| Smart Phone Control Kit | Compatible |
| Typical Travel Speed | 130mm/sec |
