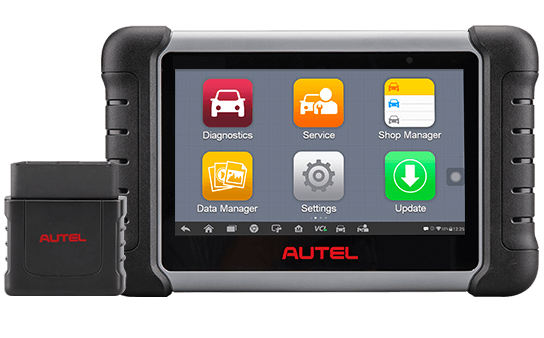

Autel MaxiCom MK808BT All System Diagnostic and Service Tablet
Upgraded Bluetooth version of the Autel MK808
Featuring the powerful Cortex-A9 processor, and a 7.0 inch LCD capacitive touchscreen, based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiCOM MK808BT is your ideal auto diagnostic and service tool. MK808BT provides you with superior special functions, including Oil Reset, EPB(Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).
Autel MaxiCom MK808BT Features
Australian Ford & Holden Software
Read/clear codes for all available systems
Display live data in text, graph & analog for easy data review
Auto VIN technology can automatically identify the vehicle€™s make, model and year information
Relearn parking brake after brake pad replacement
Support IMMO functions -program new keys
Support forced DPF regeneration and injector coding
Reset Steering Angle Sensor (SAS)
Reset service mileage and service intervals
Support TPMS sensor relearn
Support battery registration and reset
Service Functions
The MK808BT Pro provides the following functions for most modern vehicles:
- Airbag
- BMS (Battery Management System)
- Brake Bleeding
- Change tyre size
- Cylinder
- DPF Service (Diesel Particulate Filter)
- EPB Service (Electronic Parking Brake)
- Gear learn
- Headlamp
- IMMO Service (Immobilizer)
- Injector coding
- Language change
- Odometer
- Oil Reset Service
- SAS Service (Steering Angle Sensor)
- Seats reset
- Suspension
- Throttle learning
- TPMS Service (Tire Pressure Monitor System)
- Transmission adaptations
- Window and Roof setting
- USB External Power Adapter
- USB Cable (for charging)
- USB Cable (for test)
- MaxiVCI Mini
- User Manual
- Quick Reference Guide
Specifications:
Recommended Use | Indoor |
Operating System | Android™ 4.4.4, KitKat |
Processor | Cortex-A9 processor(1.6GHz) |
Memory | 64GB |
Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
Connectivity | Mini USB 2.0 USB2.0 Wi-Fi HDMI Type A Micro SD card slot(supports up to 32GB) |
Sensors | Light sensor for brightness auto changing |
Audio input/output |
Input: N/A Output: buzzer |
Power and Battery |
3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
Tested Battery Life | Around 7 hours of continuous use |
Battery Charging Input | 5V/1.5A |
Power Consumption | 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V |
Operating Temp | 0 to 55°C(32 to 131°F) |
Storage Temp | -20 to 60°C (-4 to 140°F) |
Operating Humidity | 5%-95%non-condensing |
Dimensions(WXHX D) | 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
Net Weight | 788 g (2.42 lb.) |
Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
