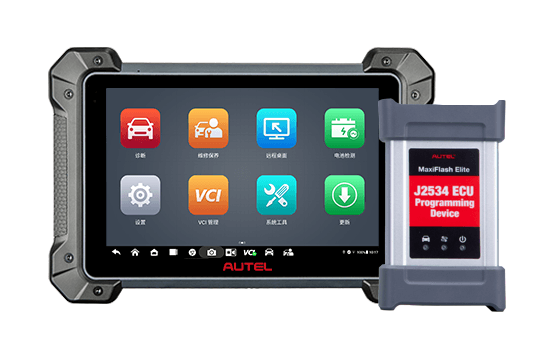

Autel MaxiCOM MK908P II is 10.1-inch touchscreen advanced diagnostics tablet powered by a Octa-core processor with 128GB of storage memory and runs on Android 10. The MK908P II can read/erase codes on all available systems, perform bi-directional active tests, view freeze frame, view and graph live data, and perform adaptations and coding on U.S., Asian and European vehicles, 1996 and newer.
Features:
- Qualcomm 660 Octa-core processor (2.2GHz Quad-core processor A73 + 1.8GHz Quad-core A53)
- 10.1-inch touchscreen Wi-Fi tablet
- Bluetooth-enabled MaxiFlash VCI/J2534 pass thru programming device
- Android 10.0 operating system
- Read/erase codes on all available systems
- View freeze frame, view and graph Live Data
- Perform bi-directional active tests
- Perform adaptations and coding
- AutoVIN and Auto Scan
- Share reports easily via email and text and Wi-Fi printing
Service Functions:
- ABSSRS
- Airbag Reset
- BMS (Battery Management System)
- Brake Bleeding
- Change tyre size
- Clutch
- Cylinder
- DPF Service (Diesel Particulate Filter)
- EPB Service (Electronic Parking Brake)
- Gear learn
- Headlamp
- IMMO Service (Immobilizer)
- Injector coding
- Language change
- Limit
- Odometer
- Oil Reset Service
- SAS Service (Steering Angle Sensor)
- Seats reset
- Suspension
- Throttle learning
- TPMS Service (Tire Pressure Monitor System)
- Transmission adaptations
- Turbocharging
- Window and Roof setting
Specifications:
|
Operating System |
Android™ 10.0 |
|
Processor |
Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
|
Memory |
4GB RAM & 128GB On-board Memory |
|
Display |
10.1-inch LED screen with 1920x1200 resolution |
|
Connectivity |
Wi-Fi (802.11 a/b/g/n/ac) USB 2.0 (2 USB TYPE-A ports and a Mini USB port) SD Card (Support up to 64GB) HDMI |
|
Camera (rear) |
16 Megapixel, AF with Flashlight |
|
Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
|
Audio Input/Output |
Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack |
|
Battery |
11000mAh |
|
Input Voltage |
12V (9-24V) |
|
Power Consumption |
6.5 W |
|
Operating Temp |
0 to 50°C (32 to 122°F) |
|
Storage Temp |
-20 to 60°C (-4 to 140°F) |
|
Housing |
Strong plastic housing with protective rubber boot |
|
Dimensions (W x H x D) |
312mm(12.28")x208mm(8.18")x36mm(1.41") |
|
Weight |
NW: 1.48kg (3.26 lb) |
|
Protocols |
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
