Autel MaxiSys Ultra Diagnostic Platform

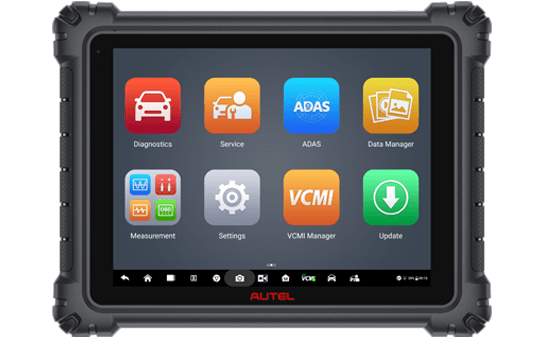

The MaxiSys Ultra is Autel™s most ambitious diagnostic tablet designed to maximize technician intelligence. It features a 12.9-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features, and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance.
To see what functions are available for each vehicle please click here

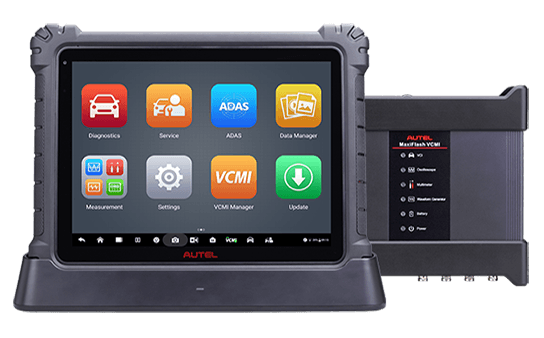

The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.
Main Features
- Autel updates provide the latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Automatic system and software updates with real-time push message notifications via the internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Cloud-based Data Manager saves customer and vehicle records, scanner data, and technician notes

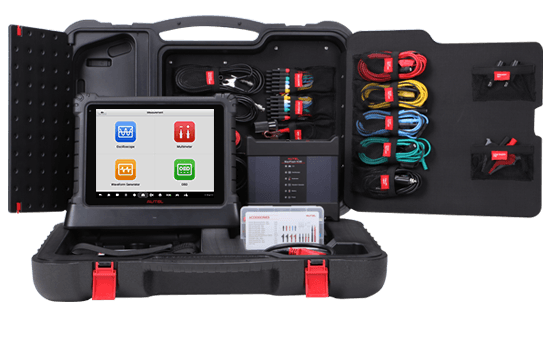

Product Includes
- Main unit
- Maxi Flash VCMI
- Docking Station
- Main Cable V2.0
- USB 2.0, Cable V2
- AC/DC, Cable V2
- Cigarette Lighter
- 2pcs.Light Fuse
- Clipper Cable
- 4pcs. Scope Test Lead
- 2pcs. Multimeter Test Lead
- 2pcs. Secondary Ignition Pickup
- 2pcs. Attenuator 20:1
- 4x6pcs. Breakout Lead
- 1x2pcs. Multimeter Probe
- 2x2pcs. Flexible Back-pinning Probe
- 1x5pcs. Back-pinning Probe (Red/Green/Blue/Yellow/Black)
- 2pcs. Back-pinning Probe Screw
- 20pcs. Back-pinning Replacement Needle v2x2pcs. Small Crocodile Clip
- 1x2pcs. Large Dolphin Clip
- User Manual
- Packing list
- Soft Cloth
- Tool Box
- Carrying Case
* BT v.2.1 + EDR
* GPS
* USB 2.0 (Two USB HOST Type-A, one USB mini device)
* HDMI 2.0
* SD Card (Support up to 256GB)
* Front: 5 Megapixel
* Dual Speakers
* 3-Band 3.5 mm stereo/standard headset jack
* Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
(TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL),
SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM
(Ford SCP), SAE-J1850 VPW (GM Class2)
Fast and Free Shipping
After Sales technical support
Product will come with a one year warranty
30-day money-back guarantee - we guarantee you'll love it or you'll get your money back
