B&D PanelMax SDO-8 Sectional and Overhead Garage Motor combines affordable garage door control with the smooth and reliable operation that B&D is famous for. This operator is designed for residential sectional and overhead garage doors.
The B&D PanelMax SDO-8 features a reliable 700N motor with soft start and stop to reduce door stress, automatic courtesy light, wall button and a massive 5 years/10,000 cycles Manufacturers Warranty*
Features:
- Tri-Tran Technology
- Code Hopping Technology
- Multi-Channel Transmitter
- S-ALPS (Semi Automatic Limits Positioning System)
- ISS (intelligent safety obstruction system)
- Manual Release
- Self Locking
- Service Fault Indicator
- Dynamic Door Profiling
- Safety Beam (Optional)
- Courtsey Light
- Vacation Mode
- Auxiliary Output
- Pet (Pedestrian Mode)

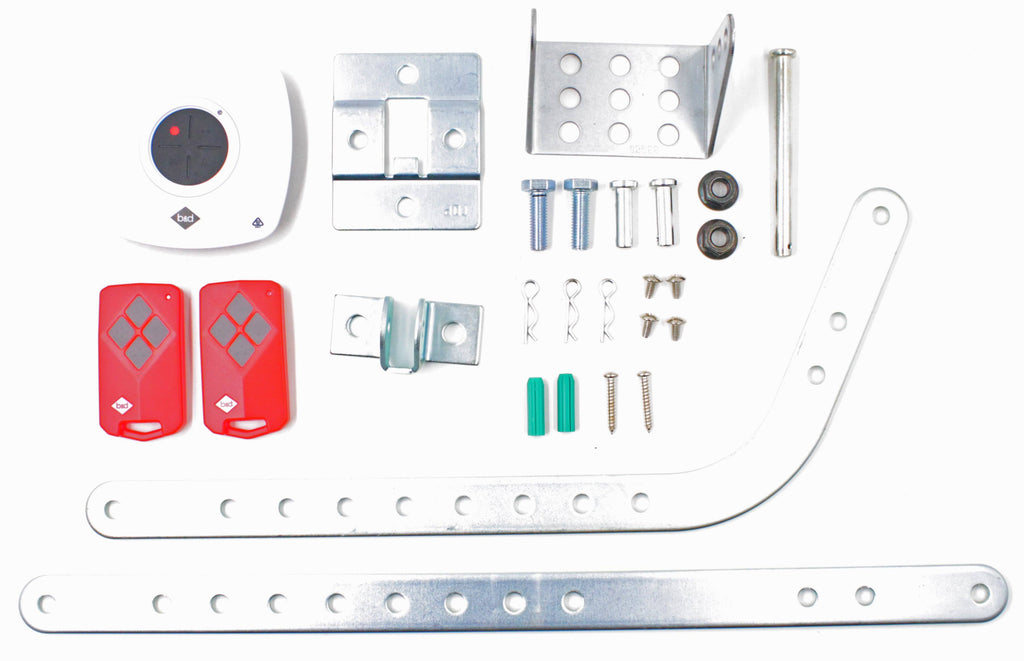

Included:

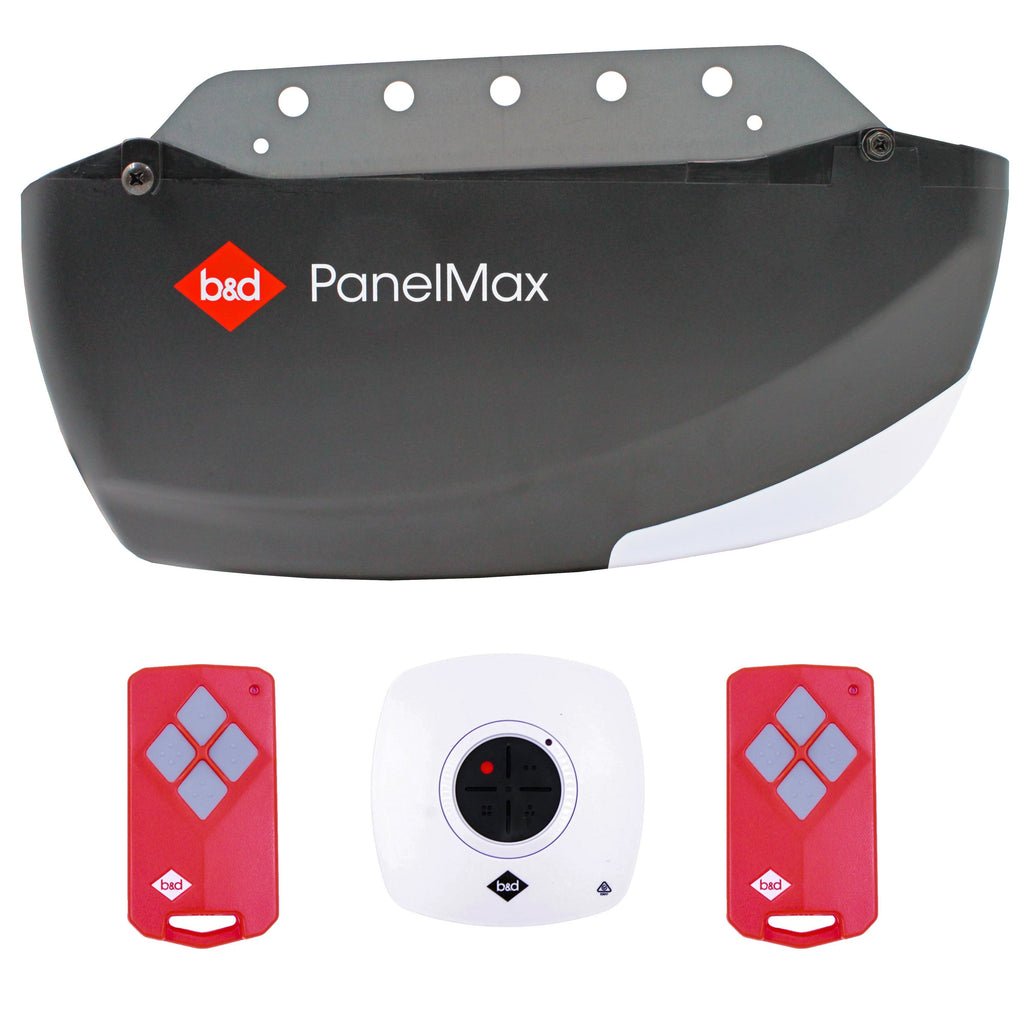

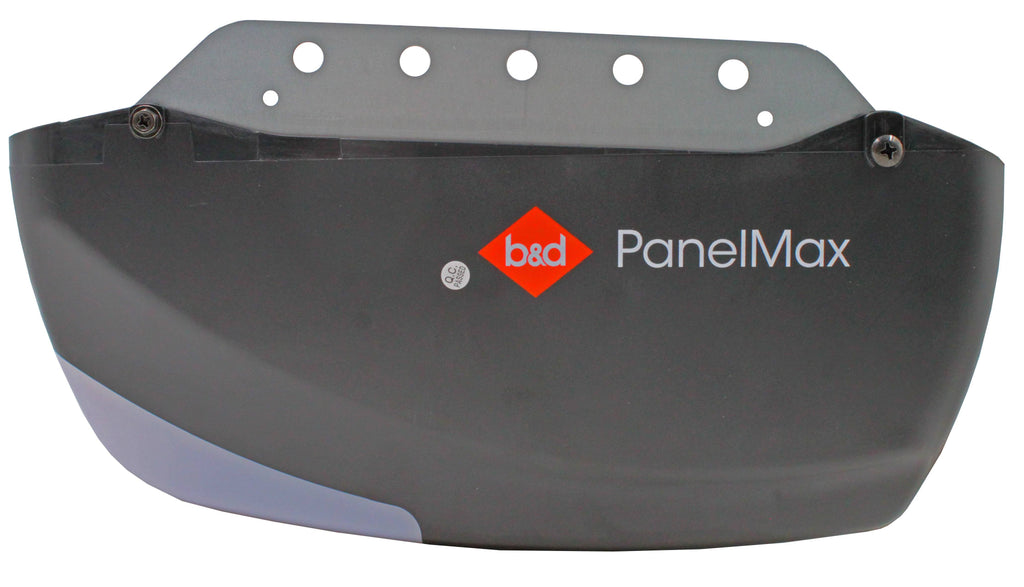

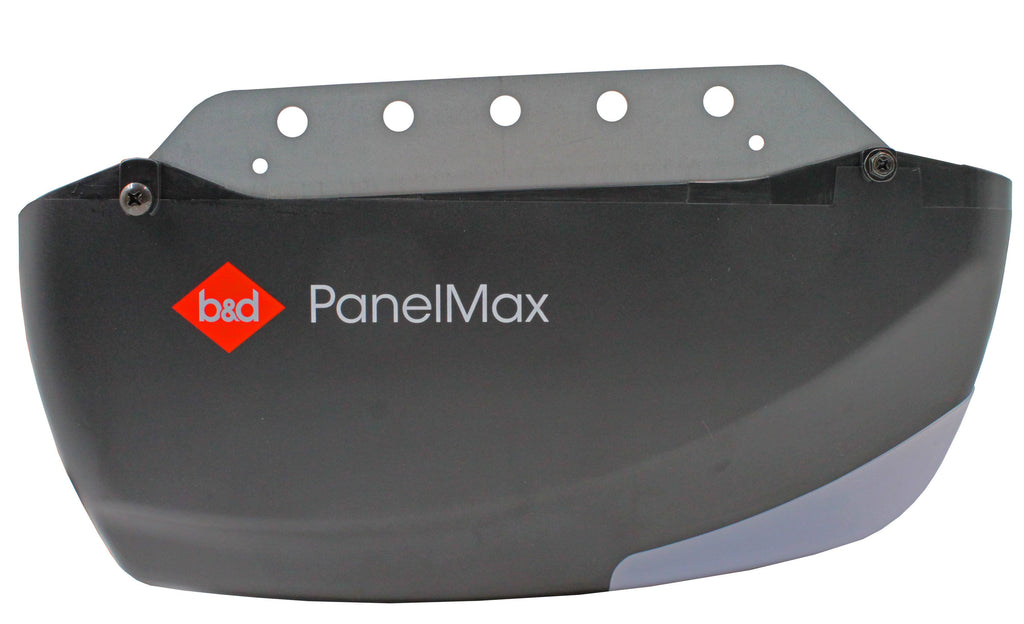

1 x B&D PanelMax Sectional and Overhead Garage Motor
2 x B&D Tri Tran TB5v2 Remotes
1 x B&D WTB-6 Wall Remote
1 x Installation Instructions
1 x 5 Years Manufacturers Warranty*
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
Please Note: This item does not include the rail
Specifications:
| Rated voltage range: | 230V - 240Va.c. |
| Rated frequency: | 50Hz / 60Hz |
| Rated power input: | 235W |
| Maximum Door Area: | 15m2 |
| Maximum Door Weight: | 140kg* |
| Minimum headroom: | 57mm |
| Rated Operating Time: | 4 mins |
| Rated Temp: | +5 C to +40 C |
| Short Term Peak force: | 700N |
| Door travel speed (mm/sec): | 180mm |
| Rated load: | 400N |
| Nominal force: | 200N (20kg) |
| Receiver type: | Multi-frequency UHF FM |
| Receiver code storage capacity: | 64 X 4-button Transmitters |
| Transmitter battery: | CR2032 (3 Volts) |
| Courtesy light: | LED (Light Emitting Diodes) |
| Network connectivity: | Network ready (requires optional smart phone control kit) |
