With all of the essential features and quality accessories you come to expect from B&D, Controll-A-Door® Secure offers exceptional value. It's no secret that the products from B&D Garage doors are some of the nicest on the market.
Bolster your home security with the new Safe Lock anti-tamper system that locks your garage door if an intruder tries to lift it. Combine this with a super-fast opening speed and bright LED courtesy light to illuminate your garage, and it€™s clear that Controll-A-Door® Secure is the sensible choice to automate your garage door. Controll-A-Door® Secure is backed by B&D Doors market leading 7 Year/20,000 Cycle warranty.
Features:
Tri-Tran+ Premium Accessory Kit
Includes two TB-6 remotes and one wireless wall button to provide superior security and excellent operating range whilst virtually eliminating interference from other wireless devices.Built-in Auto Reverse Technology
The door automatically reverses if it comes into contact with an obstruction whilst in motion.Safe Lock System
Prevents intruders from gaining unauthorised access into the garage.Super Fast Opening
The B&D Secure SDO-6 has unparalleled speed for openers of it's type, something B&D Garage door products are known for.Bright LED Courtesy Light
Ultra bright LED's which illuminate when the door is in operation to light up your garage to make entering and exiting easier than ever.Quiet DC Motor
The integrated DC motor coupled with a belt driven rail will provide one of the quietest operations on the market.Heavy Lifting Capacity
Suits both single and double sized sectional garage doors up to 235KG.

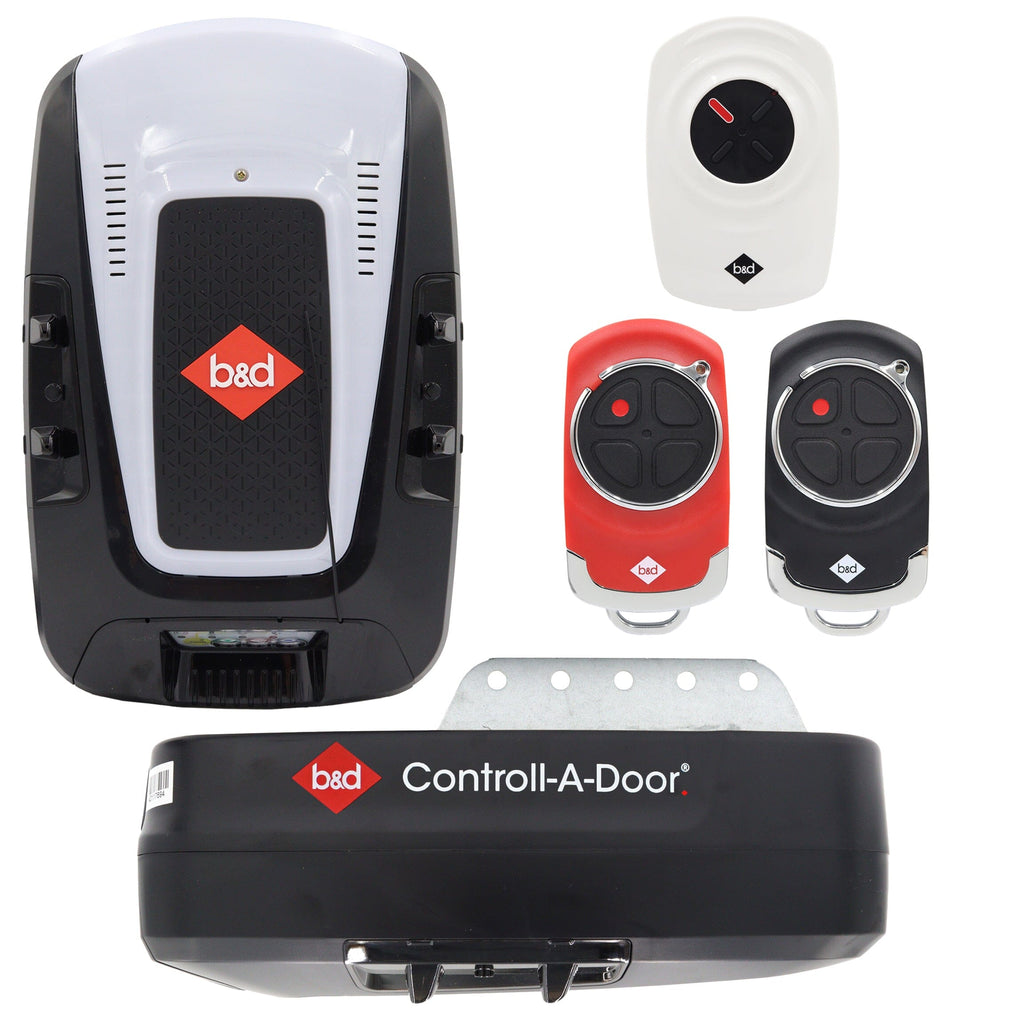

Included:

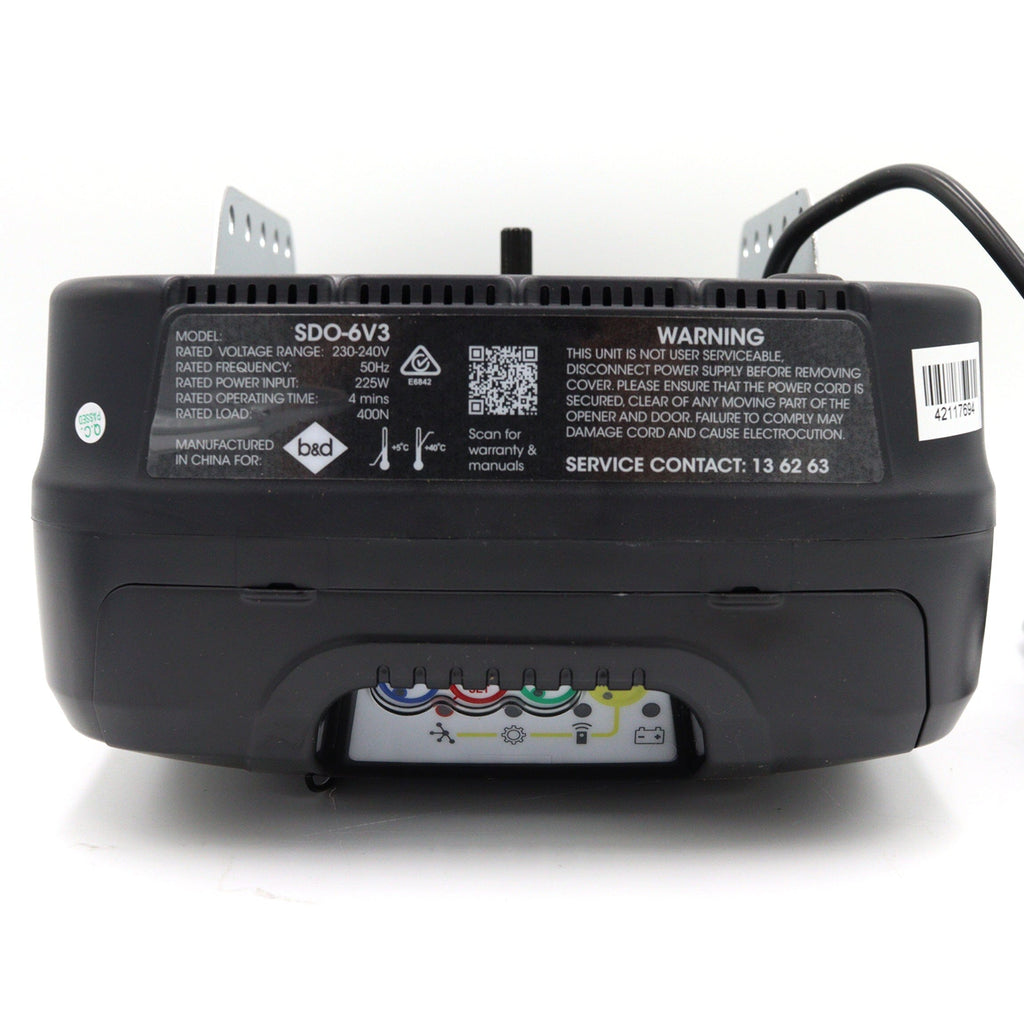

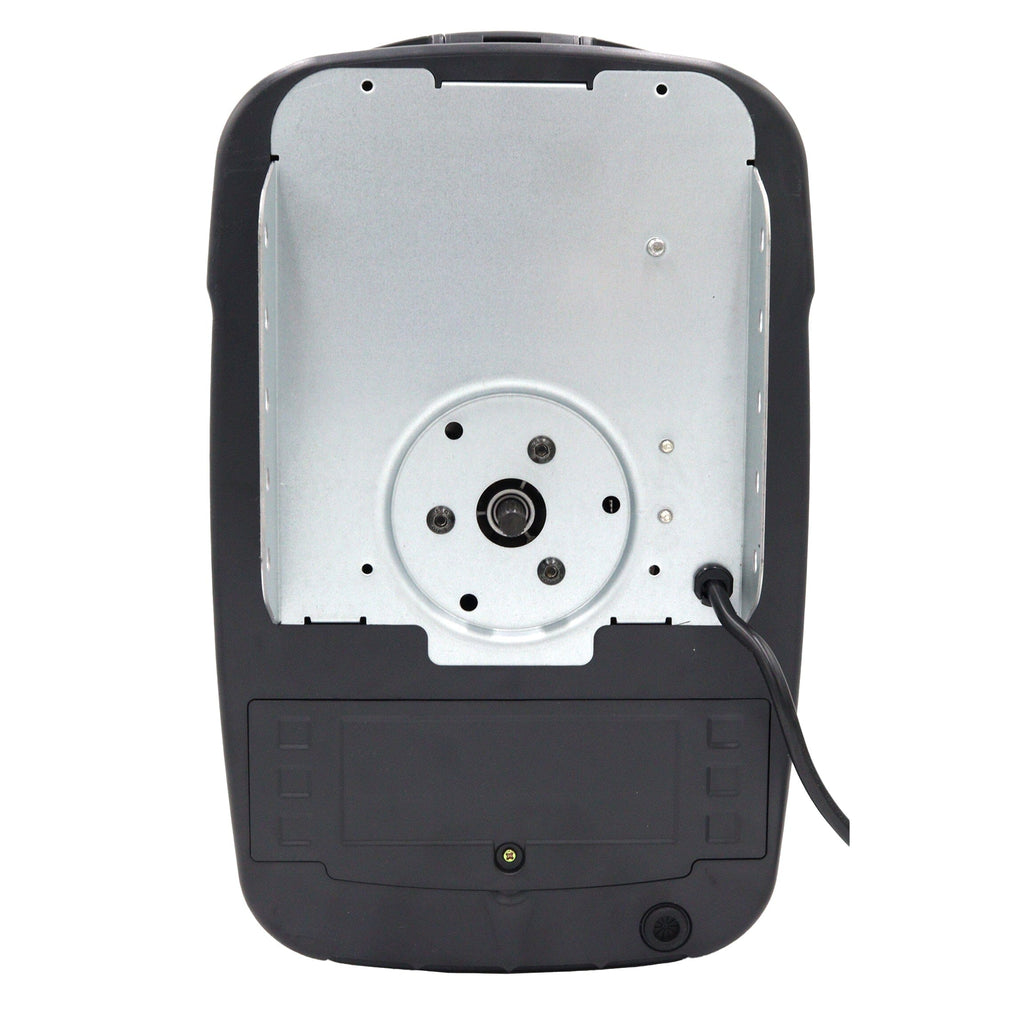

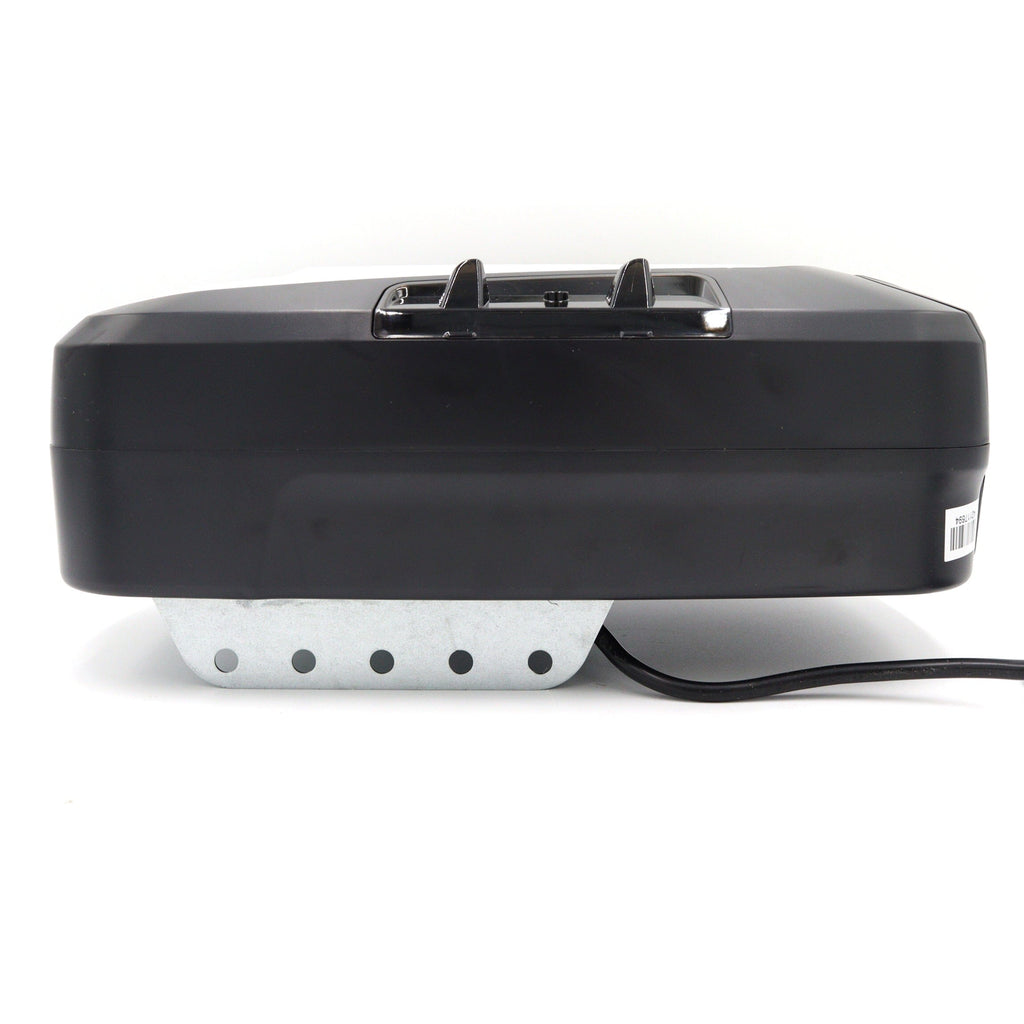

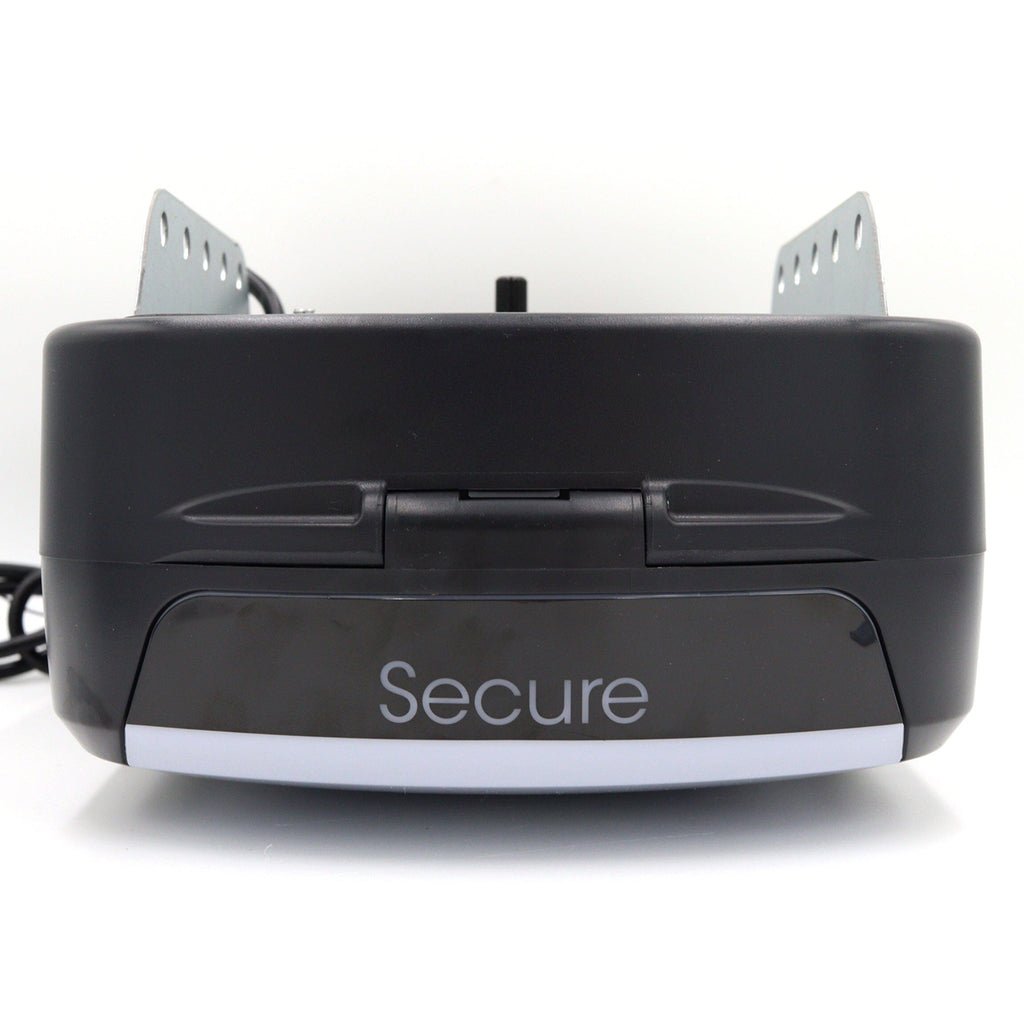

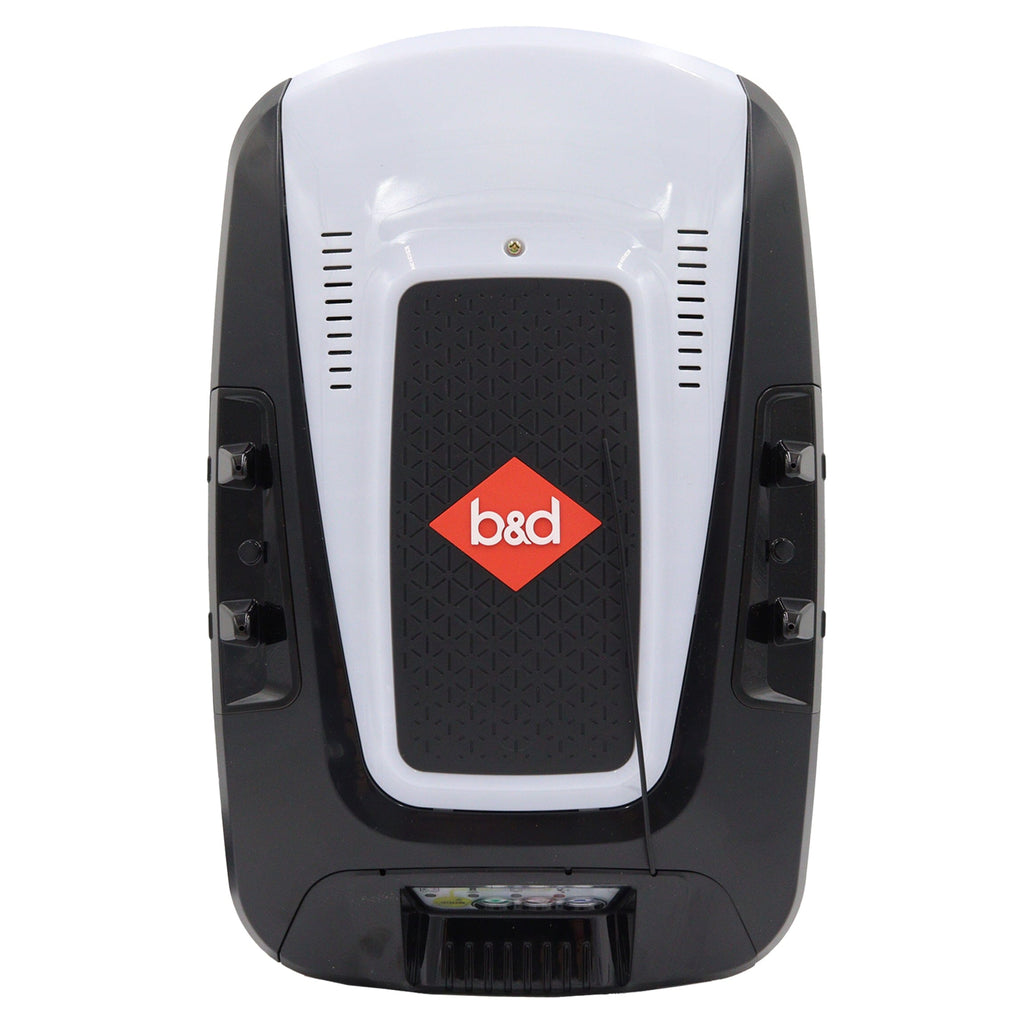

1 x B&D Secure SDO-6 drive unit

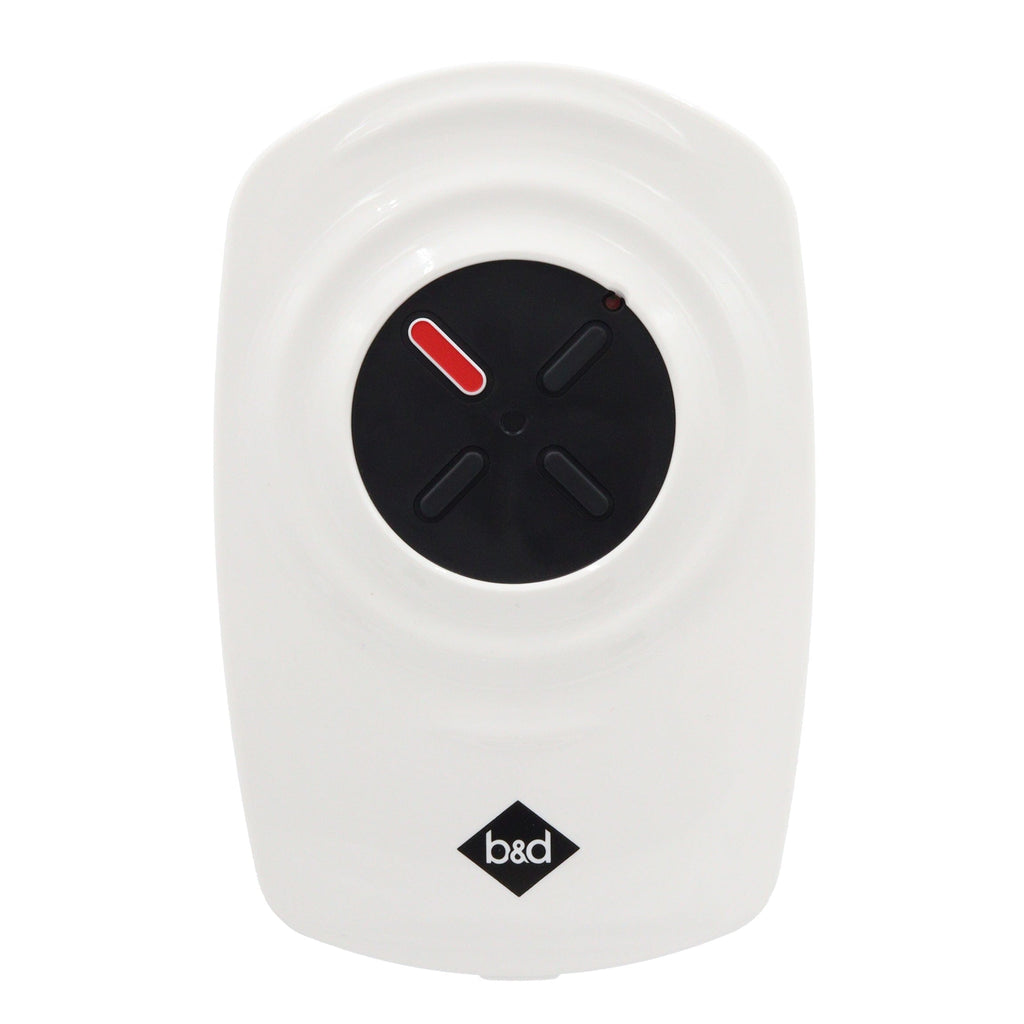

1 x Wall mount transmitter

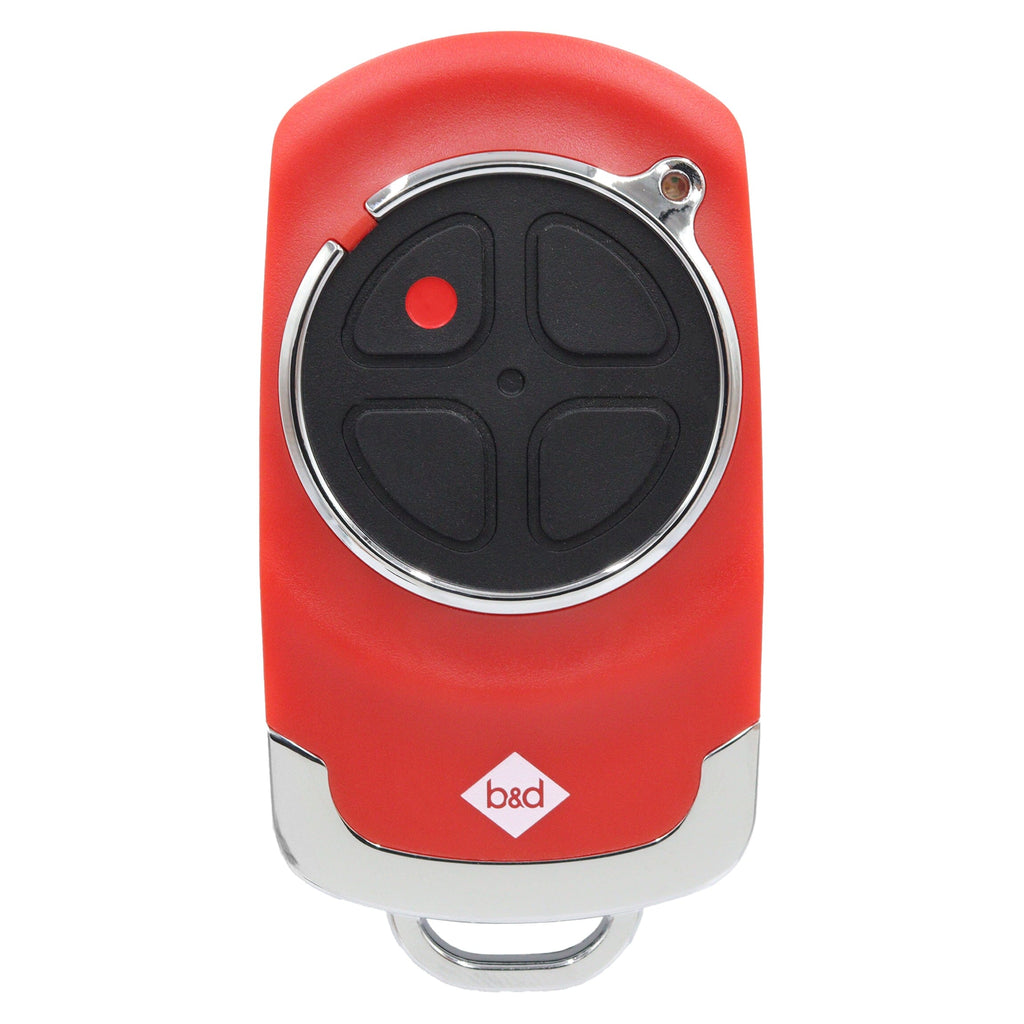

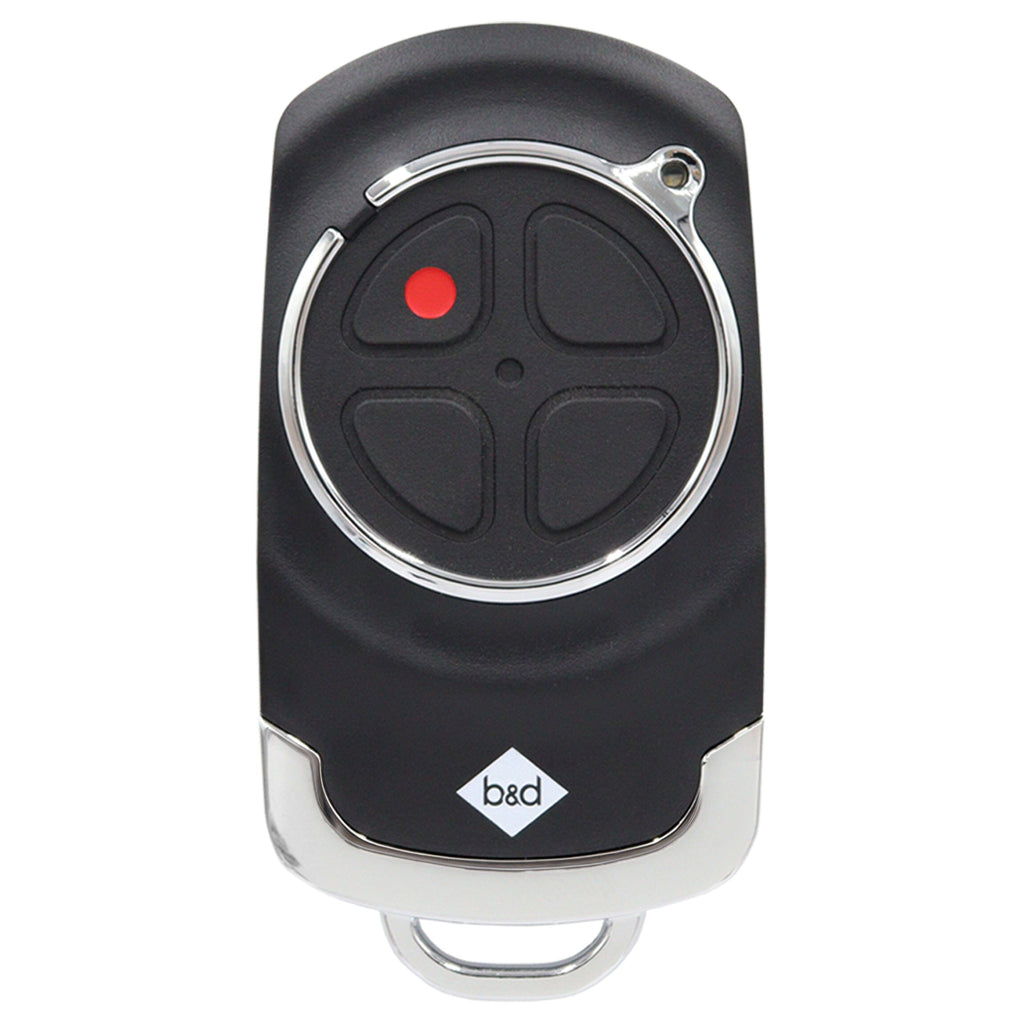

2 x Hand Transmitters
1 x Bent arm door attachment
Please Note: This item does not include the rail
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
Specifications:
| Rated voltage range: | 230V - 240Va.c. |
| Rated frequency: | 50Hz / 60Hz |
| Rated power input: | 165W |
| Maximum Door Area: | 18m2 |
| Maximum Door Weight: | 236kg* |
| Minimum headroom: | 57mm |
| Rated Operating Time: | 4 mins |
| Rated Temp: | +5 C to +40 C |
| Short Term Peak force: | 1100N |
| Door travel speed (mm/sec): | 180mm |
| Rated load: | 400N |
| Nominal force: | 200N (20kg) |
| Receiver type: | Multi-frequency UHF FM |
| Receiver code storage capacity: | 64 X 4-button Transmitters |
| Transmitter battery: | CR2032 (3 Volts) |
| Courtesy light: | LED (Light Emitting Diodes) |
| Network connectivity: | Network ready (requires optional smart phone control kit) |
