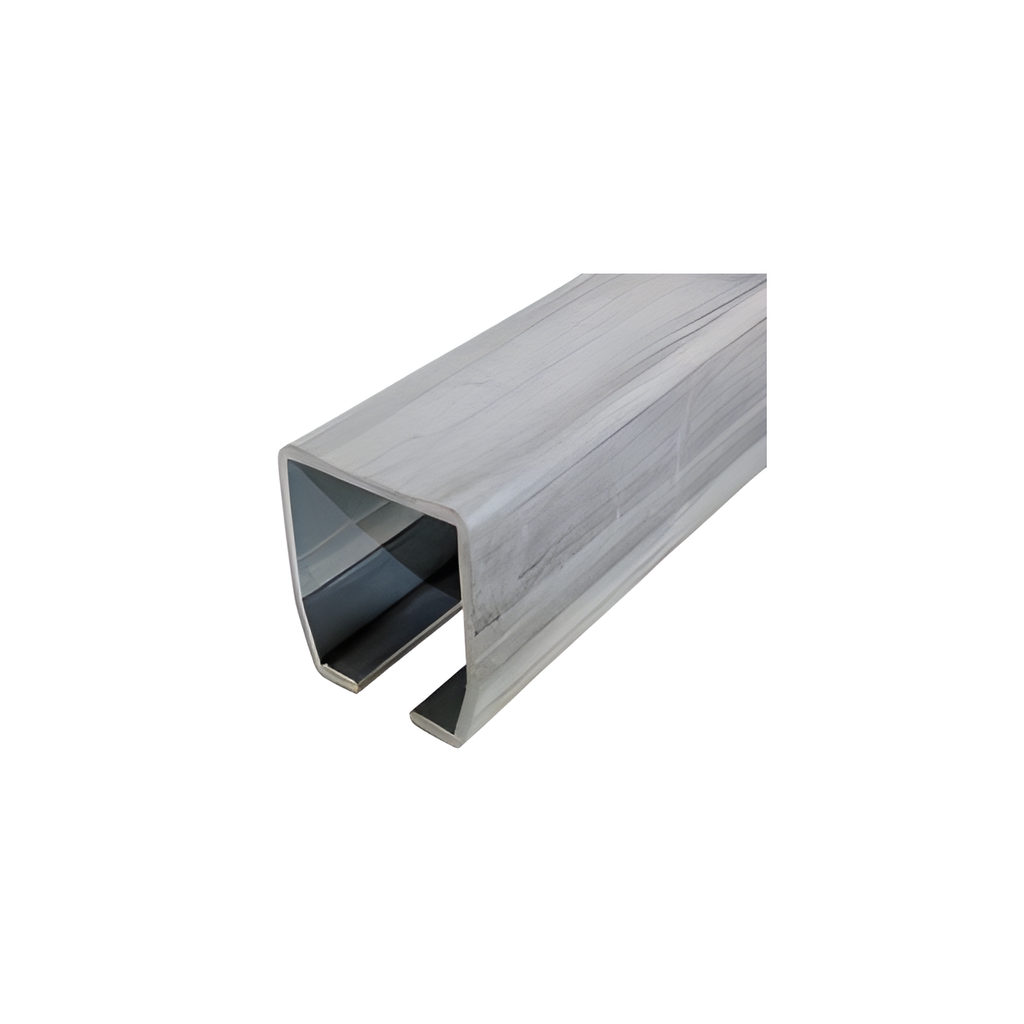

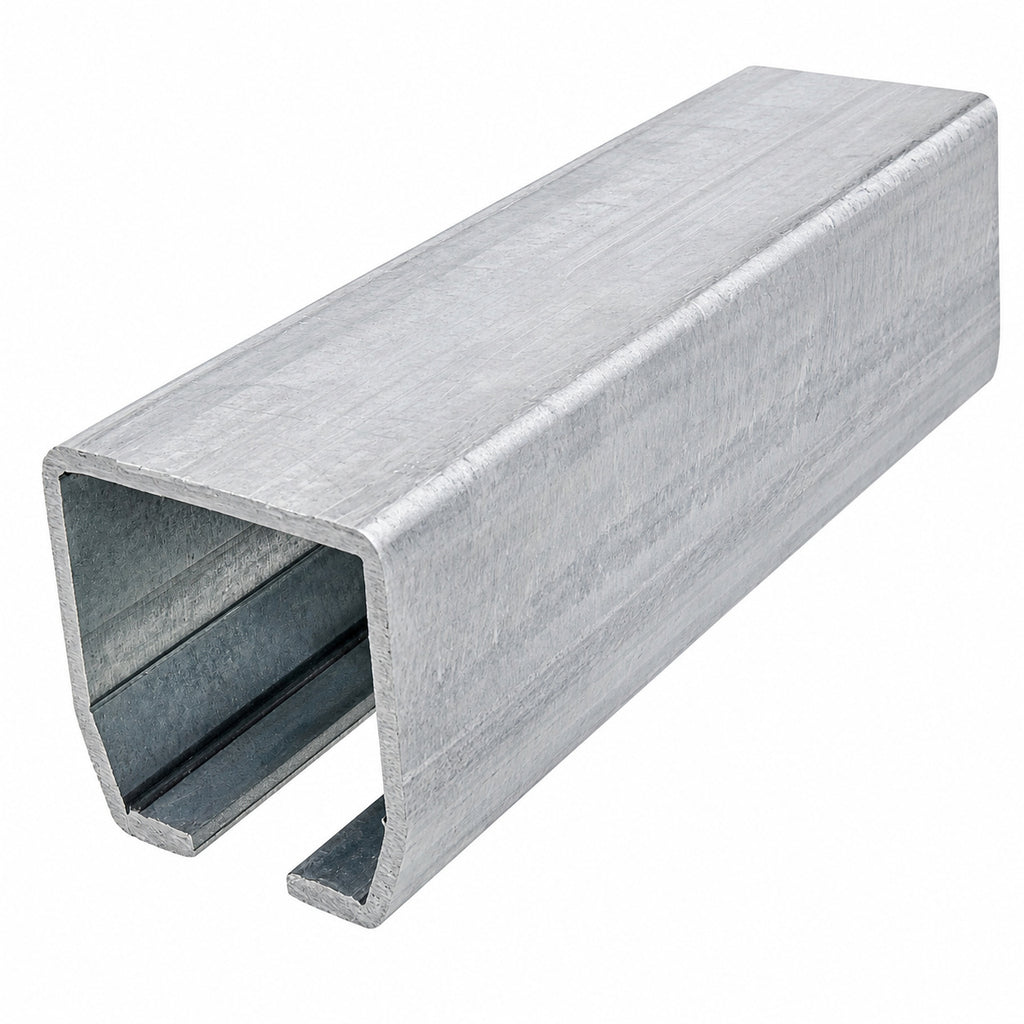

This Magnum cantilever gate guide track is the running rail for self-supporting sliding gates, welded to the bottom of the gate frame to carry it over the carriage wheels with no ground track required.
Manufactured from high-yield micro-alloyed galvanised steel, cold-formed to DIN EN 10346 / DIN EN 10143, the track delivers a precise profile, excellent strength-to-weight ratio and long-term corrosion resistance. The Magnum 110 x 90 mm profile suits large, heavy cantilever gates, and matches the Magnum cantilever hardware kit (RP000381).
Key Features
- Guide track for self-supporting (cantilever) sliding gates
- High-yield micro-alloyed steel, cold-formed to DIN EN 10346 / DIN EN 10143
- Galvanised finish for outdoor corrosion resistance
- Magnum 110 x 90 mm profile for heavy cantilever gates
- 3 metre length – weld to the gate frame
- Matches the Magnum cantilever hardware kit (RP000381)
Specifications
- Model: 857/3.3.76 (Magnum)
- Material: Galvanised high-yield micro-alloyed steel

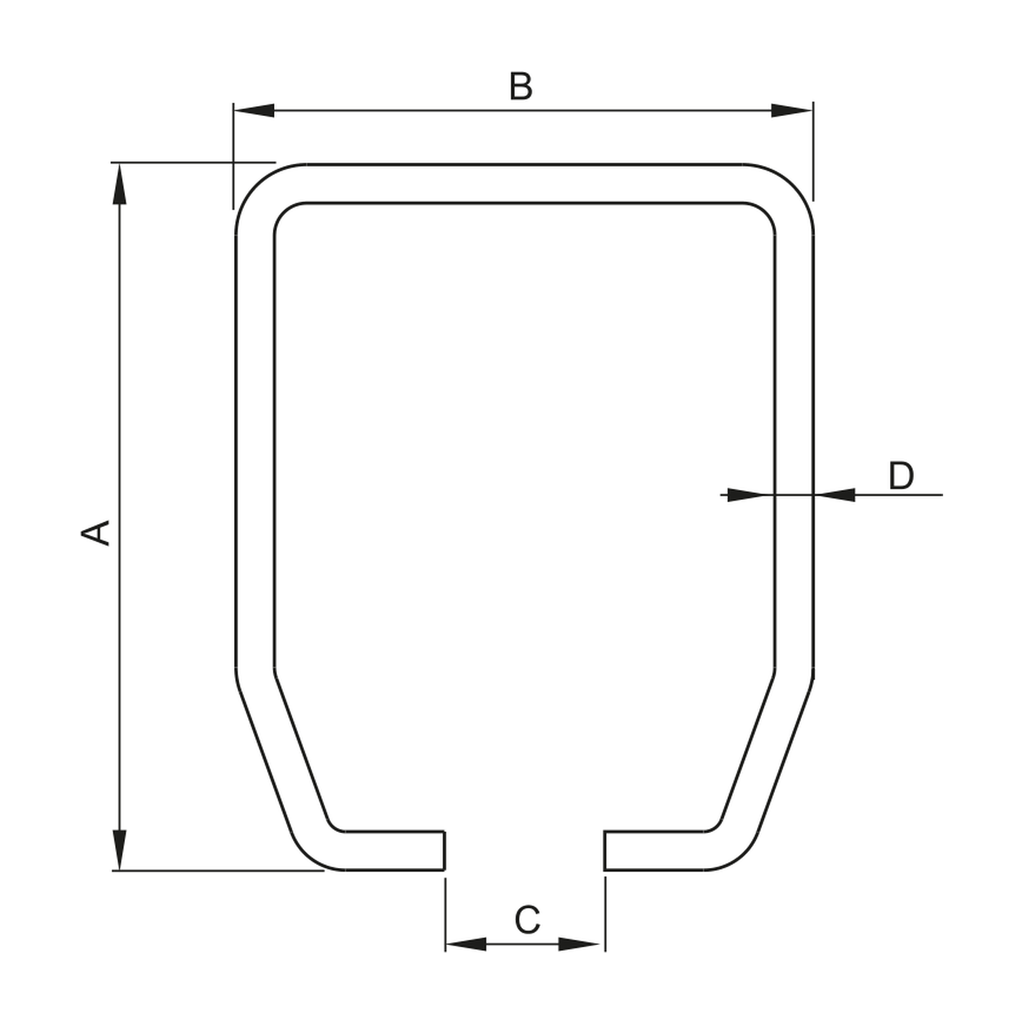

- A (height): 110 mm
- B (width): 90 mm
- C (opening): 25 mm
- D (thickness): 6 mm
- Length: 3 m
- Weight: 15.21 kg/m (45.6 kg per length)
Applications

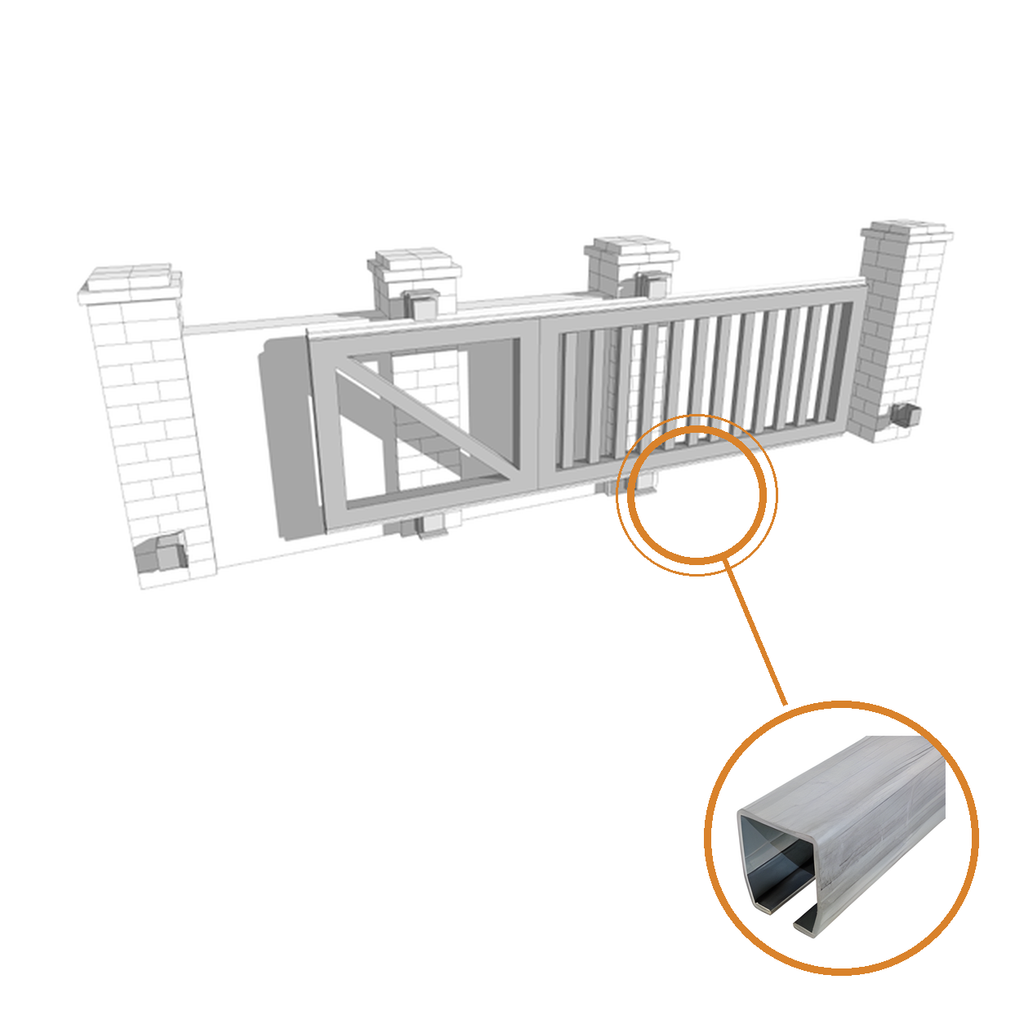

- Cantilever (self-supporting) sliding gates
- Commercial and industrial driveway gates
- Gates over uneven or unsealed driveways
