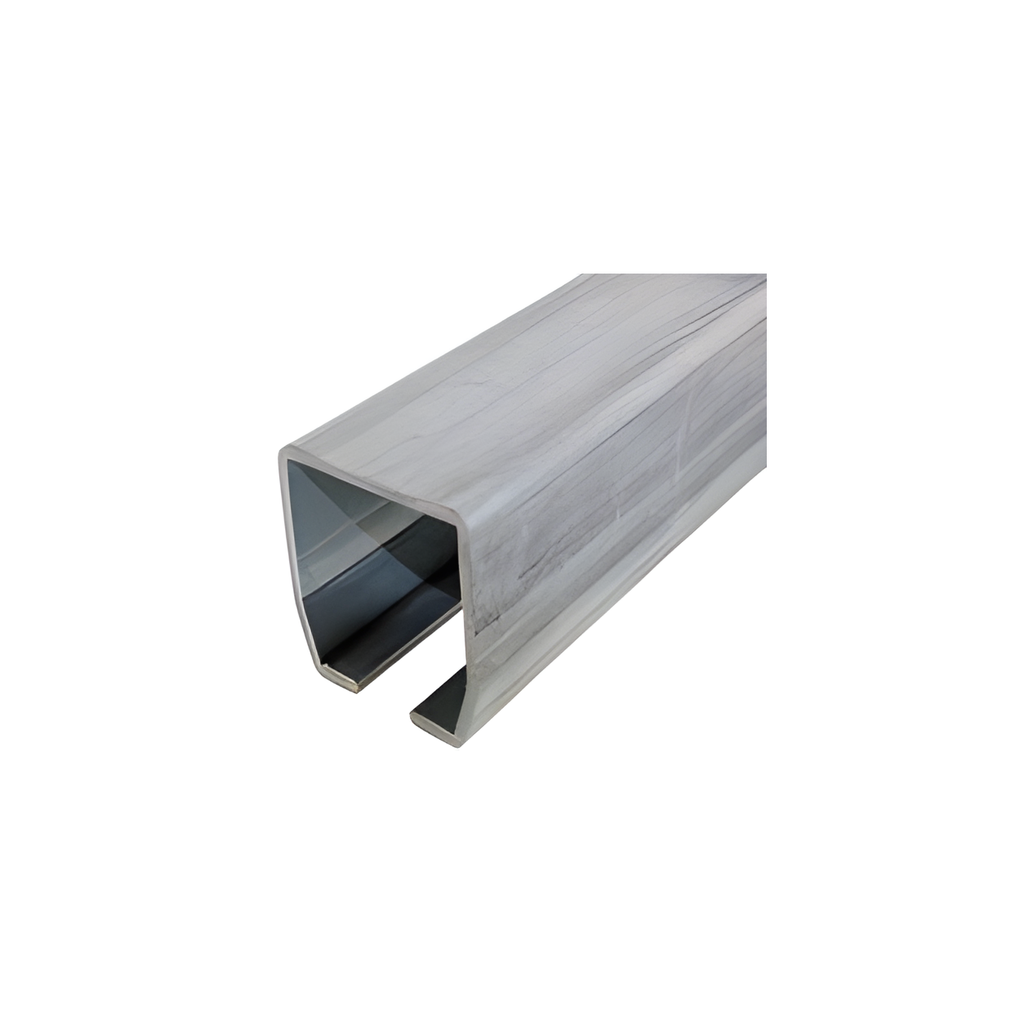

This Medium cantilever gate guide track is the running rail for self-supporting sliding gates, welded to the bottom of the gate frame to carry it over the carriage wheels with no ground track required.
Manufactured from high-yield micro-alloyed galvanised steel, cold-formed to DIN EN 10346 / DIN EN 10143, the track delivers a precise profile, excellent strength-to-weight ratio and long-term corrosion resistance. The Medium 75 x 80 mm profile suits mid-size cantilever gates, and matches the Medium cantilever hardware kit (RP000380).
Key Features
- Guide track for self-supporting (cantilever) sliding gates
- High-yield micro-alloyed steel, cold-formed to DIN EN 10346 / DIN EN 10143
- Galvanised finish for outdoor corrosion resistance
- Medium 75 x 80 mm profile for mid-size cantilever gates
- 3 metre length – weld to the gate frame
- Matches the Medium cantilever hardware kit (RP000380)

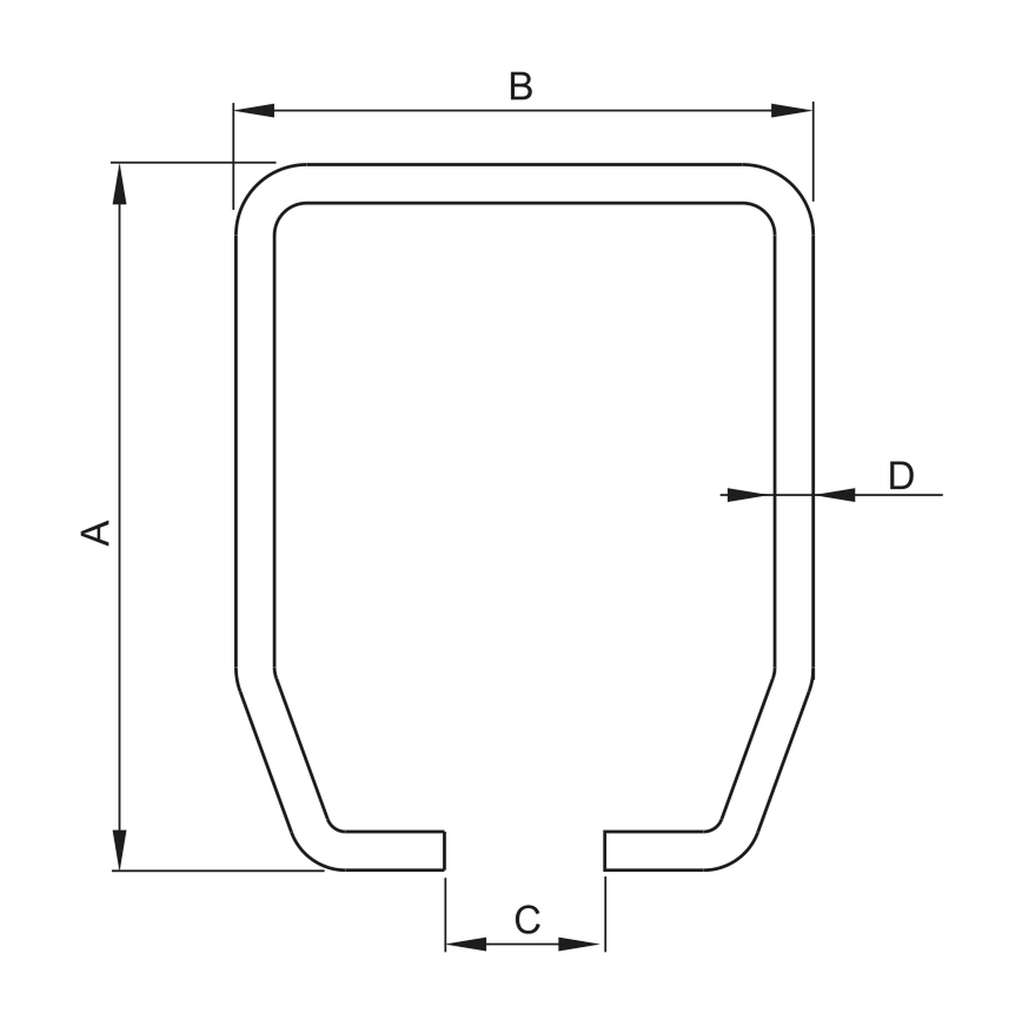

Specifications
- Model: 857/2.3.76 (Medium)
- Material: Galvanised high-yield micro-alloyed steel
- A (height): 75 mm
- B (width): 80 mm
- C (opening): 22 mm
- D (thickness): 4.5 mm
- Length: 3 m
- Weight: 8.61 kg/m (25.8 kg per length)
Applications
- Cantilever (self-supporting) sliding gates
- Residential and commercial driveway gates
- Gates over uneven or unsealed driveways
