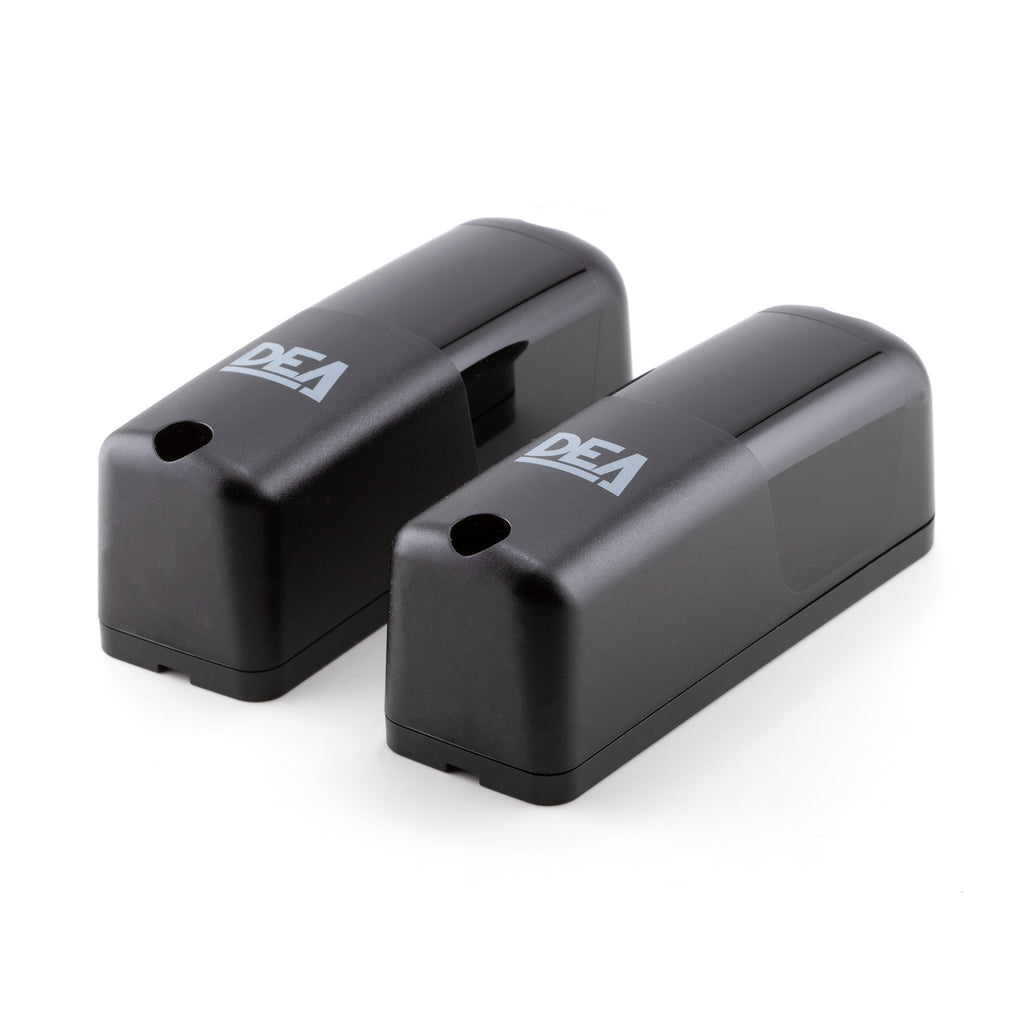

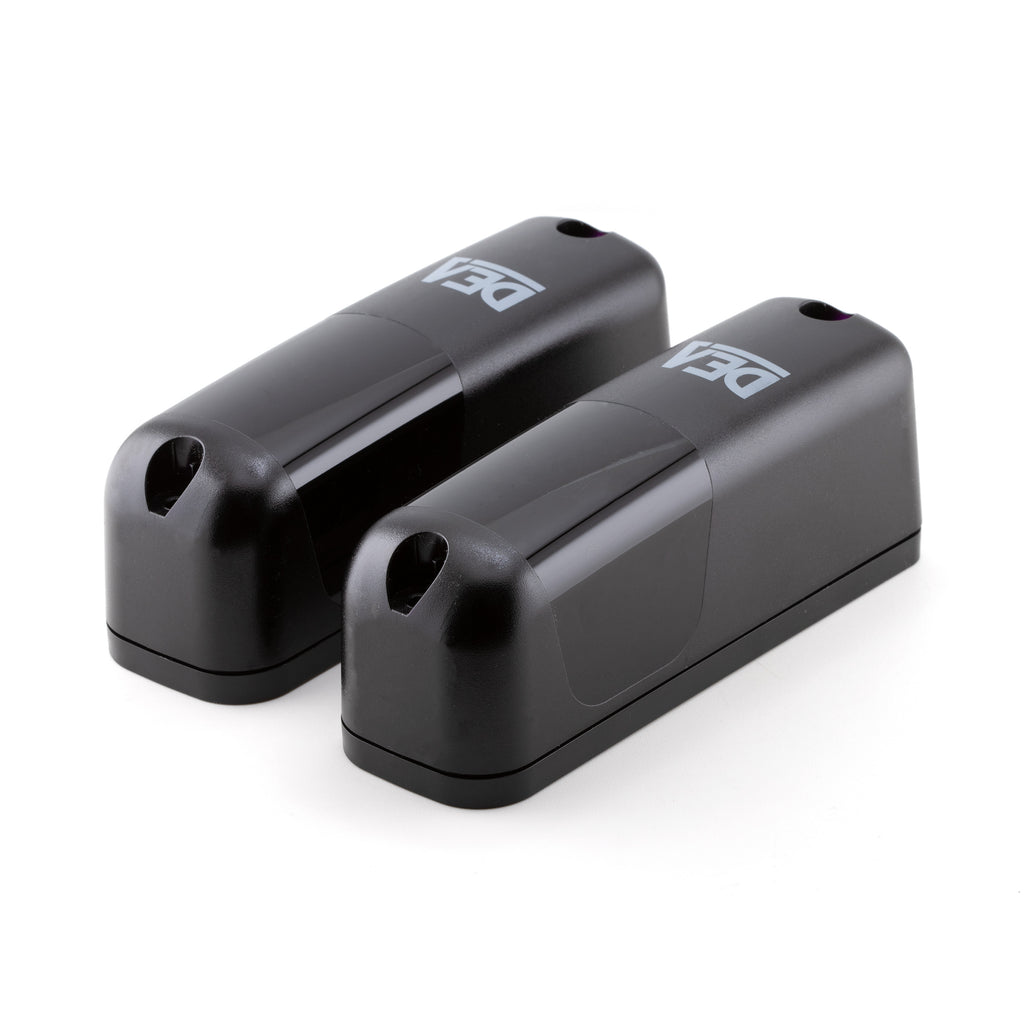

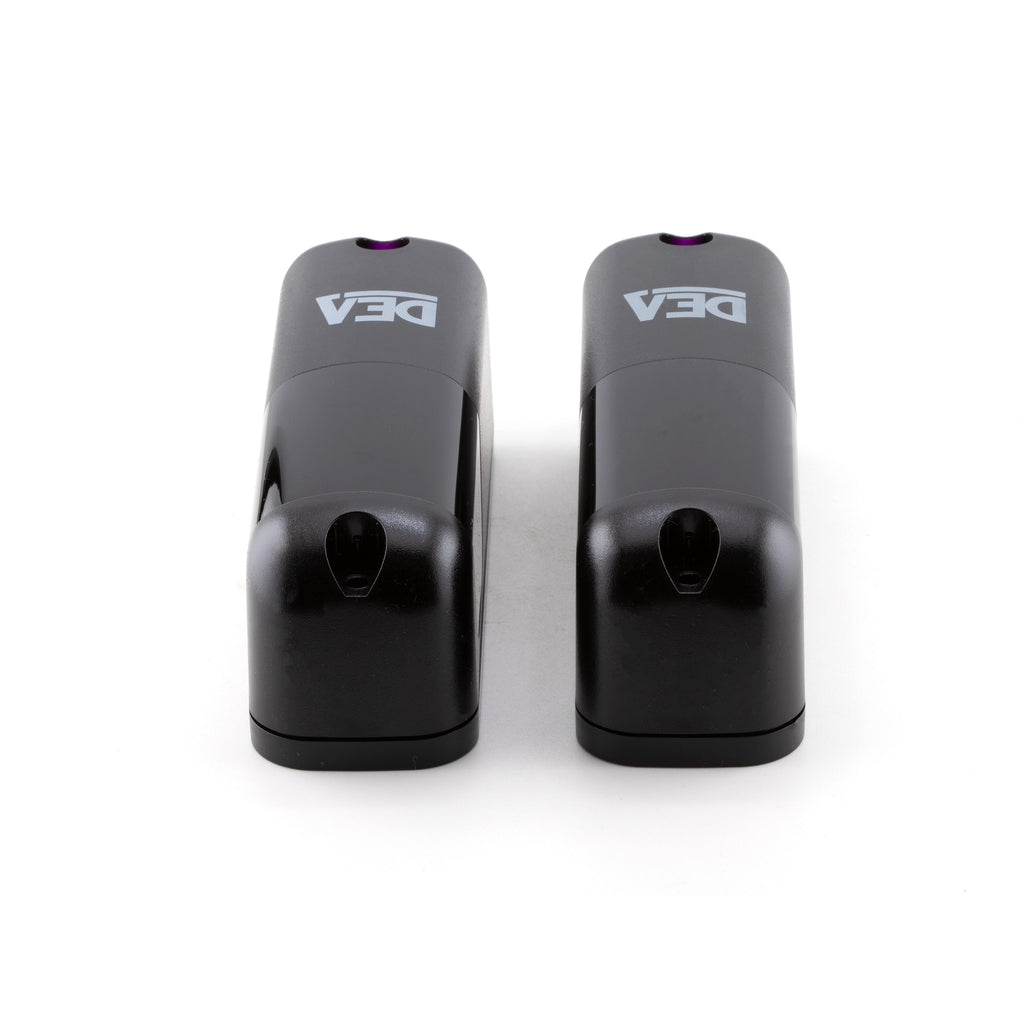

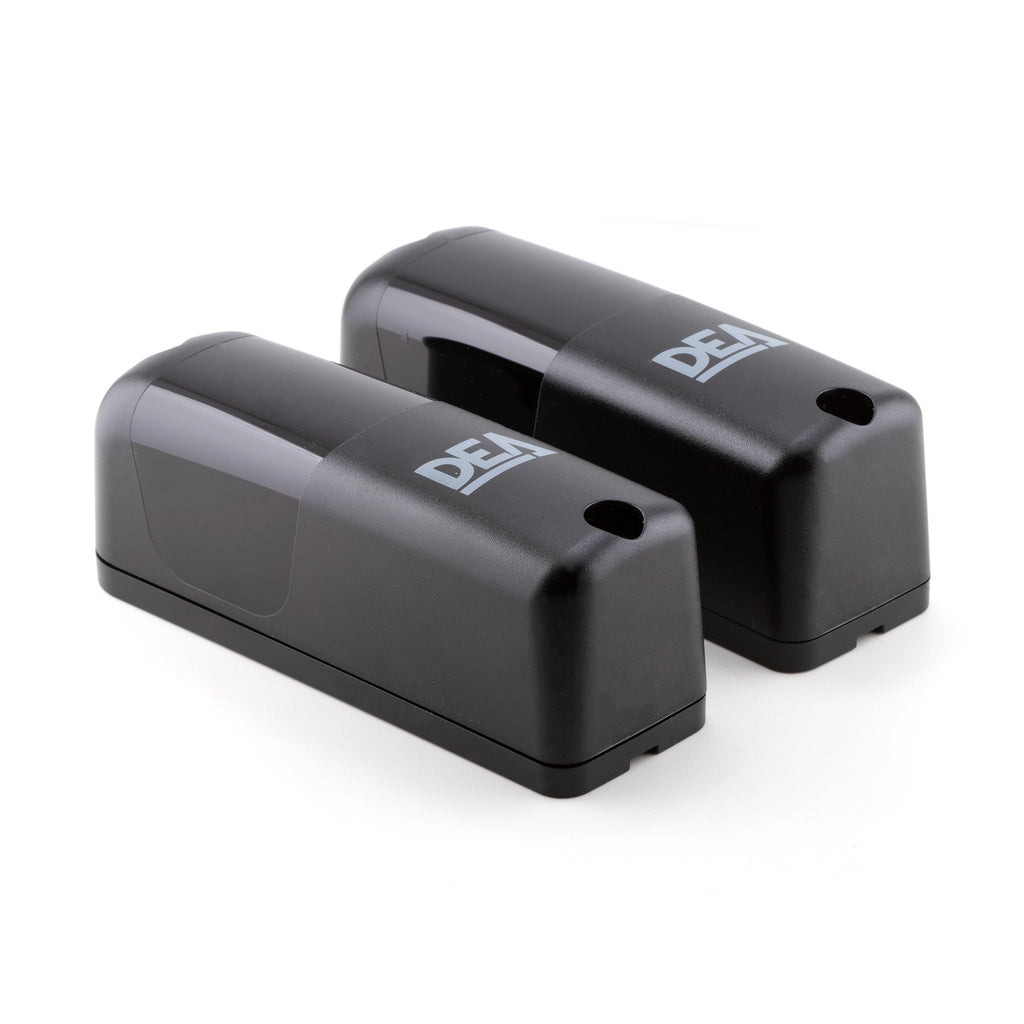

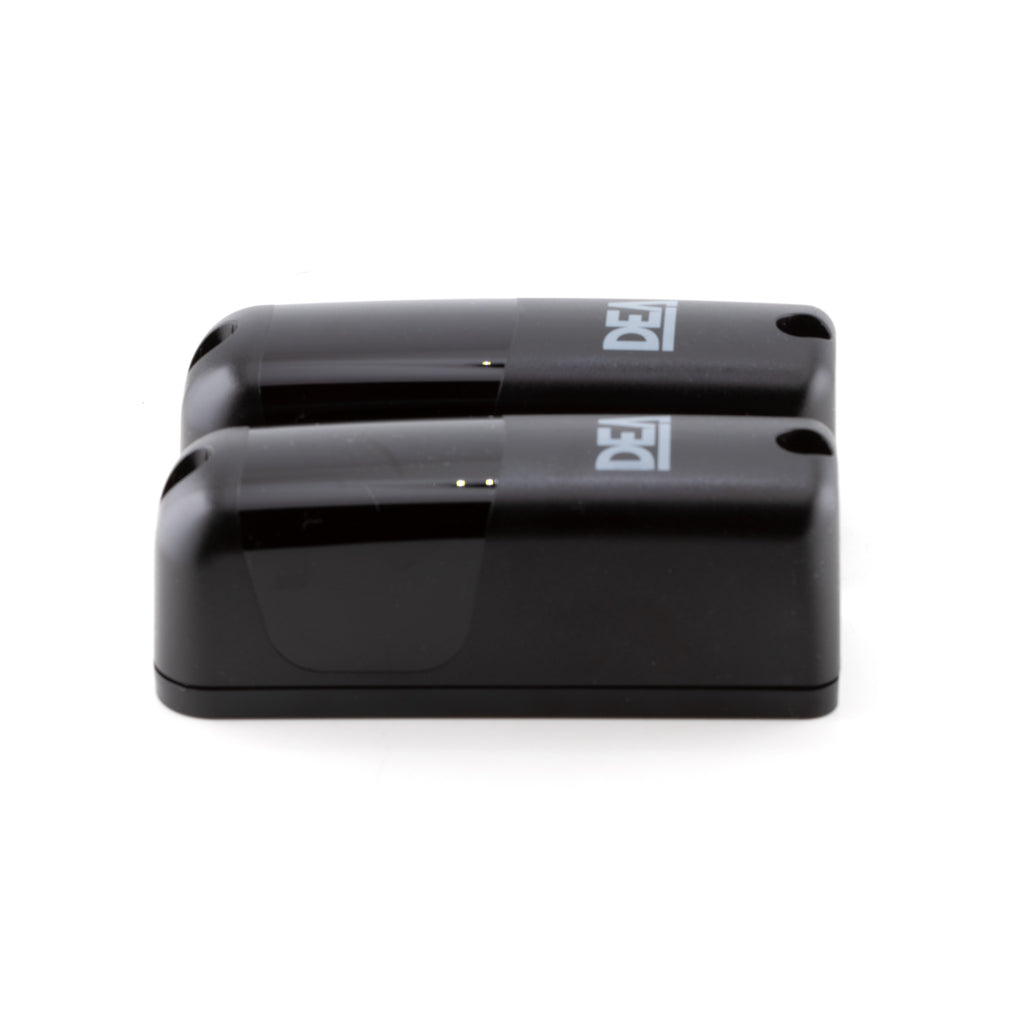

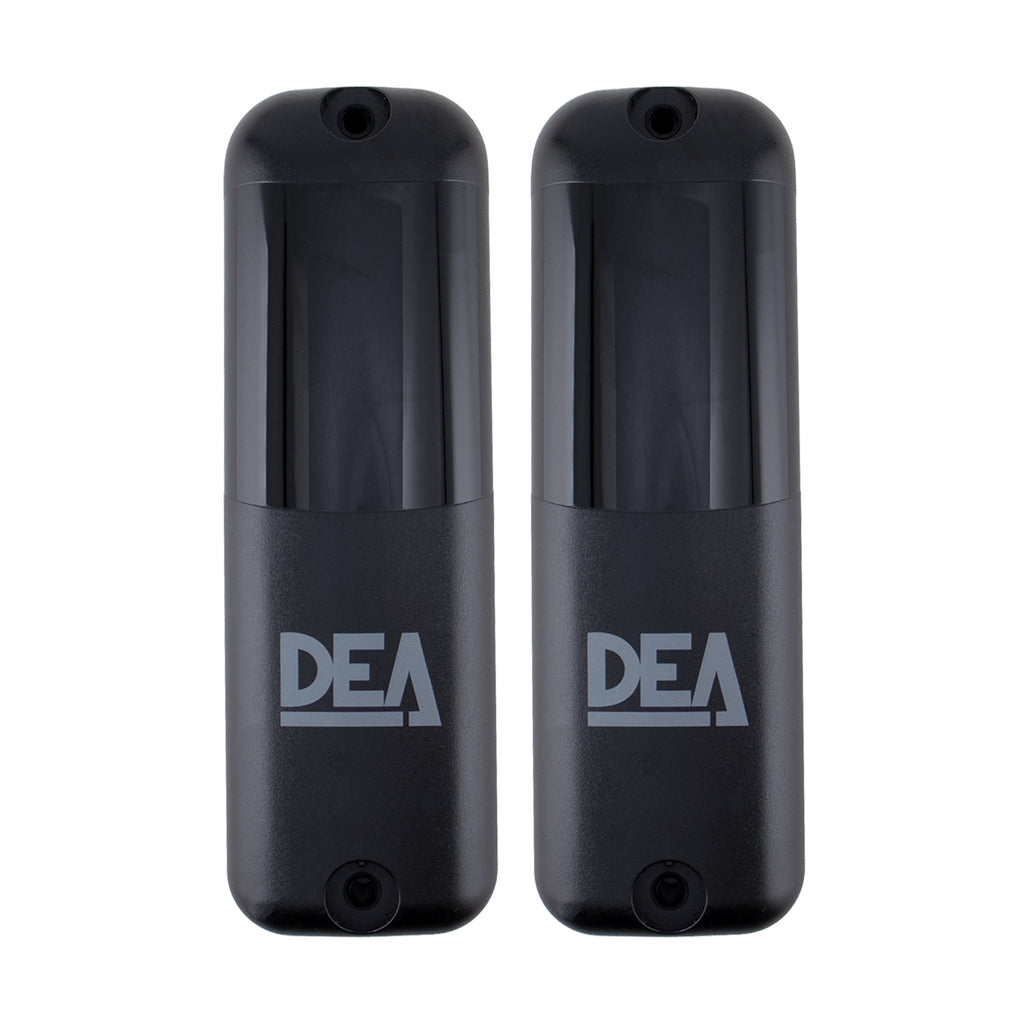

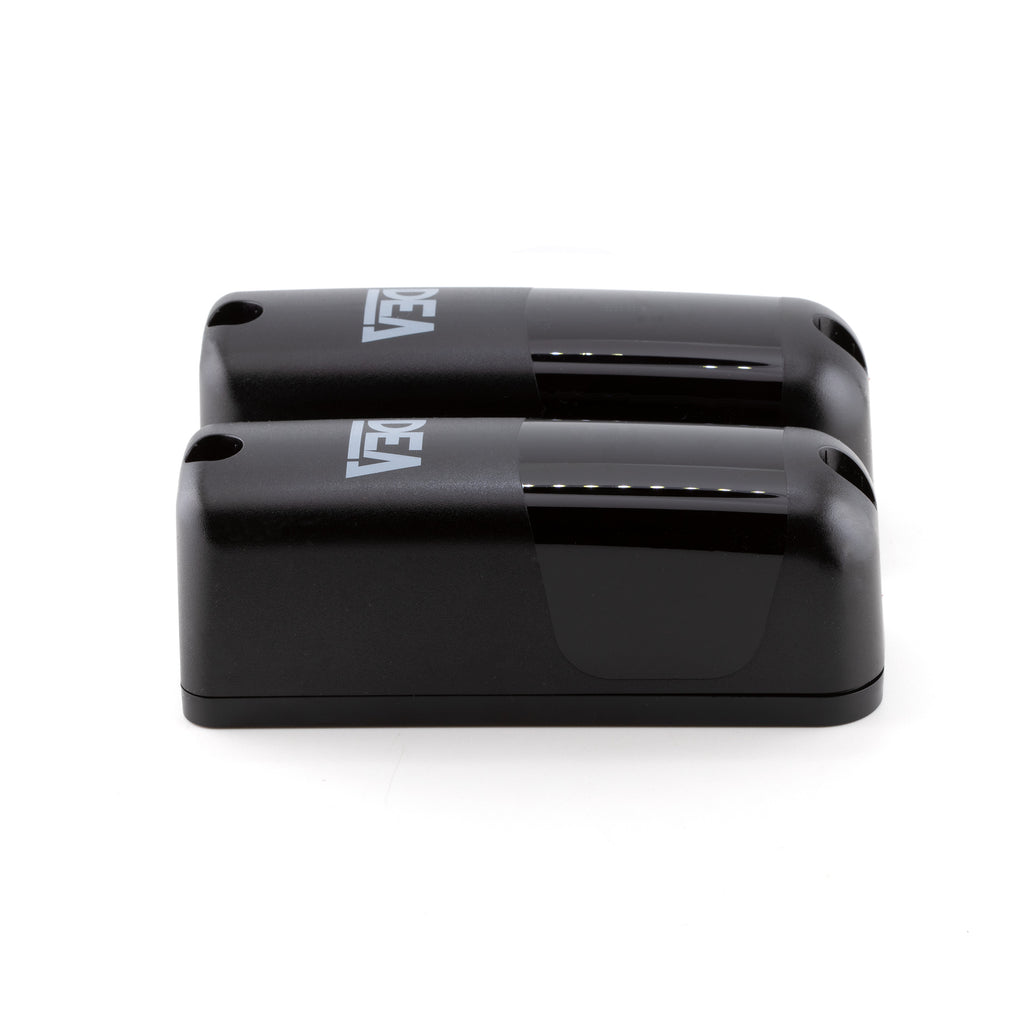

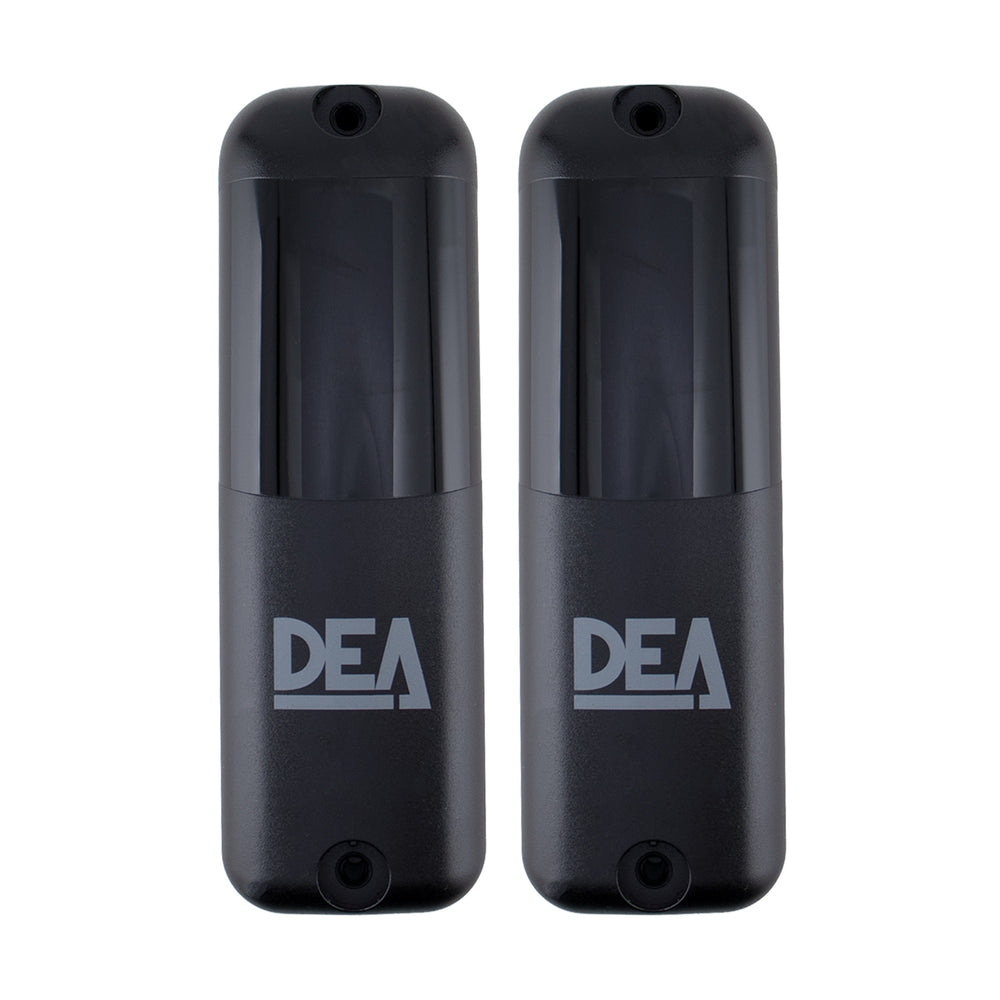

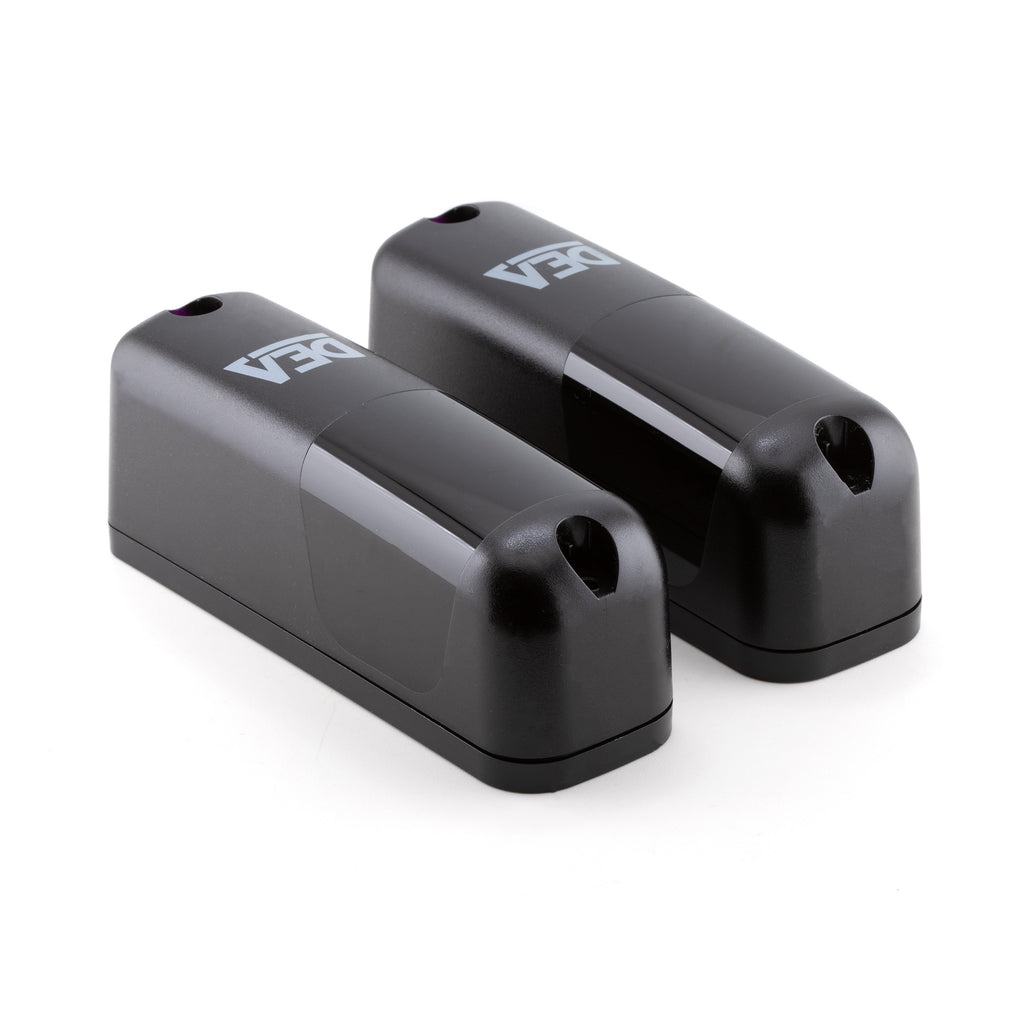

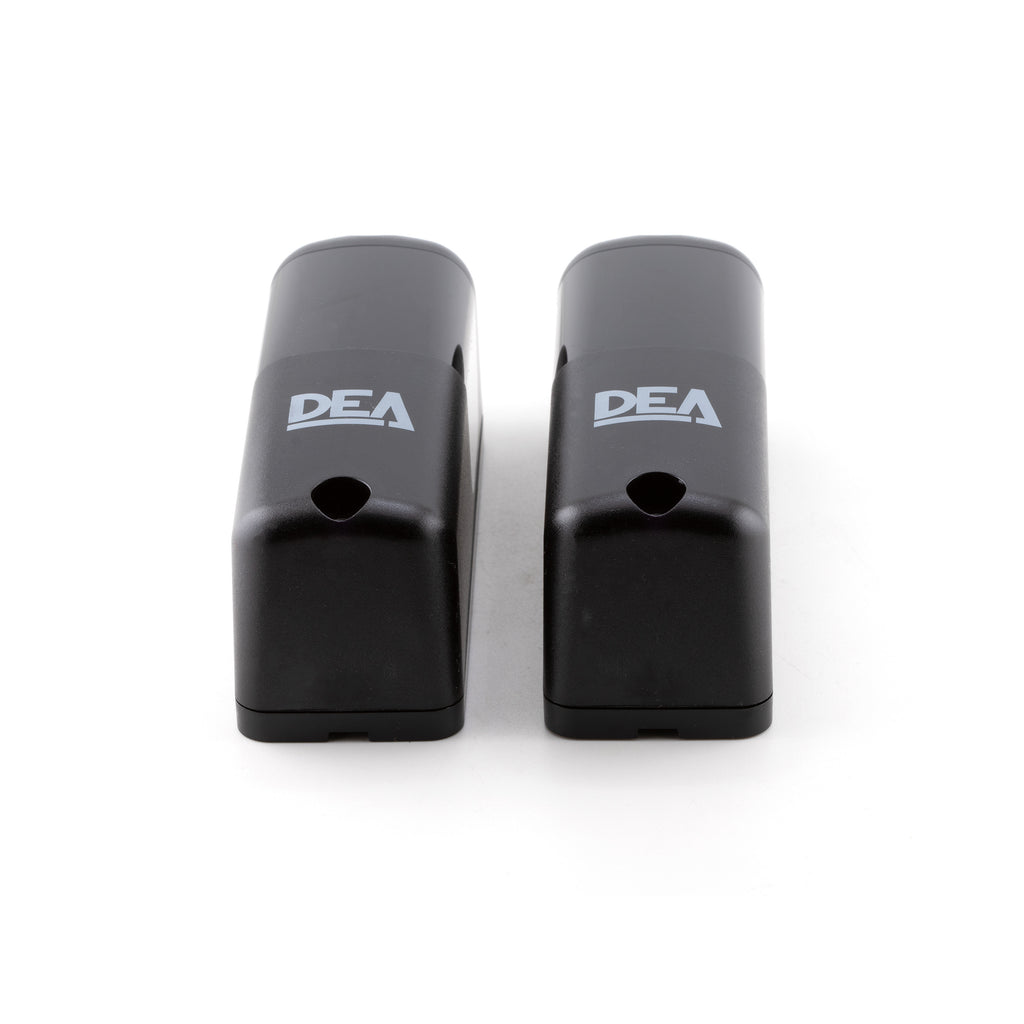

The LINEAR/B is a wireless infrared safety system designed to eliminate the need for running cables on moving parts of your gate.

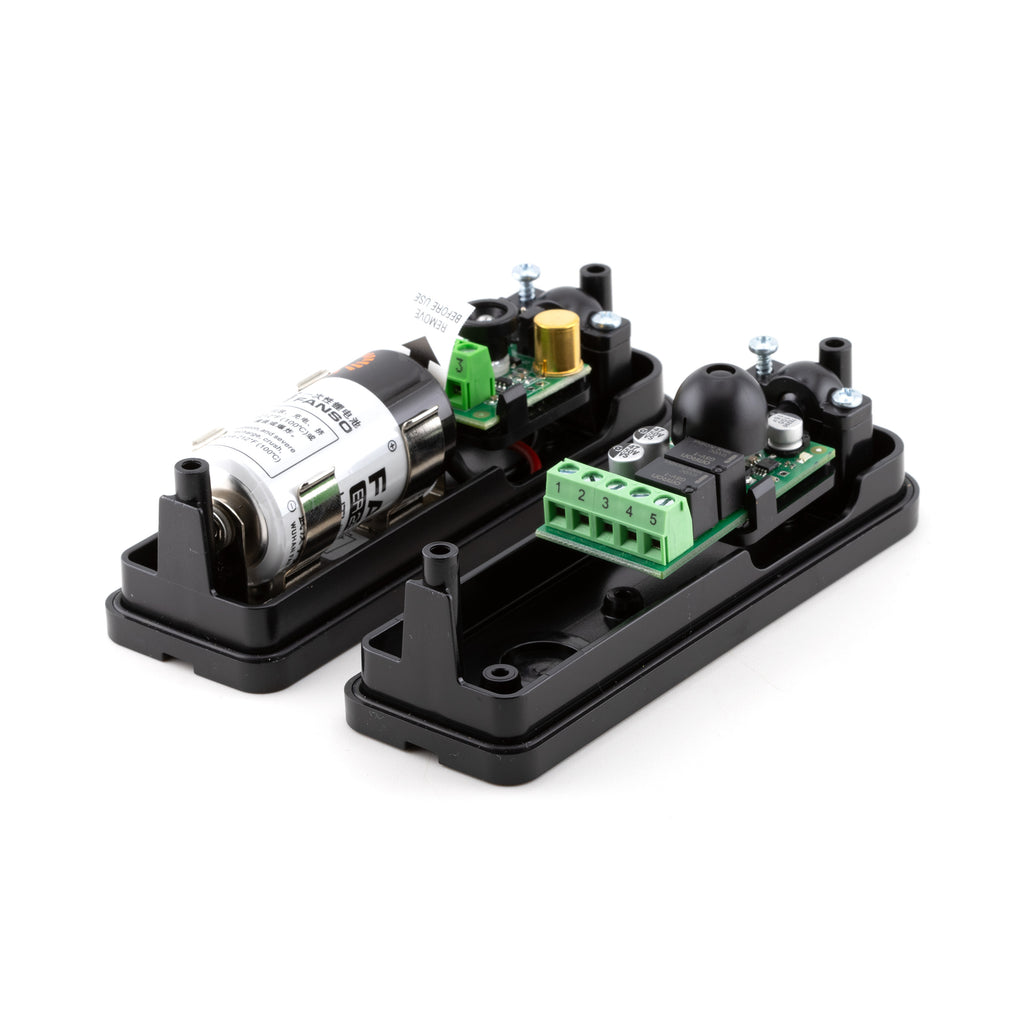

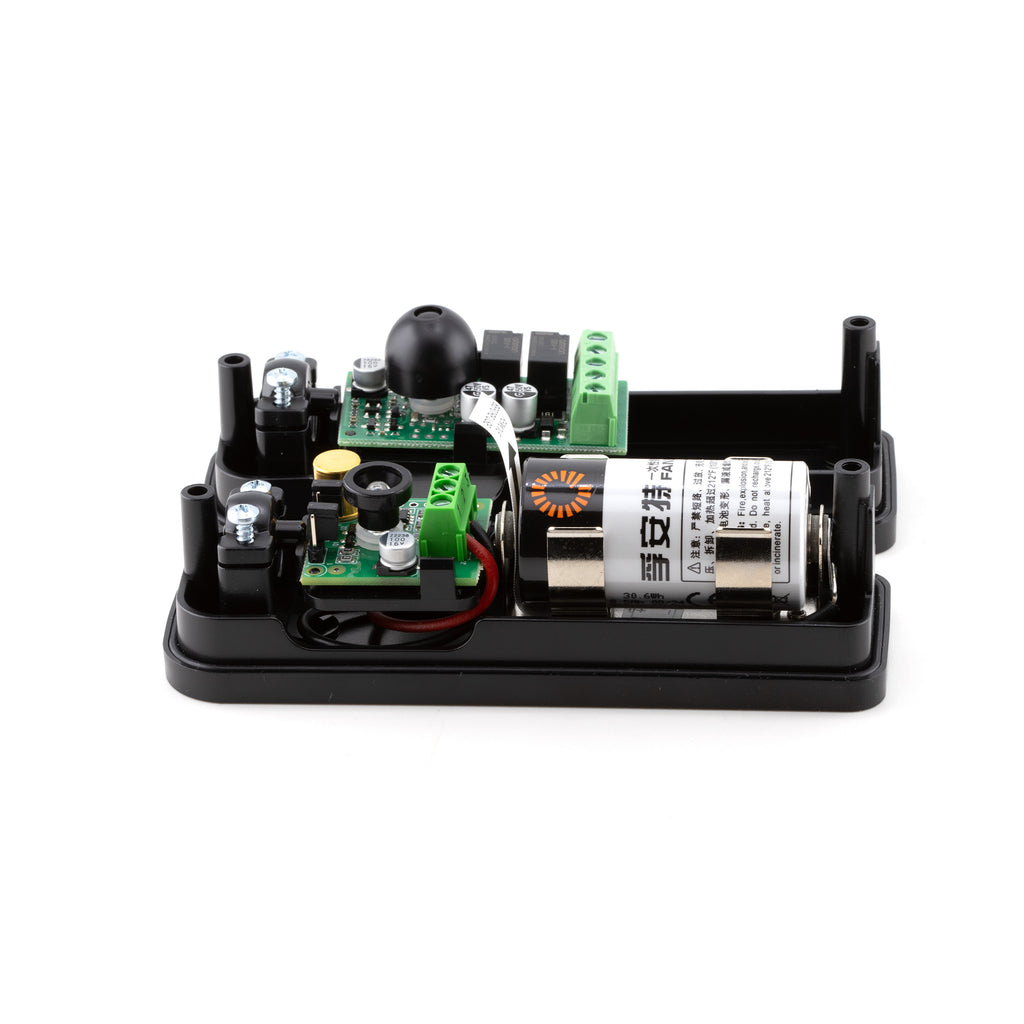

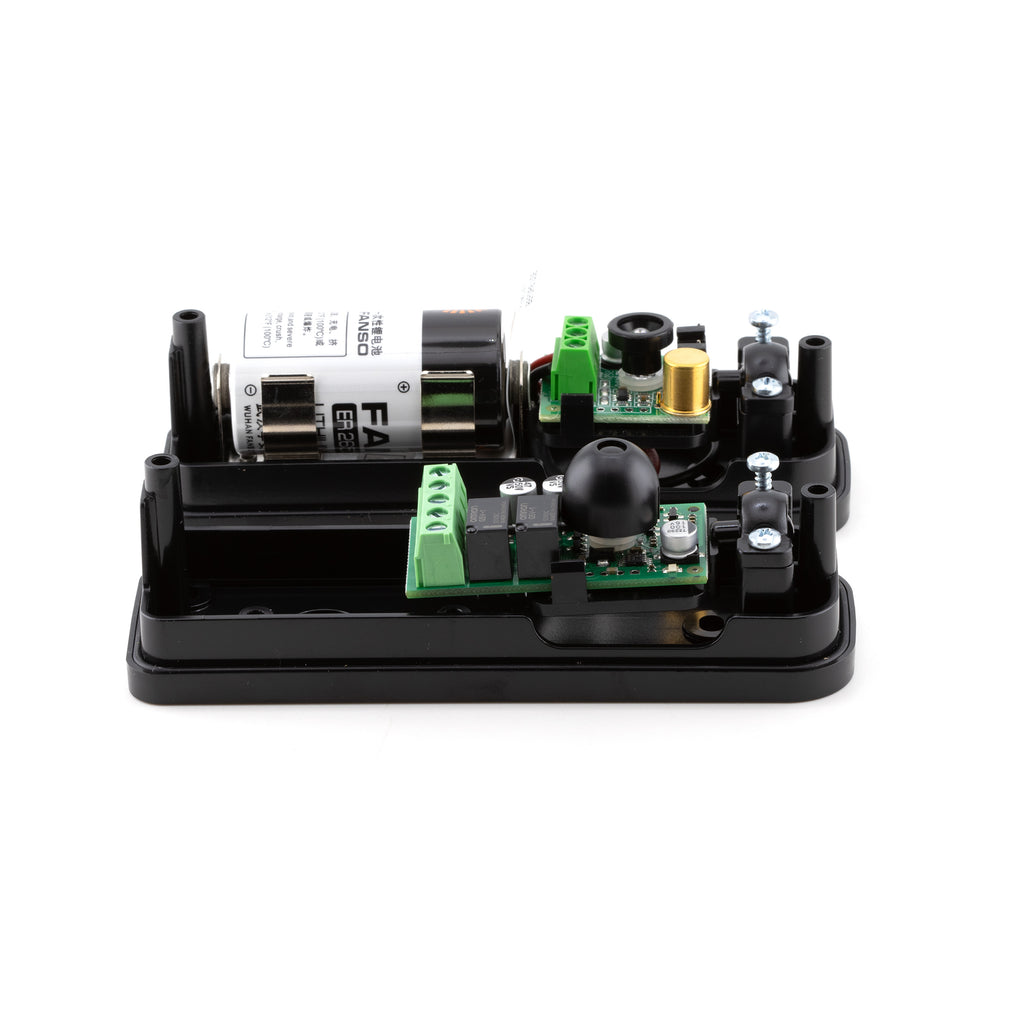

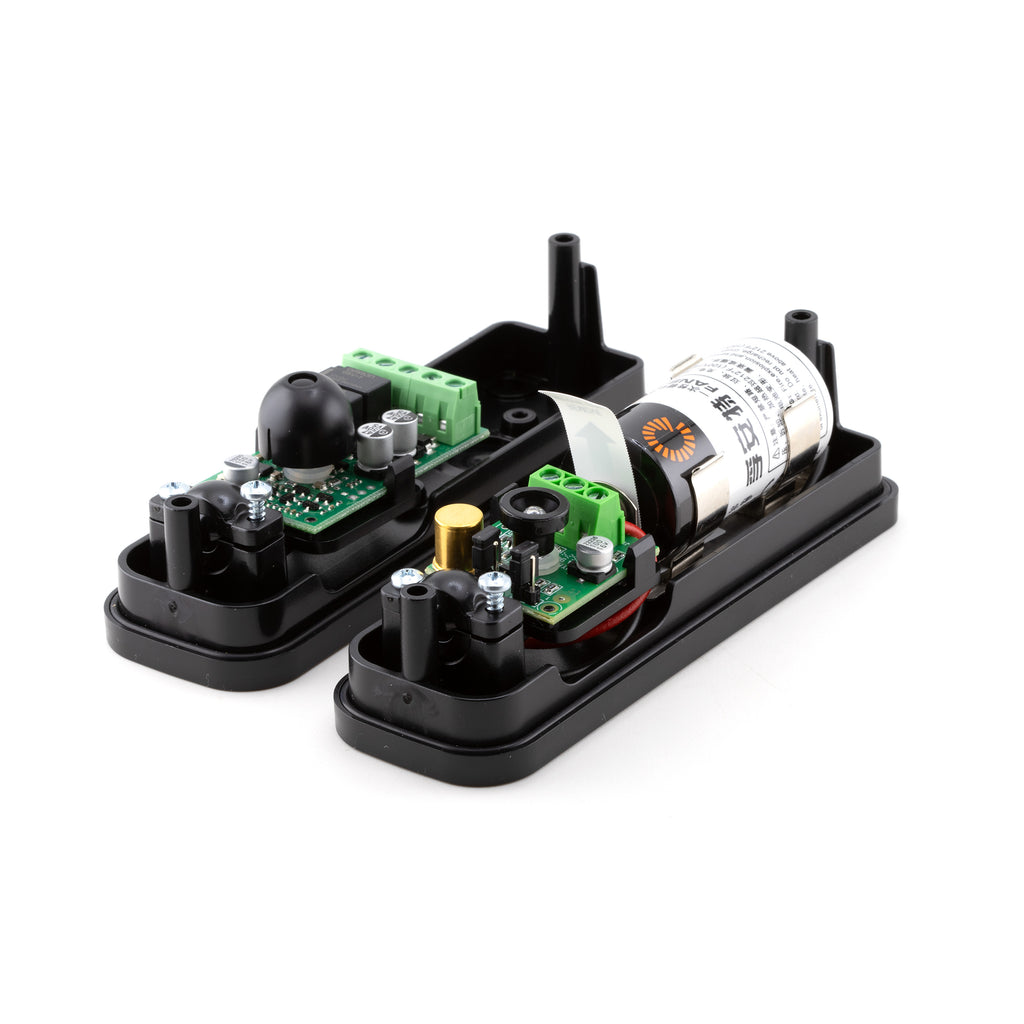

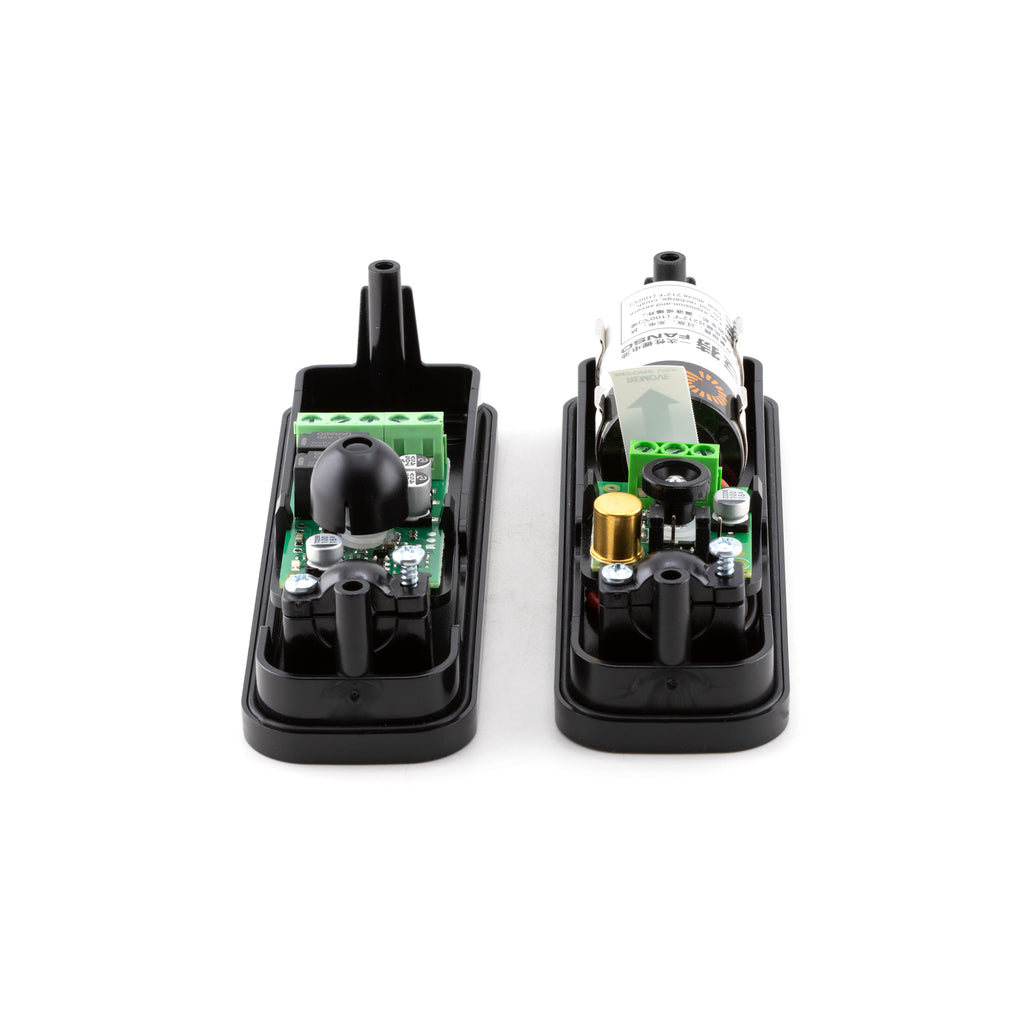

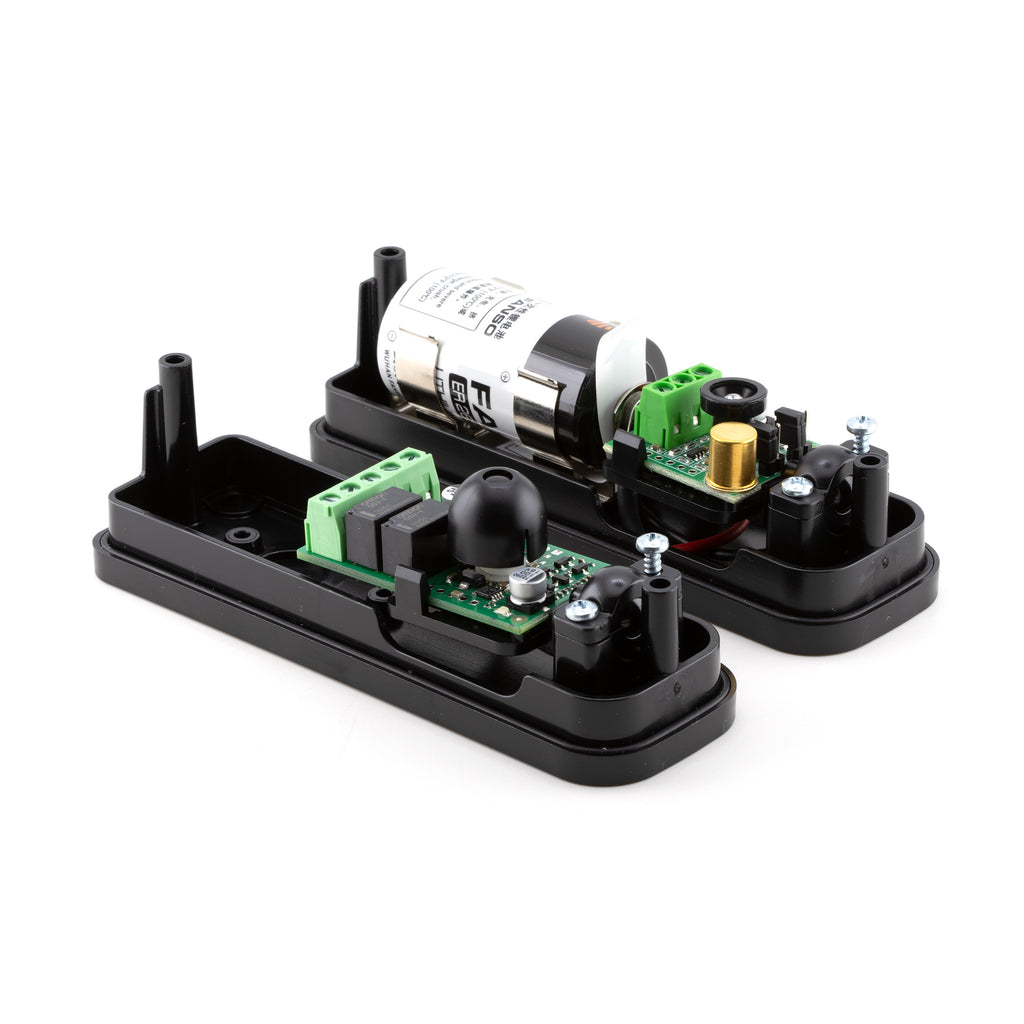

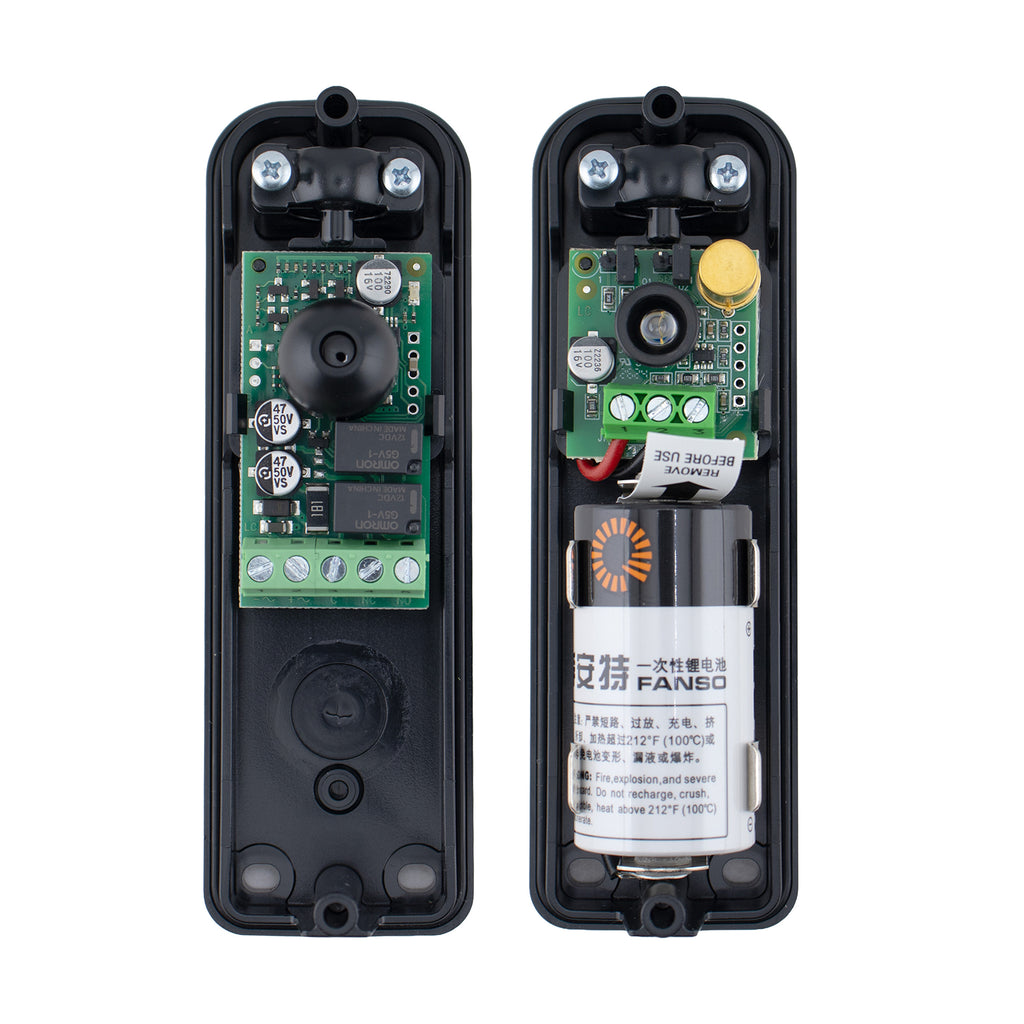

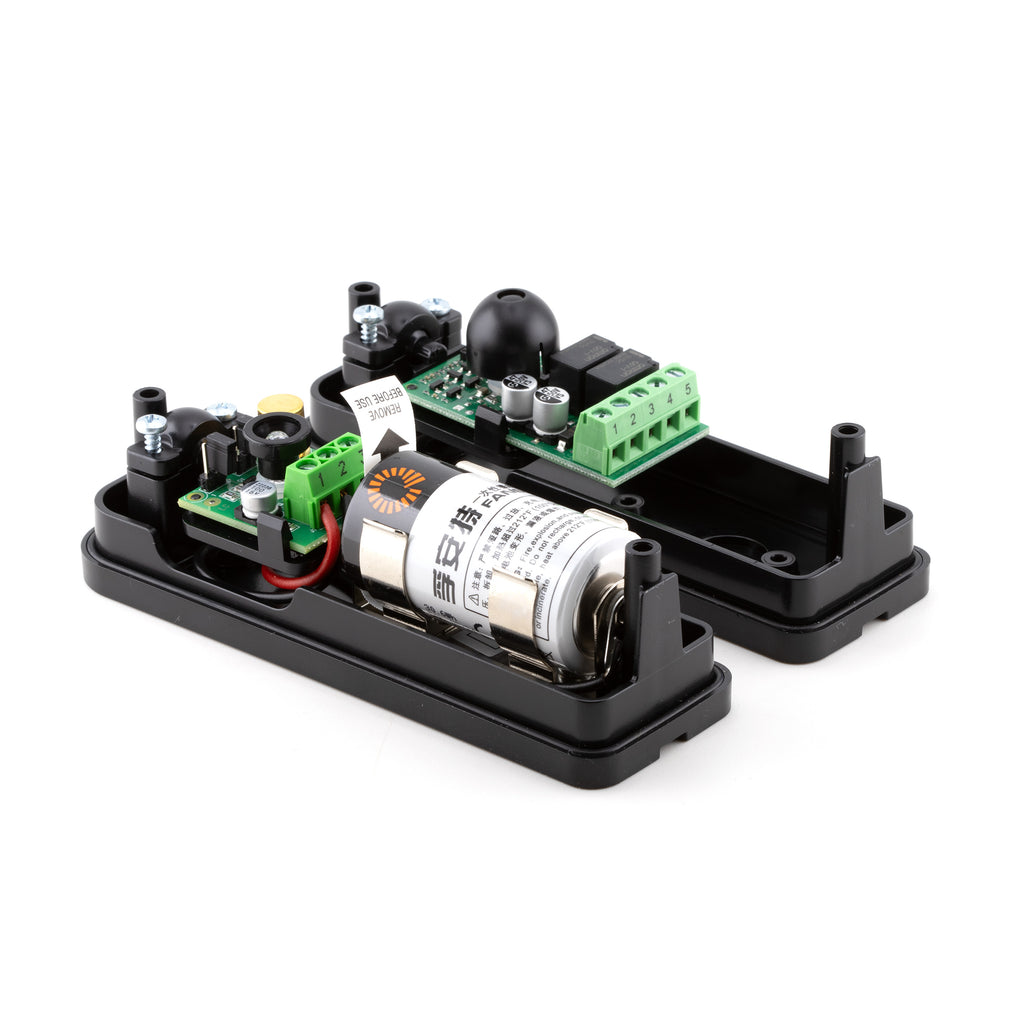

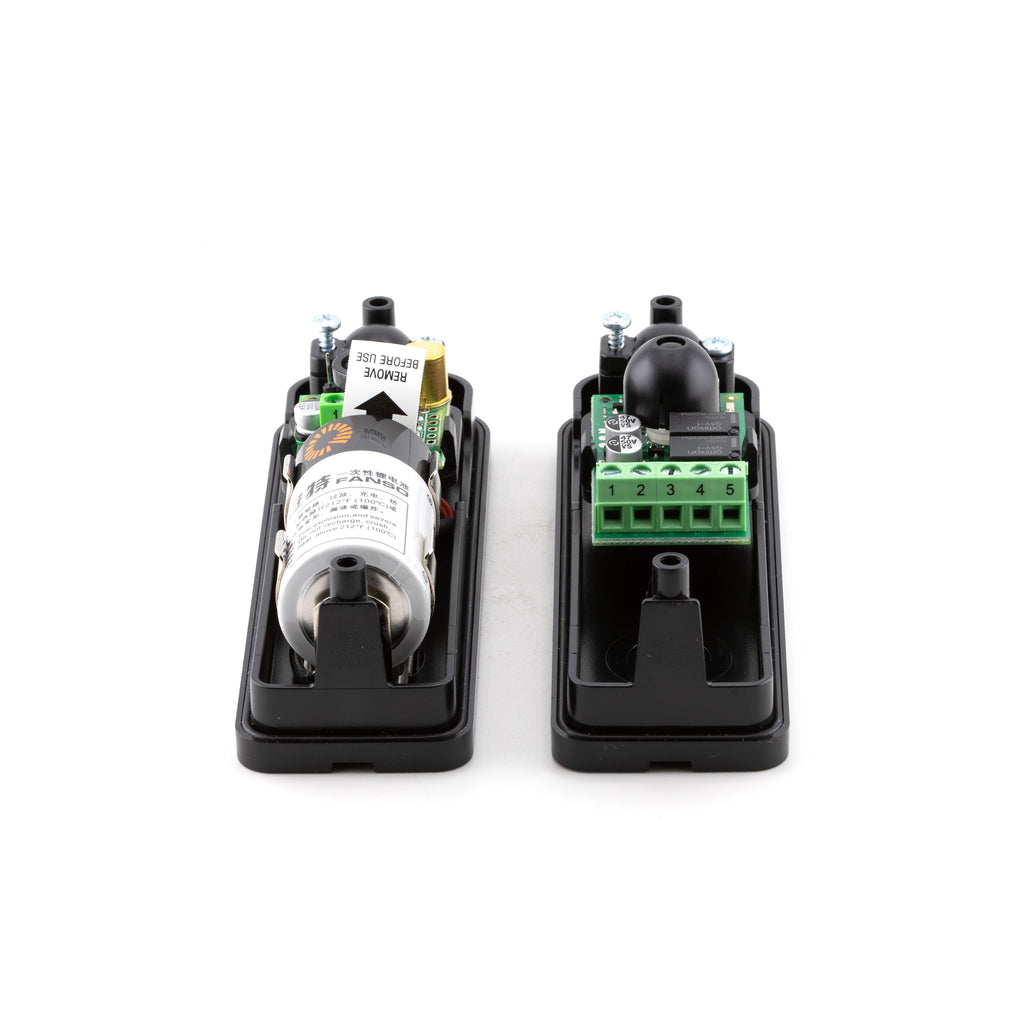

The battery-powered transmitter is mounted directly onto the moving section of the gate and connects to the safety edge. It continuously monitors the status of that edge and sends the information to the receiver, which is installed on the fixed side.
If the safety edge is triggered, the signal between the transmitter and receiver is immediately interrupted. This prompts the receiver to open the contact connected to your control unit, stopping or reversing the gate to prevent damage or injury.
To maximise efficiency, the LINEAR/B includes a built-in motion sensor within the transmitter. This allows the system to operate actively at the start of each gate movement, helping to significantly extend battery life.
When the gate is stationary, the transmitter remains active and continues to detect obstacles, although response times may be slightly slower compared to when the gate is in motion.
Technical Specifications:
- Transmitter Power: Battery operated
- Receiver Power: 12–24V AC/DC
- Detection Type: Infrared beam
- Operating Distance: Up to approx. 10–15 metres (line of sight)
- Communication: Wireless signal
- Weather Protection: Suitable for outdoor use (IP-rated)
- Operating Conditions: Designed for Australian environments
- Alignment: Adjustable for accurate setup
- Recommended Install Height: Around 500–600mm from ground
What’s Included:
- 1 x Wireless Transmitter (TX)
- 1 x Receiver (RX)
- Mounting brackets and fixings
- Installation instructions
Where You Can Use It
These photocells are ideal for DEA:
- Sliding gates
- Swing gates
- Garage doors
- Residential driveways
- Light commercial setups
Why Safety Sensors Are Worth It:
It’s easy to overlook safety sensors, but they’re one of the most important parts of any automated system.
They help:
- Prevent damage to your car
- Protect kids and pets
- Reduce wear and tear on your motor
- Keep your setup compliant and safe
WARNING! This product may contain a button/coin cell battery. To prevent possible SERIOUS INJURY or DEATH:
- Keep new and used batteries out of reach of children at all times.
- Do not use the product if the battery compartment is damaged or doesn’t close securely.
- Dispose of used batteries immediately and safely - even flat batteries can cause harm.
- Do not ingest the battery. Chemical burn hazard.
- Act fast if you suspect a battery has been swallowed or inserted - severe or fatal injuries can occur within 2 hours.
- Seek immediate medical attention or call:
– Australia: Poisons Information Centre on 13 11 26
– New Zealand: National Poisons Centre on 0800 764 766
