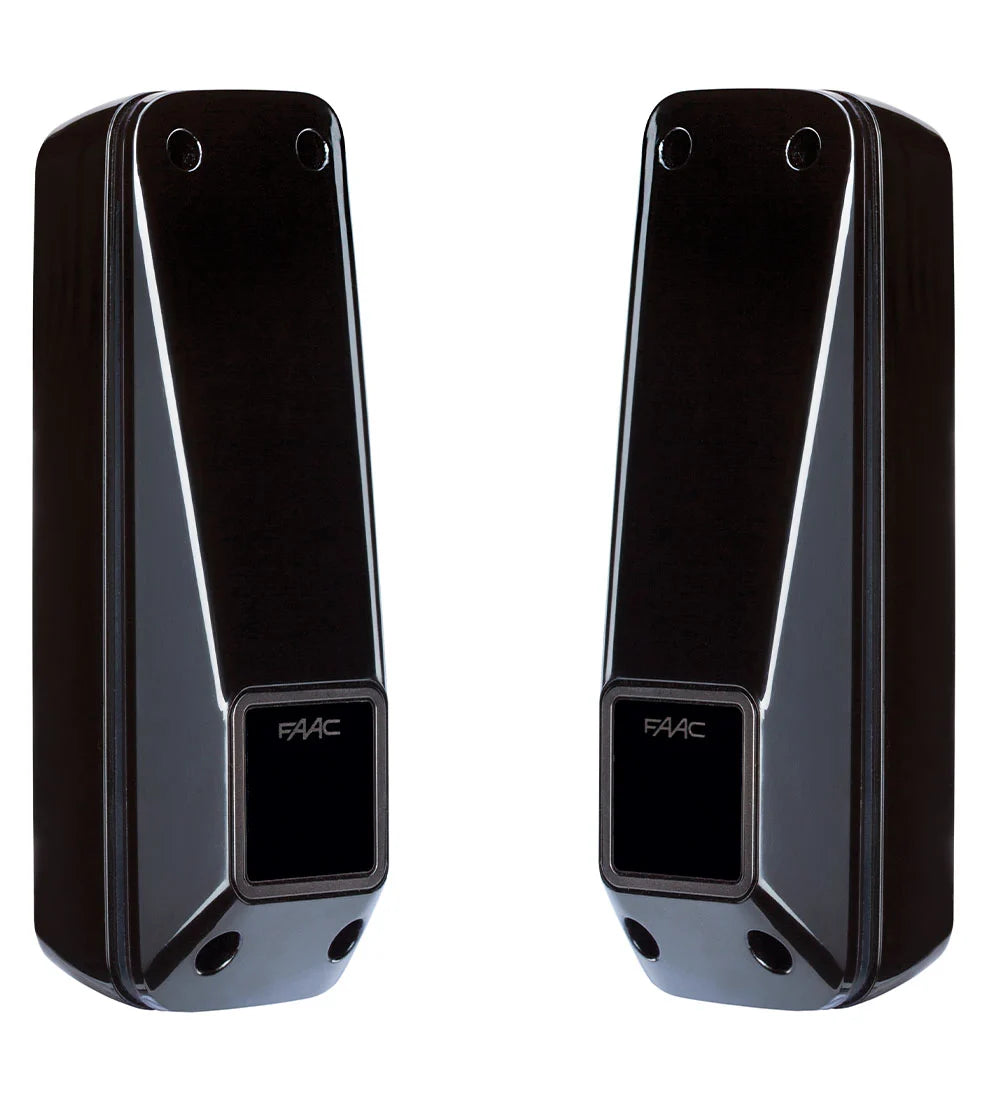

FAAC Mounted Wireless Photo Beams (Photo Electric / Photocells) Model
System with traditional 12/24V power supply for the receiver and traditional or battery-powered transmitter. It eliminates the need for wiring to the transmitter (battery-powered) and features selectable channels, allowing for the installation of up to 4 pairs of photocells and protection from interference from external light sources (e.g., LED car headlights).
Modulated infrared transmitter and receiver
The XP 20 D orientable photocells consist of a modulated infrared transmitter and receiver with a range of up to 20 m. Obscuring the light beam causes the receiver to change state.
Precise and reliable regulation

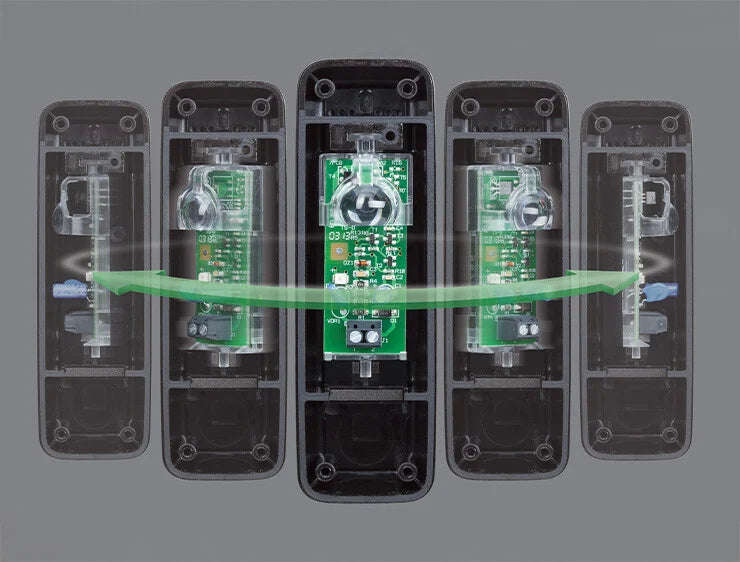

The photocell is housed on a rotating support equipped with a high-performance lens designed to optimize the efficiency of the beam in any direction.
The rotating stand is locked in the desired position thanks to a sturdy snap-on rotation lock (removable with a screwdriver if necessary).
Specifications:
• Sold as a pair (sender and receiver)
• 180°Horizontal Beam Adjustment
• 12/24v (AC/DC)
• Wireless + Hard Wired; 4 pairs of beams on the same system
• Use 0.5mm² Cable to wire in
• Possibility for cable inlet from the back and the underside
• Obstacle Detection Time; Wireless: 40ms
Range:
• Wireless = Max. 8m
• Hard Wired + BUS = Max. 20m
Please Note:
• You are still required to run a wire from one photo beam to the control box
• The other photo beam is wireless and is powered by 1 x CR2 3V battery (supplied)
• If connecting the wireless beams to an FAAC ‘Standard’ E024S Swing Gate Control Board, you will need to install an FAAC BUS Interface #1059-0010
Country: BULGARIA
Dimensions: 130mm H x 41mm W x 42mm D
Material: Black Plastic
Power Supply: 12/24v OR Battery operated transmitter - 3VCR2
Remote Pro
WARNING! This product may contain a button/coin cell battery. To prevent possible SERIOUS INJURY or DEATH:
- Keep new and used batteries out of reach of children at all times.
- Do not use the product if the battery compartment is damaged or doesn’t close securely.
- Dispose of used batteries immediately and safely - even flat batteries can cause harm.
- Do not ingest the battery. Chemical burn hazard.
- Act fast if you suspect a battery has been swallowed or inserted - severe or fatal injuries can occur within 2 hours.
- Seek immediate medical attention or call:
– Australia: Poisons Information Centre on 13 11 26
– New Zealand: National Poisons Centre on 0800 764 766
