Keep your gate, driveway, or access point safe and secure with the Merlin Outdoor Reflector Protector System. These infrared safety beams are made for Australian conditions, rain, shine, dust, or wind, and make sure your automatic gate or door stops the moment something crosses its path.
Features:
- All-weather protection (IP65 rated): Fully sealed against dust and water, these beams are ready for even the harshest Aussie environments.
- Reliable infrared detection: An invisible IR beam detects when something breaks its path, instantly triggering your gate to stop or reverse.

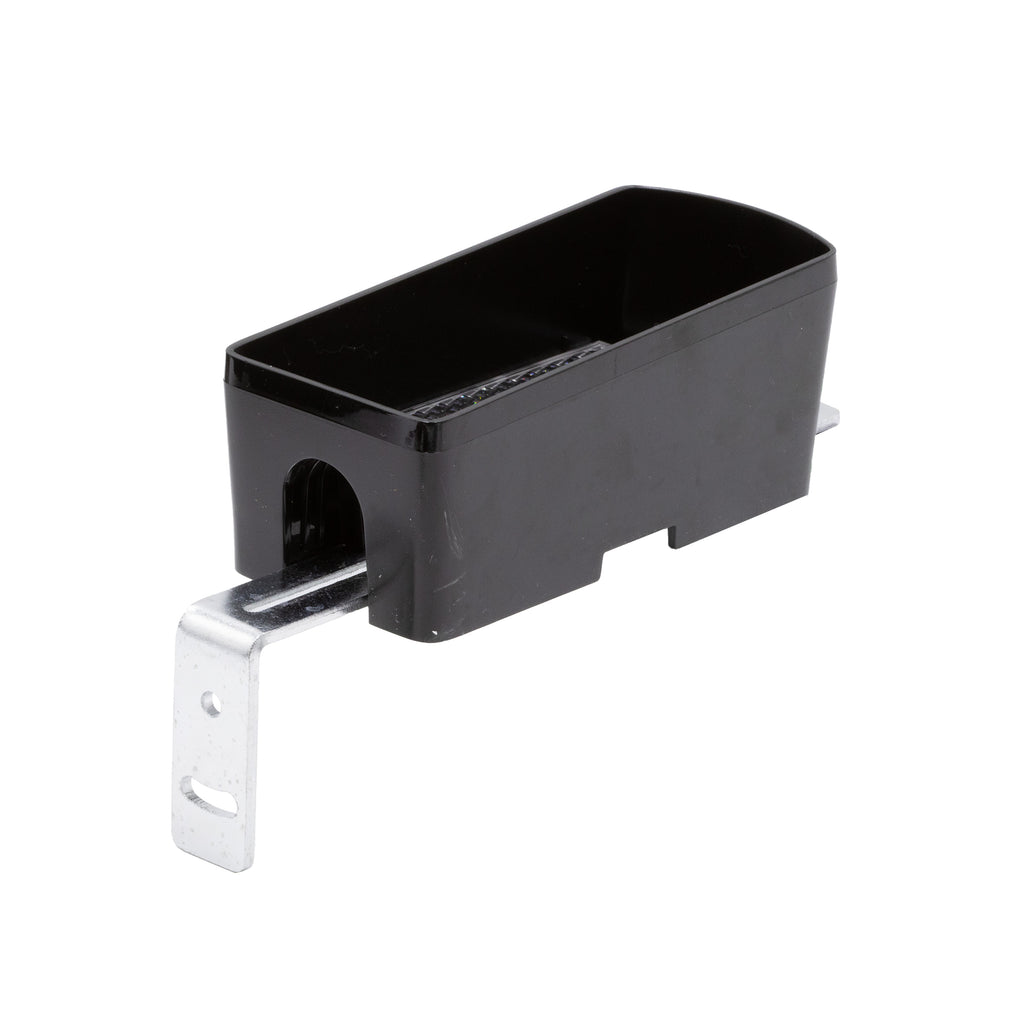

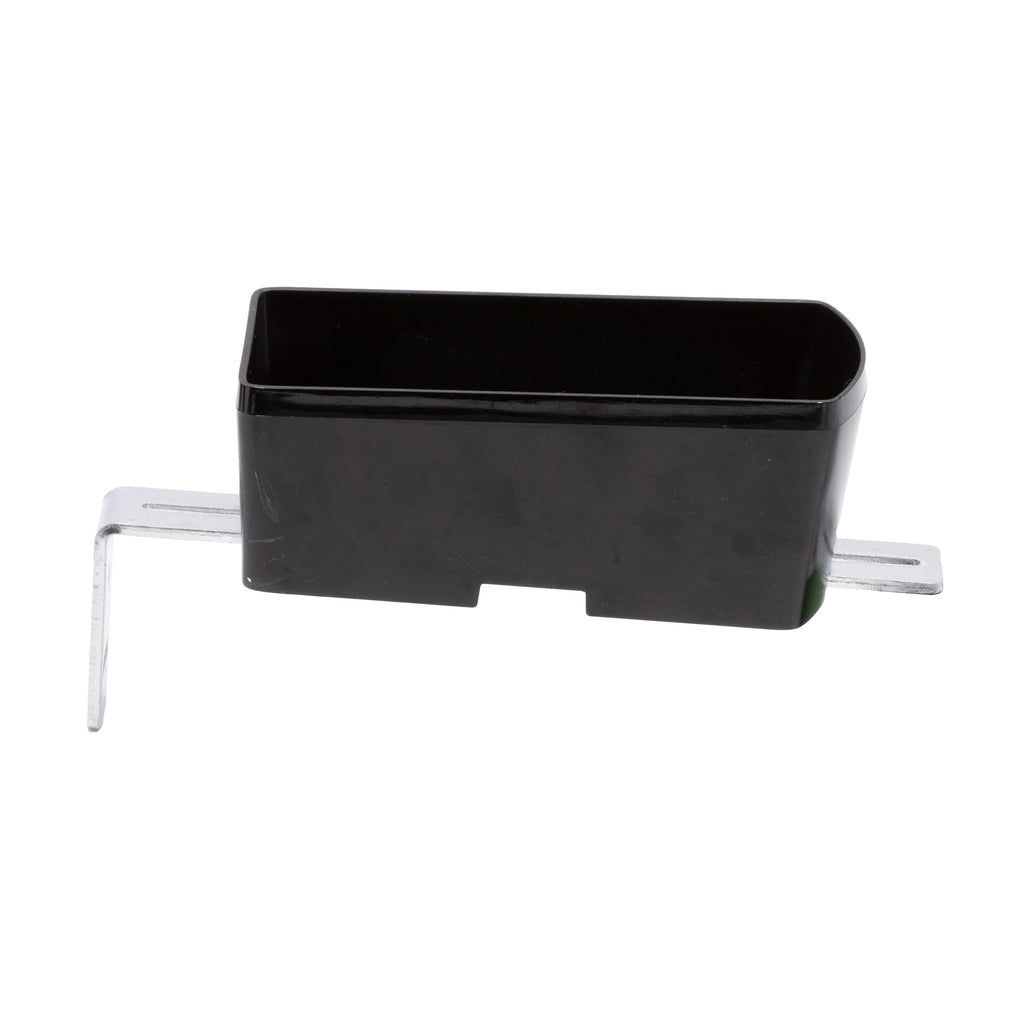

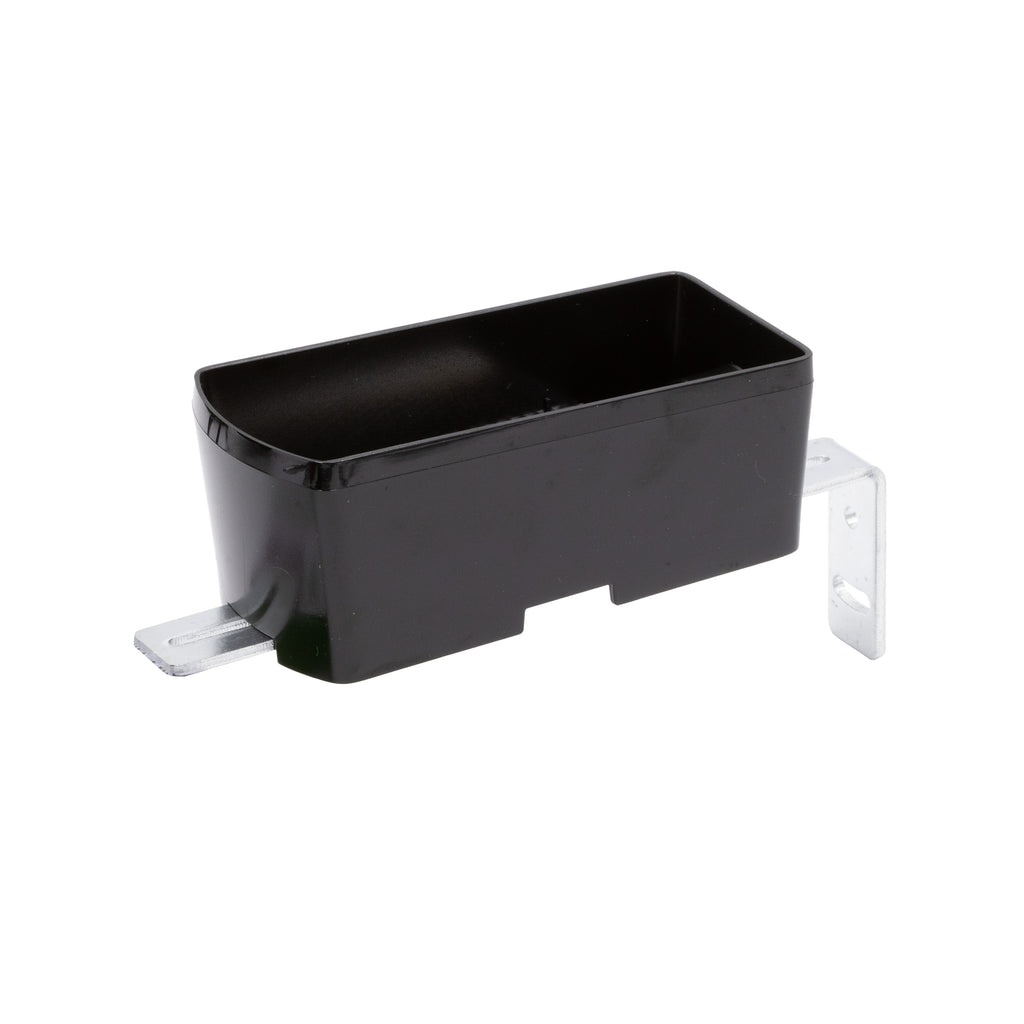

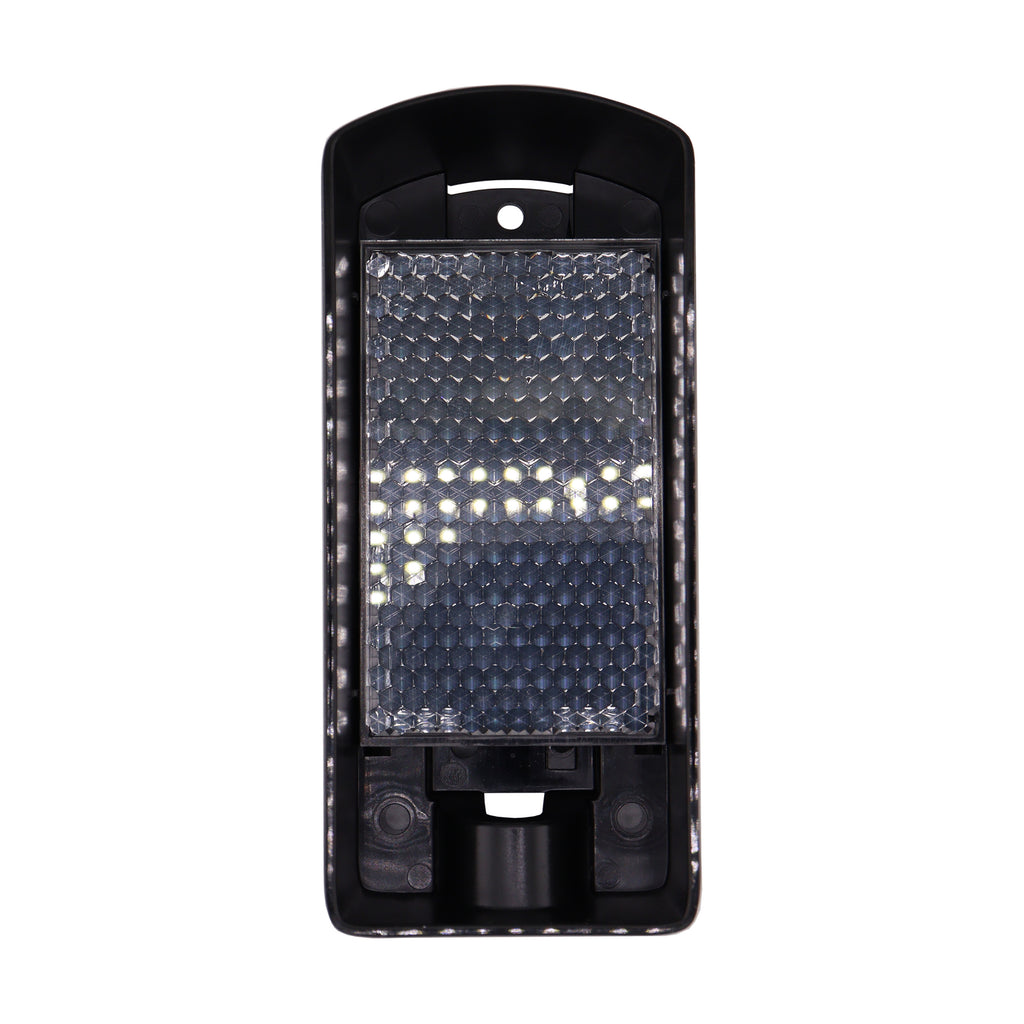

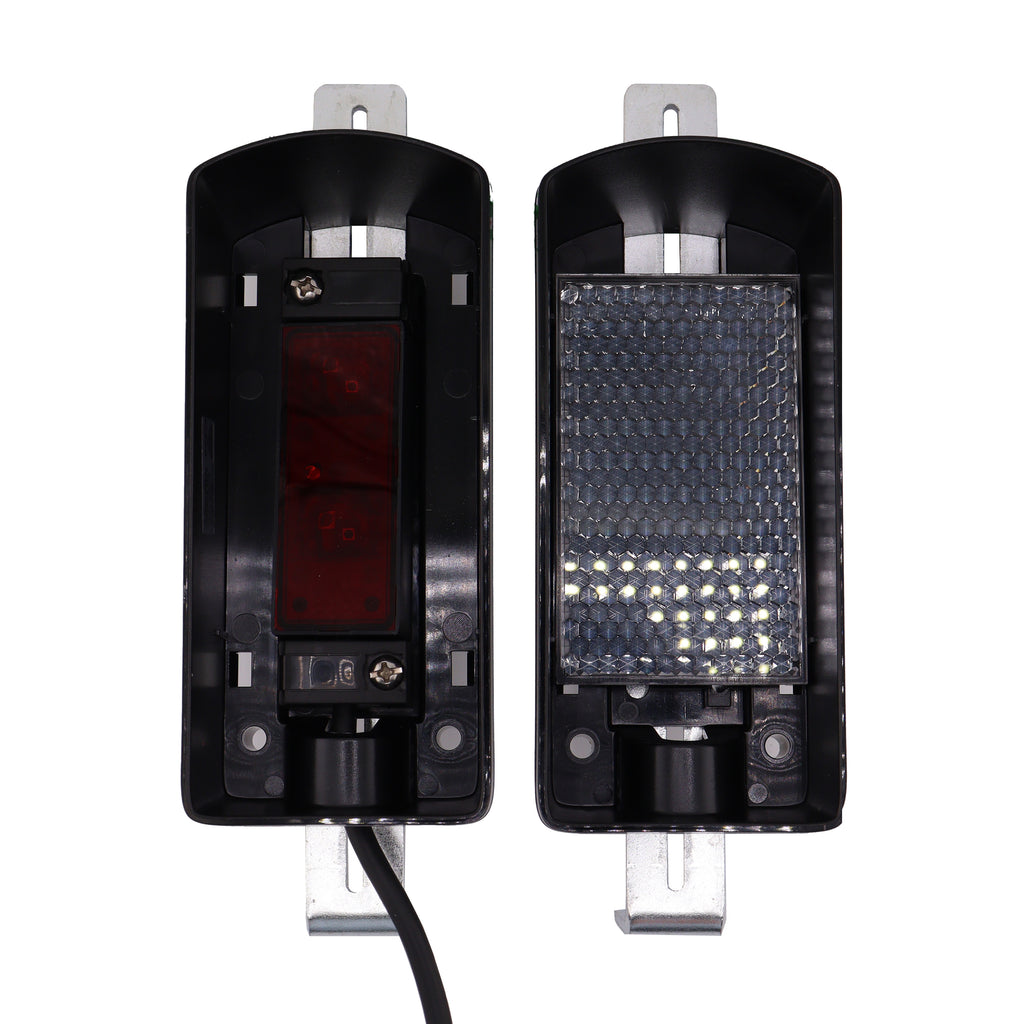

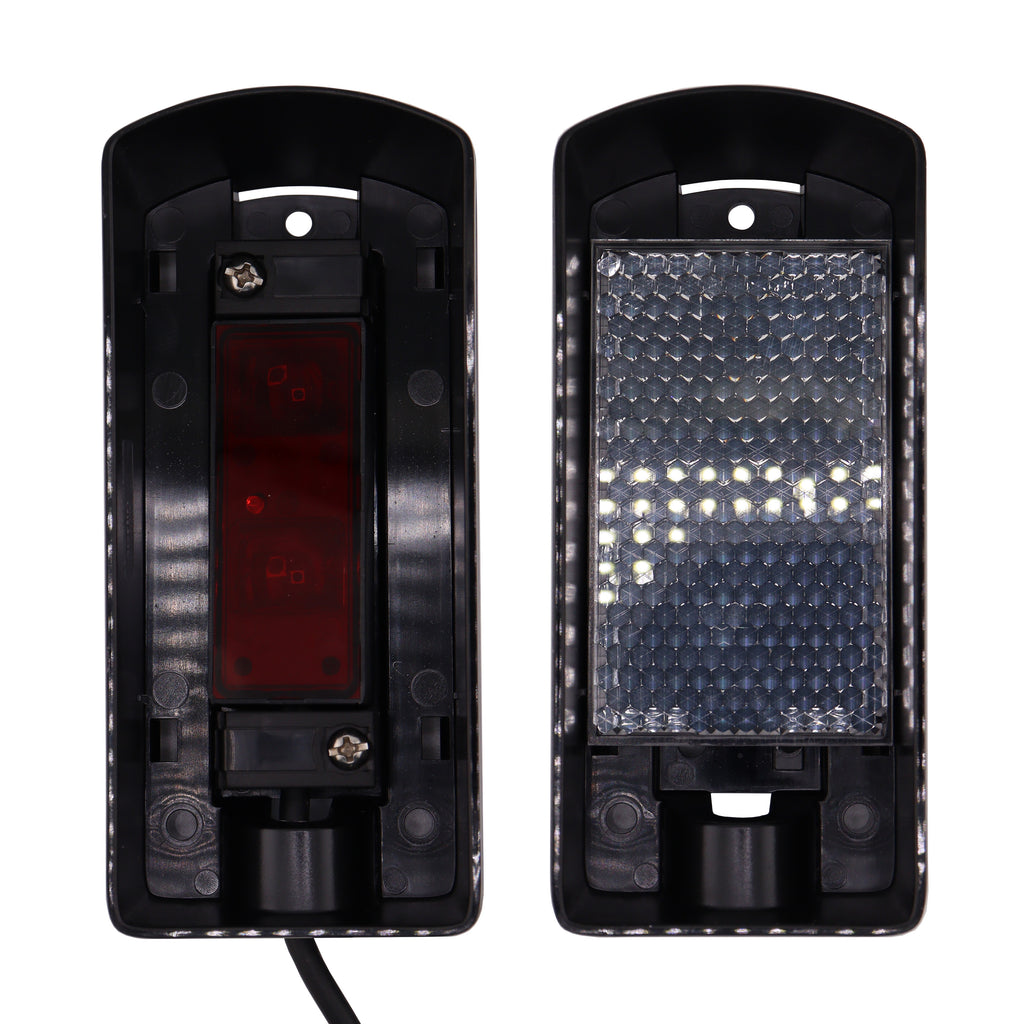

- Simple reflector design: Mount the beam on one side and the reflector on the other, no extra wiring or power needed across the driveway.
- Tough, UV-resistant build: Made with UV-stable materials and a weatherproof casing that won’t crack or fade under the hot sun.
- Easy compatibility: Works perfectly with most gate and door automation systems, including Merlin, ATA, and B&D.
Perfect for:
- Residential driveways and gates
- Commercial access points and carparks
- Properties with kids or pets
- Harsh outdoor or coastal environments
Compatibility:
Merlin:
- Slide 600
- Swing A200
- Swing L300
- MR555MYQ
- MR655MYQ
- MR855MYQ
- MJ3800MYQ
- MS65MYQ
- MS105MYQ
- MS125MYQ
- MS135MYQ
Gfrico:
- LR-Drive
- LG-Drive
- E-Drive +2.0
- E-Drive MYQ
- S-Drive
- LS-Drive (Post Jan 2019)
Technical Specifications:
- Protection Rating: IP65
- Beam Type: Infrared, active–reflector system
- Operating Range: Up to 10 metres (depending on conditions)
- Power Supply: 12–24V AC/DC
- Current Draw: Low power consumption (<50mA typical)
- Operating Temperature: –20°C to +60°C
- Response Time: <30ms
- Alignment Tolerance: ±5° horizontal and vertical adjustment
- Housing Material: UV-resistant polycarbonate / ABS blend

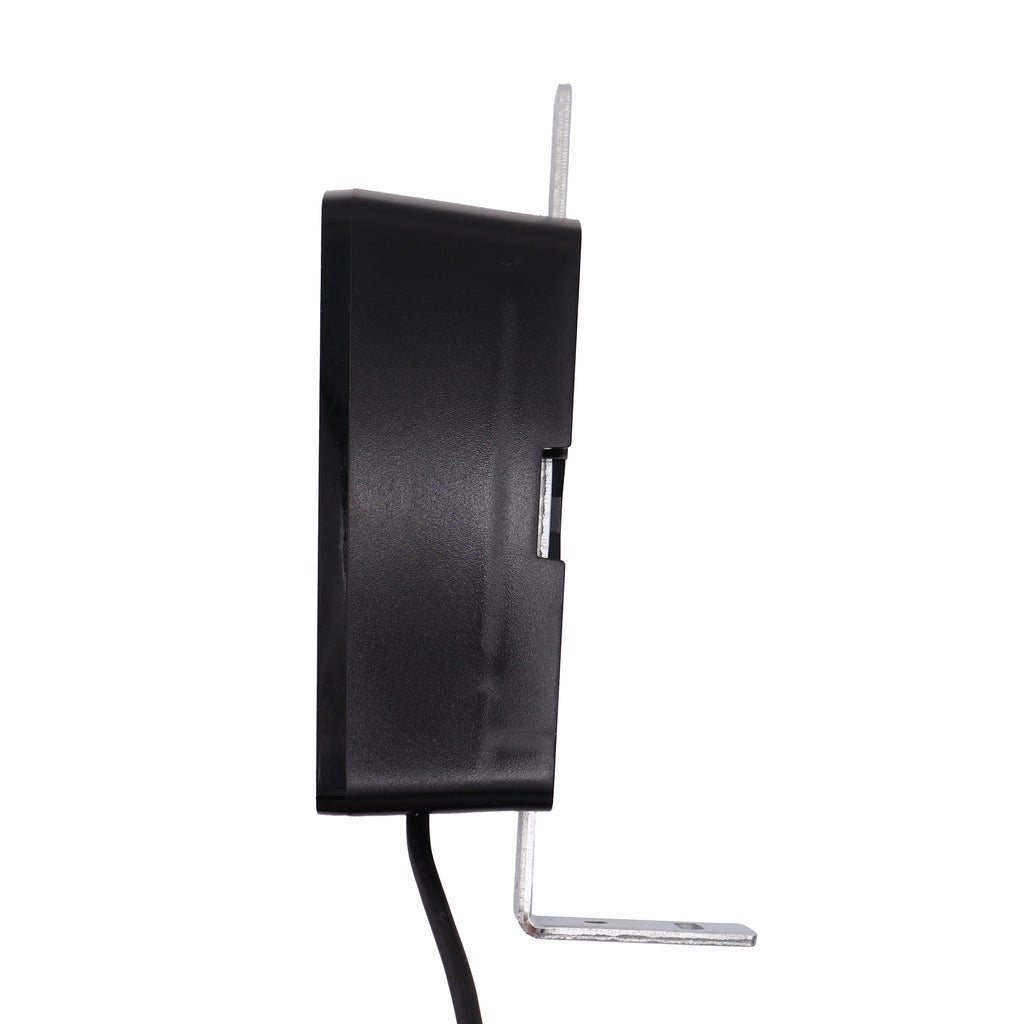

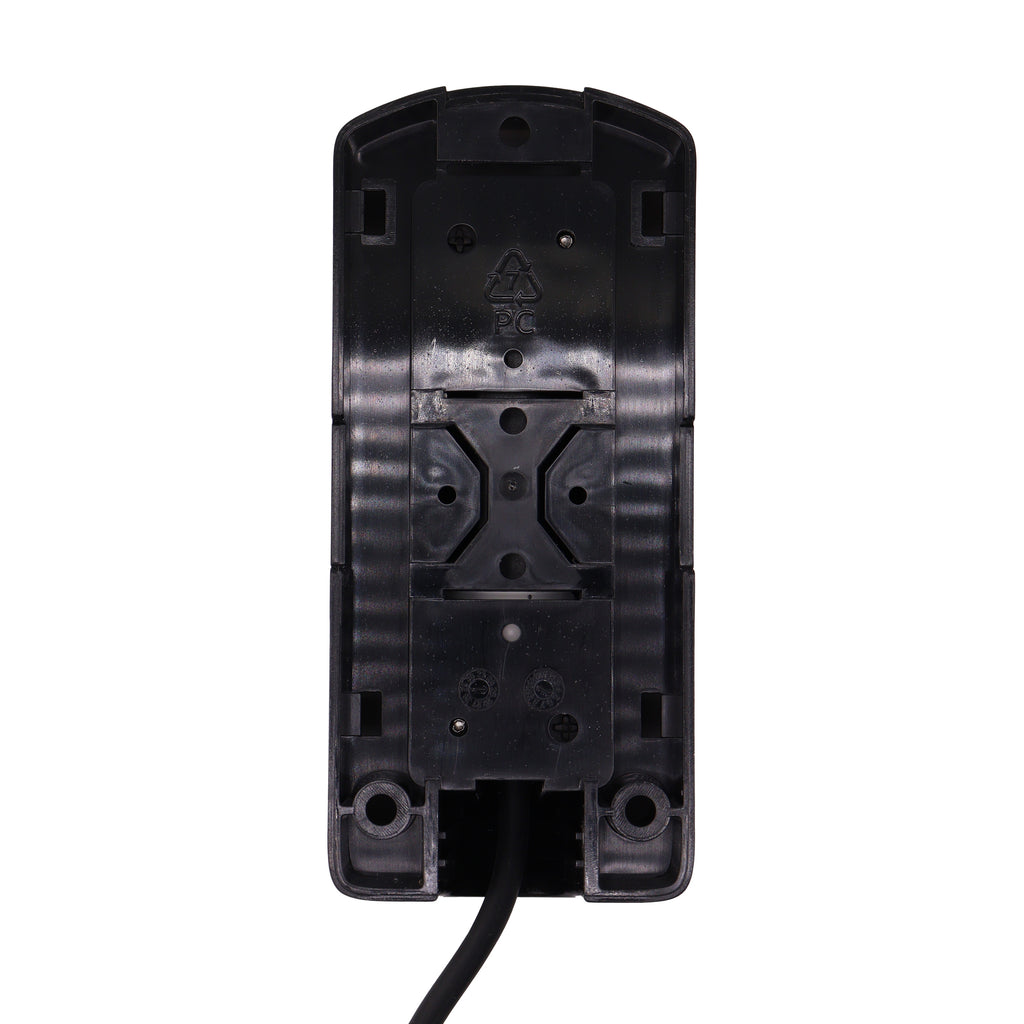

- Mounting Options: Wall or post mounting with adjustable brackets

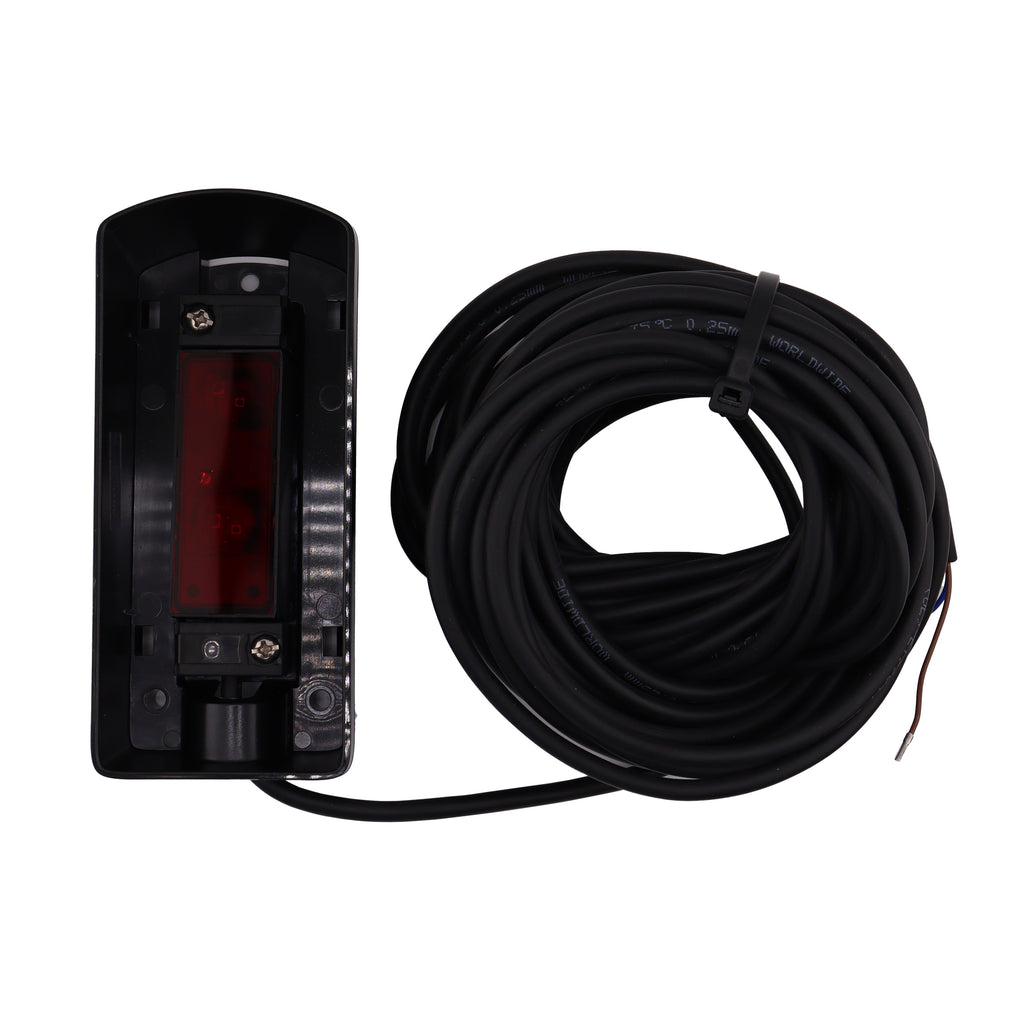

- Cable Entry: Rear or bottom entry for flexible installation

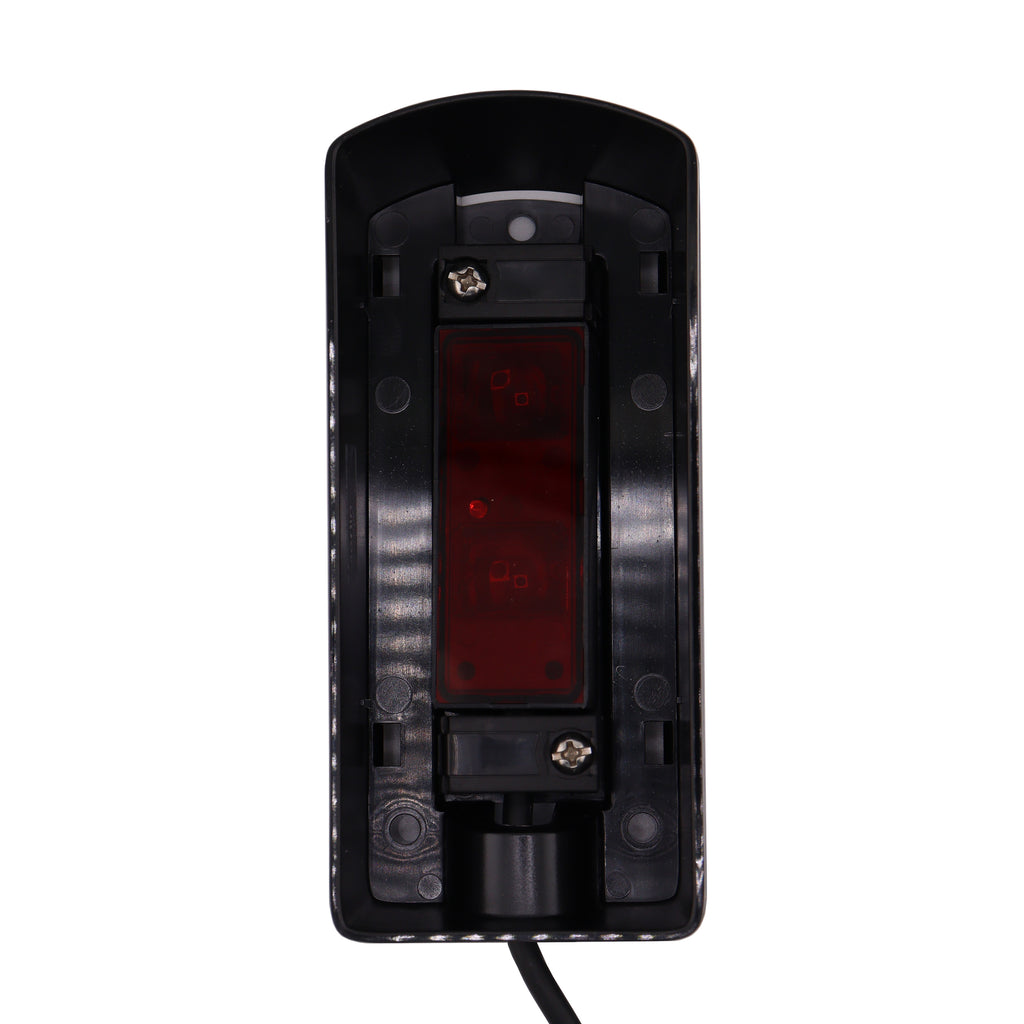

- Indicator LEDs: Power and beam alignment status
- Relay Output: Normally open (NO) / normally closed (NC)
- Dimensions: Approx. 70 mm (W) × 75 mm (D) × 100 mm (H)
- Weight: Around 150 g (per unit)
- Compliance: Meets AS/NZS gate and door automation safety standards
