The Grifco LS-Drive is the perfect high-cycle operator for sectional doors found in small carparks. Designed for up to 50 cycles per day, it is the ideal automation solution for small multi-tenanted applications. It delivers all the necessary logic configurations without any unnecessary complexity.
- The quiet, powerful drive train delivers smooth and fast door cycles, with soft start and soft stop
- Logic options can be easily configured to “open only” and “timer-to-close”
- The operator can be configured to receive a held-open input, making it ideal for fire input panels
- The extremely durable extruded aluminium rail is available in 2 lengths and features a clever mounting method and integrated cable management
- The rail can be easily surface mounted for low ceiling carparks

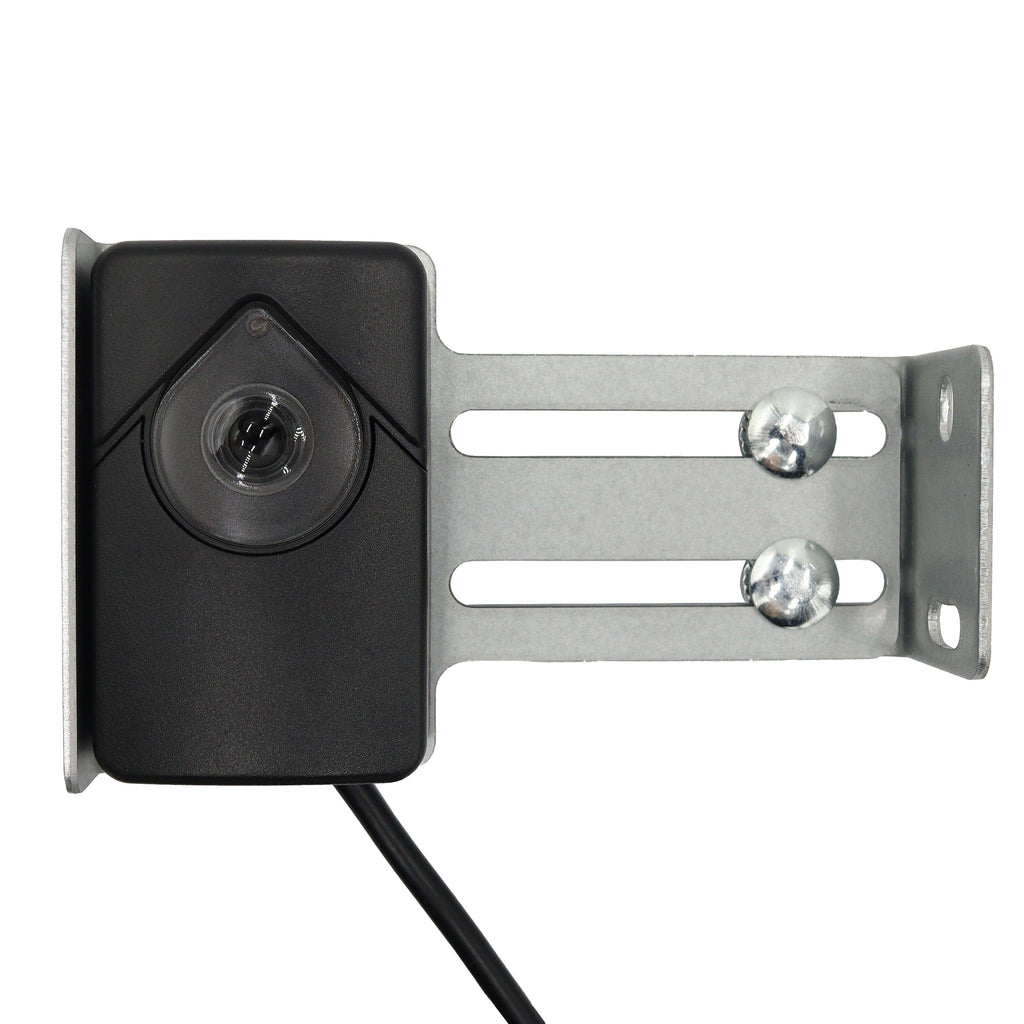

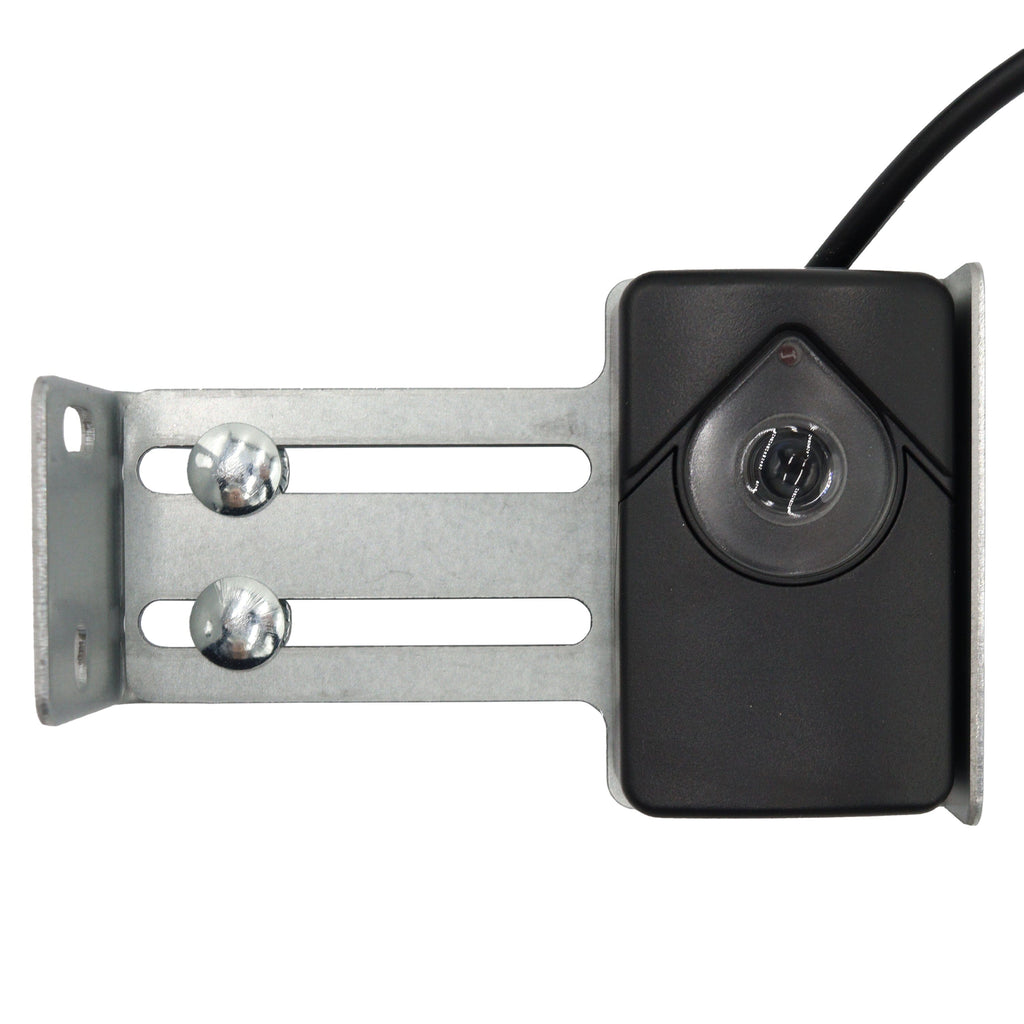

*Additional purchase of Grifco myQ Gateway and Safety IR Beam accessories required to enable myQ functionality.

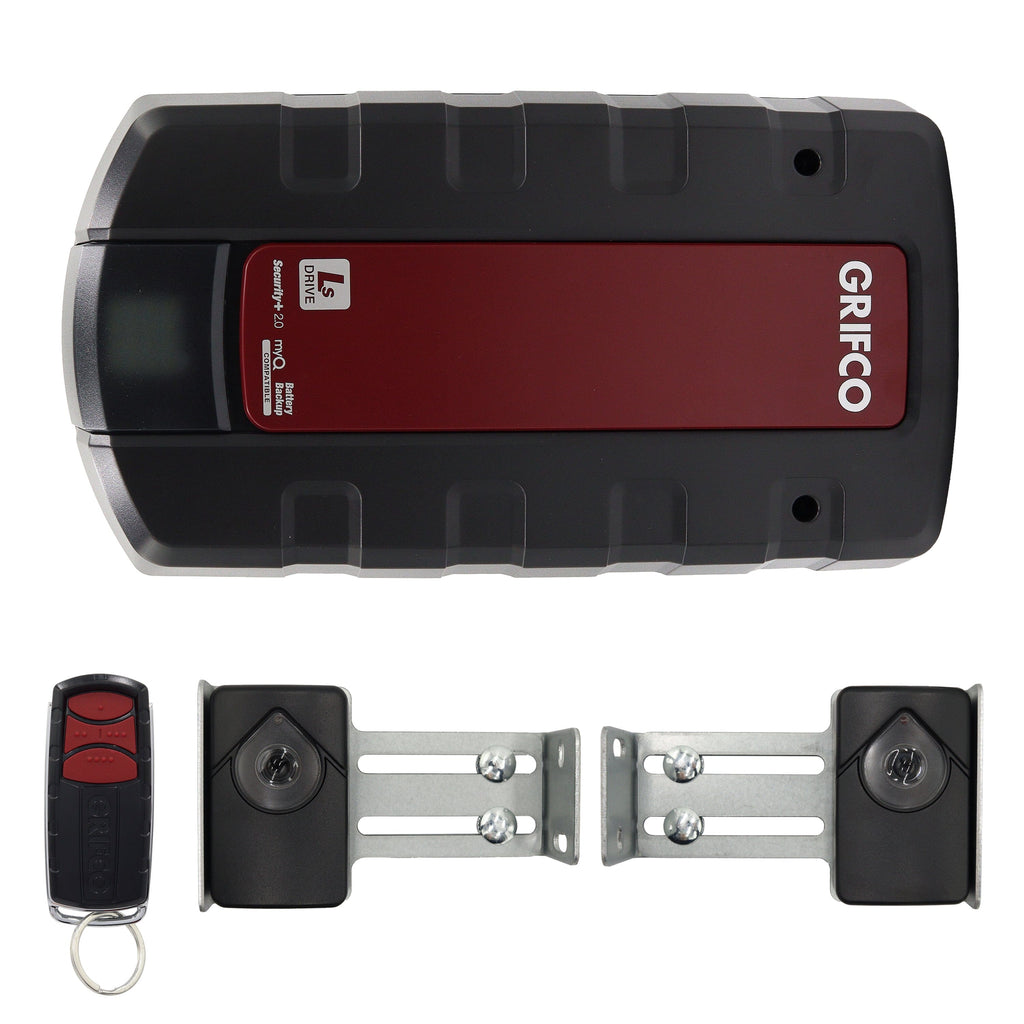

Includes:

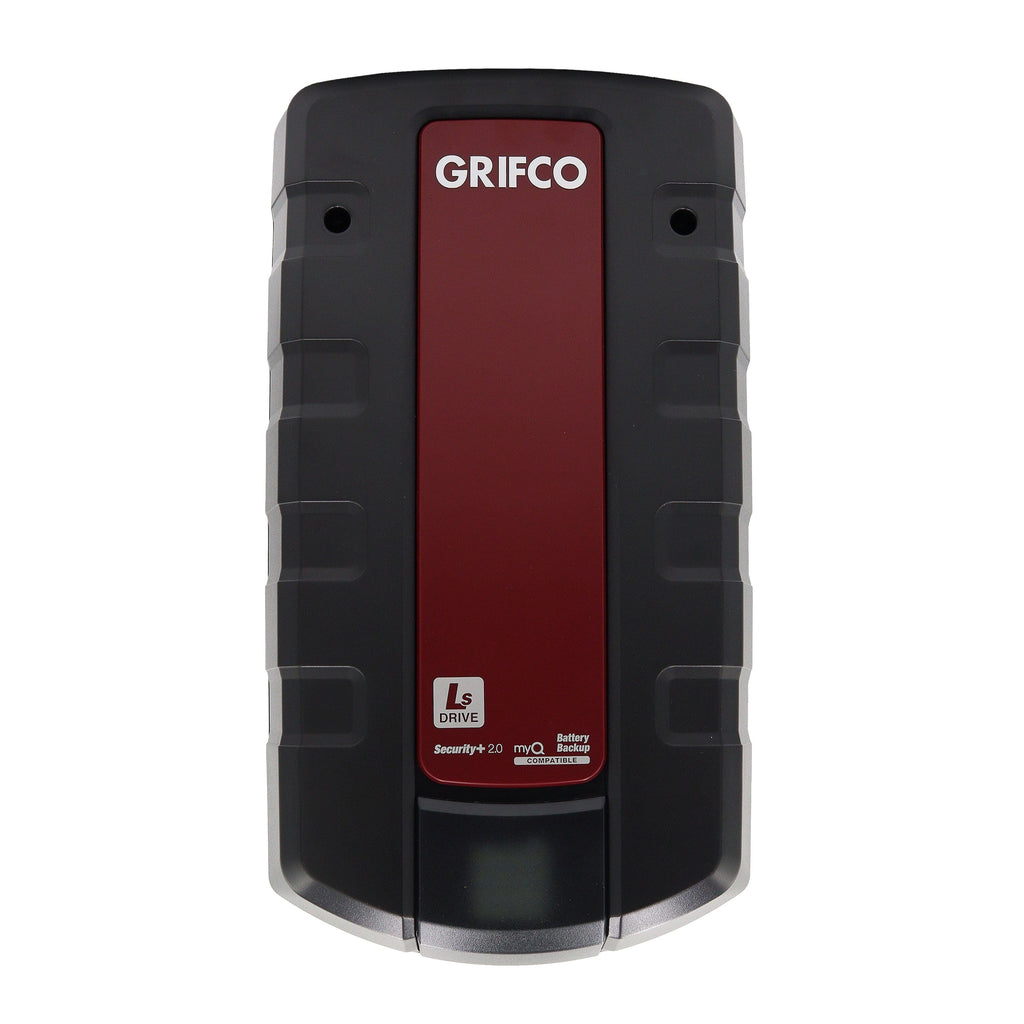

- Grifco LS-Drive Motor

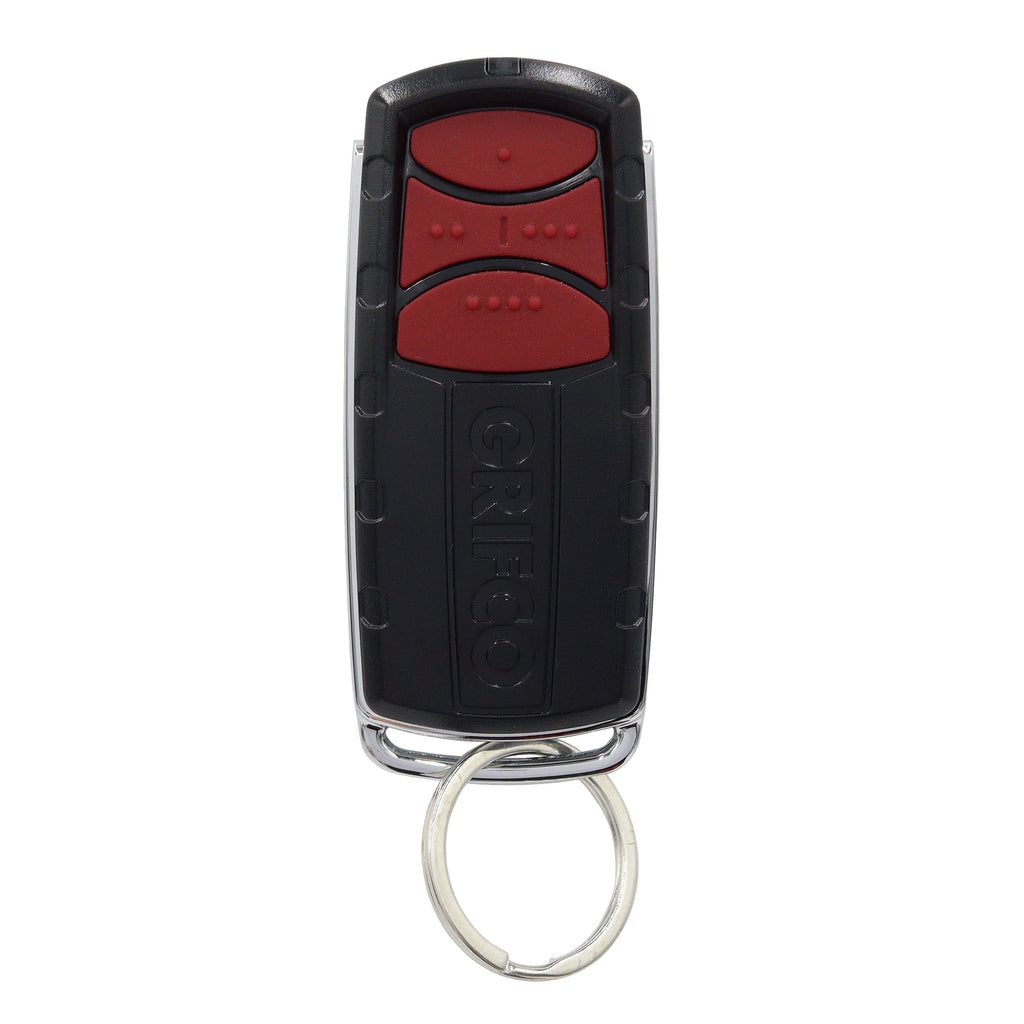

- 1x E960G 4-channel keyring transmitters
- 1x Aluminium Chain Rail for 2.5m High Door
- Instructions Manual
Product Specifications:
- Main AC Power Supply: 230-240 Vac 50Hz
- Max. Pull Force: 1,200N
- Power: 225W
- Operating Temperature: +5°C to +40°C
- Battery Backup Compatible
Door Specifications:
- Max Door Height: 3m
- Max Door Weight: 160kg
- Max Lift under Spring Tension: 20kg
- Normal Torque: 8Nm
- Maximum Door Area: Commercial Spring-Balanced Sectional Doors up to 15m²
- Max. Door Cycles: 50 cycles / day
Dimensions:
- Operator Length: 370mm
- Operator Height: 100mm
- Operator Width: 200mm
Warranty Disclaimer*
Please note that if installing the motor yourself (DIY Installation) you will not receive any warranty on this item. To receive the full warranty this product must be installed by a certified installer.
