Heavy Duty Hand Swaging Tool Range 1.5mm-3.5mm

In stock

SWAGINGTOOL

Remote Pro

$100.00
-
+

Free Untracked Shipping: 2-10 Business Days
Tracked Shipping: 1-5 Business Days
Express Shipping: 1-3 Business Days

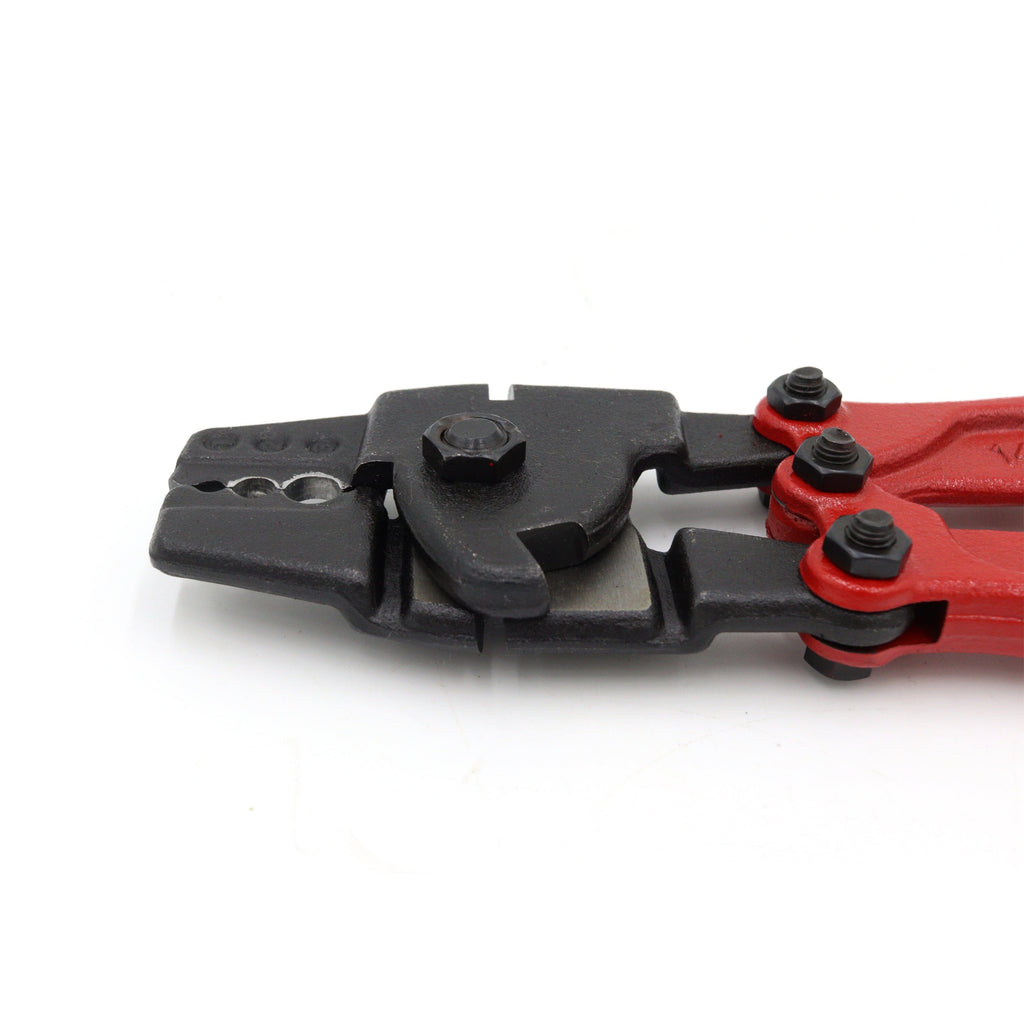

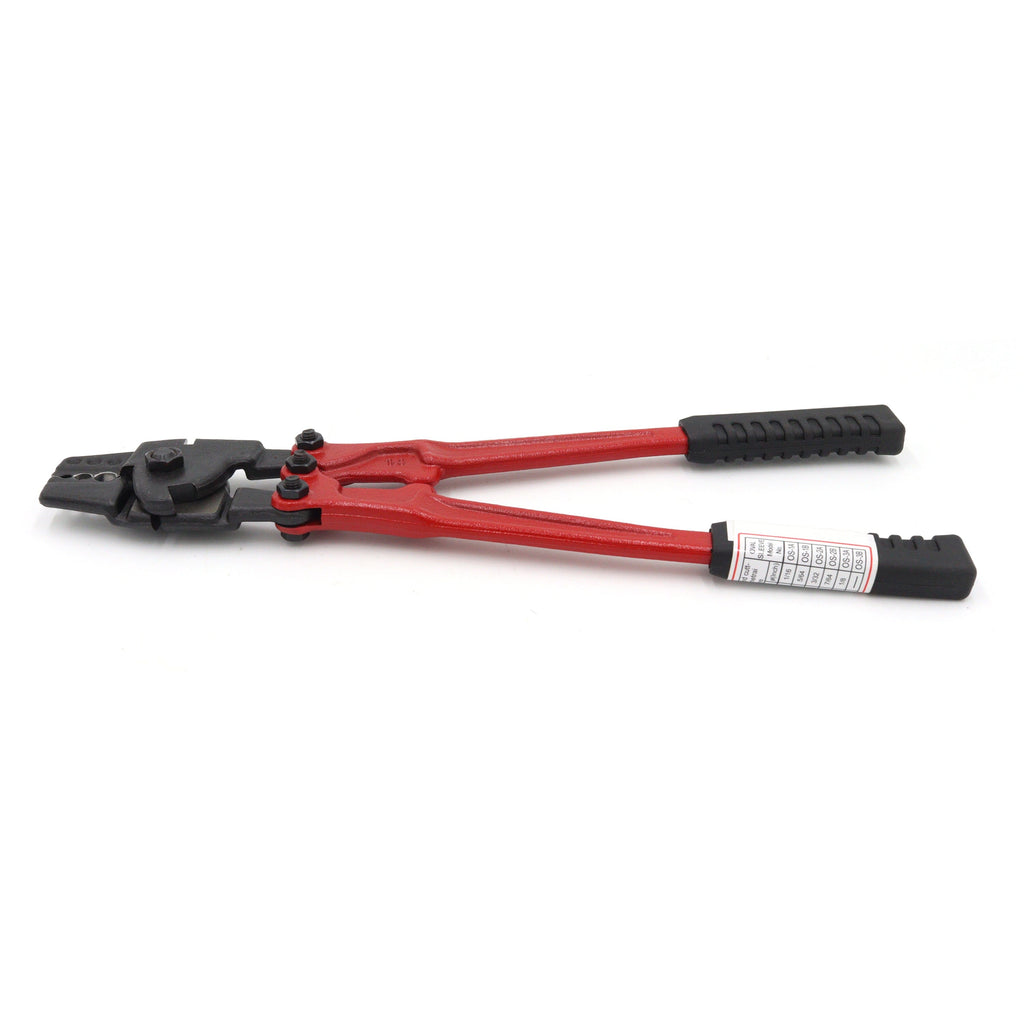

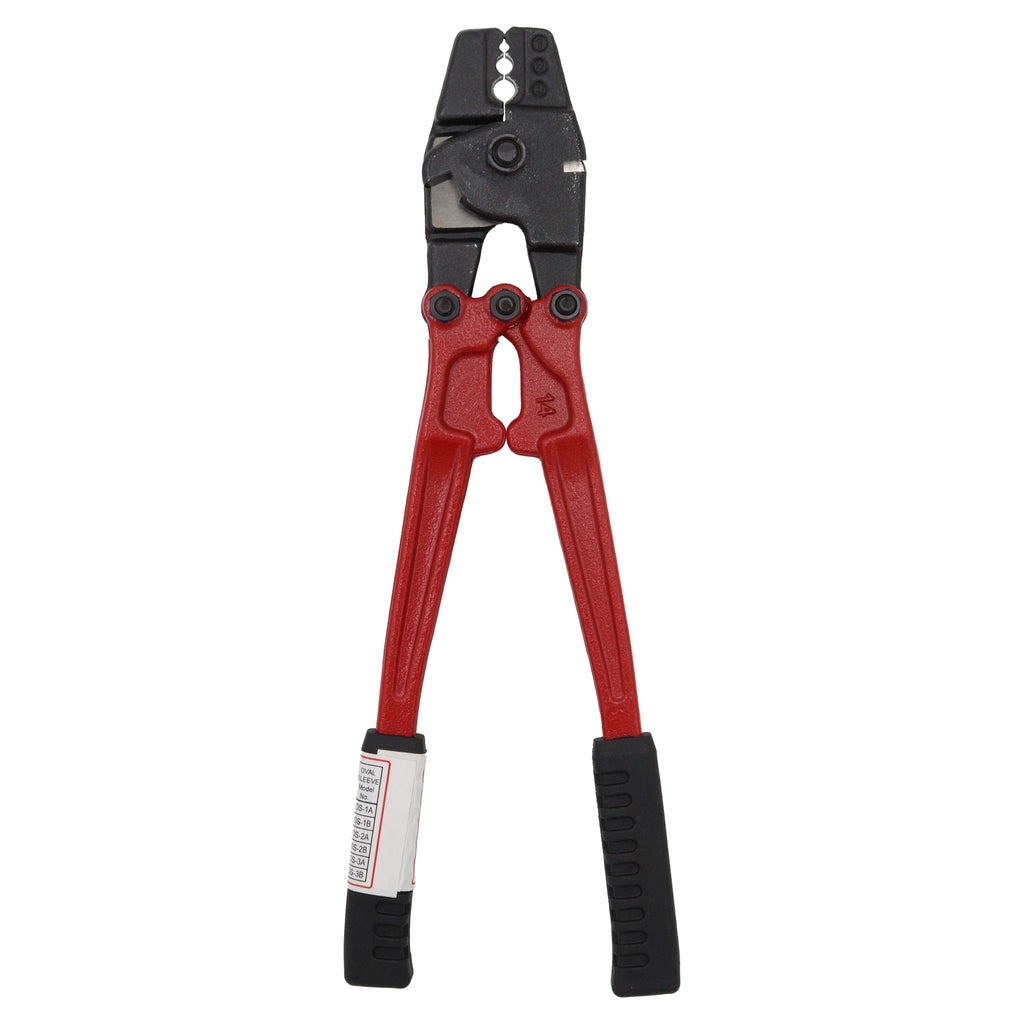

Introducing the Heavy Duty Hand Swaging Tool, a 350mm 3 Hole Swaging Tool designed for exceptional manual hand swaging of wire ropes. This versatile tool offers a cutting capability as a built-in feature and accommodates a variety of ferrule sizes for crimping swages. The three crimping hole design caters to different requirements, with jaws featuring dies crafted from hardened machine steel suitable for use with aluminum, copper, and brass sleeves. The three holes correspond to swages/ferrules for wire ropes measuring 1.5mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, and 3.2mm.

Features:

  • Portability: The Heavy Duty Hand Swaging Tool is portable and lightweight for easy transport.
  • Two-Handed Operation: Equipped with vibration-damping rubber grips for comfortable and efficient two-handed operation.
  • Forged Jaws and Side Cutters: The tool features forged jaws and two side cutters capable of handling wires up to 3.5mm, including galvanized or stainless steel wire ropes.
  • Precision Ground Factory Formed Swaging Holes: The swaging tool boasts precision-ground, factory-formed swaging holes, ensuring consistent and perfect swaging with every use.

The Heavy Duty Hand Swaging Tool is highly recommended for swaging Hourglass (Duplex) Ferrules. It is designed to work seamlessly with ferrules made from Nickel Coated Copper or Aluminum, accommodating wire ropes of 1.5mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, and 3.2mm. Please note that this tool is not suitable for oval stainless steel swages due to sizing discrepancies.
