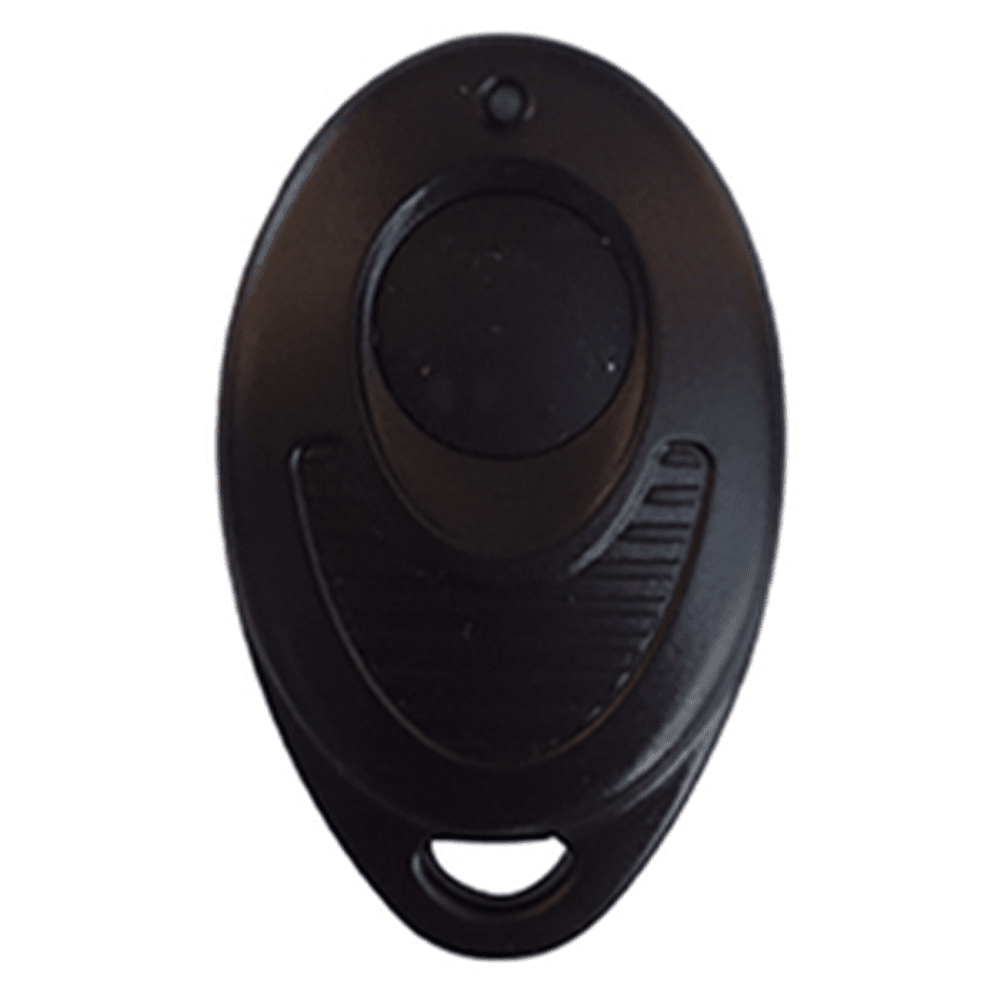

Please ensure your current remote is pictured in the main image and your remote has a green light. Coding the new remote can be completed by either using an old working remote or if no working remote is available you will require two people as you will need to remove the negative terminal from the battery and replace it but the next step must be done within 10 seconds.
Compatible with:
- TX22B
- VAE 315-950
- VAE 317-490
- AB950
Instructions:
- Sit in driver’s seat with driver’s door open
- Lock and unlock doors with existing remote (if no existing remote, disconnect the negative battery terminal for 30 seconds, reconnect negative battery terminal, and start from step 3)
- Turn key from ‘Accessories’ to ‘On’ 20 times within 12 seconds, and return the key back to ‘Off’
- Hazards should flash 20 times to indicate programming mode (if this step does not occur you must start again from step 1 - Also if it still does not flash please try step 3 but turning the key from OFF to ON instead of Accessories to ON)
- After the 20th flash press the remote control
- Hazards should flash once to indicate successful registration
- Press any additional and existing remotes (max 3)
- Turn key from ‘On’ to ‘Off’ twice
- Remove key, exit vehicle and test all remotes.
| Battery Type: | Battery type TBA |
| Battery Access Type: | Tool Required |
| AS62368.1 Compliant: | Yes |
| Battery Included: | Yes |
| Contains Coin Battery: | Coin Battery TBA |
WARNING! This product may contain a button/coin cell battery. To prevent possible SERIOUS INJURY or DEATH:
- Keep new and used batteries out of reach of children at all times.
- Do not use the product if the battery compartment is damaged or doesn’t close securely.
- Dispose of used batteries immediately and safely - even flat batteries can cause harm.
- Do not ingest the battery. Chemical burn hazard.
- Act fast if you suspect a battery has been swallowed or inserted - severe or fatal injuries can occur within 2 hours.
- Seek immediate medical attention or call:
– Australia: Poisons Information Centre on 13 11 26
– New Zealand: National Poisons Centre on 0800 764 766
