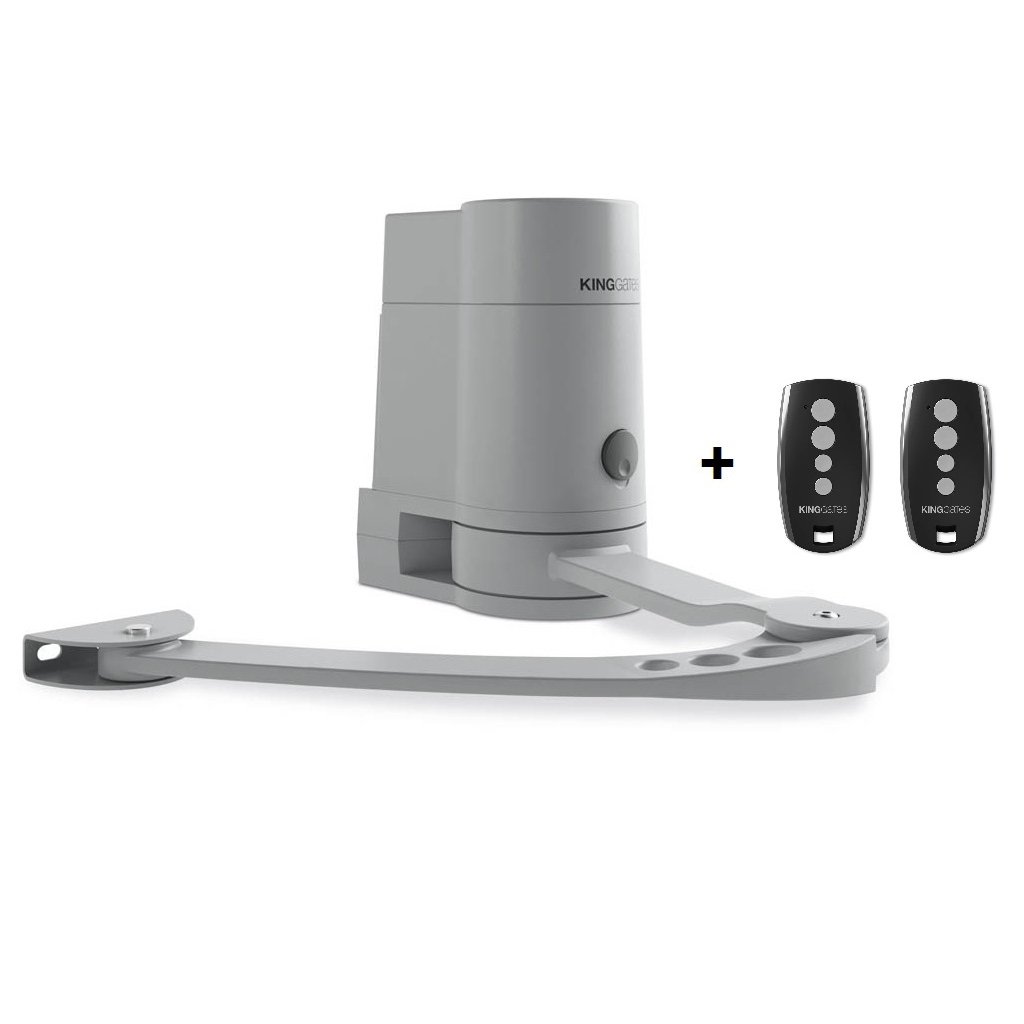

KingGates MiniModus Swing Gate Arm Motor/Opener (Up to 2M)

In stock

KG-SWM-MINMOD-SINGLE-KIT

King Gates

$970.00
-
+

Free Shipping (FREE): 2-7 Business Days
Tracked Shipping ($6): 1-5 Business Days
Express Shipping ($12): 1-3 Business Days

MiniModus is a stylish and modern gate automation system. It made in Italy, the home of gate automation. This motor is powered by a 24 volt transformer and can move gate wings up to 250Kg in weight and 2 Meter in length. The MiniModus Articulated arm kit is the ideal chose to be fitted on new or existing gates due to the wide range of positional adjustment. The system is very easy to program thanks to its automatic program function. The Modus boasts many innovative features, including a slow-down facility on opening and closing, obstacle detection to ensure safety, secondary safety input for additional infrared photo cells, or safety edges, and has partial opening for pedestrian use. The benefit of a low voltage system is the capacity for high use and the option for battery backup in case of power cuts. Solar power is optional by adding solar panel and batteries. When using solar power - the max specifications of the gate – weight, length and speed - is reduced by 30%



Technical Features

  • Reliable and noiseless: mechanical parts made of metal, completely made of steel, bronze and aluminum, all the components on bear bearings
  • Quick motor release for manual gate operation
  • Maximum strength: the helical gears are built with internal envolvent teeth



Electronical features

  • Extra safe thanks to the low-voltage connections (24 V), the safety accessories and the automatic obstacle detection feature
  • Auto-programming: automatically calculates the most suitable operating parameters for each gate
  • PWM electronic technology (Power width modulation) to regulate the speed of the gate, and to obtain a fluid motion



Control unit with integrated receiver

  • Timed and adjustable automatic closing function
  • Programming of new transmitters (up to 180)
  • Pause time adjustment
  • Obstacle sensitivity adjustment
