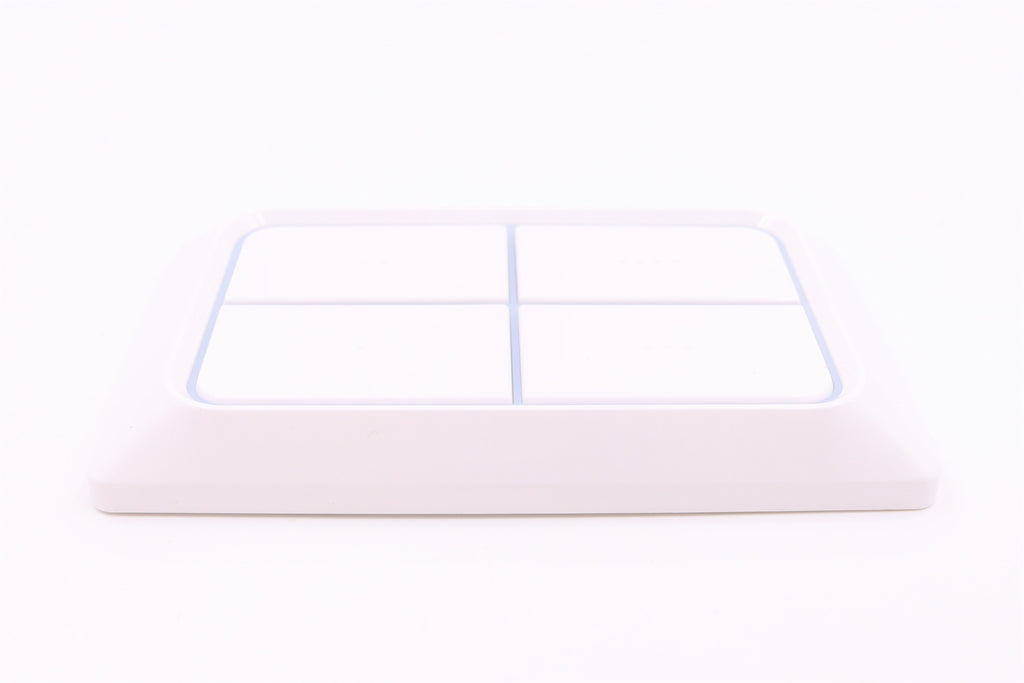

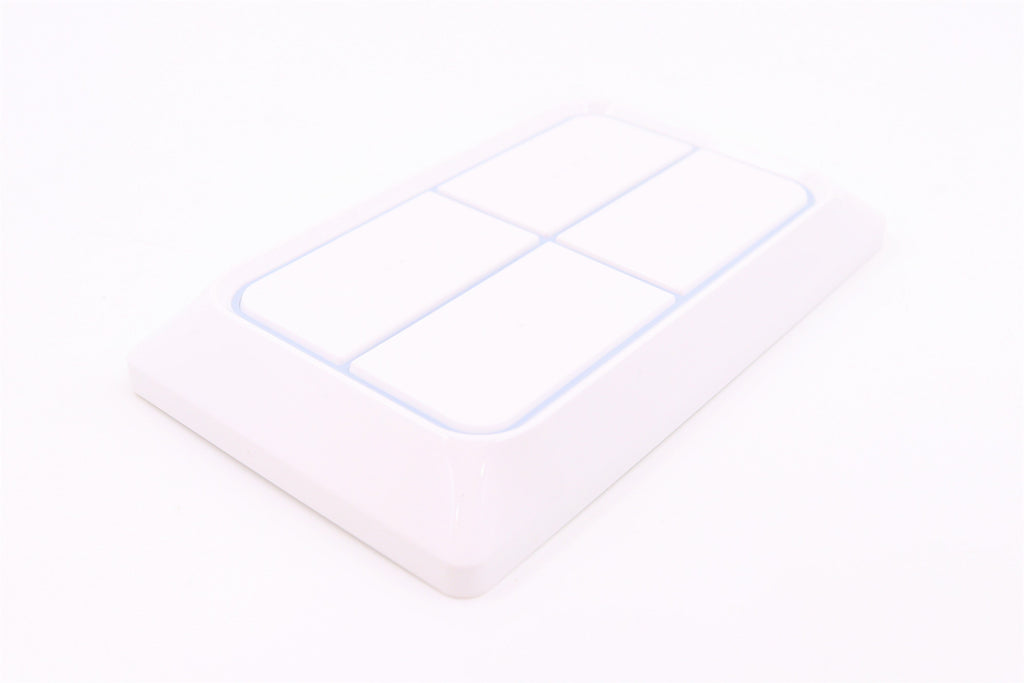

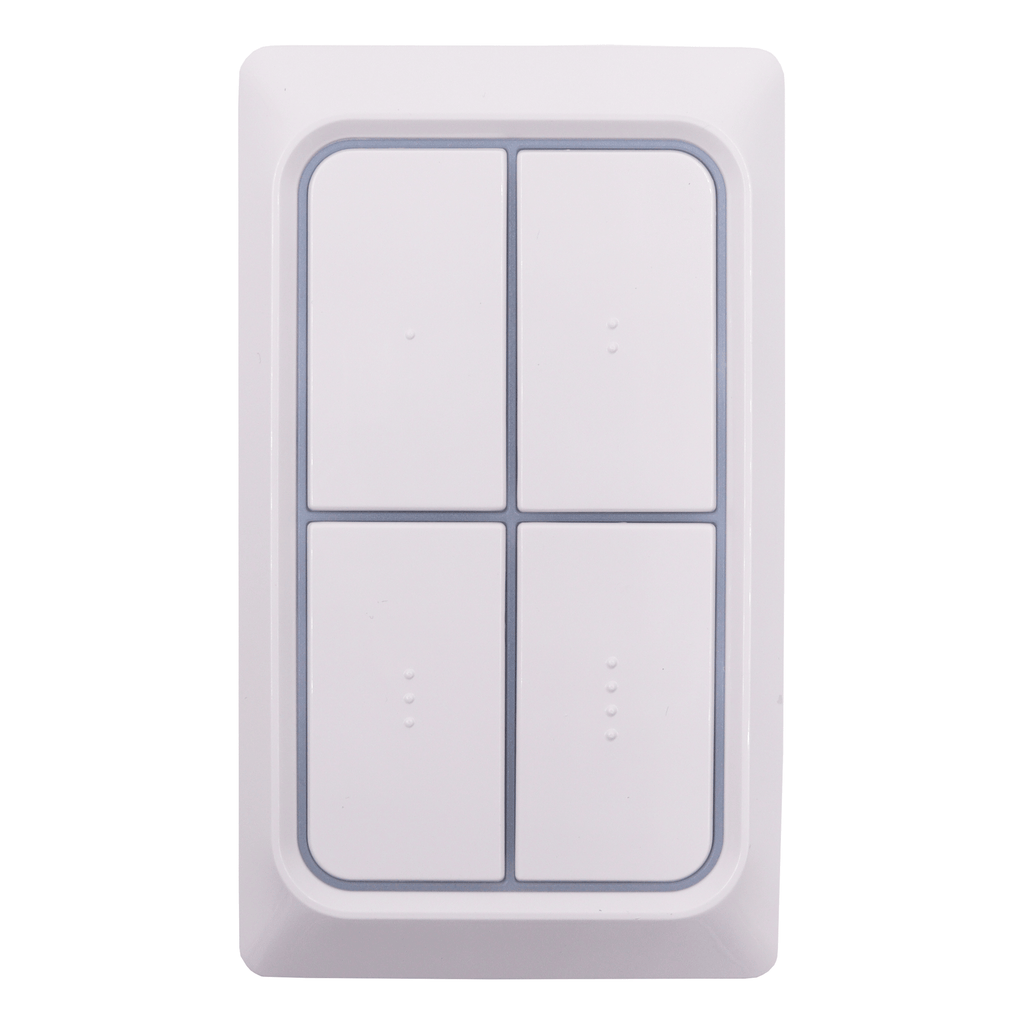

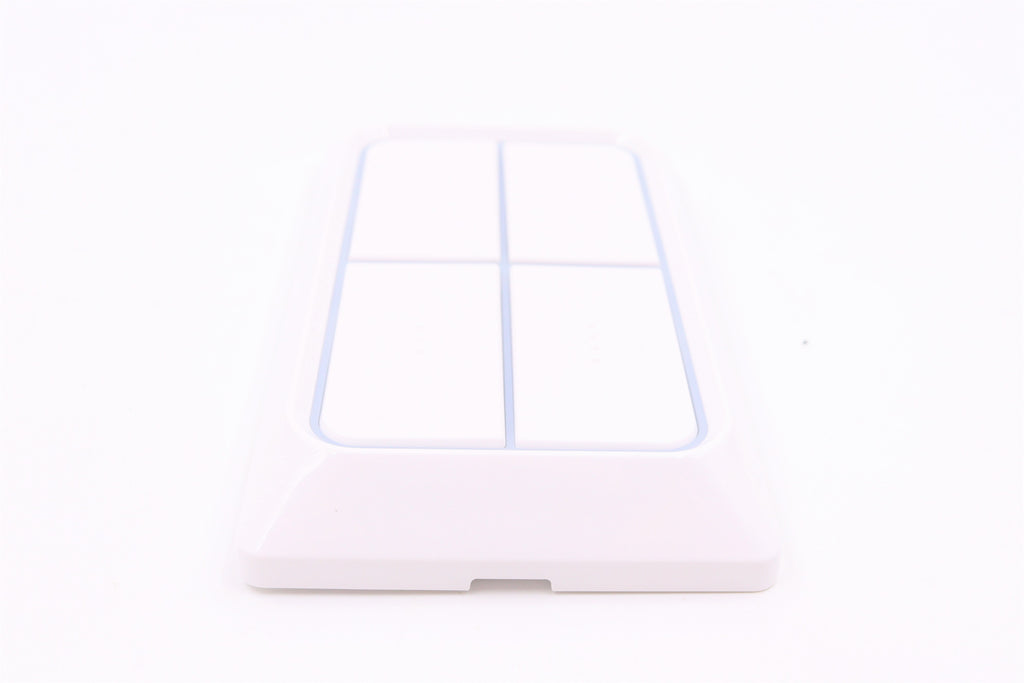

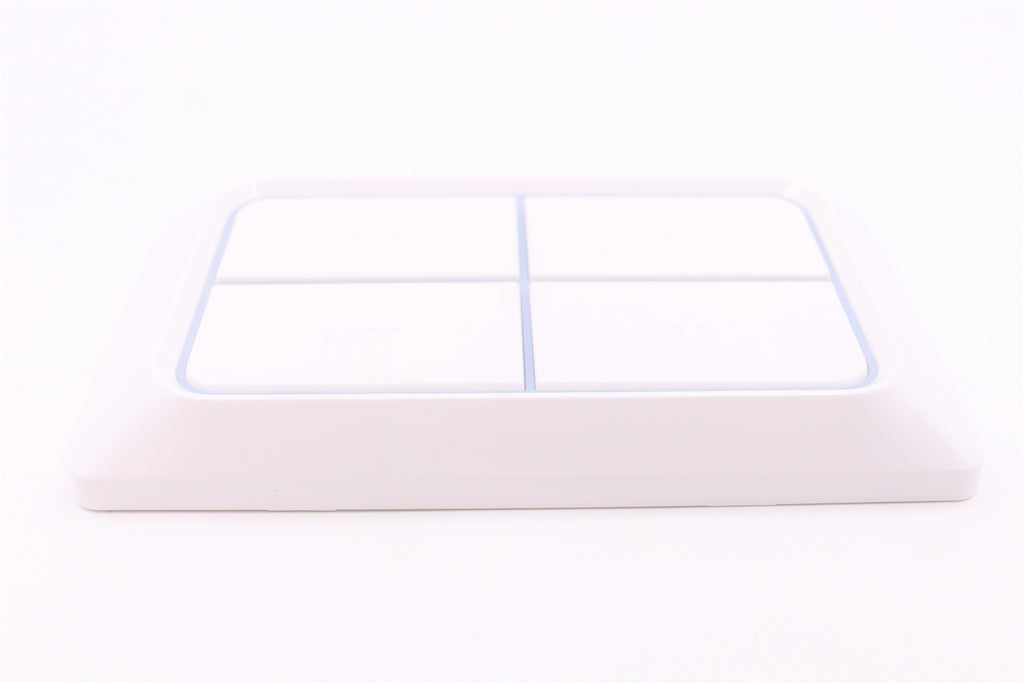

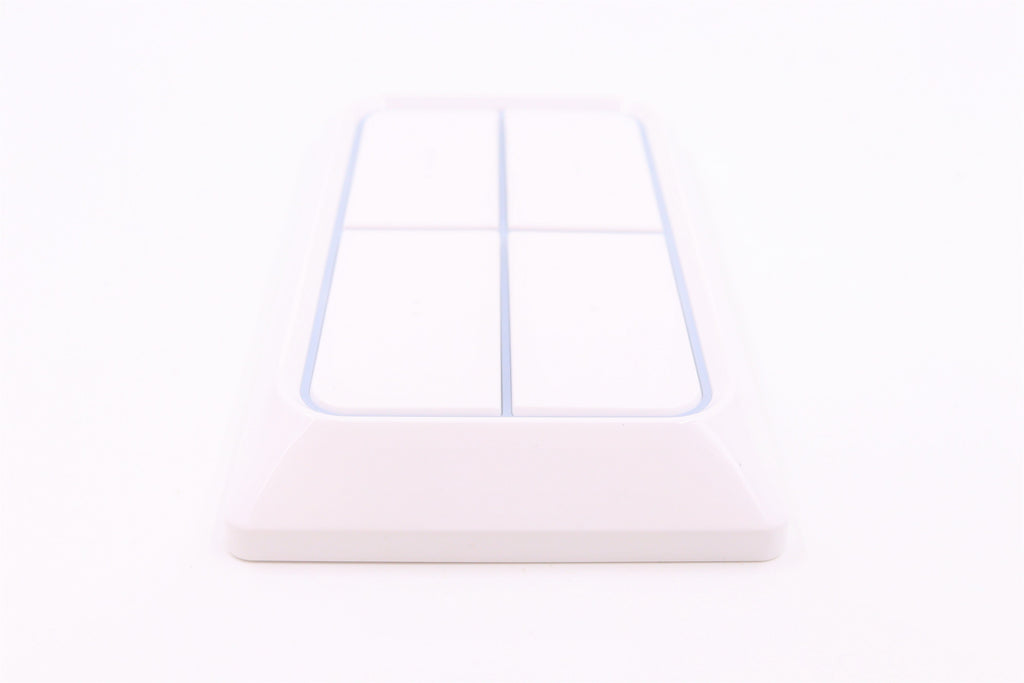

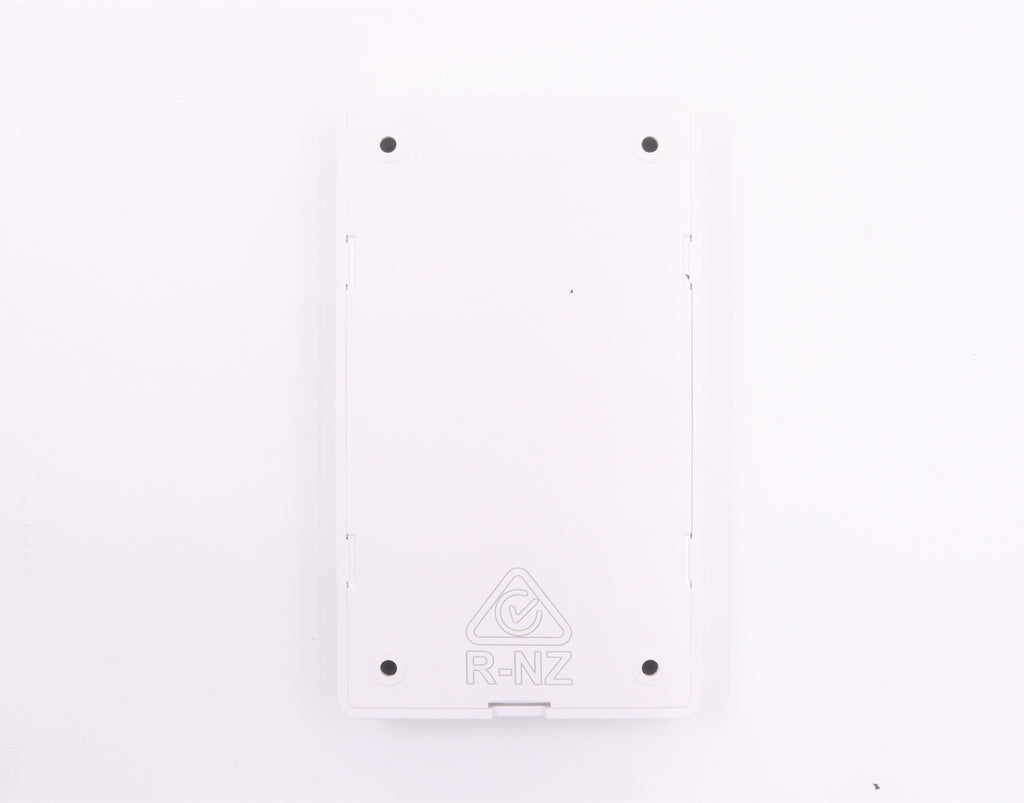

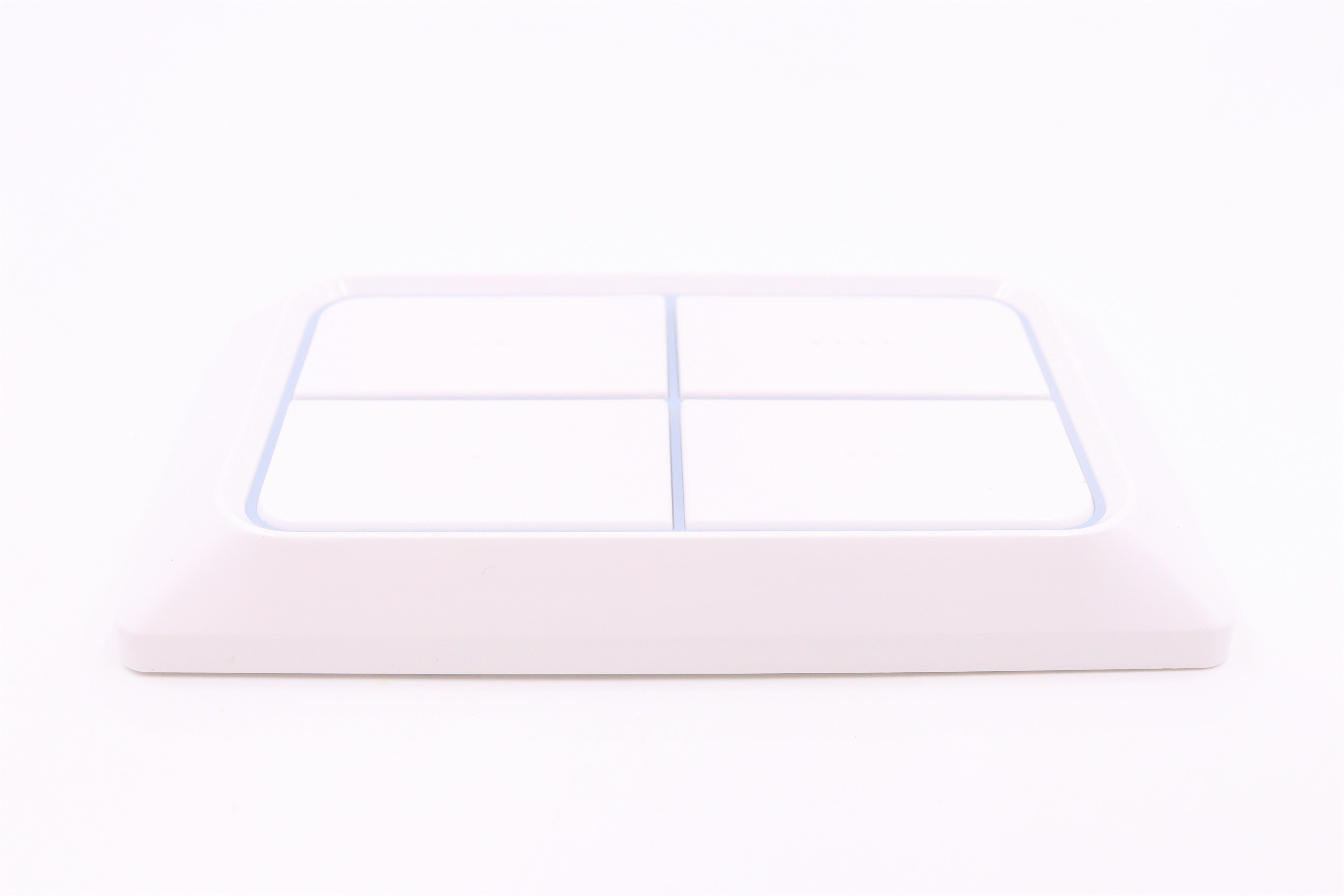

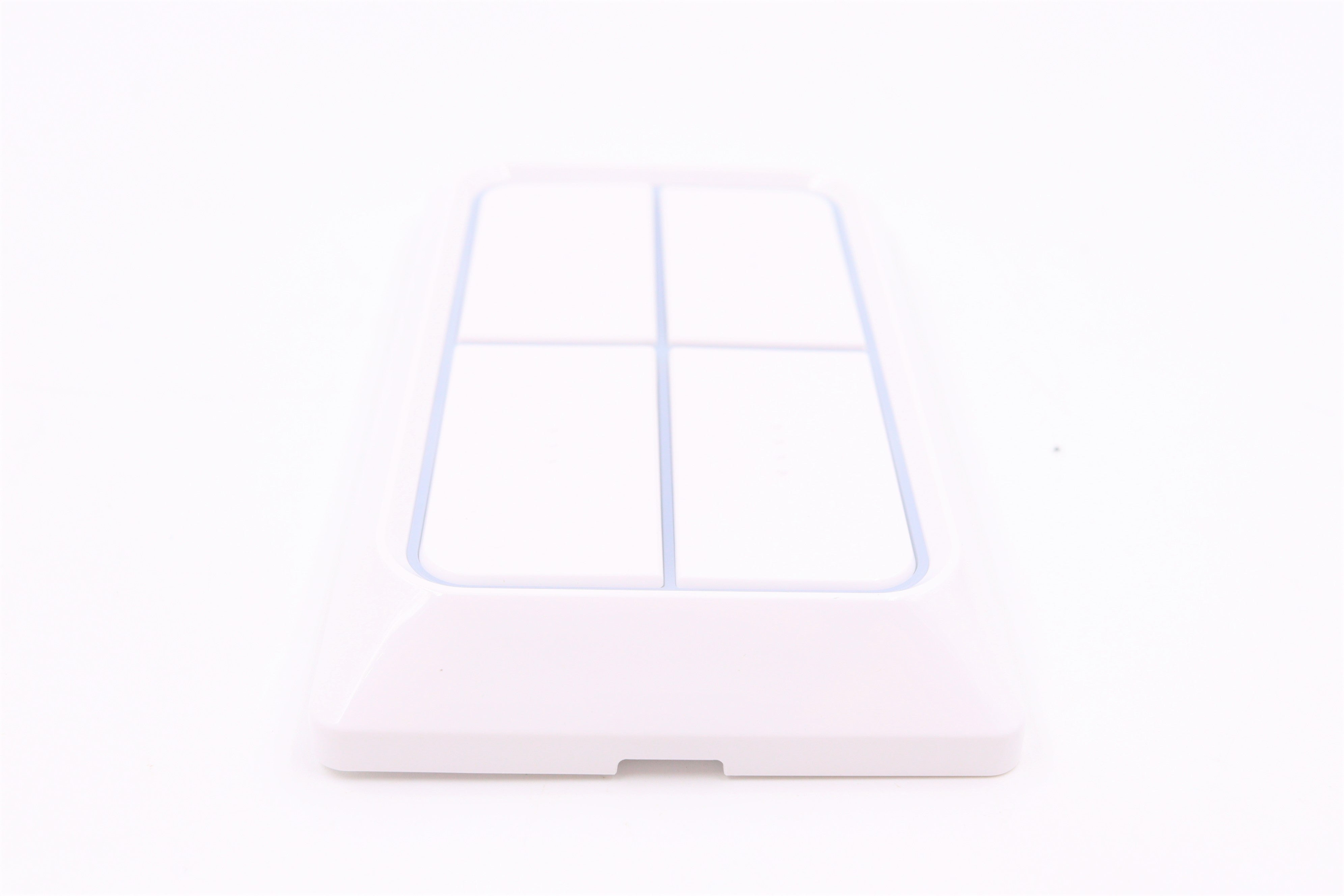

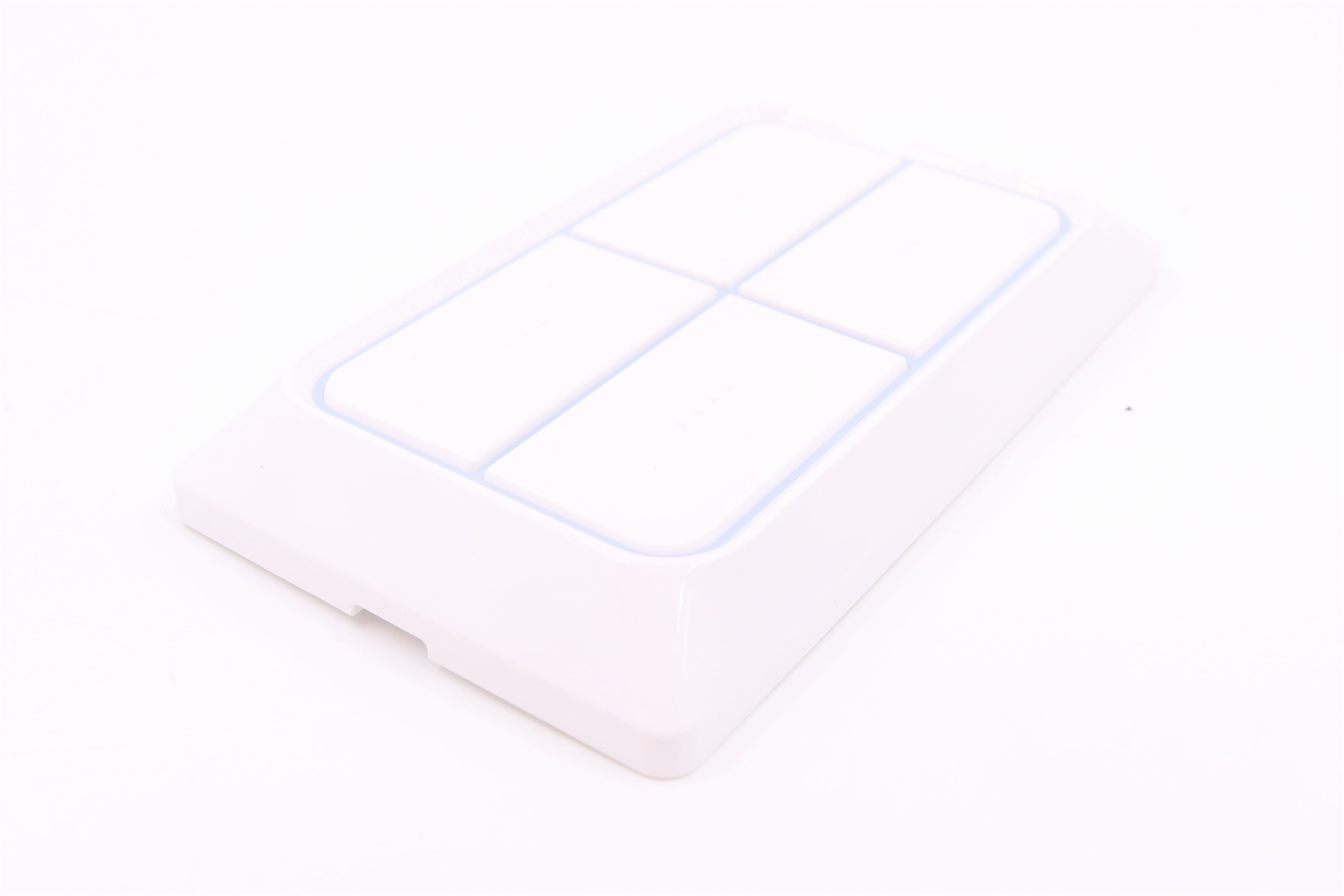

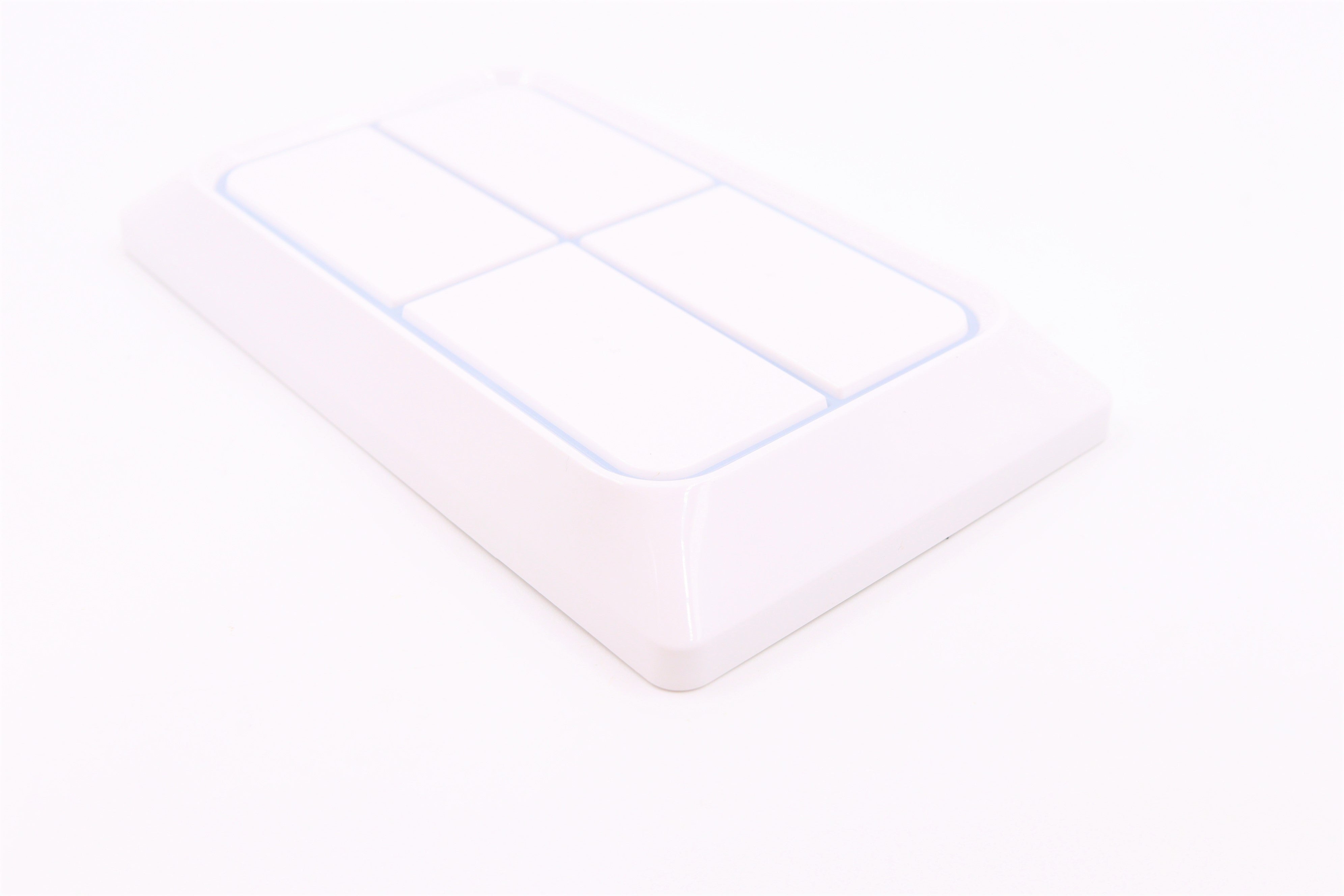

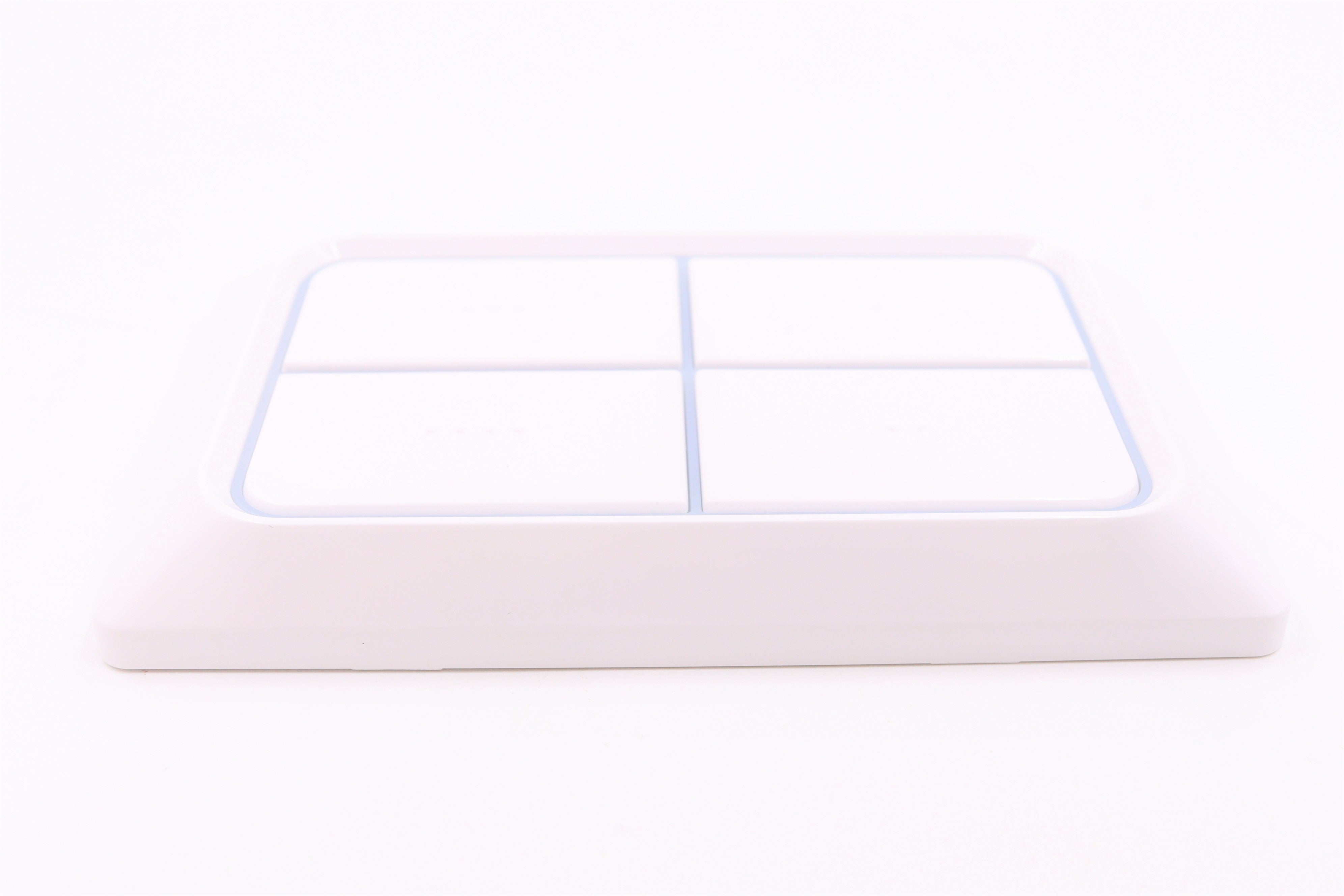

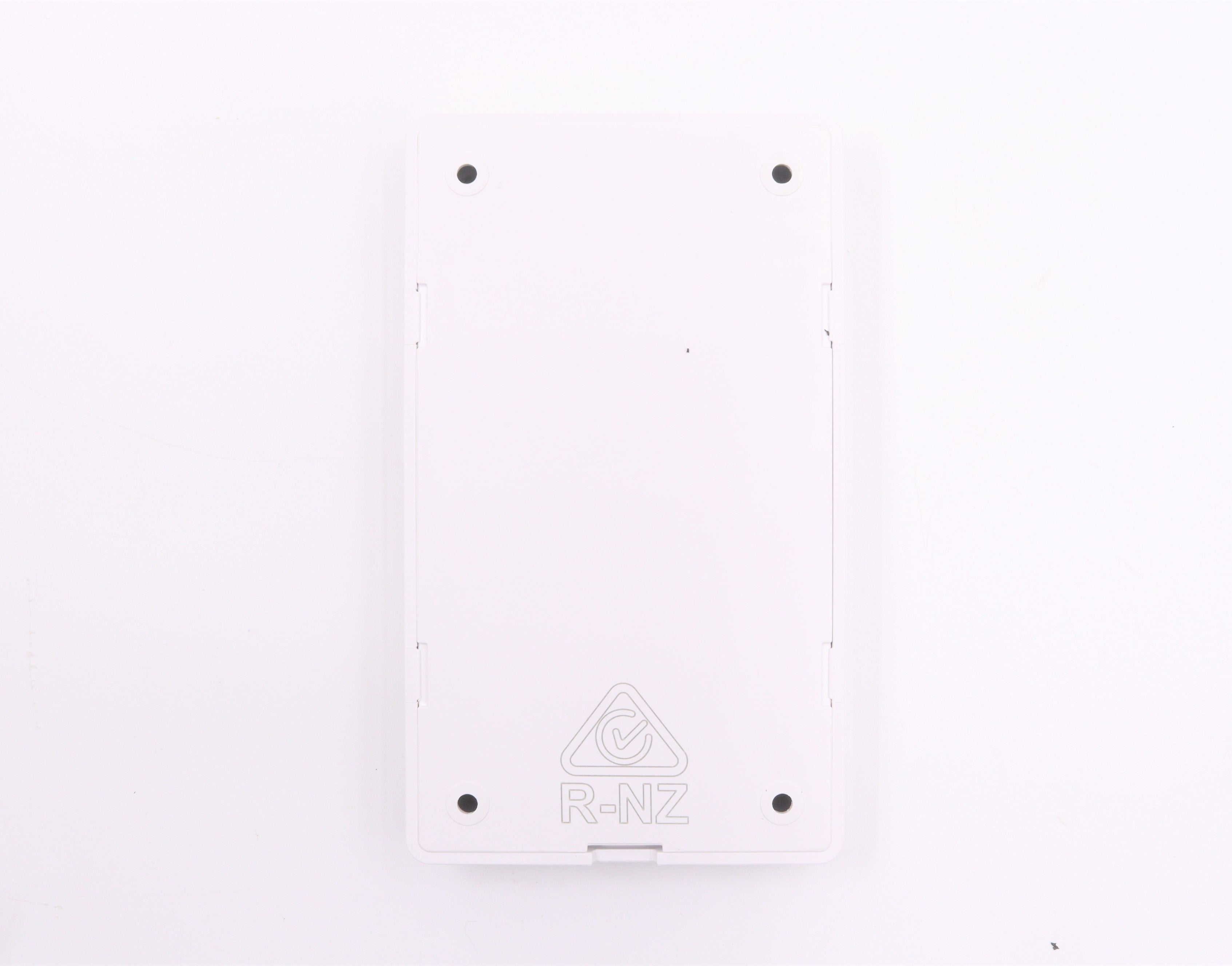

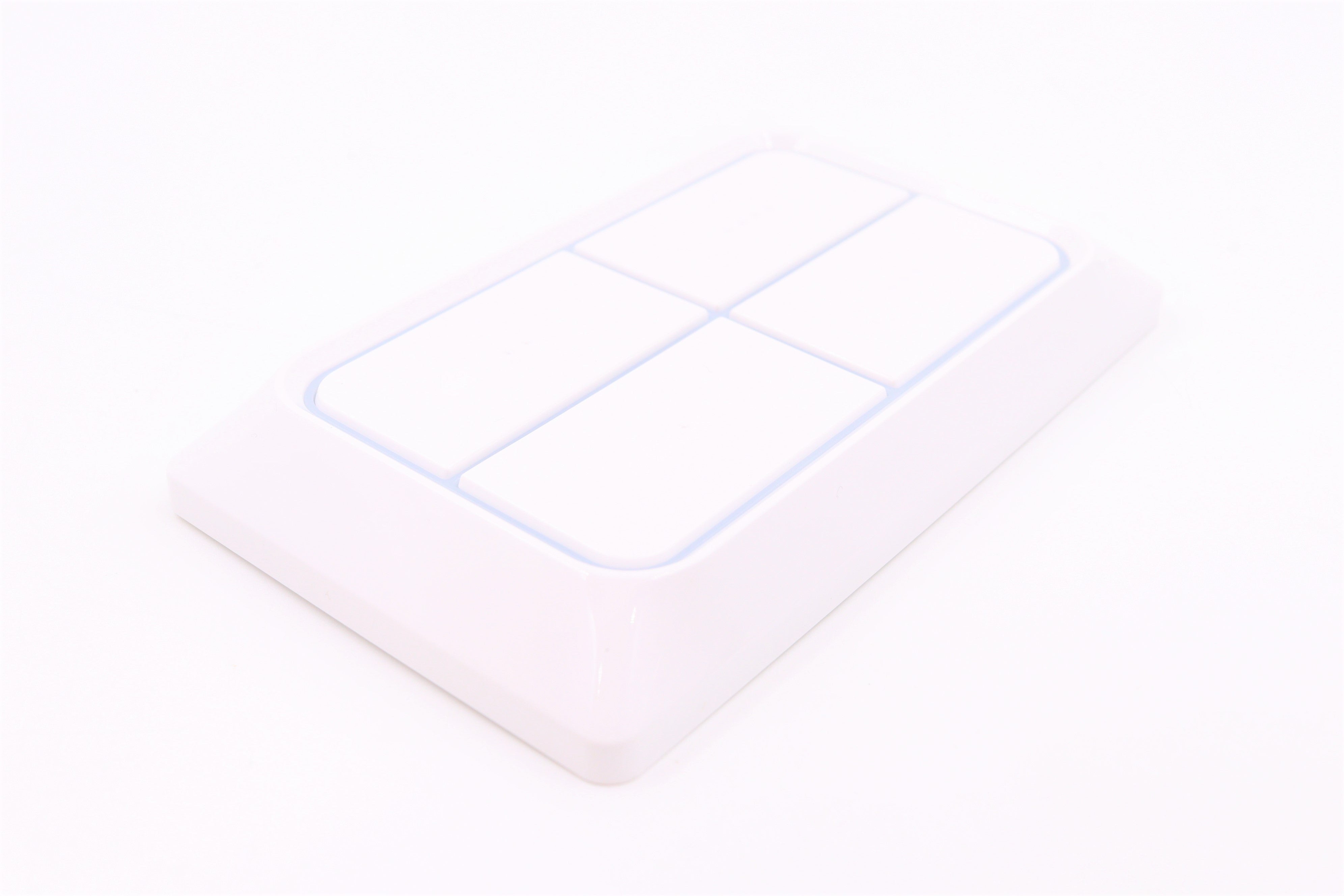

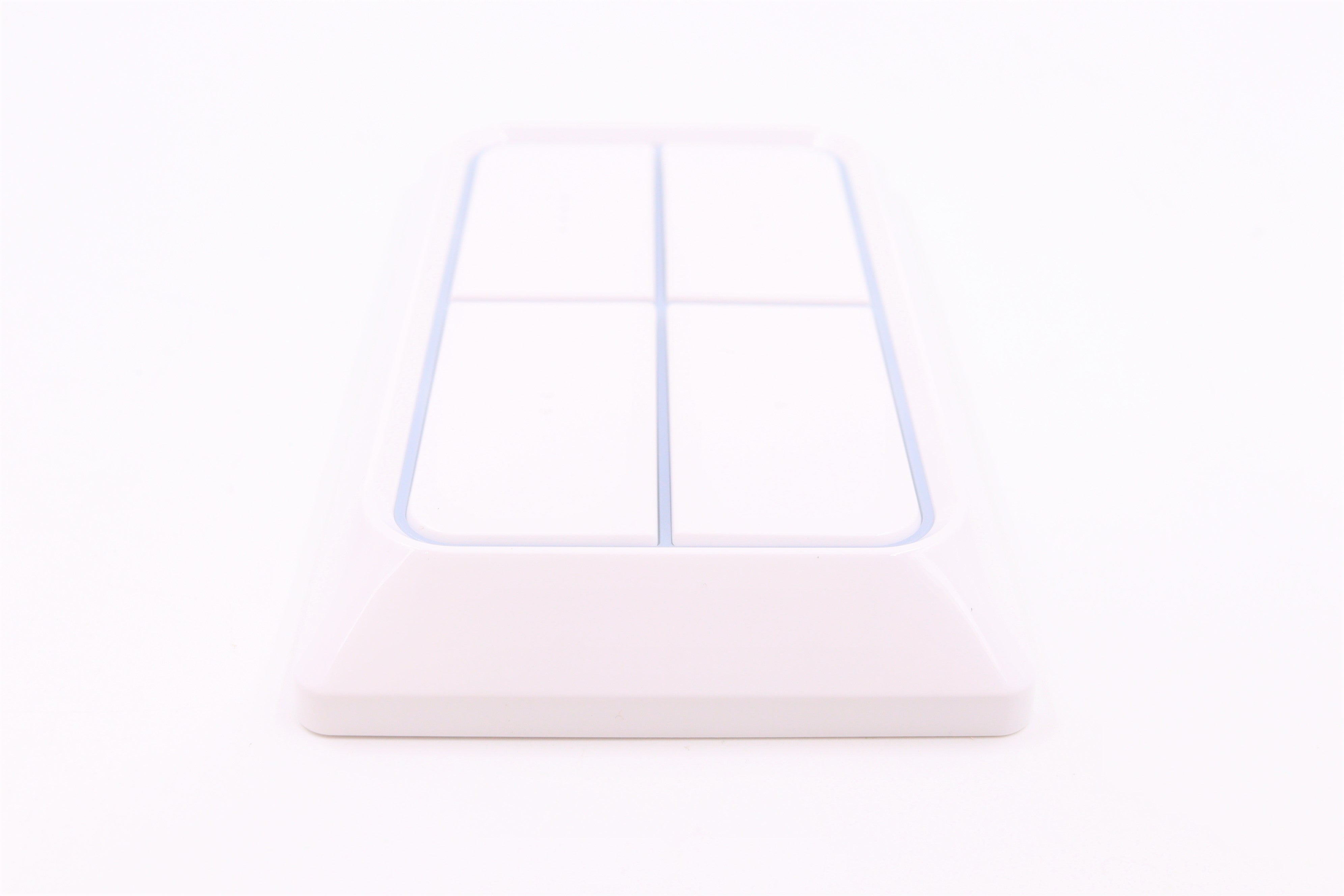

Lexo Automation Wall Button Remote

Compatibility:

• All Lexo Automation Garage & Gate motors
• RD1P1000A
• RD1P1800A

Programming a New Remote - Garage Motors
Press and Hold on CODE button for 1 second until the LED dot is on.
Press button on the NEW Transmitter once, the LED dot will go off.
Press the same Transmitter button again, the LED dot will flash fast 8 times and then return to standby mode.

Deleting ALL Remotes
Press and Hold on CODE button for more than 8 seconds until the LED flashes all the stored codes are deleted.

Programming a New Remote -  Sliding & Swing Gate
Press RF Learn button for 2 Seconds on Motor, LED display shows CS
Press the Button you would like to activate LED display will blink twice then go off.
Deleting ALL Remotes

Press and hold down RF Learn button until the right LED lights up and then turns off.

ALL REMOTES WILL BE CLEARED FROM THE MEMORY
