Instructions & Resources

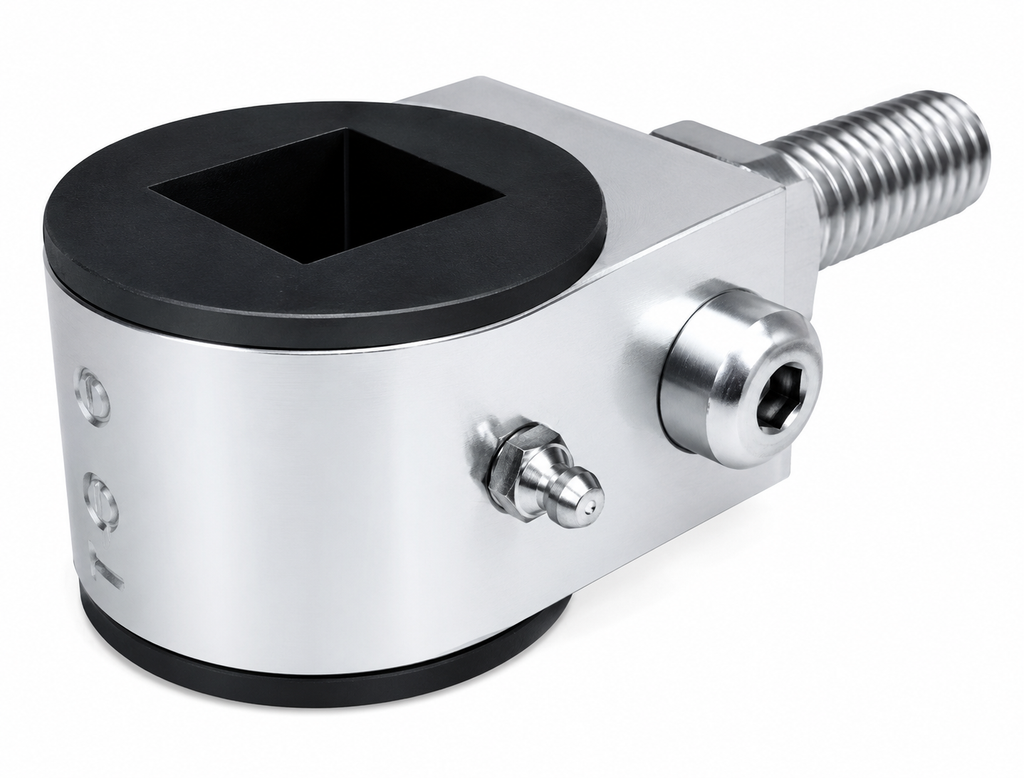

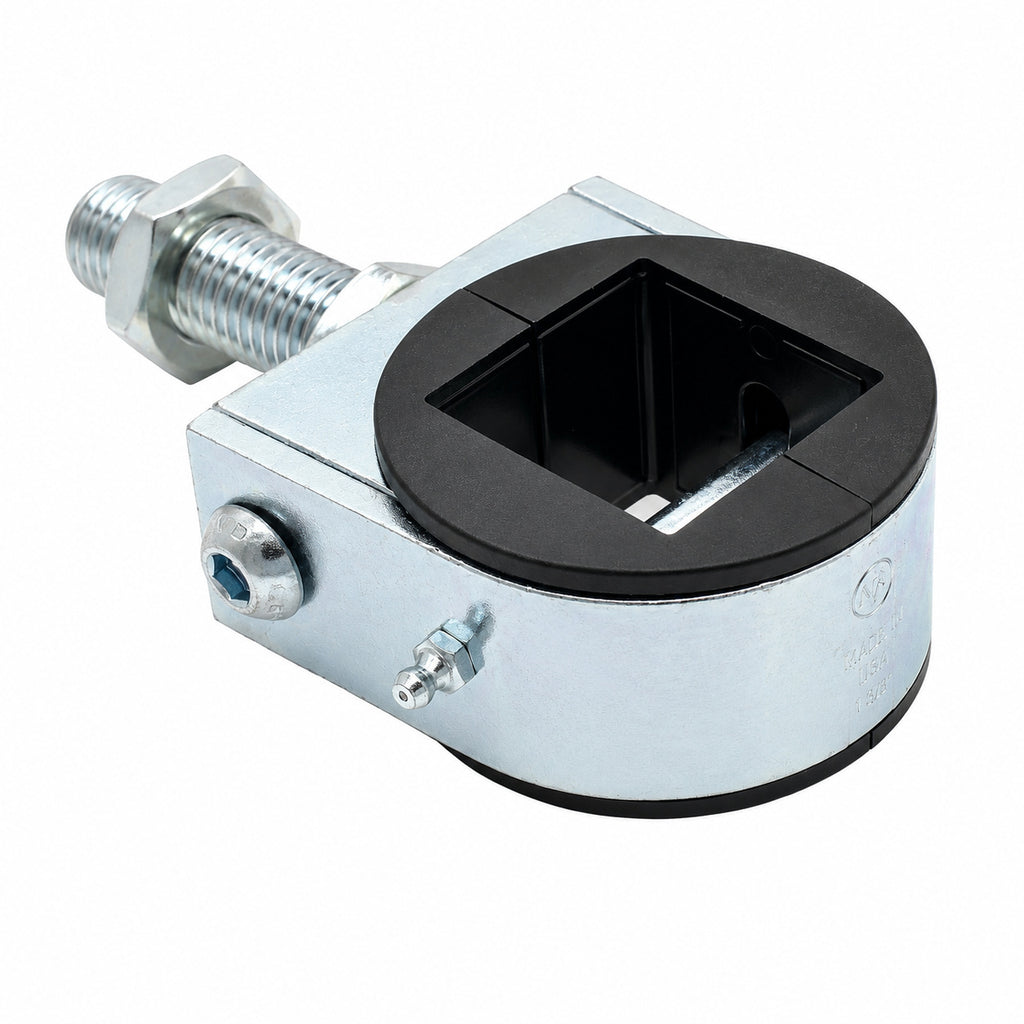

This link pintle provides a threaded M24 pivot for swing gate hinges with a 50 mm offset, letting you set the gate clear of the post or pier. Thread it through the post or a mounting plate and lock it off at the required projection.
Galvanised steel construction gives dependable strength and outdoor corrosion resistance.
Key Features
- M24 threaded gate pintle with 50 mm offset
- Galvanised steel construction
- Overall length 181 mm
- Fits CH20 spanner
- Adjustable projection for accurate gate positioning
- Suits swing gate hinge systems

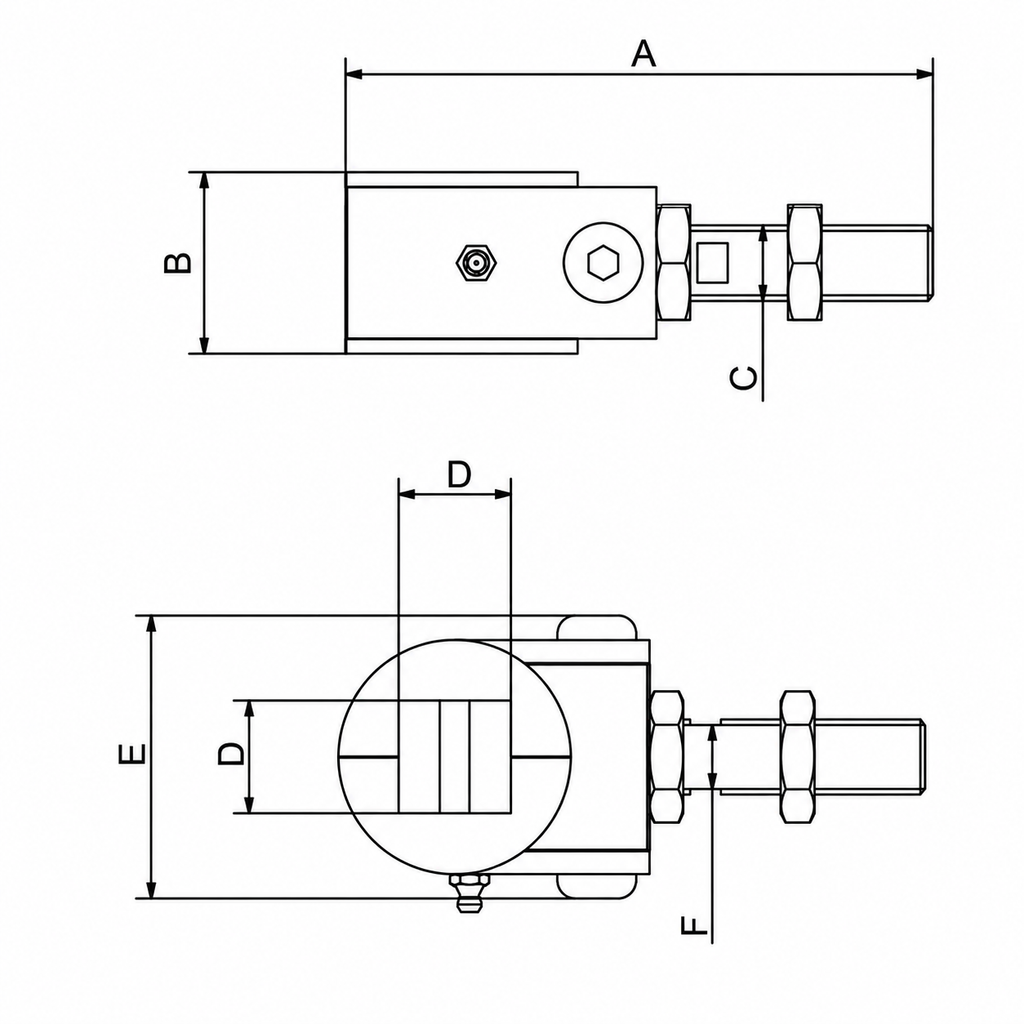

Specifications
- Model: 875/50
- Material: Galvanised steel
- Thread: M24
- A (length): 181 mm
- D (offset): 50 mm
- E: 100 mm
- Spanner: CH20
- Weight: 170 g

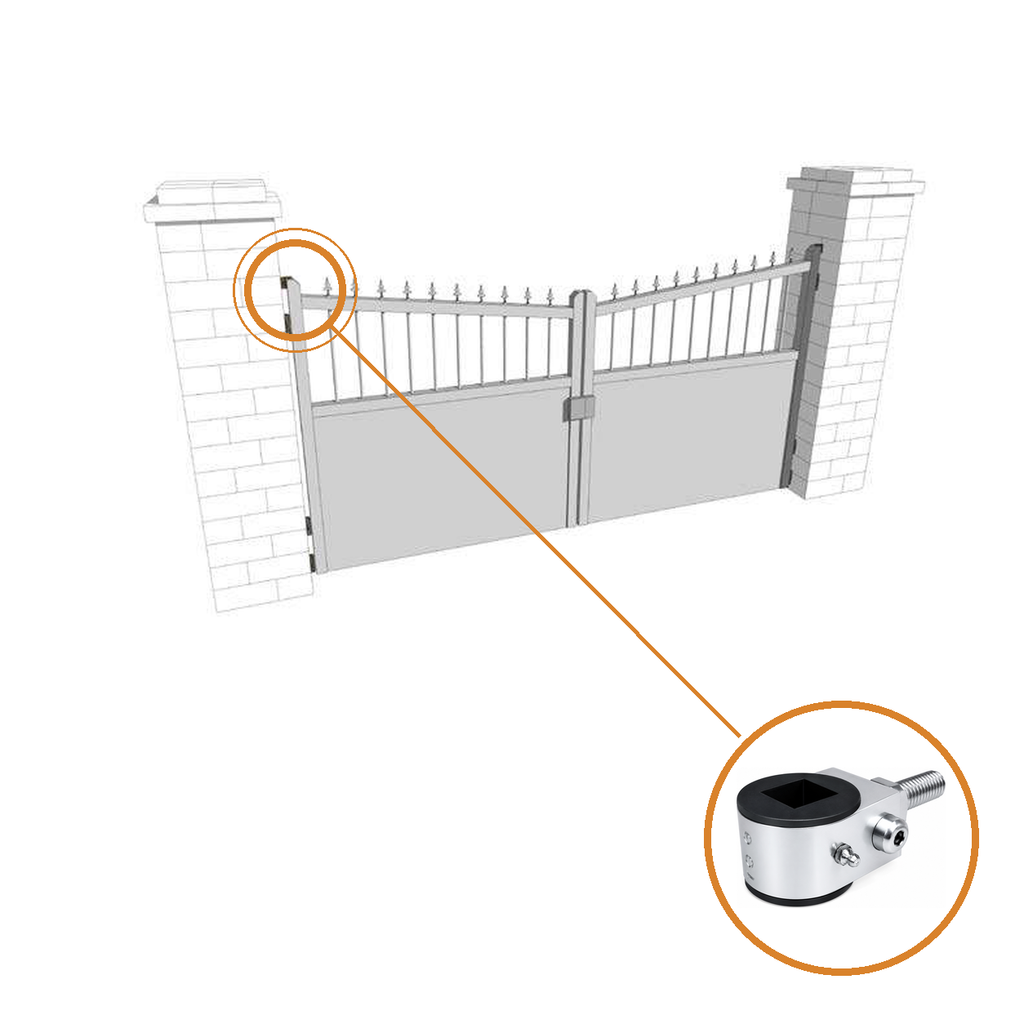

Applications
- Swing gates
- Driveway gates
- Residential gate systems
- Commercial gate installations
- Industrial gate systems
- Steel and aluminium gates
