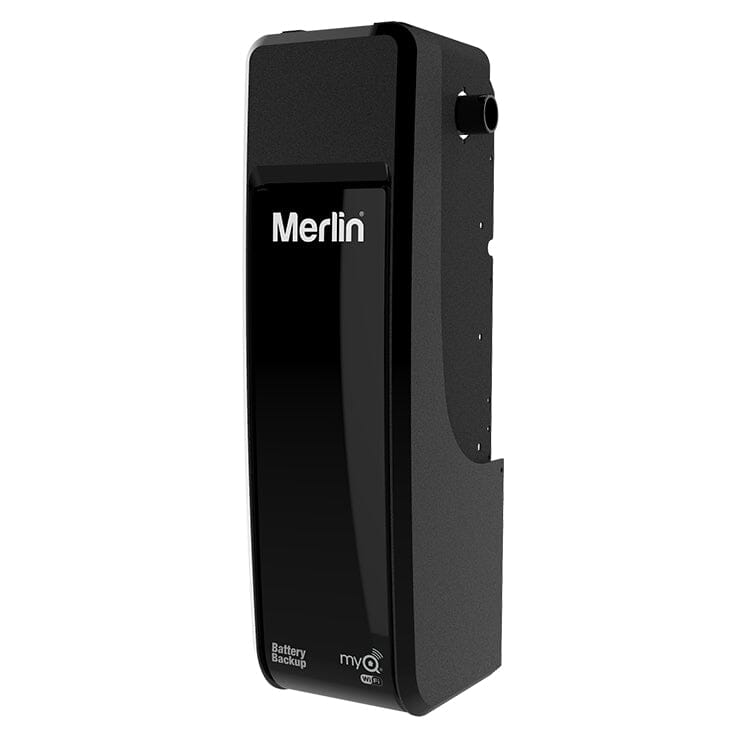

Merlin Commander Ultimate MJ3800MYQ Sectional Garage Door Opener/Motor

Download Manual

Download Brochure

Open Up Possibilities, Commander Ultimate is the most premium opener within the Merlin sectional range with built-in myQ Wi-Fi & integrated Battery Backup with Security+2.0. Jam packed with many accessories including a myQ remote LED light, Smart Control Panel, Automatic Door Lock, Cable Tension Monitor, 2 x Premium+ remotes.

• 2 x Premium+ 4 Button Remote Controls [E960M]

• myQ Remote LED Light [827AU]
• The Protector System (Safety IR Beams) [774ANZ]
• Smart Control Panel [041A7305-4]

• Automatic Door Lock [841ANZ]
• Cable Tension Monitor [041A9264]
• Integrated Battery Backup [041A6357-2]

SMART
	INTEGRATED MYQ TECHNOLOGY lets users create schedules, monitor, receive alerts and control the garage door opener away from home.
	BUILT-IN WI-FI for the easiest way to connect the garage.
	MYQ REMOTE LED LIGHT Ultra-bright LED light designed to illuminate your garage or workspace. Controlled through your garage door opener, remote control or the myQ app.
	SOFT-START AND SOFT-STOP for smooth operation.
QUIET & RELIABLE
	7-YEAR WARRANTY
	WALL-MOUNT DESIGN AND QUIET DC MOTOR virtually eliminates all noise and vibrations through the ceiling and provides smooth operation.
	HEAVY-LIFTING POWER operates doors up to 130 kgs without The Protector System (Safety IR Beams) and 230kg with The Protector System (Safety IR Beams).
	INTEGRATED BATTERY BACKUP ensures access even when the power is out.
	SPACE-SAVING DESIGN reclaims overhead space with wall-mounted design and opens up storage opportunities.
SAFE & SECURE
	SECURITY+ 2.0® sends a new code with every remote click.
	PREMIUM AUTOMATIC SAFETY REVERSE function will allow your garage door to stop and reverse automatically if obstructed going down or stop going up.
	TIMER-TO-CLOSE automatically closes the door after a pre-set amount of time.
	MOTION DETECTOR automatically turns on the light.
	AUTOMATIC GARAGE DOOR LOCK prevents unwanted entry and provides an extra layer of security.
	THE PROTECTOR SYSTEM™ (Safety IR Beams) auto-reverses the door if there’s an obstruction.
	AUTOMATIC FORCE SENSING monitors and adjusts the force needed to open your garage with each operation.
	MANUAL RELEASE CORD allows you to open your garage door whenever needed.

• 12V DC motor with thermal overload protection
• Input voltage: 230-240V AC
• Rated door area up to 16.5m²
• Max door weight: up to 130kg / 230kg* with beams installed
• Max peak pulling force: 600 N
• 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
• Up to 40 remote controls, 4 wireless key entry systems and 16 myQ devices
• Min headroom required: 216mm

• Maximum lifting under spring tension = 20kg

• Suitable for steel and timber spring balanced doors

• Door opening time: 18 seconds (2.2m high door)

• Door closing time: 21 seconds (2.2m high door)
• Max Door height: 4.2m

• Max Door width: 5.5m

• Double dwelling
