With a market leading weather resistant IP34 design, slimline design to fit into the tightest of spaces and LED lighting as standard, makes WeatherDrive the perfect option for powering sheds and carport roller doors.
Compliant to Australian & New Zealand Standards, WeatherDrive comes with a 3 Year Warranty for complete peace of mind and Merlin Security+2.0 encryption rolling code technology for operation under all environment conditions and greater distance than ever before.
Features:
- Easy to install
- Quiet and efficient to run
- Security +2.0
- Bright LED Lights
- Safety Reverse System
- Improved Remote Range
- Auto Close (requires safety beams)
- 3 Year Warranty*
Merlin Warranty Terms:
For DIY installs, Merlin offers 1 year warranty.
For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 3 year warranty applies.

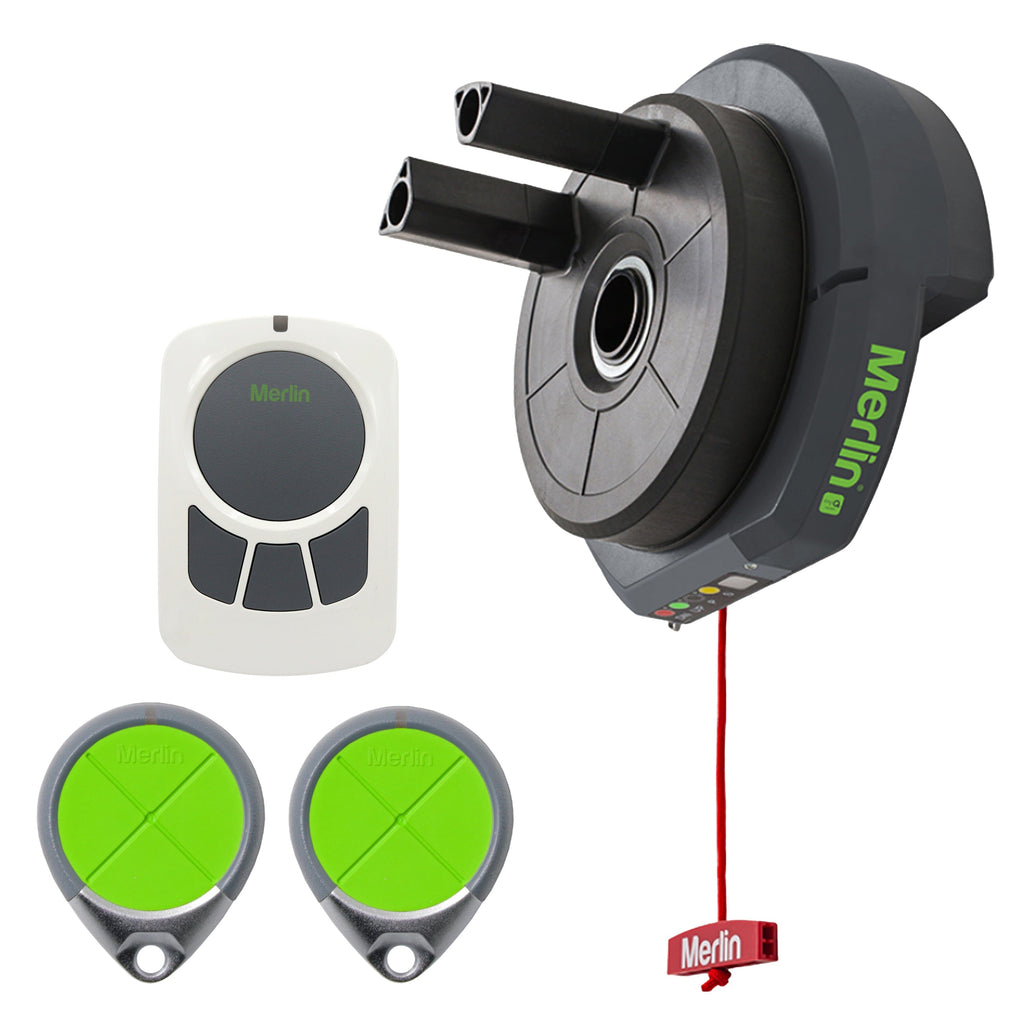

Included:
1 x MERLIN MR555MYQ WaetherDrive Roller Door Motor
2 x Premium E960M remotes
1 x E138M Wireless Wall Button
1 x Installation Instructions
3 Years Manufacturers Warranty*
Specifications:
General
- IP34 housing
- 24V DC motor with thermal overload protection
- Input voltage: 240V AC
- Minimum side room 40mm
- Rated door area up to 15m²
- Max door weight: up to 100kg
- Drum rotations: 5.5
- Max peak pulling force: 500 N
- 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
- Up to 64 memory registers
- Courtesy light: LED
- Noise rating 1M: 51DB
- Soft start/stop function
Door Specs
- Maximum lifting under spring tension = 15kgs
- Suitable for steel spring balanced doors
Door Opening and Closing Times
- Door opening time: 14 seconds (regular), 18 seconds (slow)
- Door closing time: 14 seconds (regular), 18 seconds (slow)
- Based on a 2.3m high door
Door Height
- Door height: 5.5m, 3.0m, 2.3m
- Door width: 2.7m, 5.0m, 5.5m
- Single Dwelling
WARNING! This product may contain a button/coin cell battery. To prevent possible SERIOUS INJURY or DEATH:
- Keep new and used batteries out of reach of children at all times.
- Do not use the product if the battery compartment is damaged or doesn’t close securely.
- Dispose of used batteries immediately and safely - even flat batteries can cause harm.
- Do not ingest the battery. Chemical burn hazard.
- Act fast if you suspect a battery has been swallowed or inserted - severe or fatal injuries can occur within 2 hours.
- Seek immediate medical attention or call:
– Australia: Poisons Information Centre on 13 11 26
– New Zealand: National Poisons Centre on 0800 764 766
