Merlin MS125MYQ Commander Extreme I Overhead/Sectional Garage Motor/Opener With Tilt Rail

Powerful, quiet and compliant to Australian & New Zealand standards (AS/NZS 60335-2-95), enjoy complete peace of mind with the market leading 7 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected. Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

Garage Door Opener and Garage Door to be professionally serviced during the third and fifth years of the Chamberlain Limited Warranty period.

The myQ App will run on Apple iOS devices (e.g. iPhone) using iOS 14.0* or higher, Apple Watch requires watchOS 7 or higher. Android devices requires Android 7.0 Nougat* or higher. Windows and Blackberry devices are not compatible.

• As updated versions of the myQ App becomes available, older iOS' may no longer be compatible

Included:

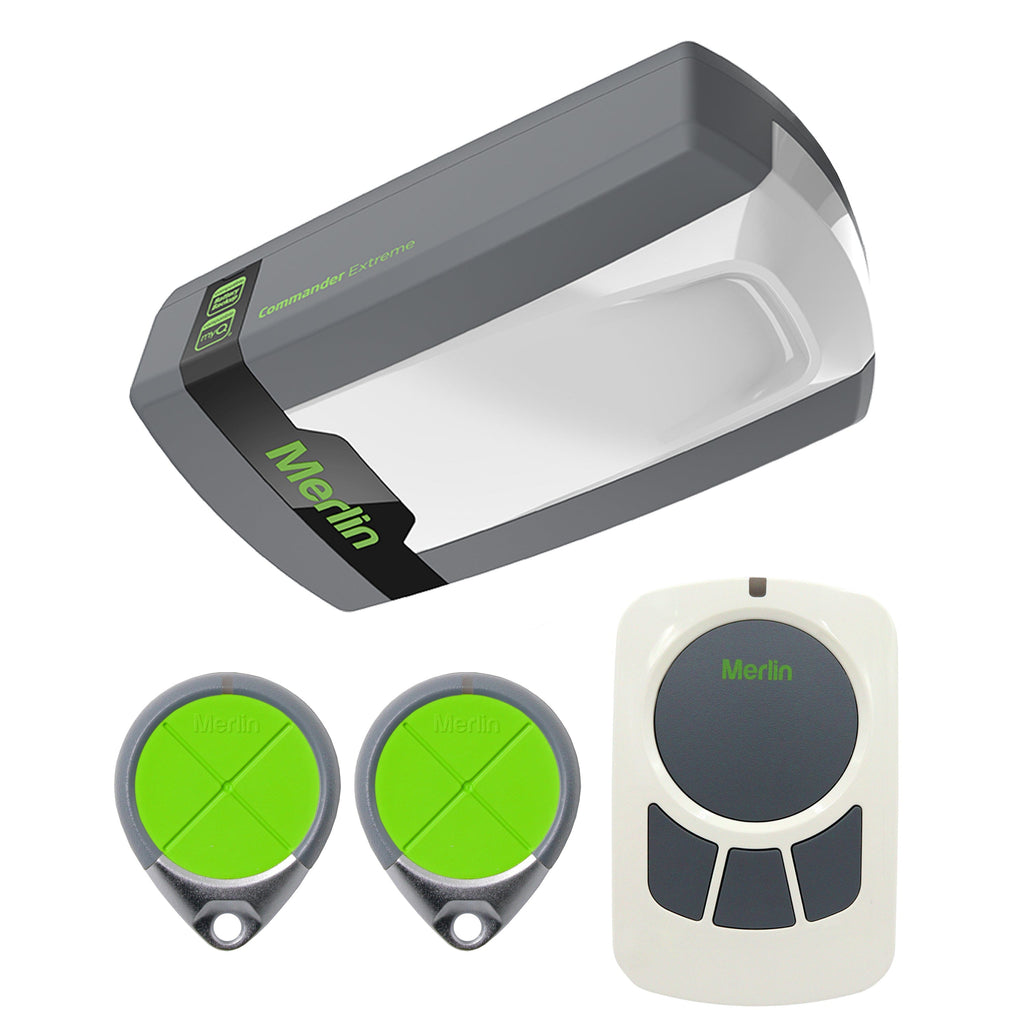

• 1 x Merlin Commander Extreme MS125MYQ
• 2 x Premium E970M remotes
• 1 x E138M Wireless Wall Button
• 1x Tilt Rail
• 1 x Installation Instructions
• 7 Years Manufacturers Warranty*

Features:

SMART
	MYQ COMPATIBLE TECHNOLOGY lets users create schedules, monitor, receive alerts and control the garage door opener away from home.1
	SOFT-START AND SOFT-STOP for smooth operation.
QUIET & RELIABLE
	7-YEAR WARRANTY
	QUIET DC MOTOR eliminates noise and vibrations through the ceiling and provide smooth operation.
	HEAVY-LIFTING POWER operates doors up to 150 kgs/ 286kg / 350kg. 3
	BATTERY BACKUP ensures access even when the power is out.2
SAFE & SECURE
	SECURITY+ 2.0® sends a new code with every remote click.
	PREMIUM AUTOMATIC SAFETY REVERSE function will allow your garage door to stop and reverse automatically if obstructed going down or stop going up.
	TIMER-TO-CLOSE automatically closes the door after a pre-set amount of time.4
	IMPROVED TRANSMITTER RANGE has up to 18% better range meaning you can start opening your garage door sooner.5
	AUTOMATIC FORCE SENSING monitors and adjusts the force needed to open your garage with each operation.
	MANUAL RELEASE CORD allows you to open your garage door whenever needed.

Safety Features:

Premium Automatic Safety Reverse

• With its automatic safety function your garage door will stop and reverse automatically if obstructed going down or stop going up.

Automatic Force Sensing

• Equipped with automatic force sensing, with each operation the garage door opener monitors and adjusts the force needed to open your garage door.

Manual Release

• In case of power failure you can simply activate the manual release to open your garage door.

Product Specifications:

General

• 24V DC motor with thermal overload protection
• Input voltage: 240V AC
• Max door weight: up to 150kg or 286kg (with beams & slow speed using chain rail) or anything over 286kg up to 350kg (with beams, slow speed, & using extruded aluminium rails).
• Max peak pulling force: 1200 N
• C-rail with chain drive
• 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
• Up to 64 memory registers
• Courtesy light: Powerful LED Lighting
• Min headroom required: 30mm

Door Specs

• Maximum lifting under spring tension = 20kg
• Suitable for steel and timber spring balanced doors
• Rated door area up to 20m²

Door Opening and Closing Times

• Door opening time: 18 -22 seconds
• Door closing time: 21 -31 seconds
• Based on a 2.4m high door

Door Height

• Door height: 3.5m
• Door width: 5.7m
• Double dwelling

Merlin Warranty Terms:

For DIY installs, Merlin offers 1 year warranty.

For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 7 year warranty applies.
