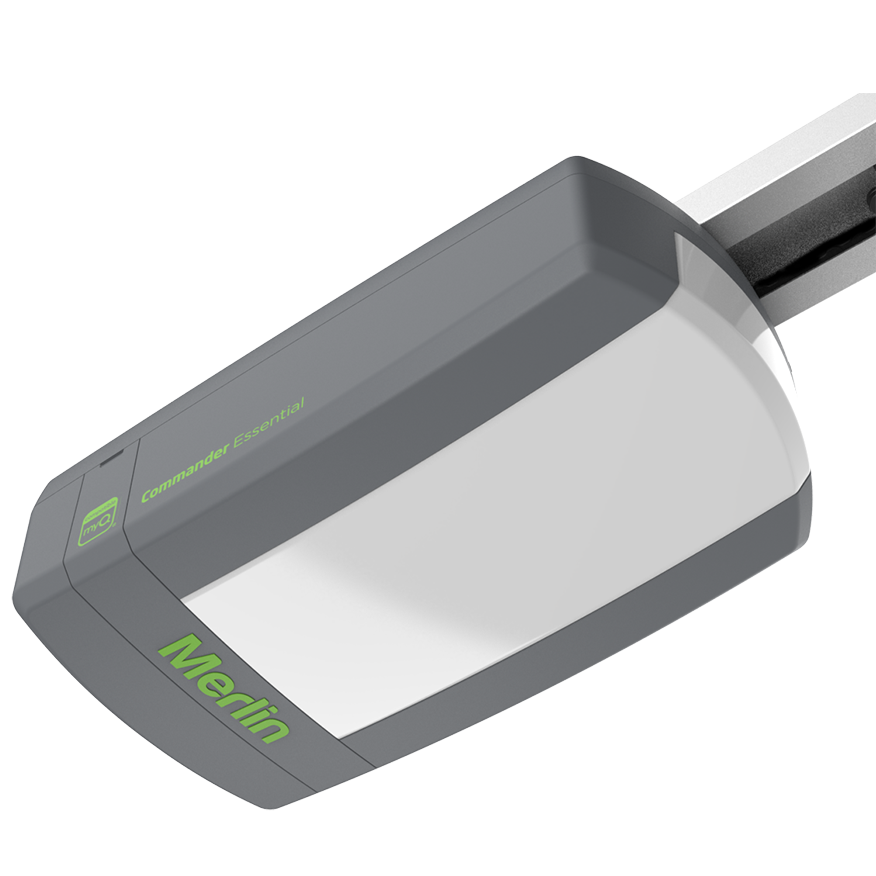

Merlin MS65MYQ Commander Essential Overhead/Sectional Garage Motor/Opener With Tilt Rail

Motor Manual

Merlin’s Commander Essential is small in size, big on features.

This sectional garage door opener has the latest security and multi frequency technology, and includes a 5 Year Warranty.

5 Year Warranty Terms & Conditions apply.

Garage Door Opener and Garage Door to be professionally serviced during 24 to 36 months of the Chamberlain Limited Warranty period. See the last page of the Installation Manual for detailed warranty conditions.

myQ is compatible with iOS devices running iOS 11 or newer, and Android devices running Android 7 or newer. Before purchasing or installing myQ on your device, please ensure you have access to a device with the appropriate firmware.

	MYQ COMPATIBLE TECHNOLOGY lets users create schedules, monitor, receive alerts and control the garage door opener away from home.1
	SOFT-START AND SOFT-STOP for smooth operation.
QUIET & RELIABLE
	5-YEAR WARRANTY
	QUIET DC MOTOR eliminates noise and vibrations through the ceiling and provide smooth operation.
	HEAVY-LIFTING POWER operates doors up to 90 kgs.
SAFE & SECURE
	SECURITY+ 2.0® sends a new code with every remote click.
	PREMIUM AUTOMATIC SAFETY REVERSE function will allow your garage door to stop and reverse automatically if obstructed going down or stop going up.
	TIMER-TO-CLOSE automatically closes the door after a pre-set amount of time.3
	IMPROVED TRANSMITTER RANGE has up to 18% better range meaning you can start opening your garage door sooner.4
	AUTOMATIC FORCE SENSING monitors and adjusts the force needed to open your garage with each operation.
	MANUAL RELEASE CORD allows you to open your garage door whenever needed.

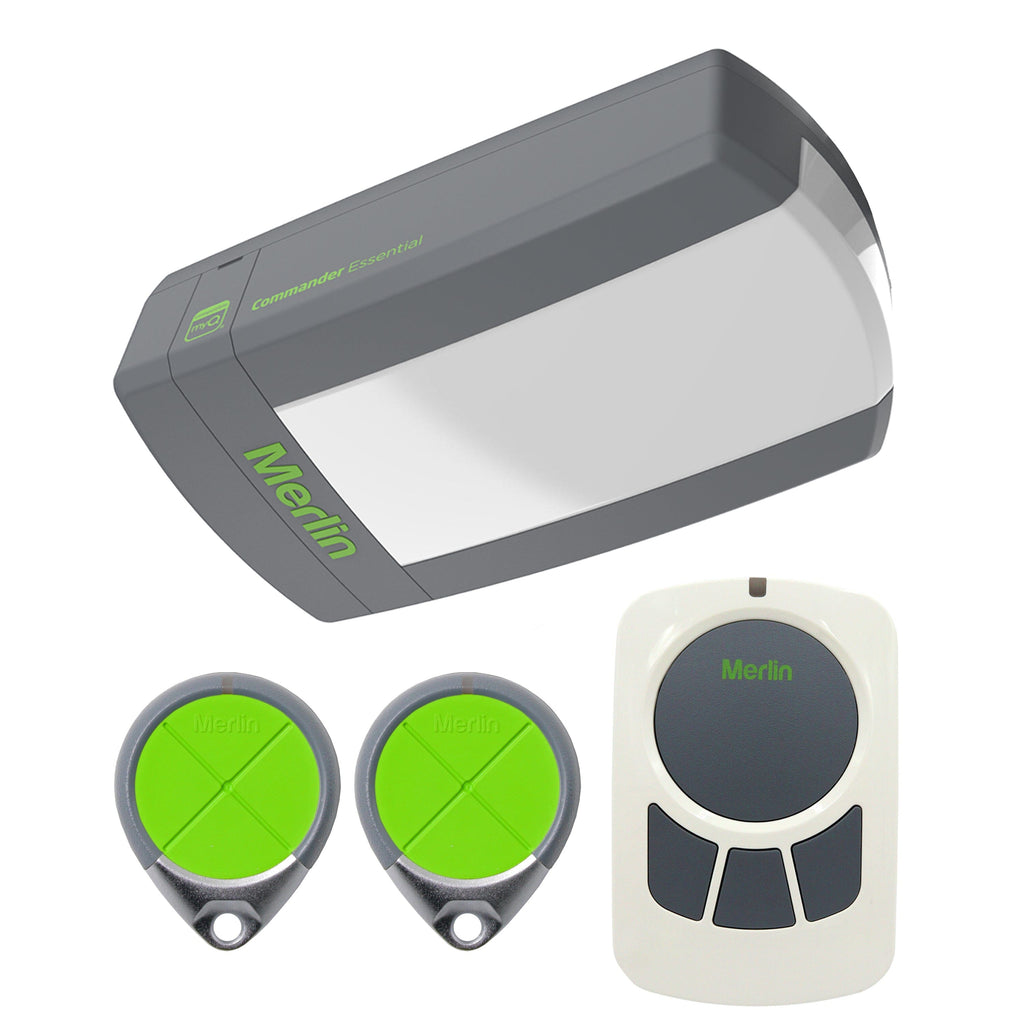

Includes:

• 1 x Merlin Commander Essential MS65MYQ

• 2 x Premium E970M remotes
• 1 x E138M Wireless Wall Button
• 1x Tilt Rail
• 1 x Installation Instructions
• 5 Years Manufacturers Warranty*

Please Note: The rail is not included

Features:

Premium Automatic Safety Reverse

• With its automatic safety function your garage door will stop and reverse automatically if obstructed going down or stop going up.

Automatic Force Sensing

• Equipped with automatic force sensing, with each operation the garage door opener monitors and adjusts the force needed to open your garage door.

Manual Release

• In case of power failure you can simply activate the manual release to open your garage door.

Specifications:

• 24V DC motor with thermal overload protection
• Input voltage: 240V AC
• Rated door area up to 13.5m²
• Max door weight: up to 90kg
• Max peak pulling force: 600 N
• C-rail with belt drive
• 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
• Up to 64 memory registers
• Courtesy light: LED
•  Min headroom required: 30mm

• Maximum lifting under spring tension = 20kg
• Suitable for steel and timber spring balanced doors

• Door opening time: 18 seconds
• Door closing time: 21 seconds
• Based on a 2.2m high door

• Door height: 2.4m
• Double dwelling

Merlin Warranty Terms:

For DIY installs, Merlin offers 1 year warranty.

For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 7 year warranty applies.
