Multipick's ELITE wave rakes represent years of research and development. Building on commercially available wave rakes, mathematical modelling and analysis across multiple prototypes, these impeccably crafted rakes are based on Christina Palmer's original quint cycloid and quint sinusoidal wave profiles - designed by Palmer and a group of PhDs using advanced Mathematica software to create an exact tapered wave effect.
Like all Multipick lock picks, the rakes are made from the finest spring steel in 0.6 mm thickness. The 25.4 mm wave length eliminates the normally required precise insertion depth and allows simultaneous interaction with up to 7 pins, while the evenly tapered profile from shaft to tip maximises strength and eliminates the stress concentrations that cause lesser picks to snap. The long plough tip lifts pin 1 rather than bumping into it head-on - with good technique, prompt openings are often possible.

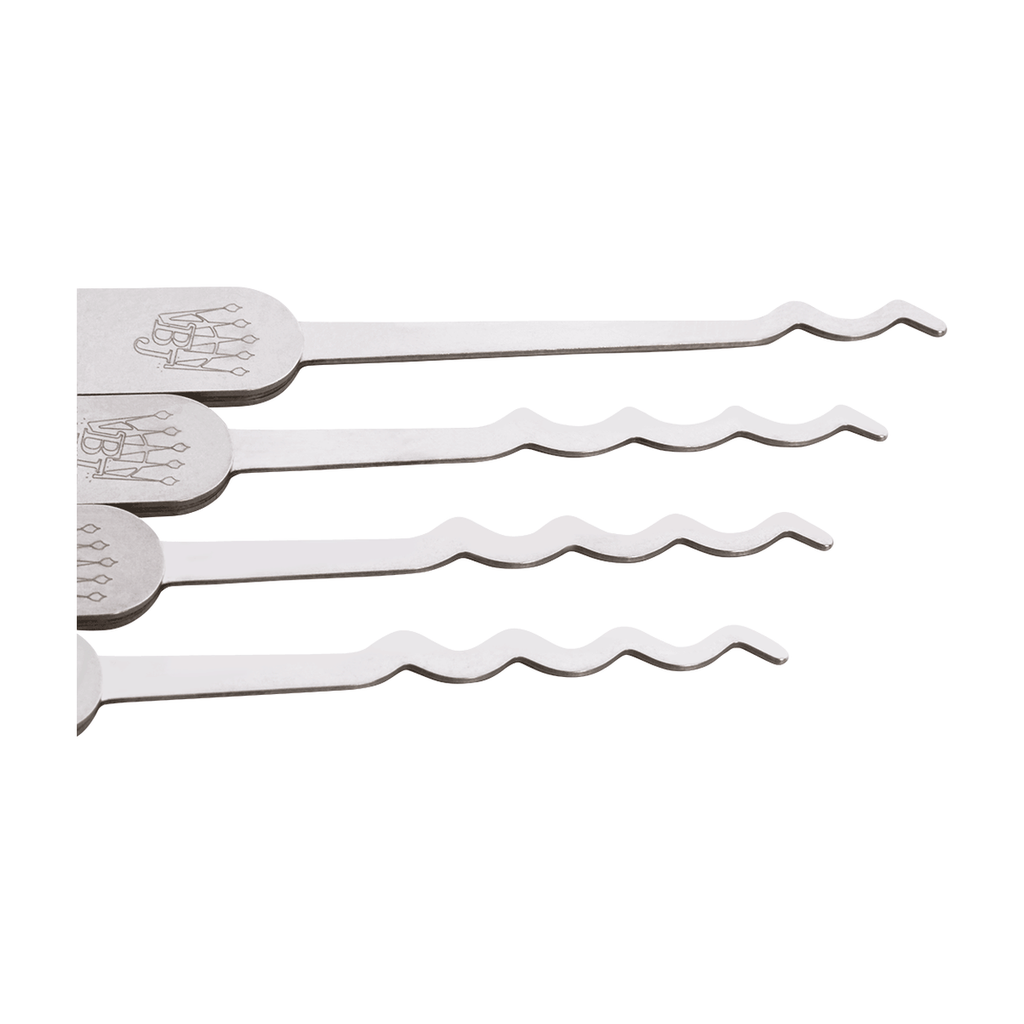

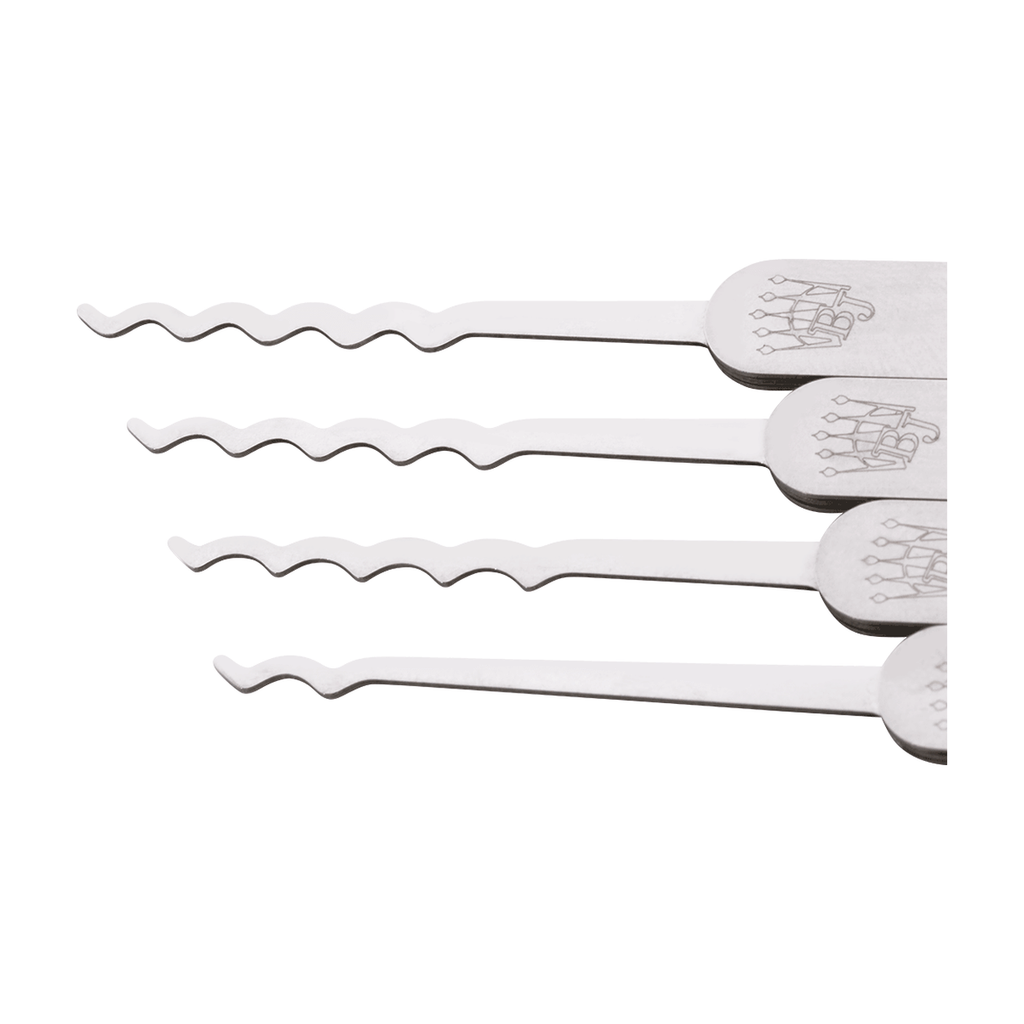

The set covers both wave families: cycloid rakes (sine/cosine ratio 0.25) for non-slip action on simpler locks, and sinusoidal rakes (ratio 0) for gentle action on hard locks, each in quad versions for large locks and quint versions for small locks. Note that the aggressive cycloid rakes are sharp like a saw and can damage pins if used carelessly.

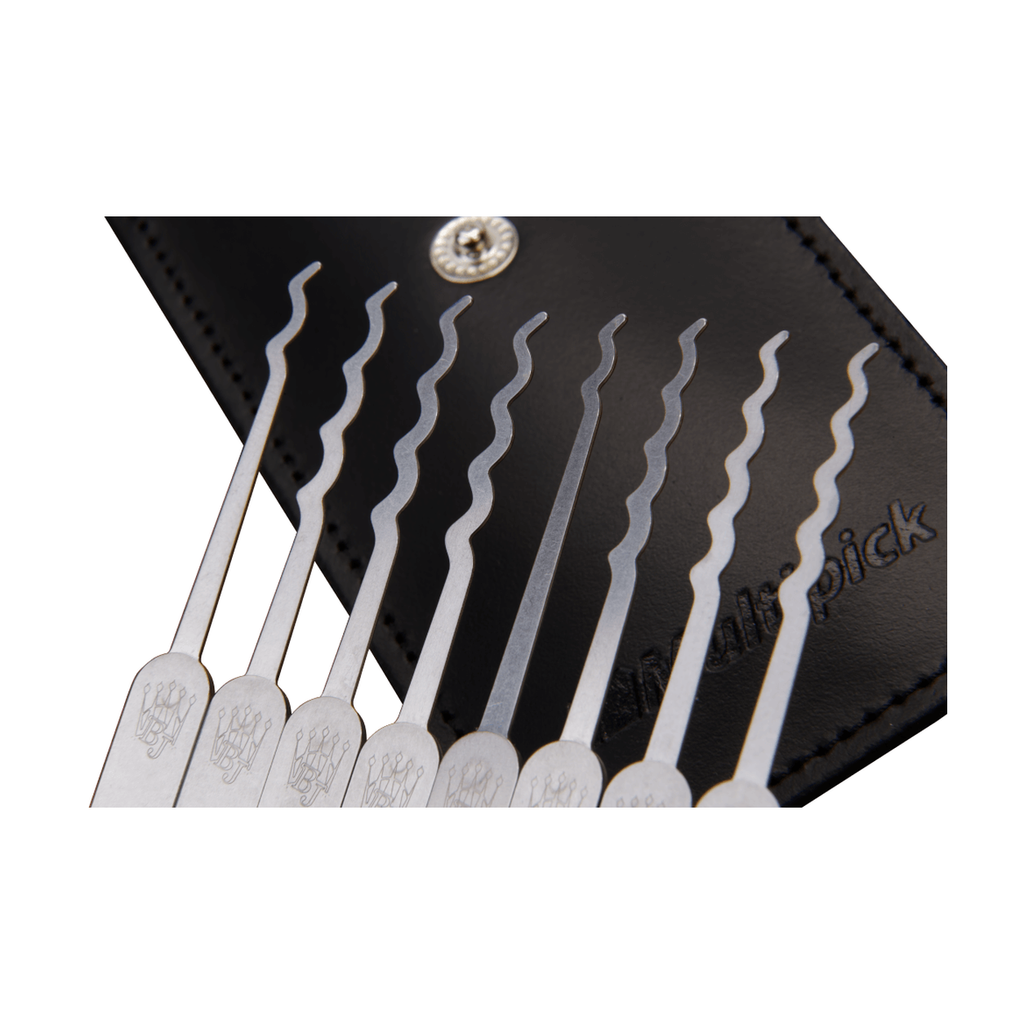

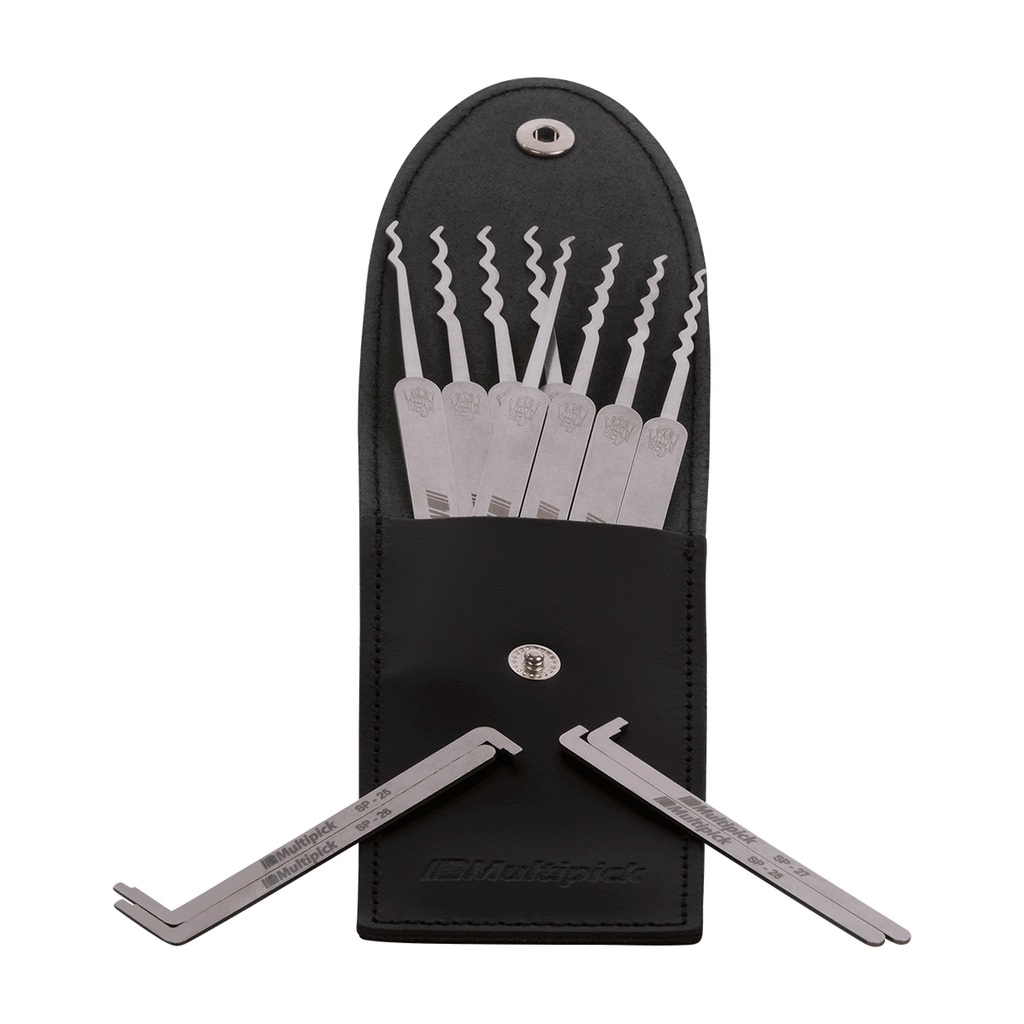

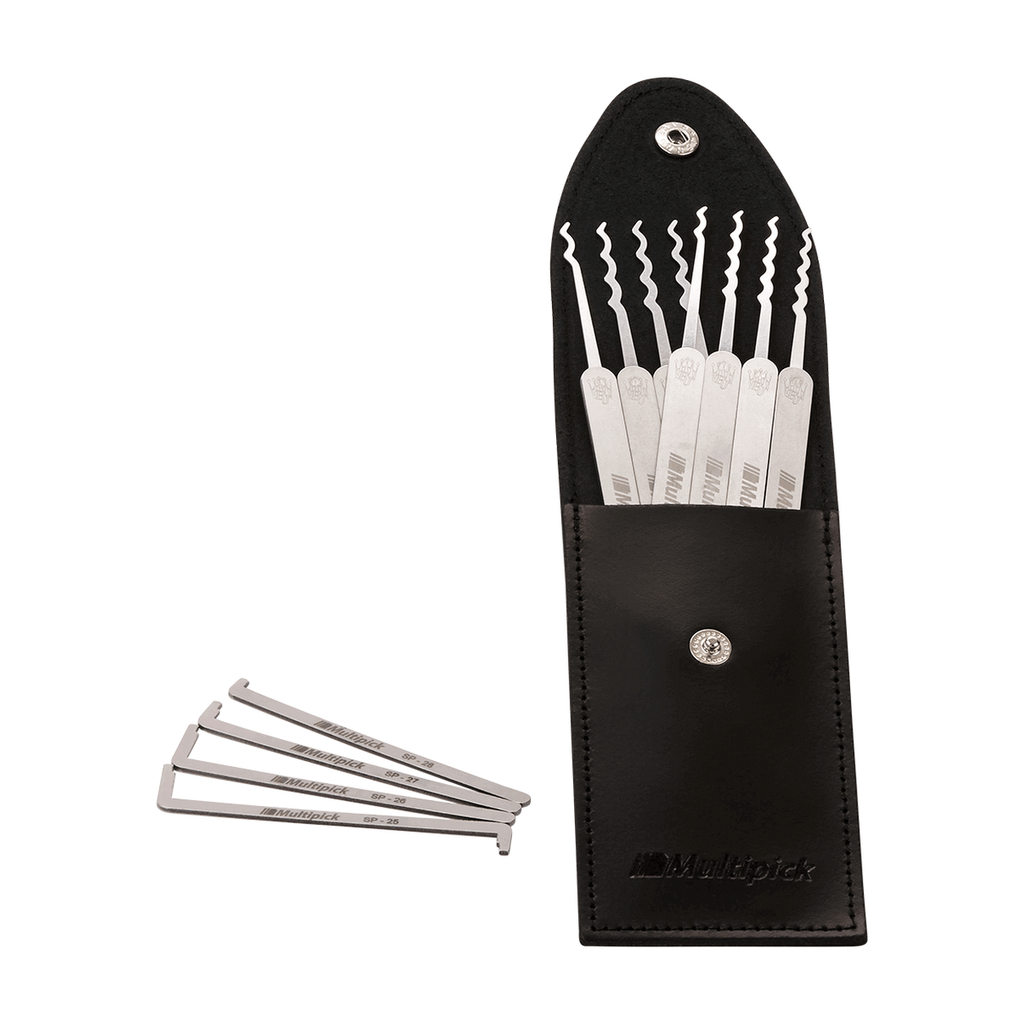

Eight rakes are paired with four ELITE TOK tension tools in 1.3 mm and a genuine leather sleeve. Made in Germany by Multipick, this is a serious raking system for locksmiths and locksport enthusiasts alike.
Key Features
- Wave profiles based on Christina Palmer's original quint cycloid and quint sinusoidal designs
- Finest spring steel in 0.6 mm thickness - Multipick high-tech quality
- 25.4 mm wave length engages up to 7 pins and removes the need for precise insertion depth
- Evenly tapered from shaft to tip for maximum strength without stress concentrations
- Long plough tip lifts pin 1 instead of striking it head-on
- Cycloid rakes for non-slip action, sinusoidal rakes for gentle action on hard locks
- Includes four ELITE TOK tension tools in 1.3 mm
- Made in Germany, supplied in a genuine leather sleeve
Specifications
- Model: Multipick MP3PNS15
- Material: Finest spring steel
- Pick thickness: 0.6 mm
- Wave length: 25.4 mm
- Weight: 120 g (0.12 kg)
- Made in Germany
- Set contents: 1x ELITE Large Double Cycloid Rake (PN67)
- Set contents: 1x ELITE Large Quad Aggressive Cycloid Rake (PN68)
- Set contents: 1x ELITE Large Quad Cycloid Rake (PN69)
- Set contents: 1x ELITE Large Quad Sinusoid Rake (PN70)
- Set contents: 1x ELITE Small Double Cycloid Rake (PN71)
- Set contents: 1x ELITE Small Quint Aggressive Cycloid Rake (PN72)
- Set contents: 1x ELITE Small Quint Cycloid Rake (PN73)
- Set contents: 1x ELITE Small Quint Sinusoid Rake (PN74)
- Set contents: 1x ELITE TOK Spanner Flat Double Ended (SP25) - 1.3 mm
- Set contents: 1x ELITE TOK Tension Wrench Flat Single Ended Long (SP26) - 1.3 mm
- Set contents: 1x ELITE TOK Tension Wrench Flat Single Ended Short (SP27) - 1.3 mm
- Set contents: 1x ELITE TOK Tension Wrench Flat Single Ended Flush (SP28) - 1.3 mm

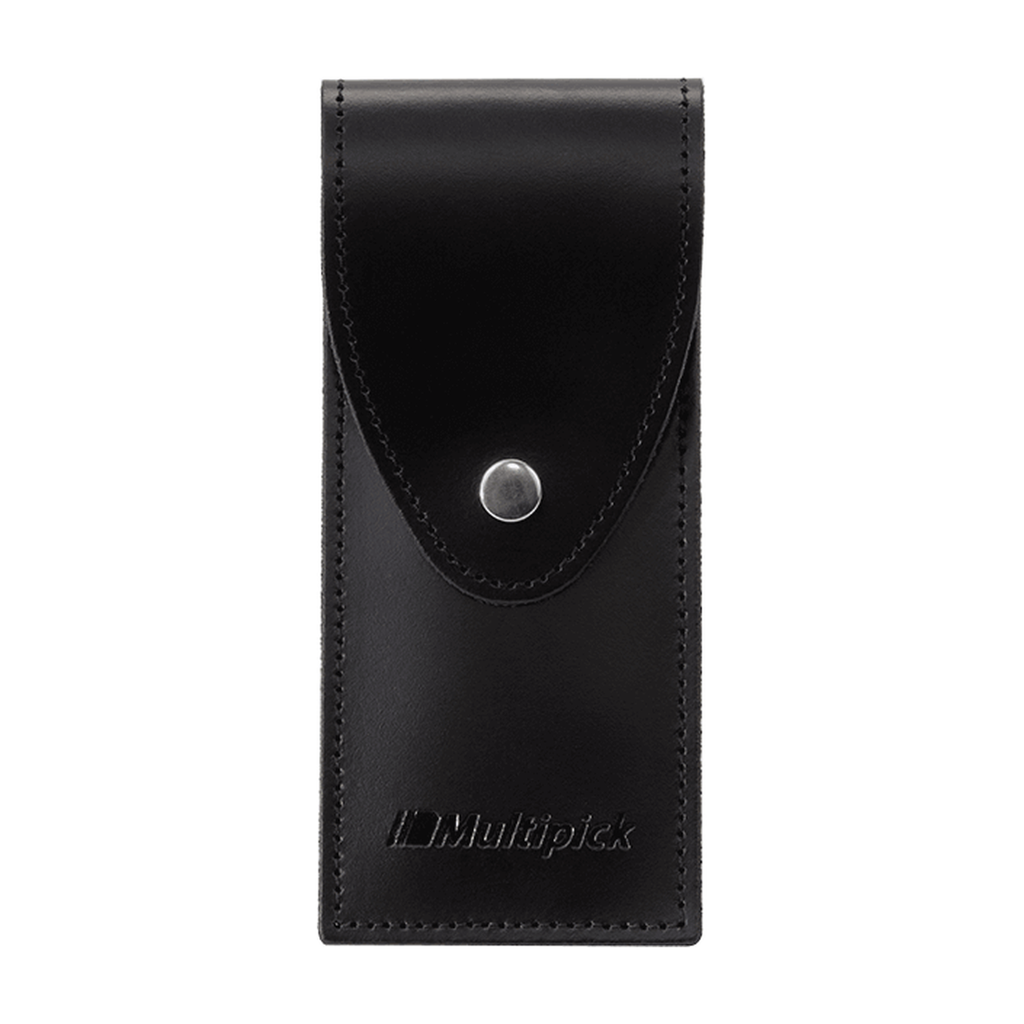

- Set contents: 1x Genuine leather sleeve
Applications
- Raking pin tumbler locks quickly with cycloid and sinusoidal profiles
- Gentle raking of hard, tightly toleranced locks
- Locksport training and speed-opening challenges
- Professional non-destructive entry work by locksmiths
