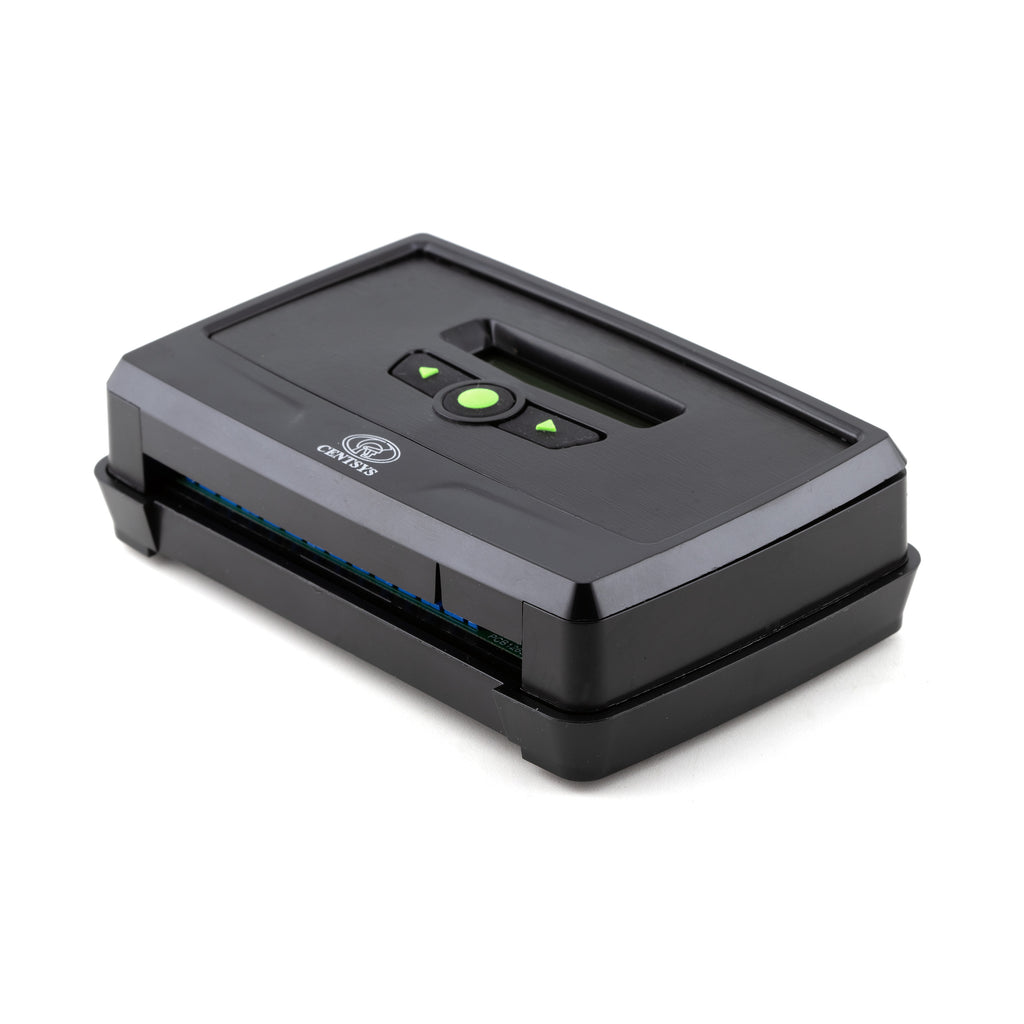

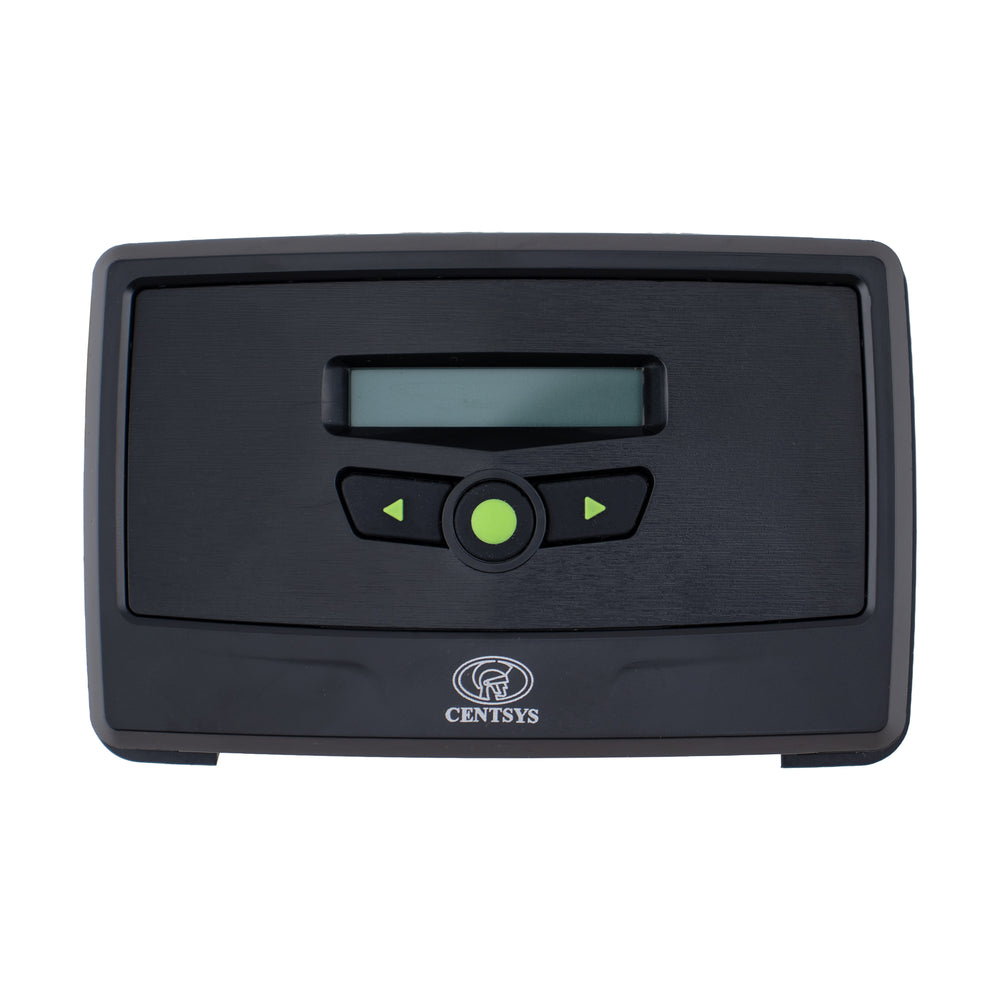

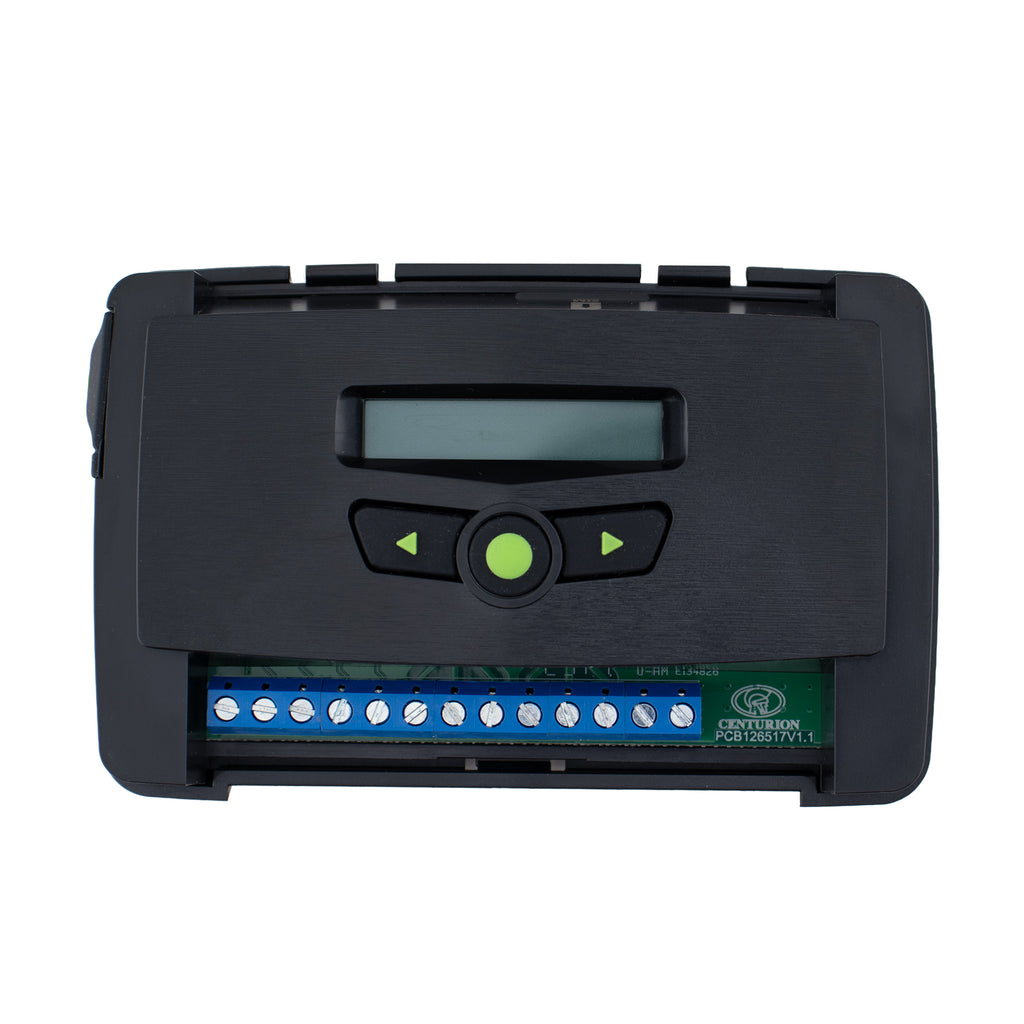

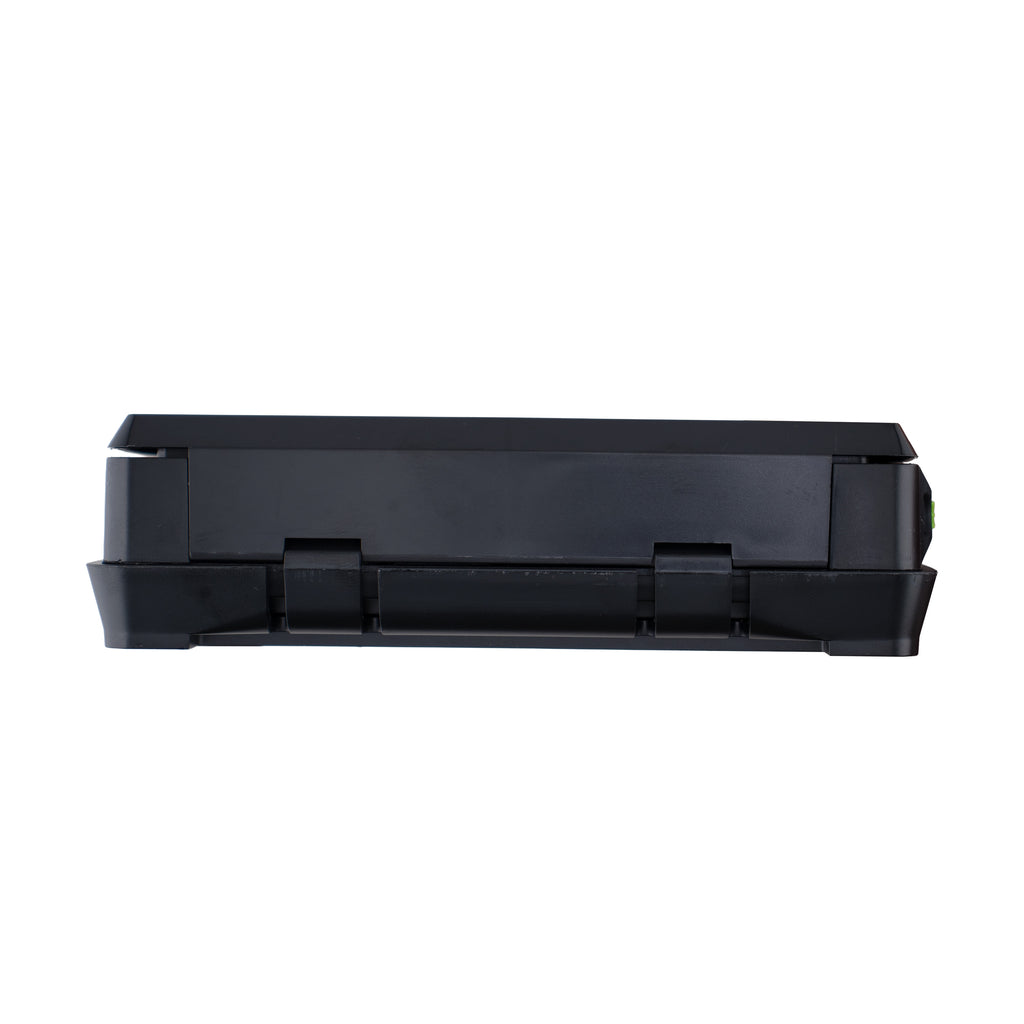

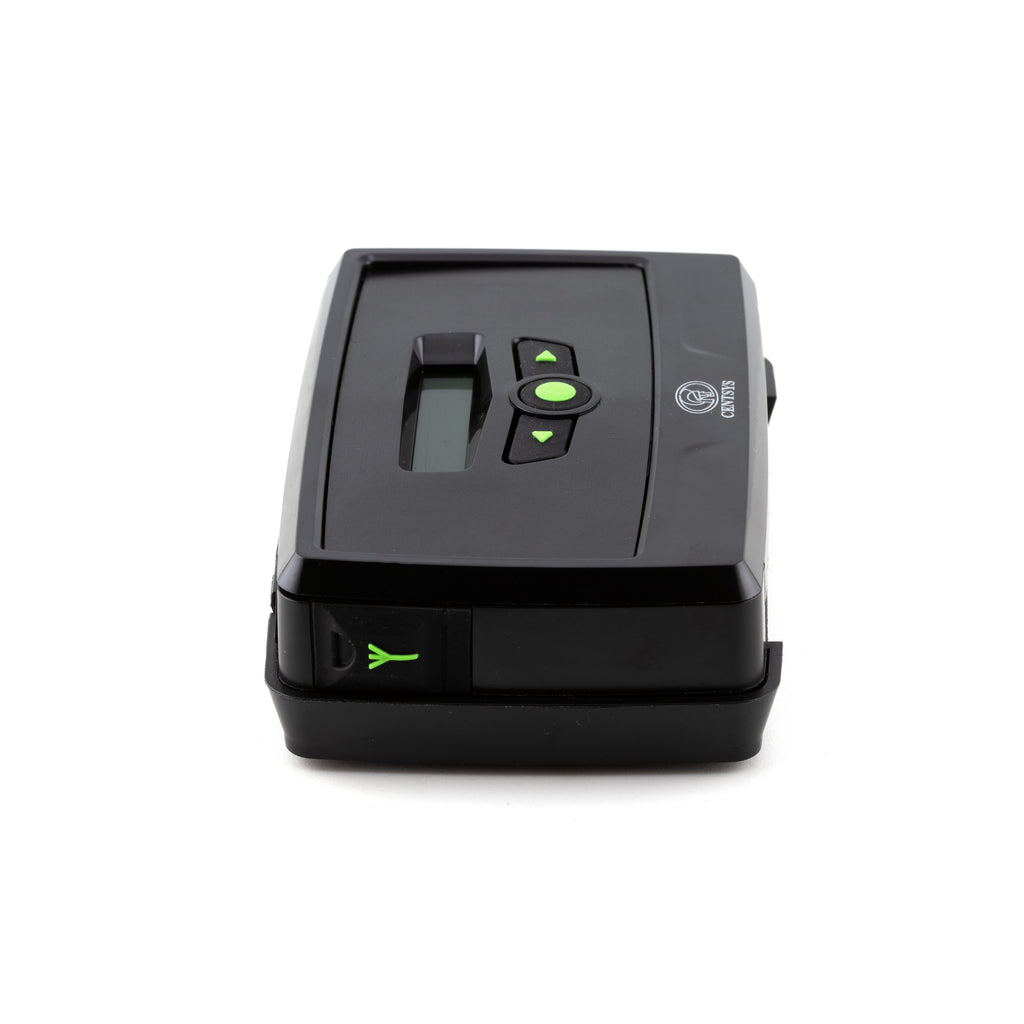

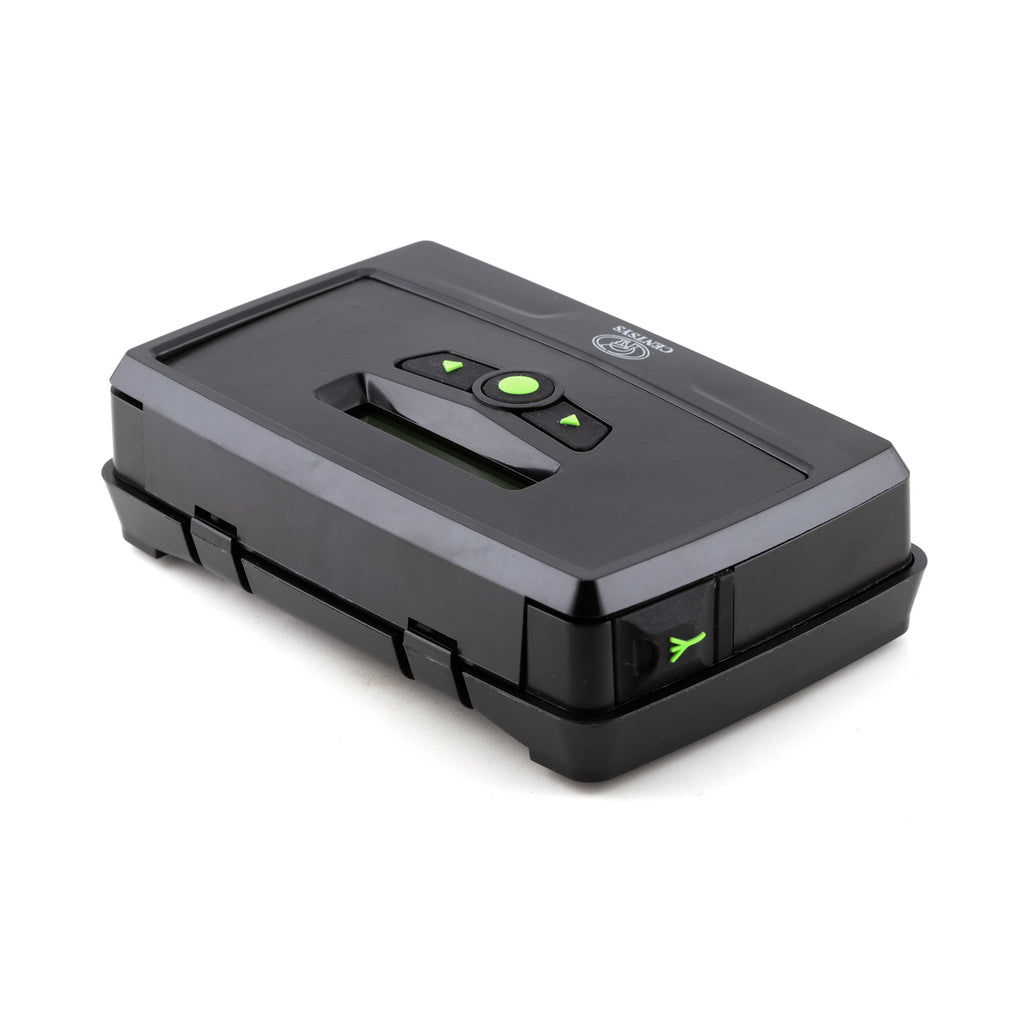

Nova Centsys G-Ultra GSM 4G Receiver

Centsys
SKU: RP000444

Price:
Sale price$599.00

Instructions & Resources

The Centsys G-Ultra is a flexible GSM access control and monitoring solution that lets you control and monitor connected devices directly from your phone.

Designed for gate automation, access control and site monitoring, the G-Ultra gives you a practical way to manage multiple devices remotely. Whether you want to open a gate, monitor an alarm, check mains power or receive alerts when a gate has been left open, the G-Ultra brings key controls into one easy system.

It can be managed through the G-REMOTE mobile app for quick activation and day-to-day control, or through the G-WEB PLUS online interface for easier setup and configuration.

Main features:

  • Monitor up to 4 electrical devices and receive push notifications
  • Control up to 6 devices from your phone
  • Includes 2 additional onboard relays
  • Intelligent monitoring of Centsys gate motor status outputs, such as gate opening or gate left open
  • Suitable for gate automation, access control, home automation and remote monitoring applications
  • Time-barring and visitor control, ideal for guesthouses, rentals, B&Bs and shared access sites

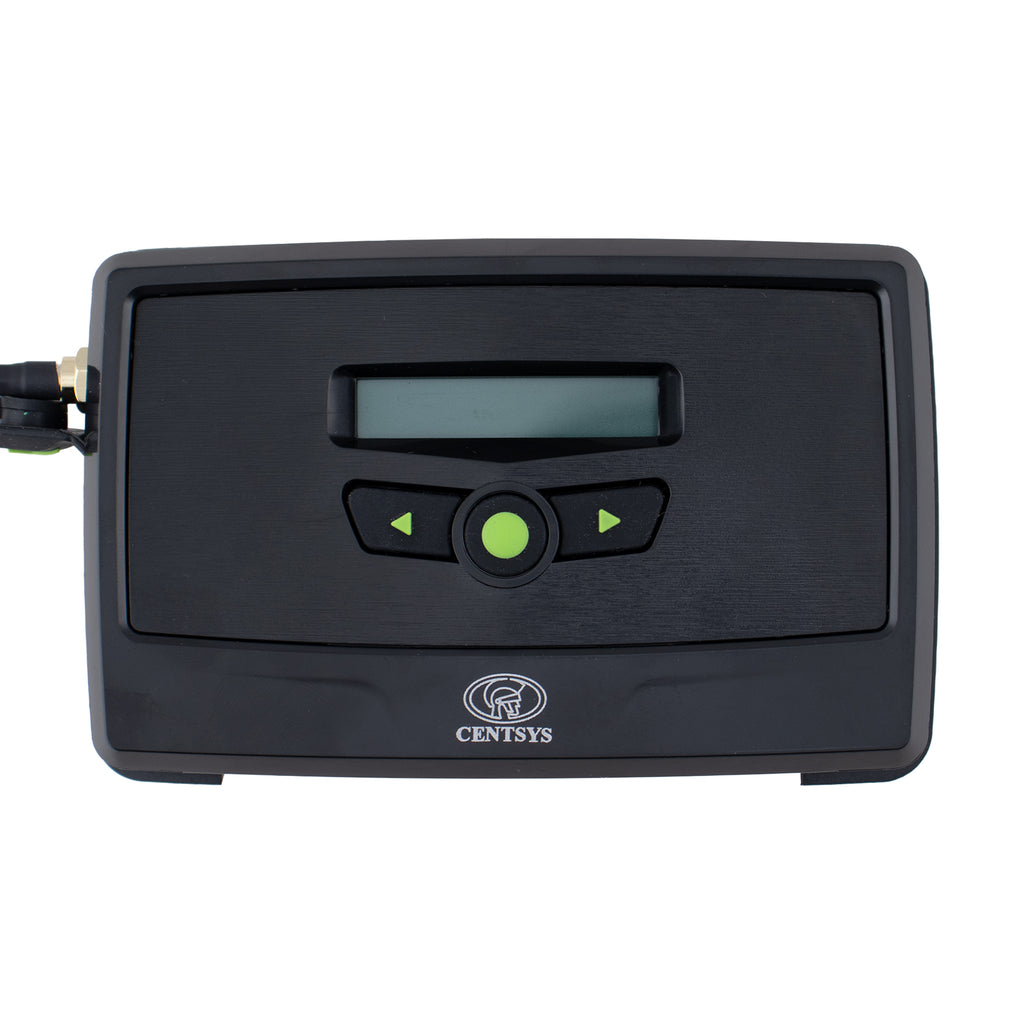

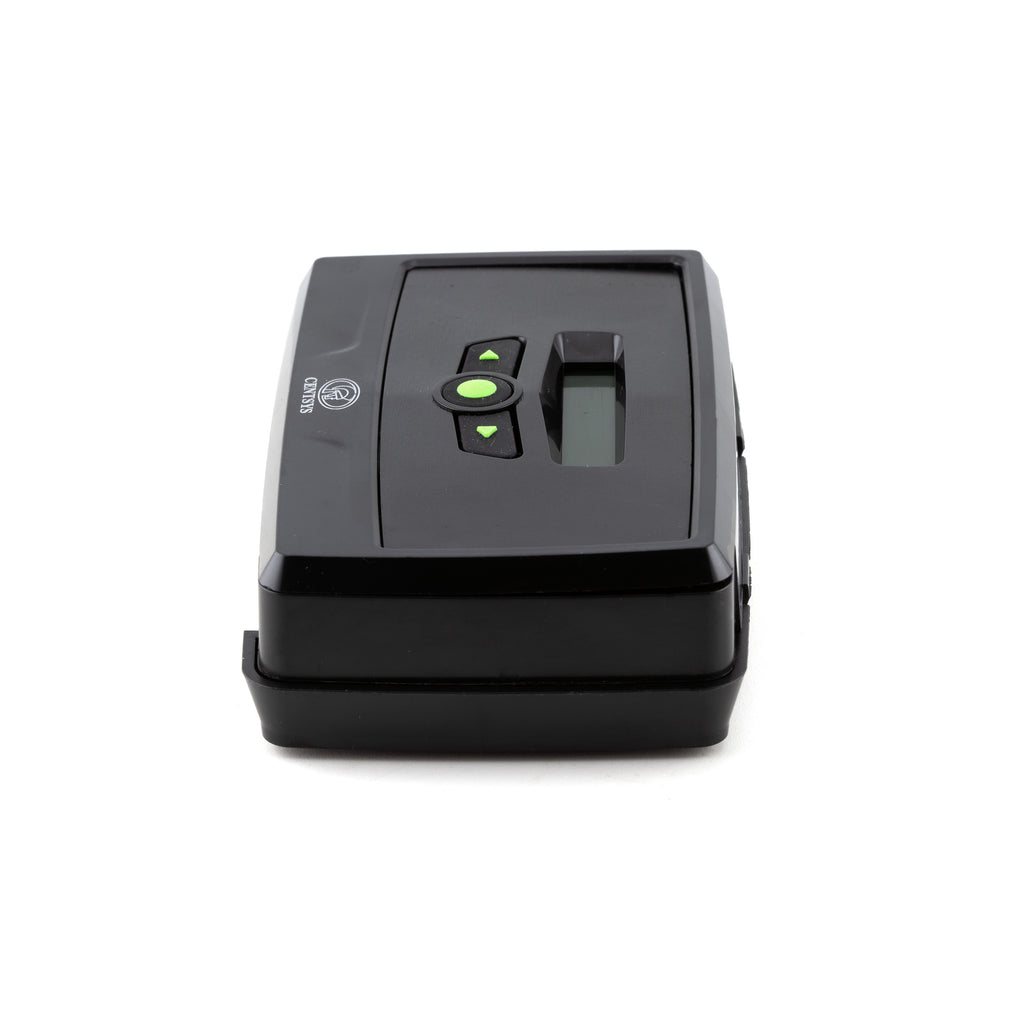

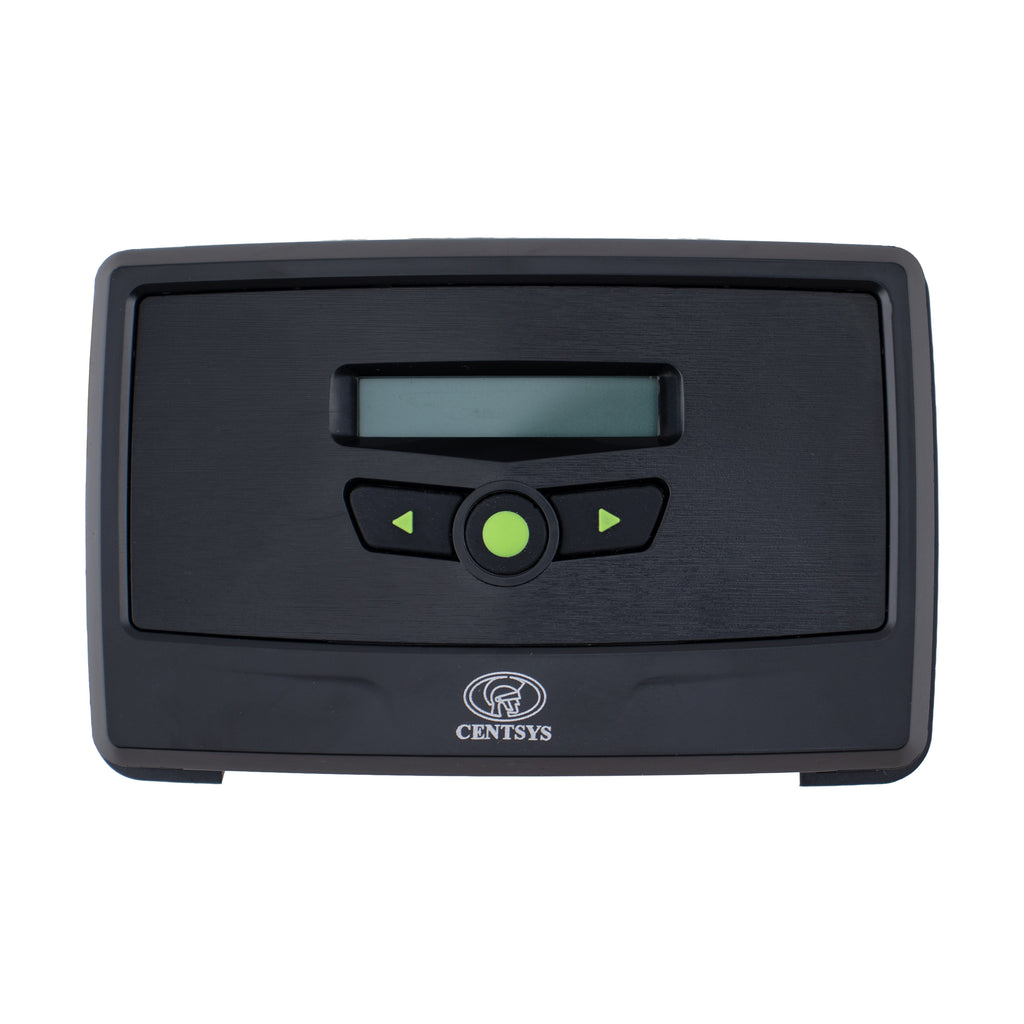

  • LCD screen for easier diagnostics
  • Instant activation through the G-REMOTE mobile app
  • Easy setup through the G-WEB PLUS online interface

Devices that can be monitored via the inputs:

  • House alarm status
  • Electric fence alarm trigger
  • Geyser on/off status
  • Mains power on/off status
  • Boat fridge on/off status
  • Borehole pump running/off status
  • Water reservoir full/empty status
  • Entrance gate open/pedestrian status

Devices that can be controlled via the outputs:

  • Automated entrance gates
  • Geysers
  • Appliances, such as a fridge aboard a boat
  • Air conditioners
  • Borehole pumps
  • Lighting systems
  • Irrigation systems and water features
  • Alarm systems

Technical Specification:

  • Supply Voltage Range: 11-24VDC
  • Maximum Current Draw: 300mA @ 12VDC
  • Input / Output Current Rating: 50mA Open Collector
  • Relay Contact Current Rating: 1A, 30V AC/DC, Resistive
  • Input Sense Voltage Range: 0-24VDC, 0-1.6V Low Input State, 5V-24V High Input State

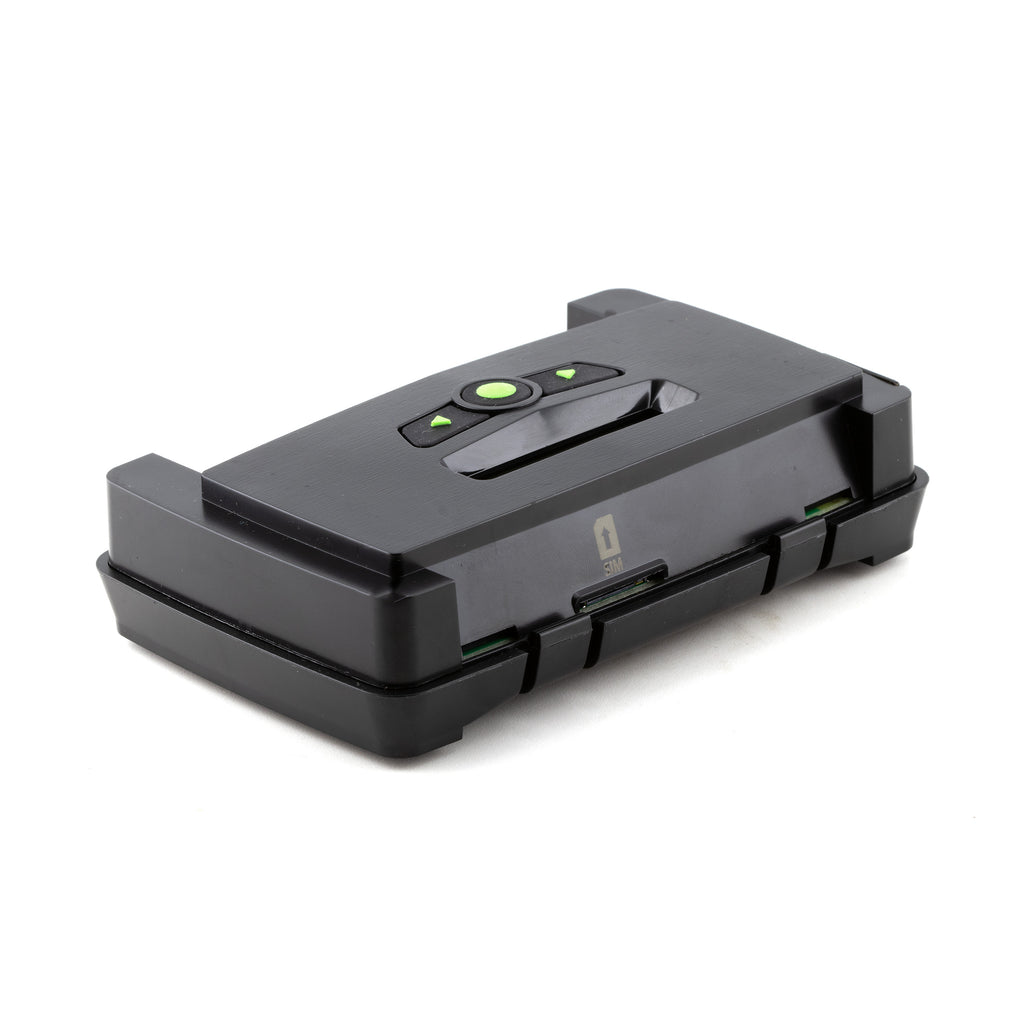

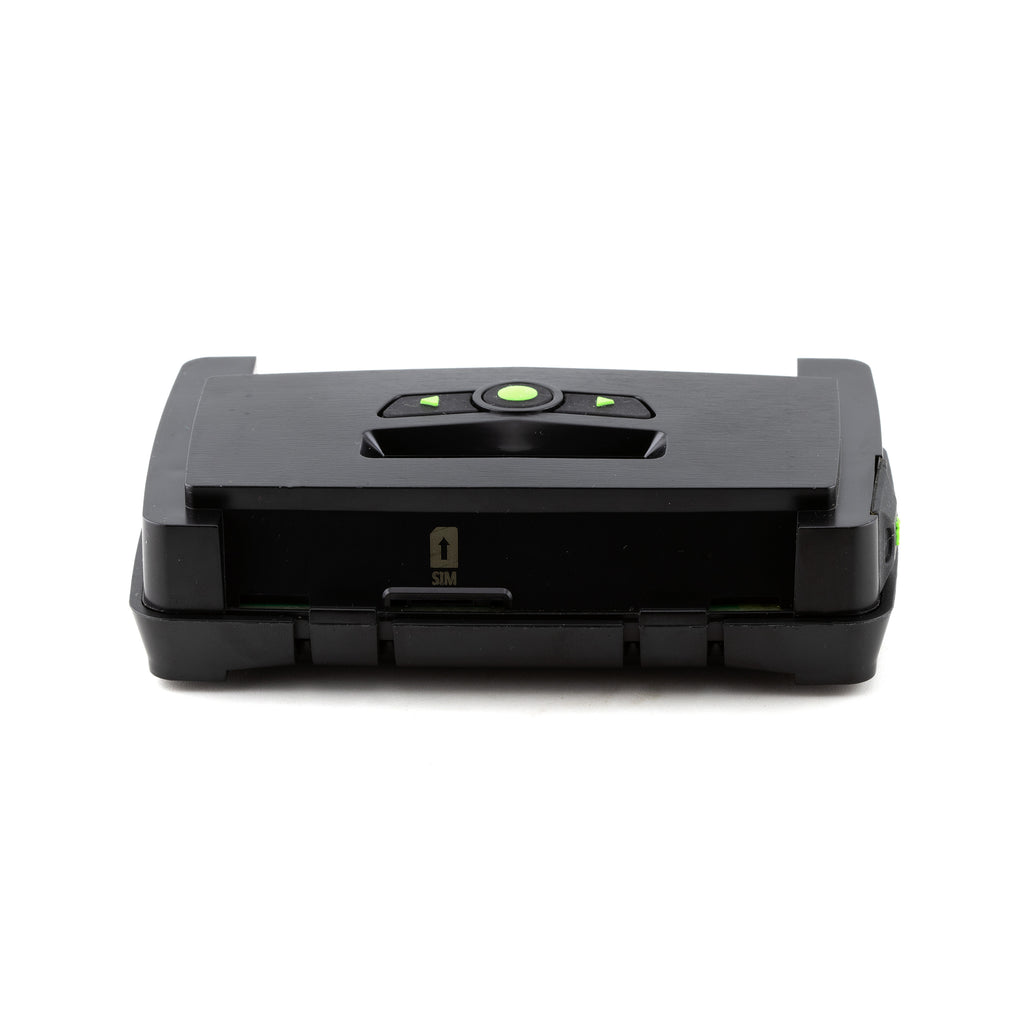

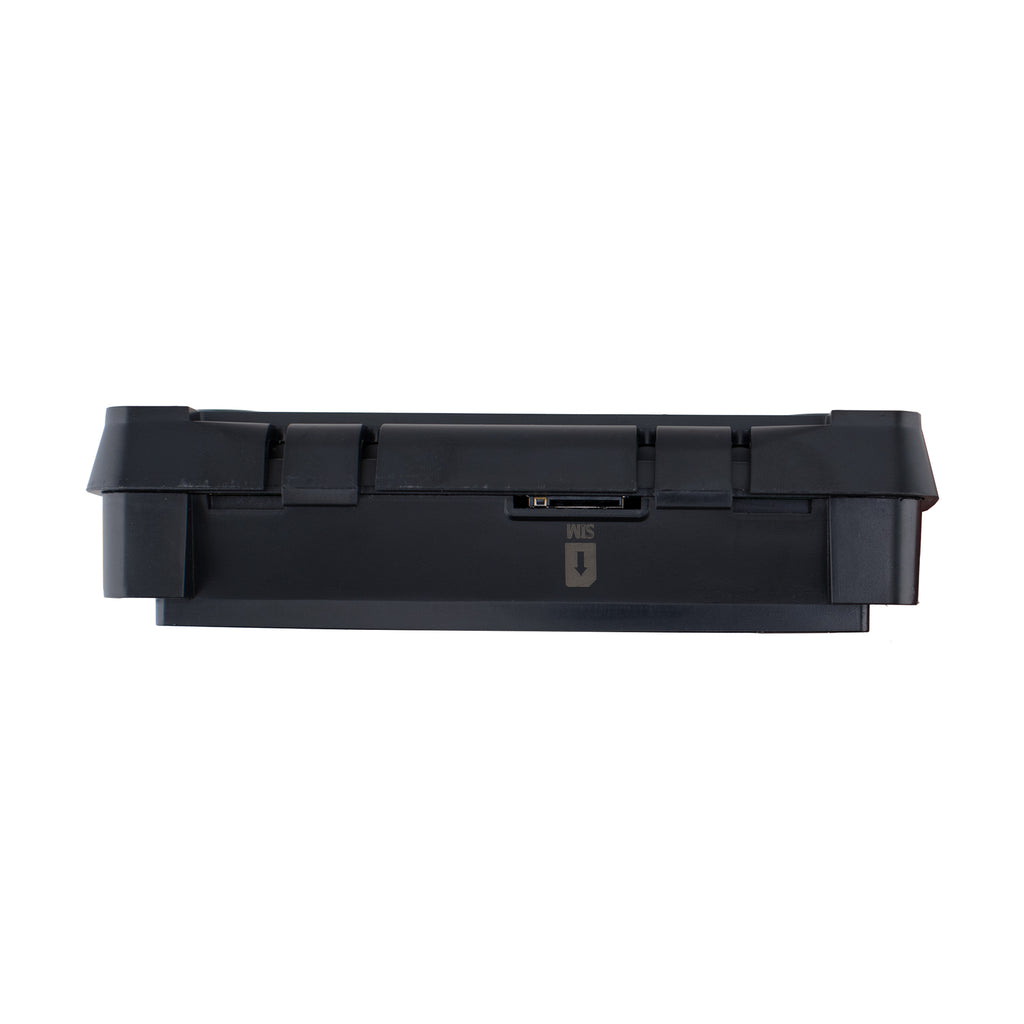

  • SIM Card: An activated SIM card is required to operate this device. This unit is not sold with a SIM card supplied, so you will need to purchase one to use the device’s GSM functionality. The type of SIM required, either micro or nano, will be determined by which generation your device is.

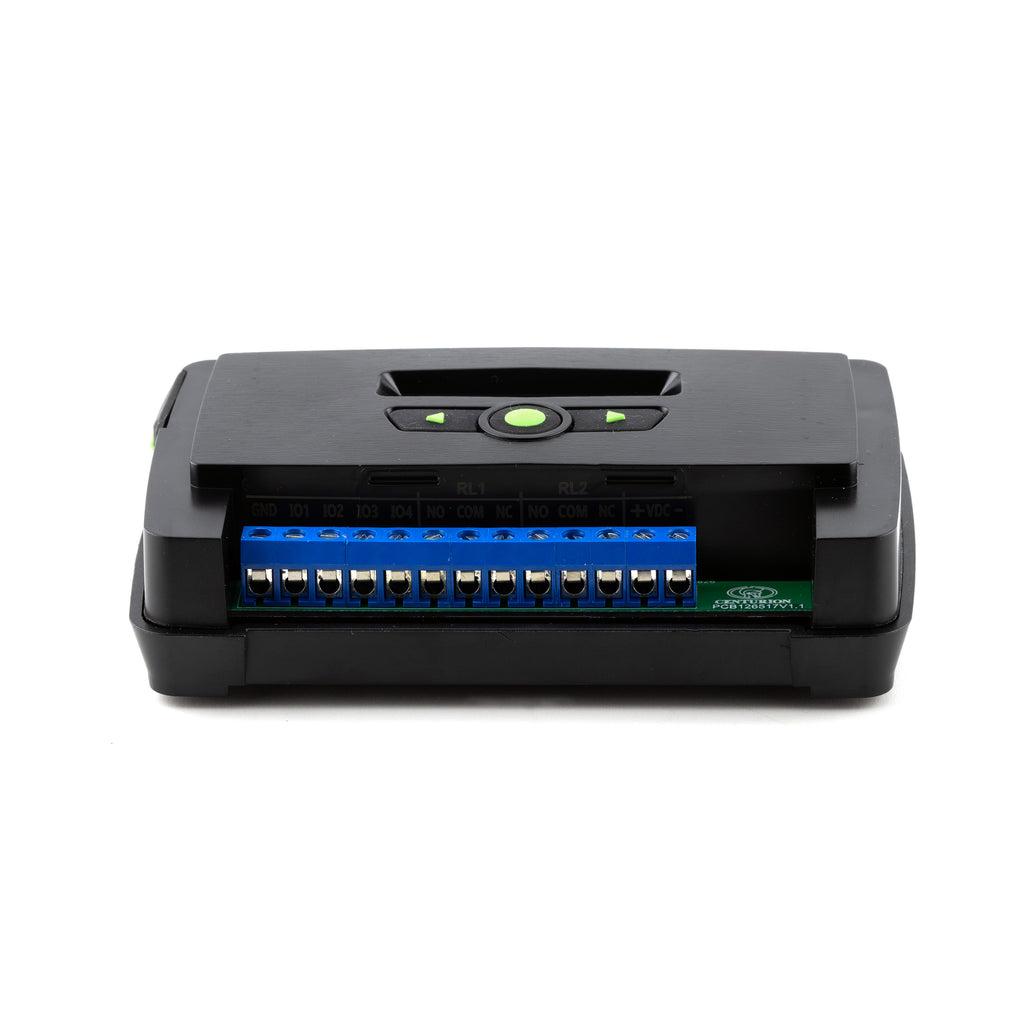

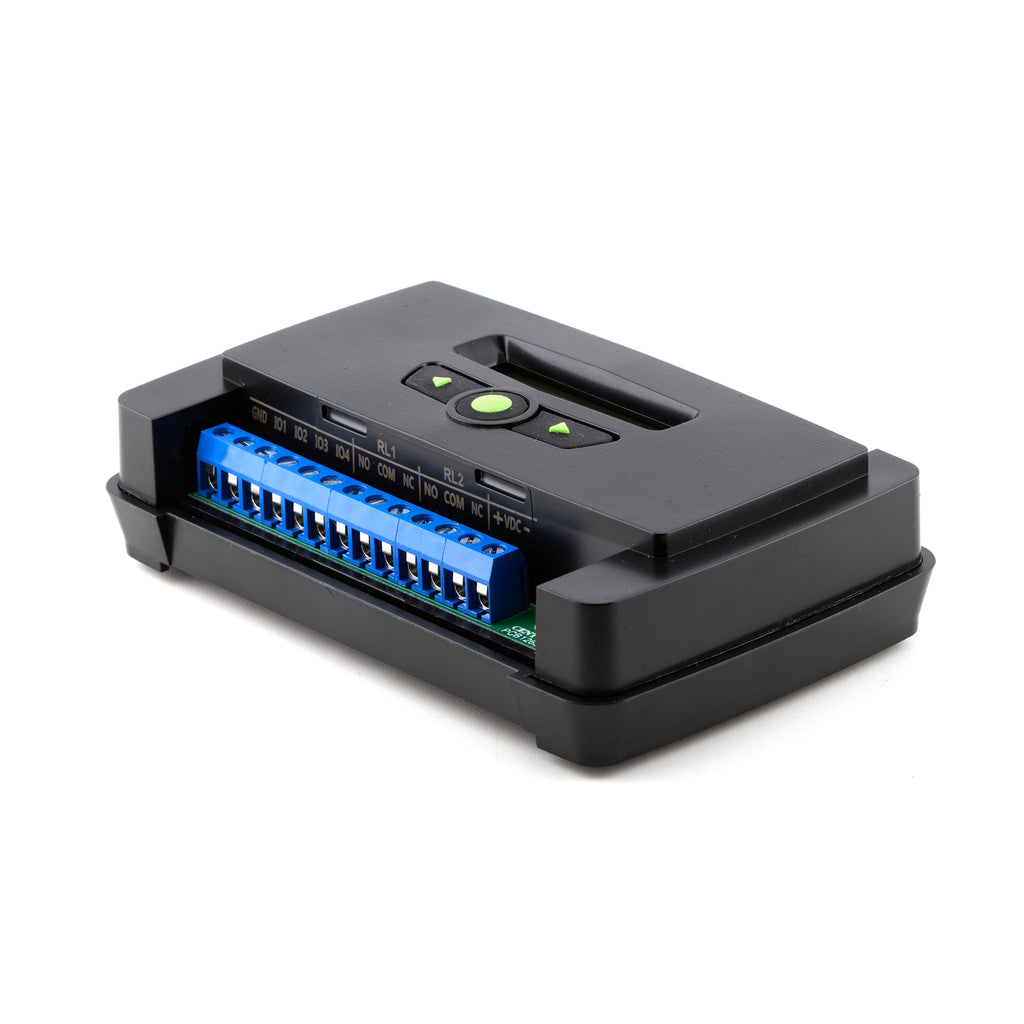

  • Number of Configurable Input / Output Channels: 4
  • Number of Relays: 2

Memory Capacity

  • 1500 access numbers
  • 5000 event logs
  • 20 access profiles
  • 1 custom welcoming SMS message for new access numbers
  • 20 custom output activation SMS messages, from user to device
  • 30 custom input notification SMS/email messages, from device to user
  • 100 visitor time-barring windows, windows are the periods between two dates
  • 30 generic time-barring windows, windows are weekly recurring
  • 10 output activation schedules, schedules are weekly recurring
  • 3 daylight saving periods
  • 4 input-to-output mapping configurations

Model Options

  • GSM 2G: 850/900/1800/1900MHz EDGE
  • GSM 3G: 900/2100MHz EDGE, 900/2100MHz UMTS
  • GSM 3G PENTA: 800/850/900/1900/2100MHz UMTS
  • GSM 4G/LTE-CAT1: 900/2100MHz
