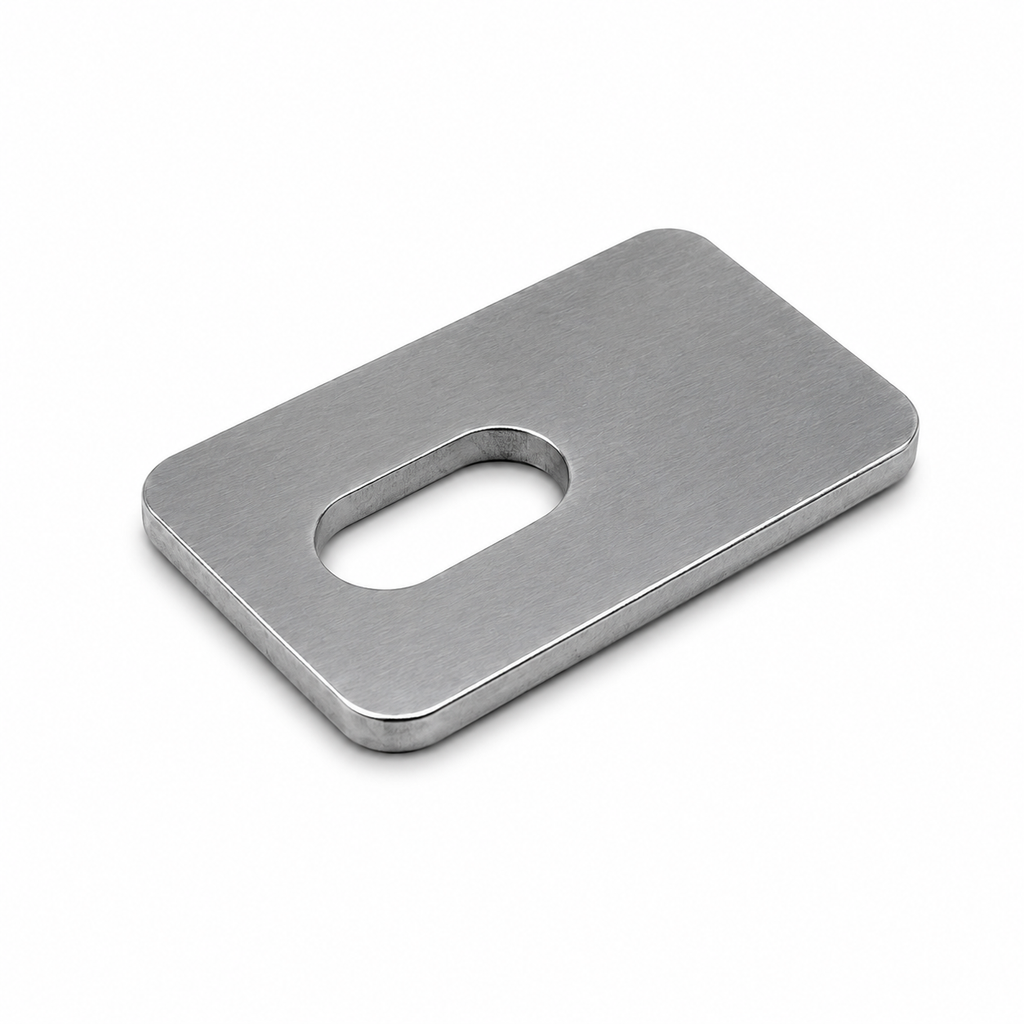

This 180° opening plate positions a PRATICO® M18 hinge pintle so the gate can swing fully back against the fence or wall, clearing the opening completely — useful for driveways and laneways where a part-open gate would obstruct traffic.
Galvanised steel construction with generous adjustment ranges lets you fine-tune the pivot position during installation.
Key Features

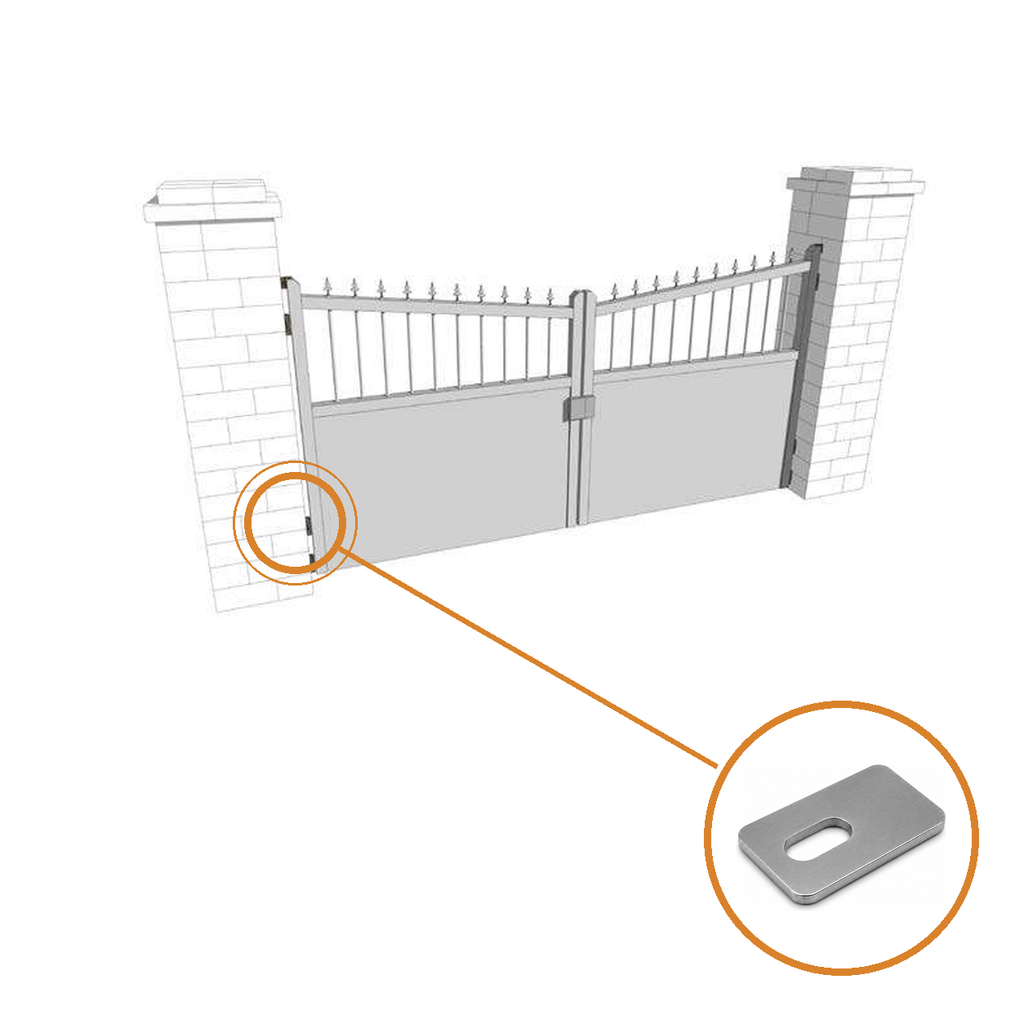

- Allows 180° gate opening back against the fence line
- Suits PRATICO® M18 adjustable hinges
- Galvanised steel construction

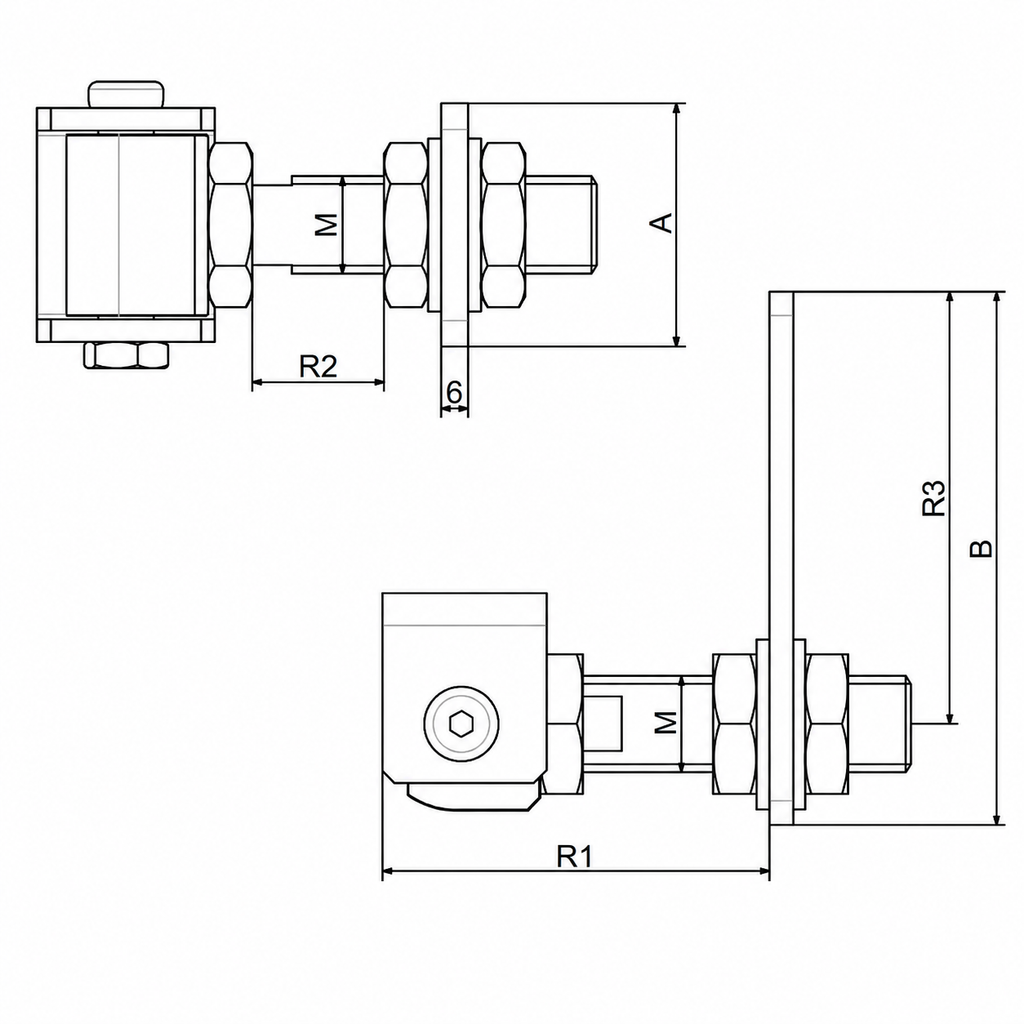

- Adjustment ranges R1 64-97 mm, R2 9-43 mm, R3 58-78 mm
- Plate 55 x 100 mm
- Pairs with PRATICO® hinge system components
Specifications
- Model: 924.18
- Material: Galvanised steel
- Thread: M18
- A: 55 mm
- B: 100 mm
- R1: 64-97 mm
- R2: 9-43 mm
- R3: 58-78 mm
- Weight: 230 g
Applications
- Swing gates needing full 180° opening
- Driveway gates
- Laneway and boundary gates
- Commercial gate installations
