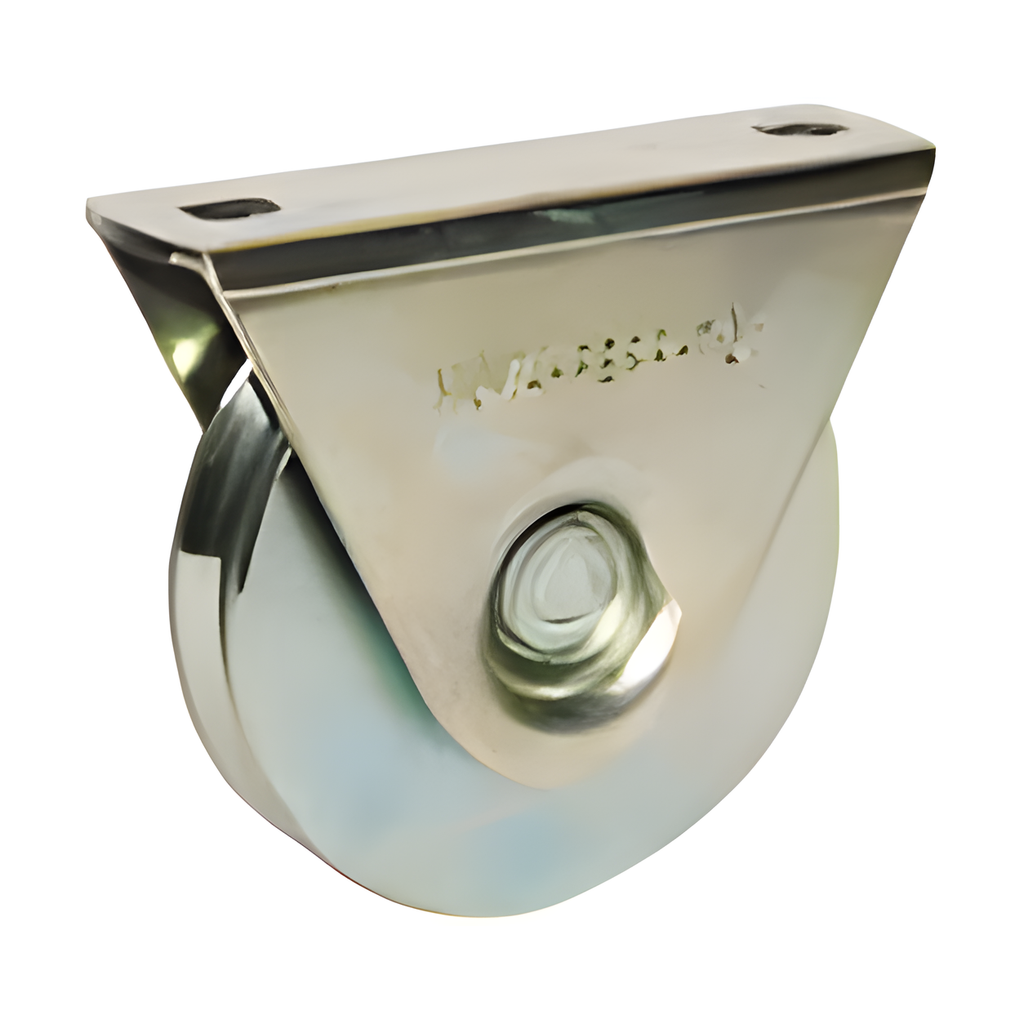

This 100 mm gate wheel comes pre-mounted in a fixed galvanised steel bracket that welds straight onto the bottom of the gate frame — no machining or axle work needed. The round (O) groove wheel rides a shielded ball bearing on round bar track.
A simple, robust solution for new gate builds and refurbishments. Cataphoresis (black) versions are available on request.
Key Features
- Wheel supplied pre-mounted in a weld-on bracket
- Round (O) groove for round bar track
- Shielded ball bearing for smooth running
- Galvanised steel wheel and bracket
- 100 mm wheel diameter
- Cataphoresis (black) version available on request
Specifications
- Model: 141/10/25
- Material: Galvanised steel
- Wheel diameter: 100 mm

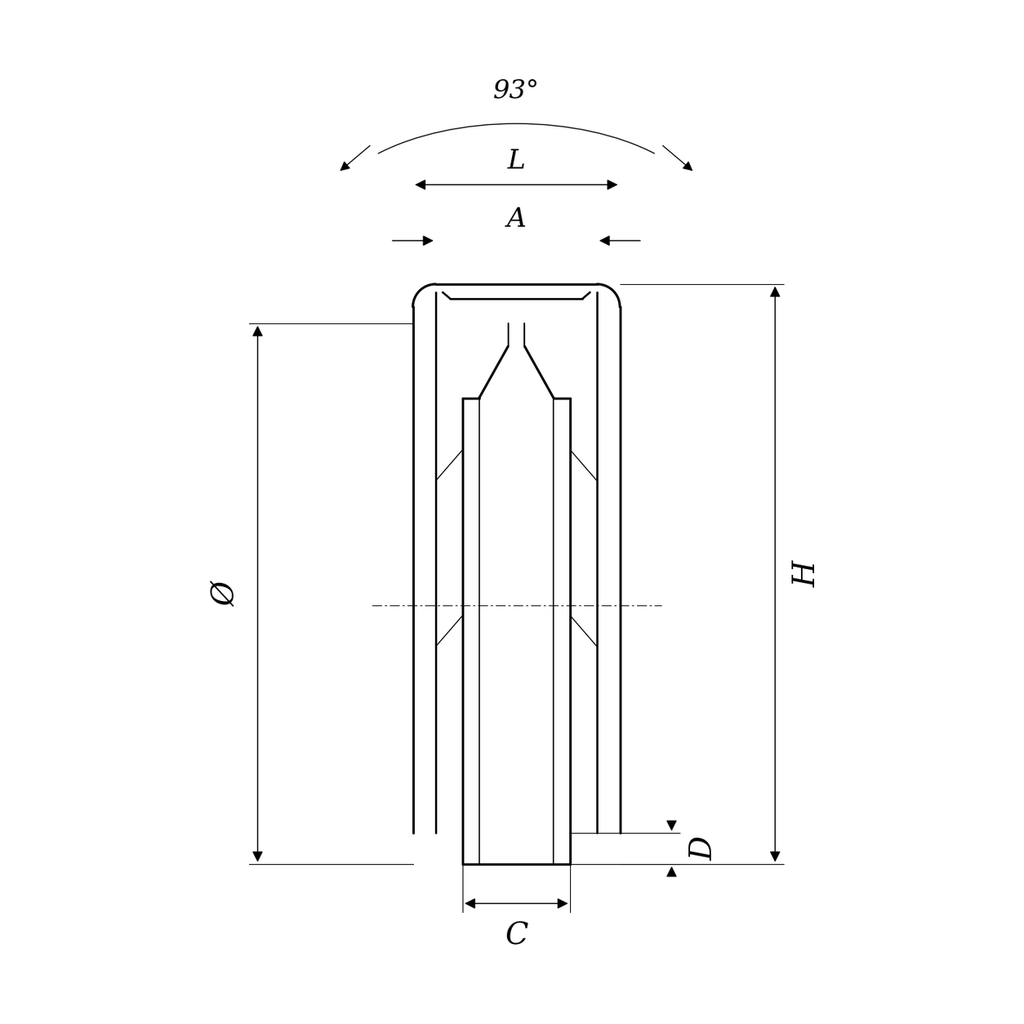

- A: 25 mm, C: 20 mm, D: 10 mm
- H (bracket height): 105 mm, L: 36 mm
- Bearing: 1 x shielded ball bearing
- Weight: 1.31 kg
Applications
- Sliding gates
- Driveway gates
- Residential gate systems
- Commercial gate installations
- Industrial gate systems
