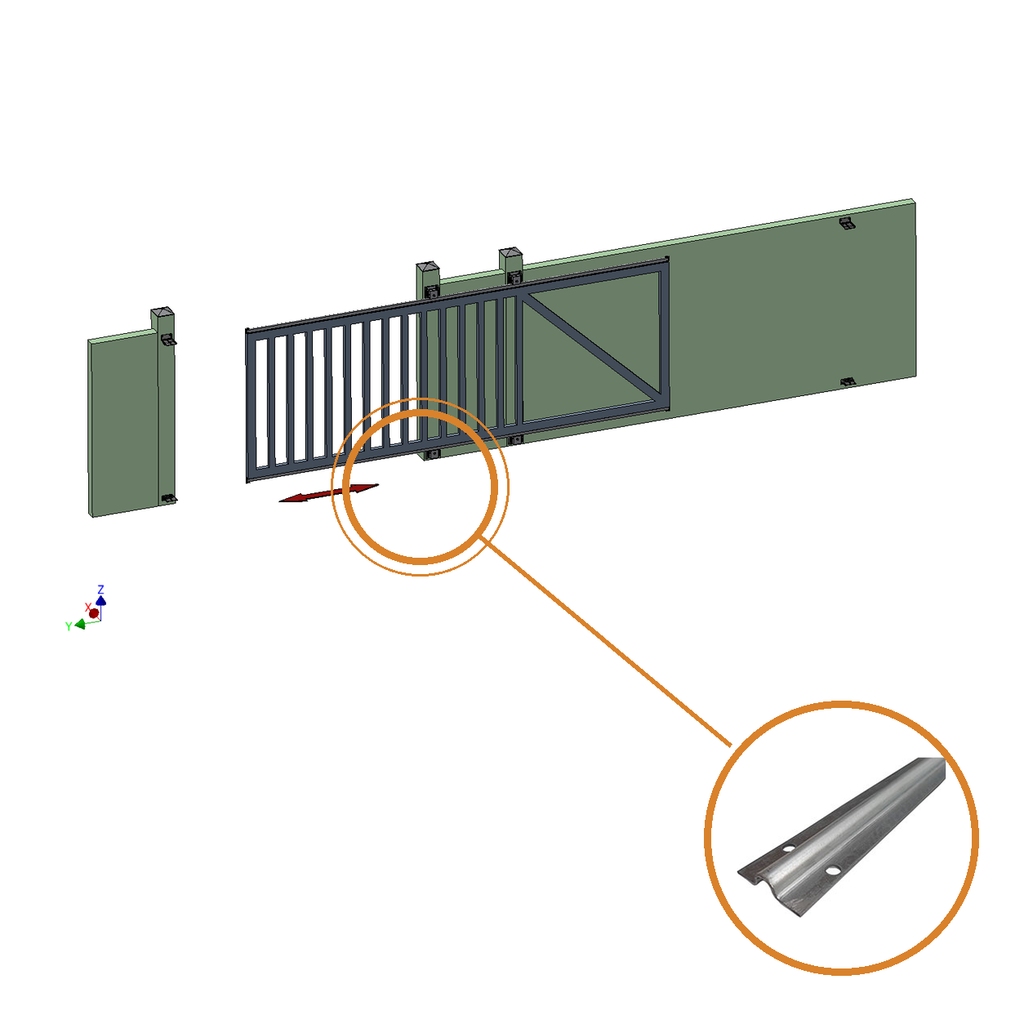

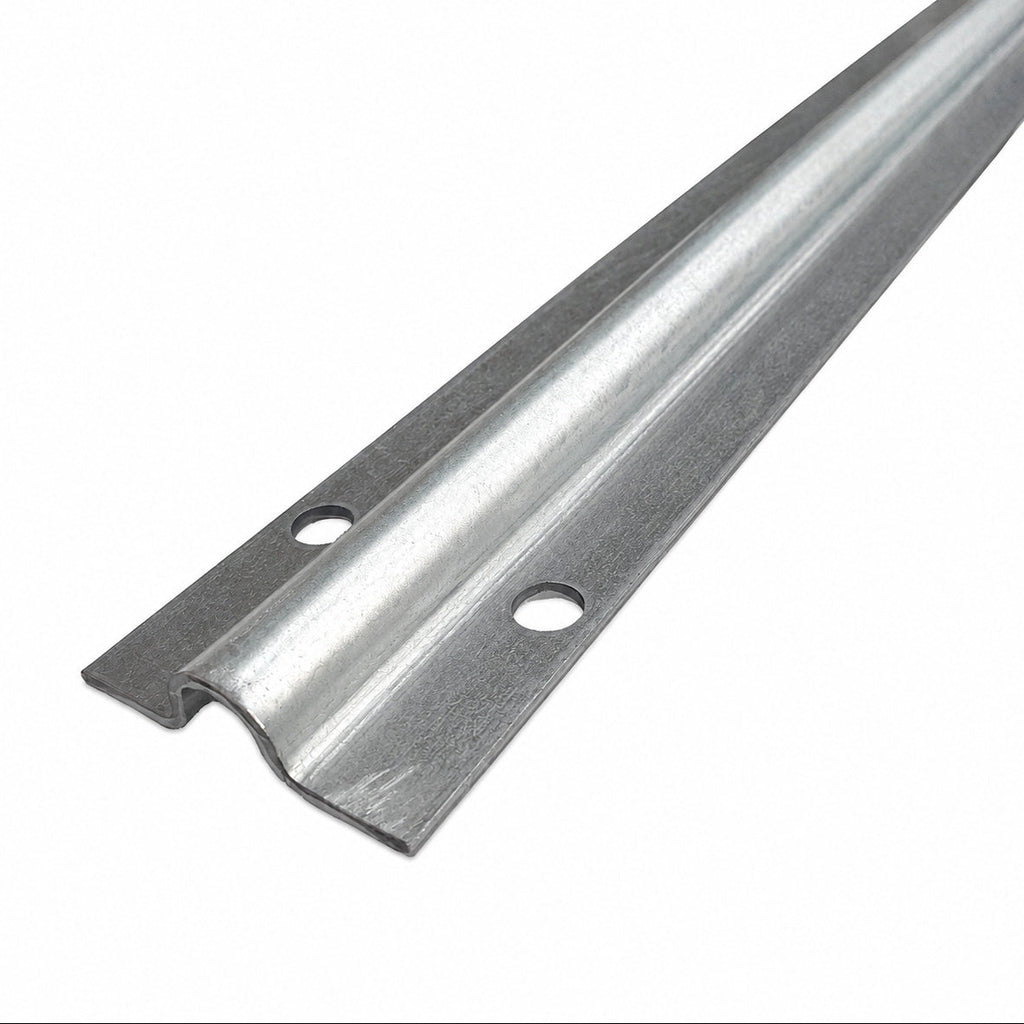

This galvanised steel guide track is the screw-down running surface for sliding gates, fixed to a concrete plinth or steel base to give the gate wheels a straight, durable path. The rolled guide profile suits round-groove gate wheels and keeps the gate tracking accurately in all weather.
Roll-formed from galvanised steel for corrosion resistance, the track is supplied in 3 metre lengths that can be joined for longer runs. Suitable for residential sliding gates through to industrial doors. A stainless steel version and 6m lengths are available on request.
Key Features
- Screw-on guide track for sliding gates
- Galvanised steel for outdoor corrosion resistance
- Rolled profile suits round-groove gate wheels
- 3 metre length – join multiple lengths for longer gates
- Pre-formed fixing profile for straightforward installation
- Suits residential, commercial and industrial gates

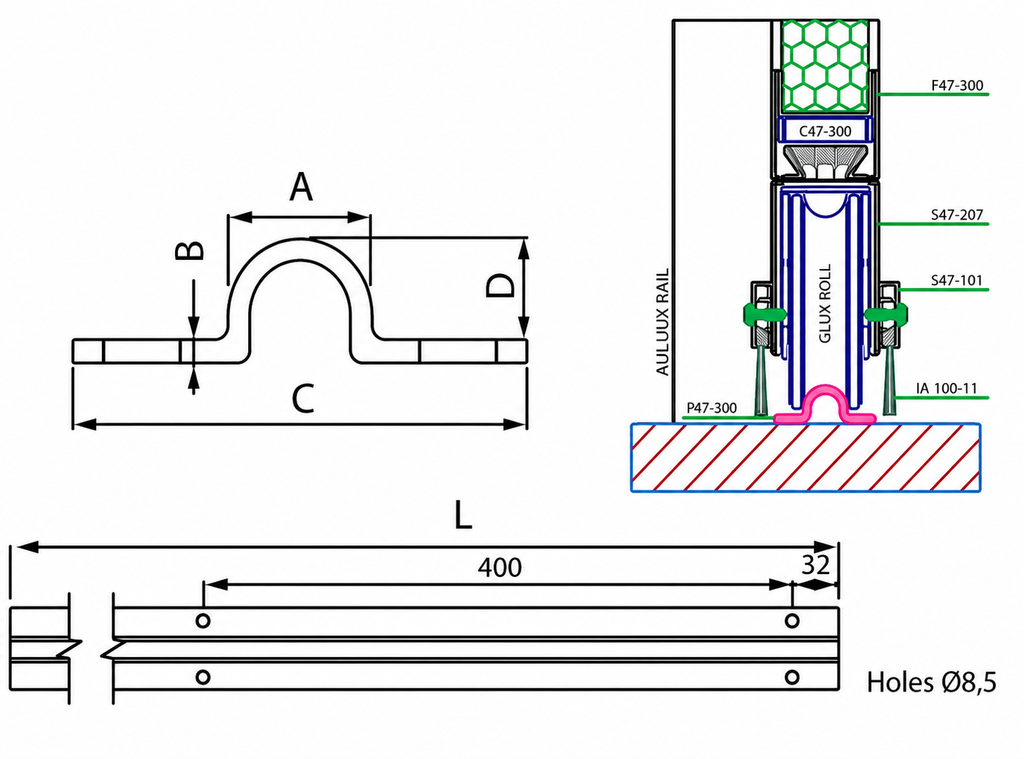

Specifications
- Model: 3091/20.3
- Material: Galvanised steel
- A (rail height): 20 mm
- B (thickness): 3 mm
- C (base width): 55 mm
- D (groove): 13.5 mm
- Length: 3 m
- Weight: 1.6 kg/m (4.8 kg per length)
Applications
- Sliding gates
- Driveway gates
- Industrial sliding doors
- Commercial gate installations
