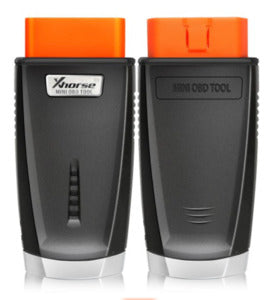

X-Horse VVDI Mini OBD Tool for KEYTOOL Max

Used with VVDI Key Tool Max to perform remote function like Generate transponder, Transponder Clone, Generate Remote, Remote Clone, and many Functions.

Xhorse Mini OBD Tool is a wireless OBD vehicular interface that provides diagnostic reporting and manipulation as well as immobiliser programming capabilities. If a key cannot be cloned or all keys are lost then OBD is used.

This product can be used with VVDI Key Tool Max to perform remote function (Generate transponder, Transponder Clone, Generate Remote, Remote Clone, OBD matching transponder/remote/smart card.)

• VVDI Key Tool

Manufacturer: X-Horse

Remote Type: Wire Remote

Colour: Black and Orange

Weight: 300g

• IMMO programming
• Throttle programming
• Battery Programming (coming soon)
• Odometer Correction (coming soon)
• Steering Angle Calibration (coming soon)
• Key Code Learning (coming soon)
• EABS Programming (coming soon)
• Remote Manual Programming (coming soon)
• Vehicle Diagnosis (coming soon)
• Tire Pressure Light Reset (coming soon)

1. Read the vehicle data (VIN & immobilizer) via OBD utilising the Mini OBD Tool and Key Tool Max (required)
2. View the remote and transponder chip information for the vehicle you're plugged into, directly from the Key Tool Max tablet. Utilise that information to instantly generate your chip and key.
3. View the proper keyway (on the Key Tool Max) for cutting on the Dolphin and cut your blade (once you've Lishi'd to determine your cuts).
4. Take your completed key back to the vehicle for immobilizer programming with the Mini OBD Tool and Key Tool Max.

• X-Horse App V1.8.5
• X-Horse Mini OBD Tool software
• Bluetooth
• USB-C
• WiFi

Click on the [Select] on the HOME page, available device will be shown on the screen, choose device to connect according to Serial Number

Software will detect current device with software interface connection status, LAN connection status and WIFI connection status.

1. X-Horse VVDI Mini OBD tool update is done via Key Tool Max Upgrade
2. You need X-Horse Key Tool Upgrade Kit
3. Install it on your PC, make sure you have internet access
4. Connect white USB cable provided on Mini OBD Dongle to PC USB. Follow onscreen instructions. This stage does not switch ON your Key Tool Max.
5. The upgrade kit will Auto Detect your device and update to the next version
6. IMPORTANT: Update firmware version in sequence do not jump to the latest version
7. Do it step by step until you get the latest version
8. When finished, switch on your Key Tool Max and pair (Bluetooth) with Mini OBD Tool. A menu will pop-up on Key Tool Max screen
