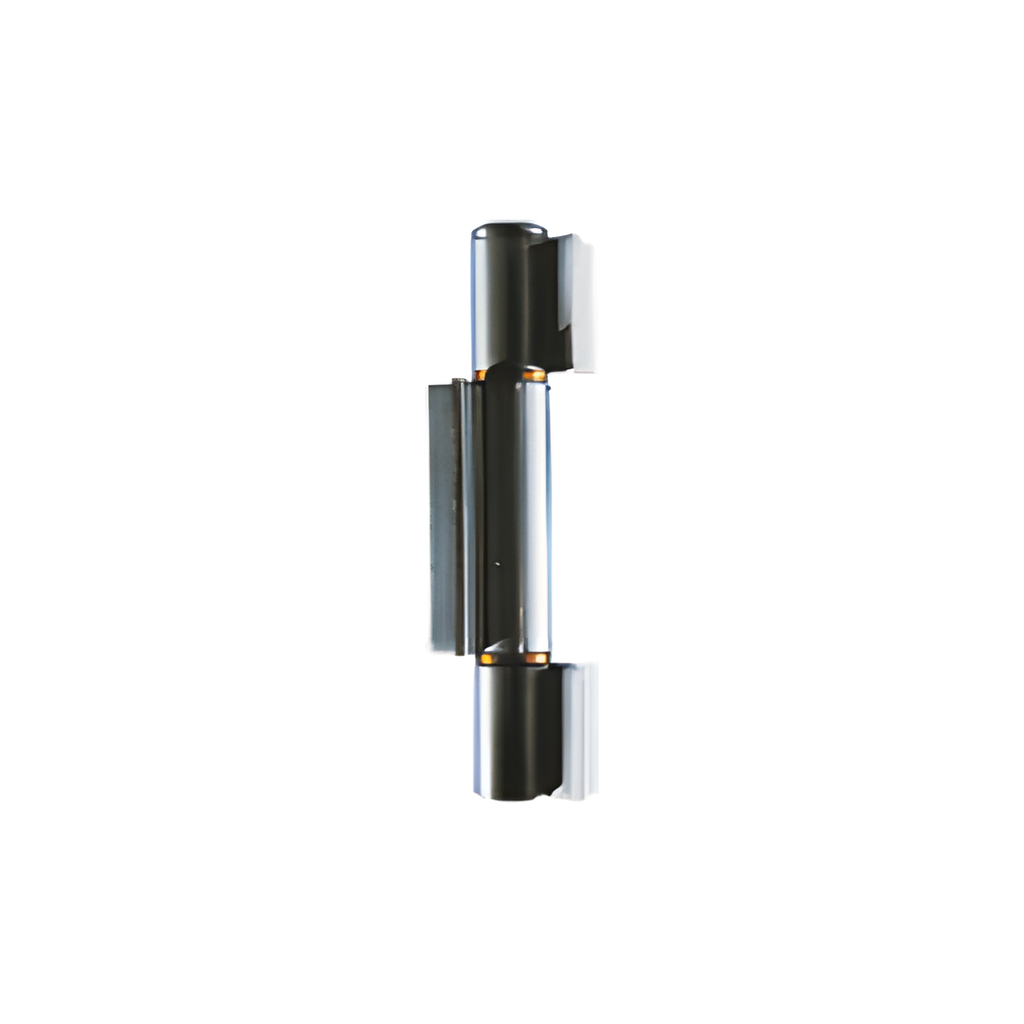

This three-wing weld-on hinge spreads gate loads across three welded wings — two on one side of the knuckle and one between — for extra strength and resistance to racking on heavy gates. A ball bearing in the knuckle keeps rotation smooth under load.
Supplied in raw steel at 210 mm, ready for welding and finishing with the gate.
Key Features
- Weld-on hinge with three open wings for maximum strength
- Ball bearing pivot for smooth rotation under load
- Wing length 210 mm
- Raw steel – weld and finish with the gate
- Resists racking on heavy, wide gate leaves
- Brass-ring version available on request
Specifications
- Model: 186/20.4
- Material: Raw steel (for welding)
- Variant: C – ball bearing

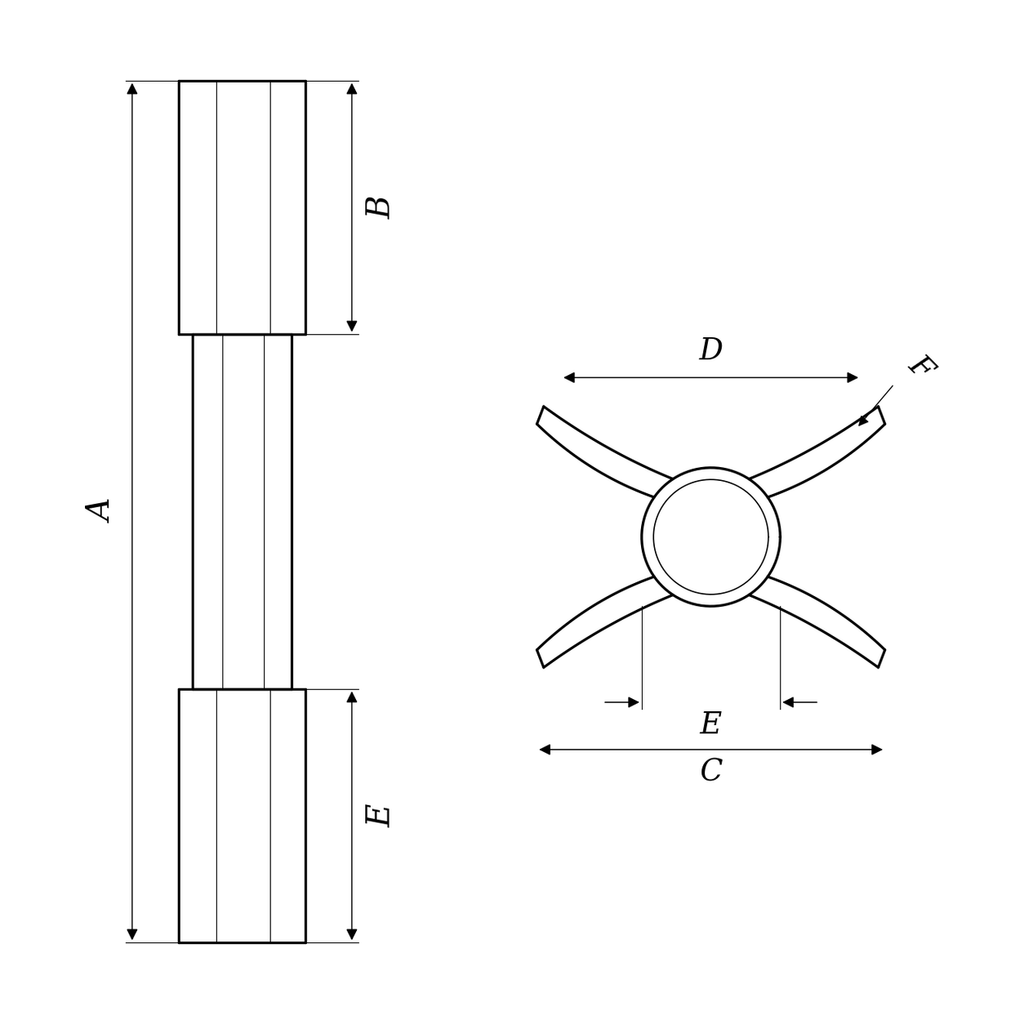

- A (length): 210 mm
- B (wing width): 47 mm
- C: 56 mm, D: 28 mm, E: 20 mm, F: 4 mm
- Weight: 1.165 kg
Applications

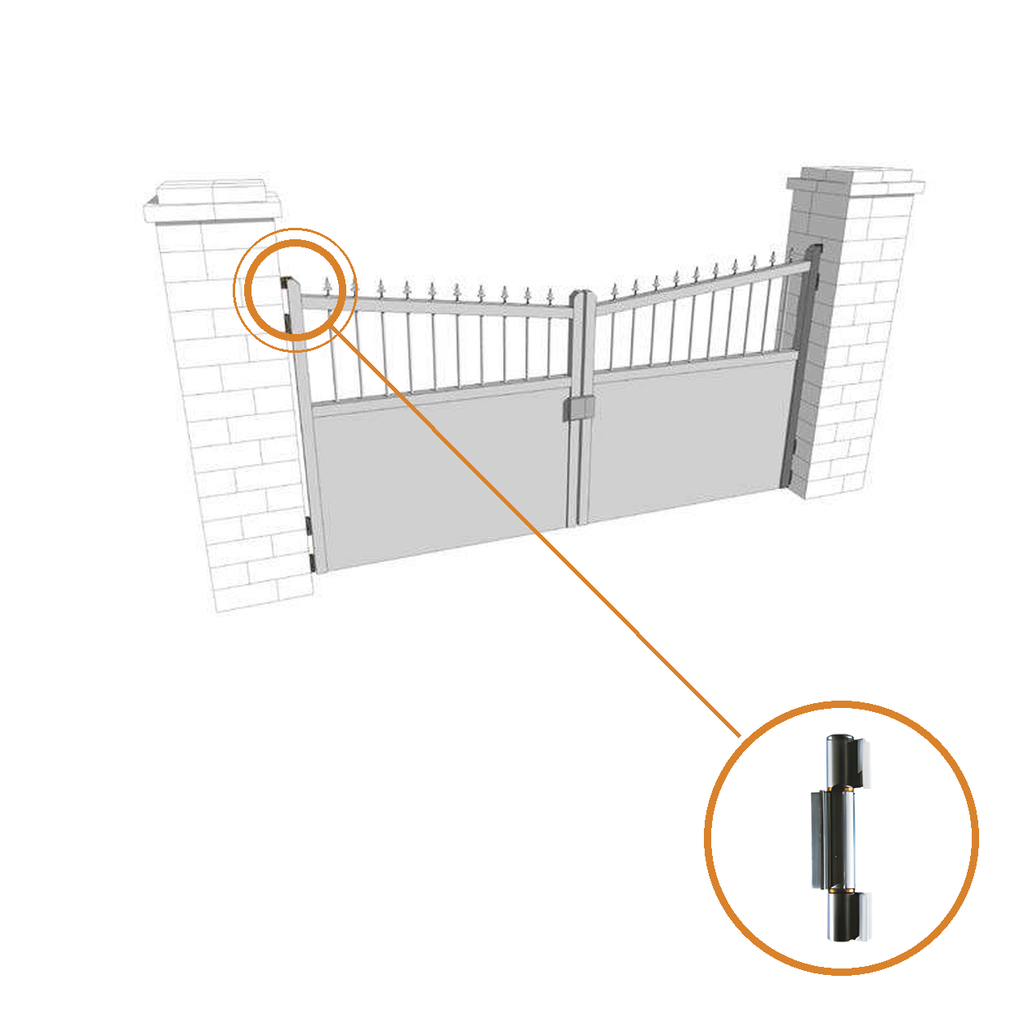

- Welded steel swing gates
- Heavy driveway gates
- Industrial gates and doors
- Fabrication and gate building
