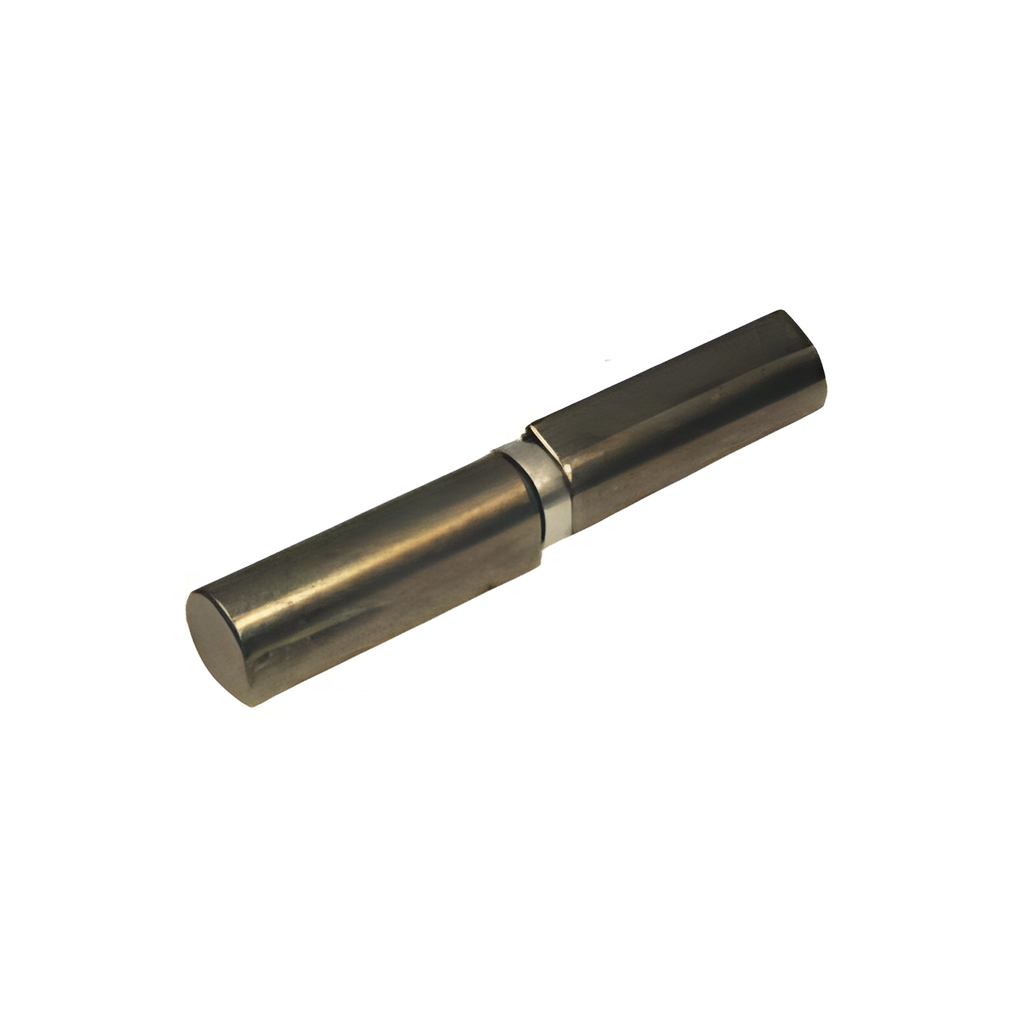

This Paris-pattern drop hinge welds to gates, doors and shutters, with the leaf lifting off the pin for easy removal of the panel. The stamped 20 x 25 mm profile body is 140 mm long and turns on a Ø12 mm steel pin riding a bearing for smooth movement.
Supplied in raw steel ready for welding and finishing. Stainless and brass pin versions of this family are available on request.
Key Features
- Paris-pattern drop hinge – leaf lifts off for panel removal
- Ø12 mm steel pin with bearing for smooth rotation
- Stamped profile 20 x 25 mm, 140 mm long
- Raw steel – weld and finish with the gate
- Suits gates, doors and shutters
- Stainless and brass pin versions available on request
Specifications

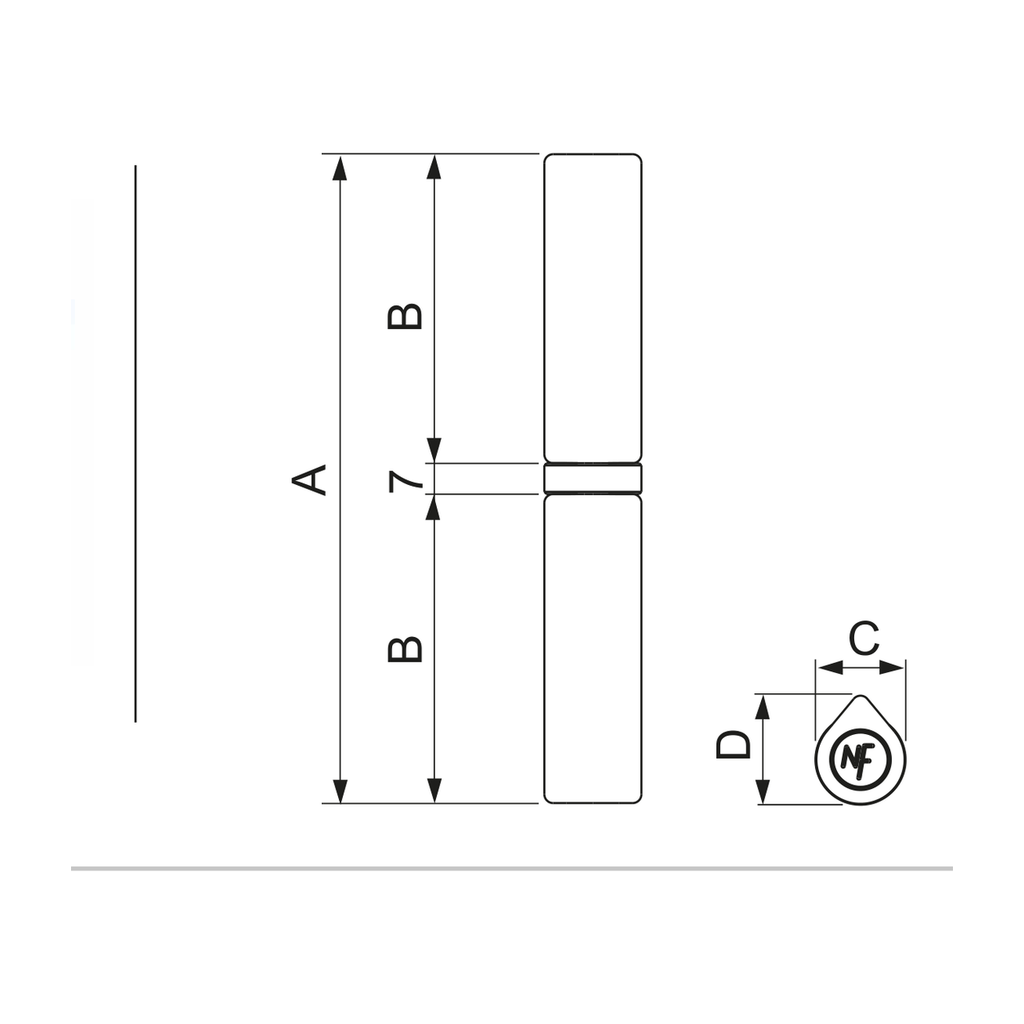

- Model: 197/20.2.4 (140)
- Material: Raw steel (for welding)
- A (length): 140 mm
- B: 66.5 mm
- C: 20 mm, D: 25 mm
- Pin: Ø12 mm steel, with bearing
- Weight: 318 g
Applications
- Swing gates
- Doors and shutters
- Fabrication and gate building
