Instructions & Resources

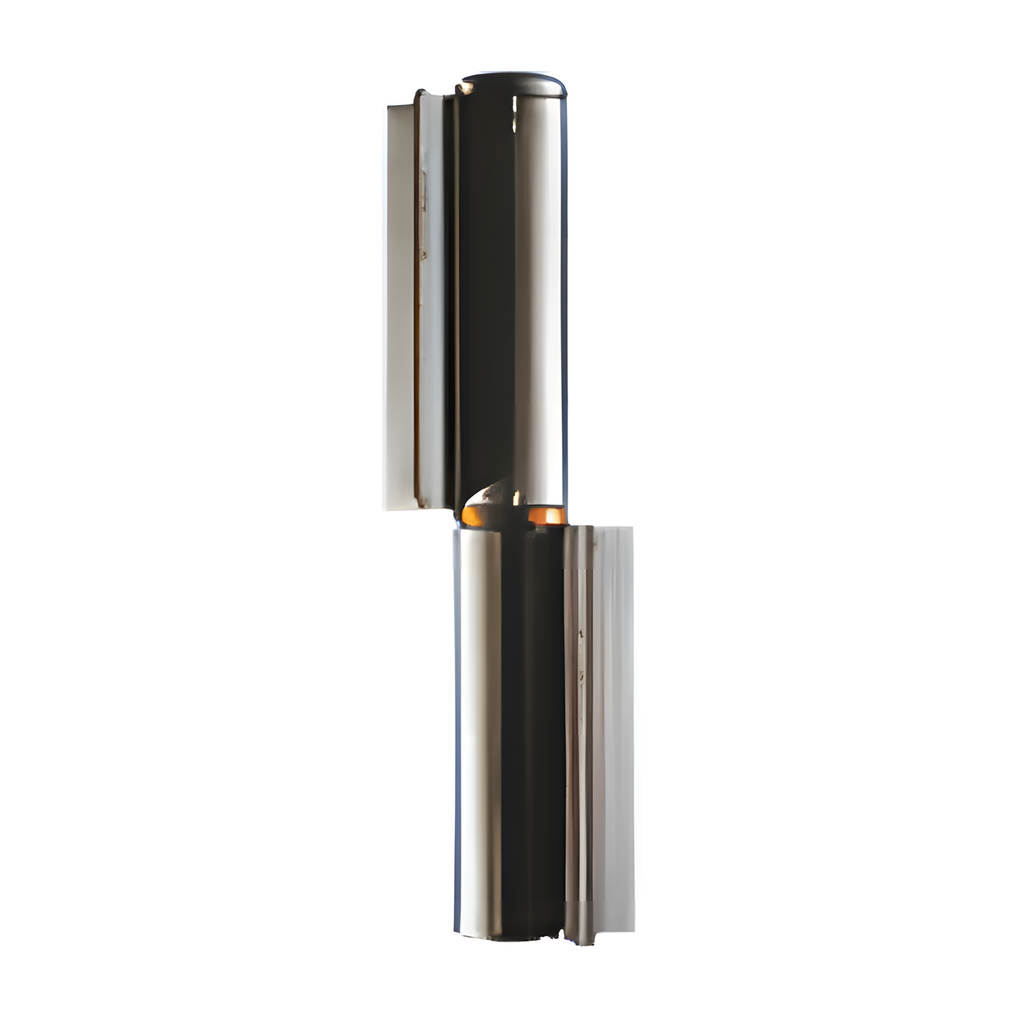

This heavy-duty weld-on hinge carries swing gates on a ball bearing pivot for smooth, low-wear rotation. The two open wings (210 mm) weld directly to the gate leaf and frame, spreading the load along the welds for maximum strength.
Supplied in raw steel ready for welding and finishing with the gate. The ball bearing keeps heavy leaves swinging freely for years.
Key Features
- Weld-on hinge with two open wings
- Ball bearing pivot for smooth rotation under load
- Wing length 210 mm, width 98 mm
- Raw steel – weld and finish with the gate
- Heavy duty rating for large gate leaves
- Brass-ring version available on request
Specifications
- Model: 185/20.4
- Material: Raw steel (for welding)
- Variant: C – ball bearing

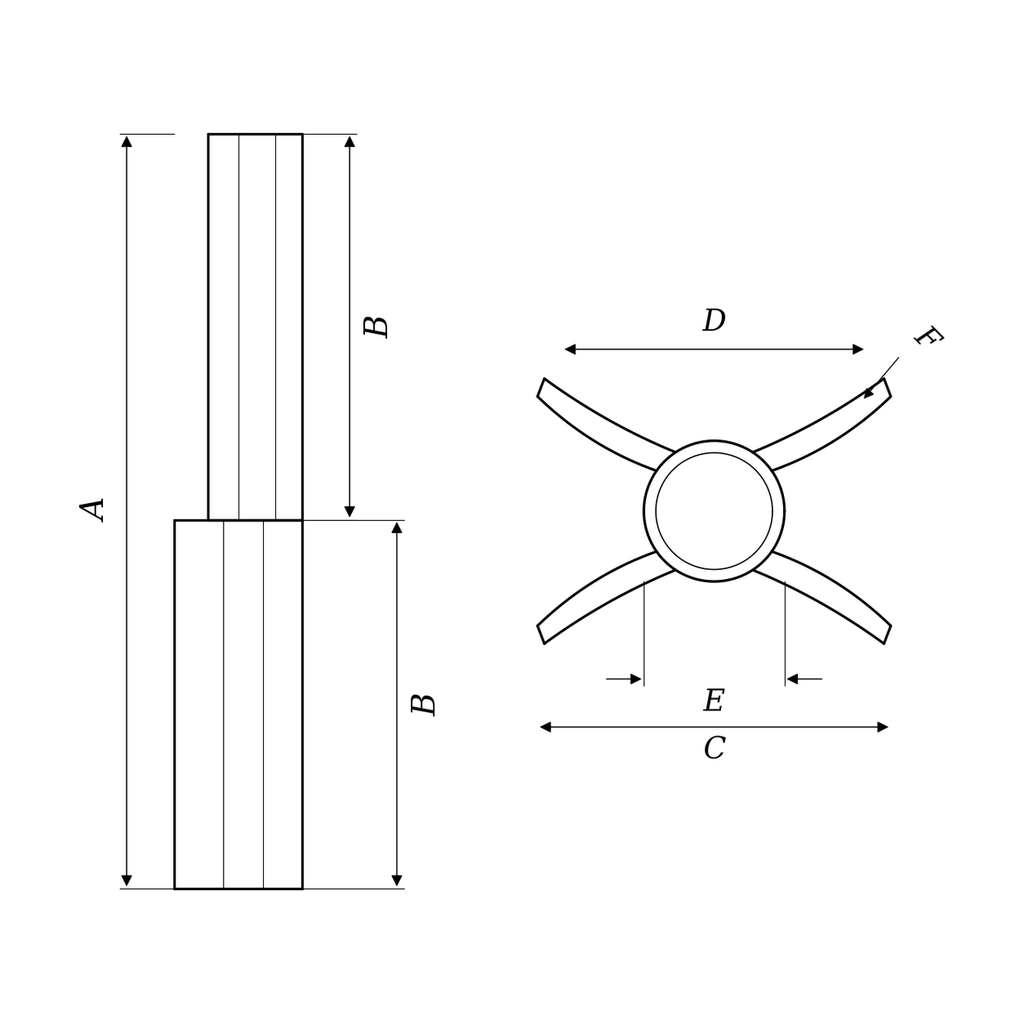

- A (length): 210 mm
- B (wing width): 98 mm
- C: 56 mm, D: 28 mm, E: 20 mm, F: 4 mm
- Weight: 1180 g
Applications
- Welded steel swing gates
- Heavy driveway gates
- Industrial gates and doors
- Fabrication and gate building
