Instructions & Resources
There are many different designs of remotes to choose from within the X-Horse (VVDI) range, enabling you to select a style that either matches the original remote or a style your customer prefers.

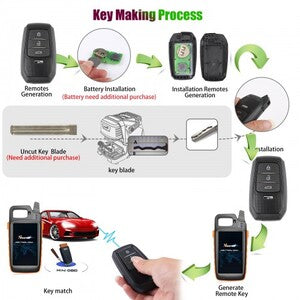

The XS-Series, sold in ORANGE packaging, can be programmed wirelessly with the appropriate tool. Wireless programming requires the battery to be inserted BEFORE programming/burning the profile. This series is intended for smart/proximity keys.
All remotes require a key blade, roll pin and a CR2032 battery.
Disclaimer: This key must be cut and programmed by an automotive locksmith. We recommend to please check with your local locksmith that they are able to program this type and brand of key. Alternatively, please contact us and we can put you in touch with an automotive locksmith in your area.
Compatibility
- All VVDI Tools (VVDI2, VVDI Mini Key Tool, VVDI Key Tool etc.)
Manufacturer: X-Horse

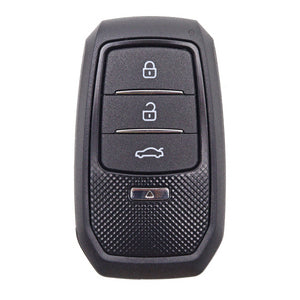

Remote Type: Smart Remote
Model: XSTO01EN
Colour: Black
Weight: 55g
Buttons: 4
Panic: Yes
Smart: Yes
Features:
- Support fit for Toyota immobilizer type: 8A/4D/4A
- Support all frequencies: 312MHz~434MHz
- Support change button and frequency
- Cloneable
- Support emergency start
- Support re-generate and re-use, no need bonus points to generate
- Support all key lost and add key
- Generate via VVDI MINI, VVDI Key Tool, Key Tool Max, Key Tool Plus, VVDI2
- Compatible with other Toyota Key Shell too if you need to change the default one
Difference between XM38 and XM28:
XM38: Generate all fit for Toyota smart card, complete key ready to use

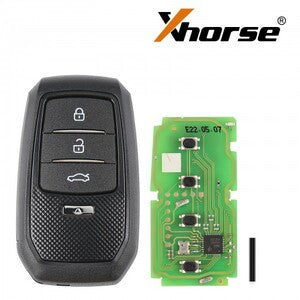

XM28: 0410 0010 (A9 AA) model can't support, PCB only, no shell
Toyota XM38 Smart Support IMMO Types:
- 4D (P1=94)
- 4D (P1=98)
- 4D (P1=D4)
- 4D (P1=9F)
- 4D (P1=34)
- 8A (P4=00 00 A8 A8)
- 8A (P4=00 00 88 88)
- 8A (P4=91 00 AA AA)
- 8A (P4=91 00 A9 A9)
- 8A (P4=C1 00 AA AA)
- 8A (P4=C1 00 A9 A9)
Support Version:
0020 F43 7980 0140 0031 0120 0011 3410 6221 3450 2110 3370
6601 0111 0091 0410 0010 2000 6230 0351 0182 5290 A433
0310 5380 0440 0330 0500 4610 0780 3330 7930 F433 0030 5300
Frequency:
- 312.10 / 314.35 dual frequency
- 314.00 / 315.10 dual frequency
- 315.10 Single Frequency
- 312.50 single frequency
- 314.35 / 315.10 dual frequency
- 433.57 / 434.41 dual frequency
- 315.12 single frequency
- 314.00 single frequency
- 312.50 / 314.00 dual frequency
- 315.00 single frequency
- 314.35 single frequency
- 433.92 single frequency
Supported Models:
- fit for Toyota
- fit for Camry
- fit for Levin
- fit for Highlander
- fit for Senna
- fit for Avalon
- fit for YARIS L
- fit for Prius
- fit for RAV4
- fit for Prado
- fit for Crown
- fit for Vios
- fit for CHR/IZOA
- fit for PREVIA
- fit for Wish
- fit for Vellfire
- fit for Alpha
- fit for Corolla
- fit for Reiz
- fit for Wildlander
- fit for Land cruiser
- fit for Lexus:
- GS
- IS
- ES
- RZ
- CX
- CT
- NX
- RC
- LC
- LS
- LX
- LM
Battery Compliance
This product has been tested and approved by a third party and is compliant with AS62368.1.
| Battery Type: | CR2032 |
| Battery Access Type: | Tool Required |
| AS62368.1 Compliant: | Yes |
| Battery Included: | No |
| Contains Coin Battery: | Yes |
