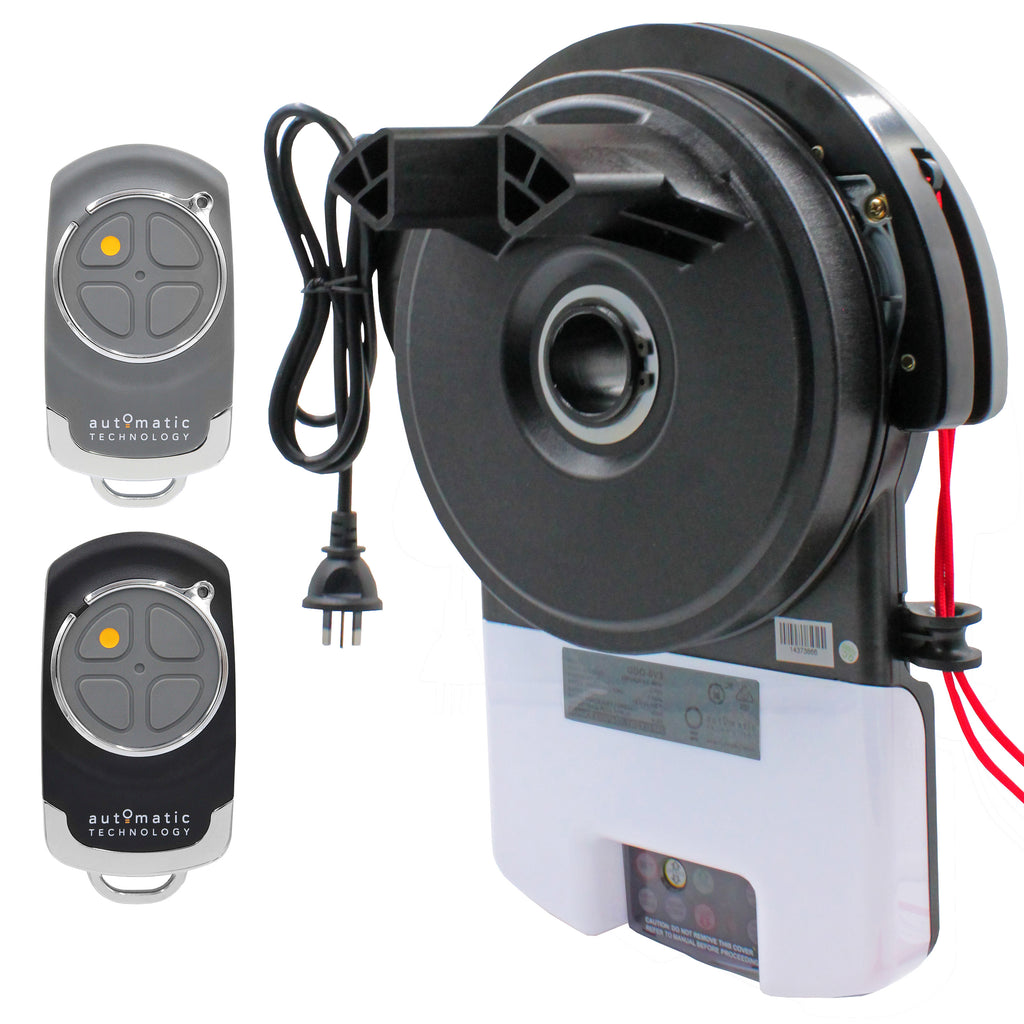

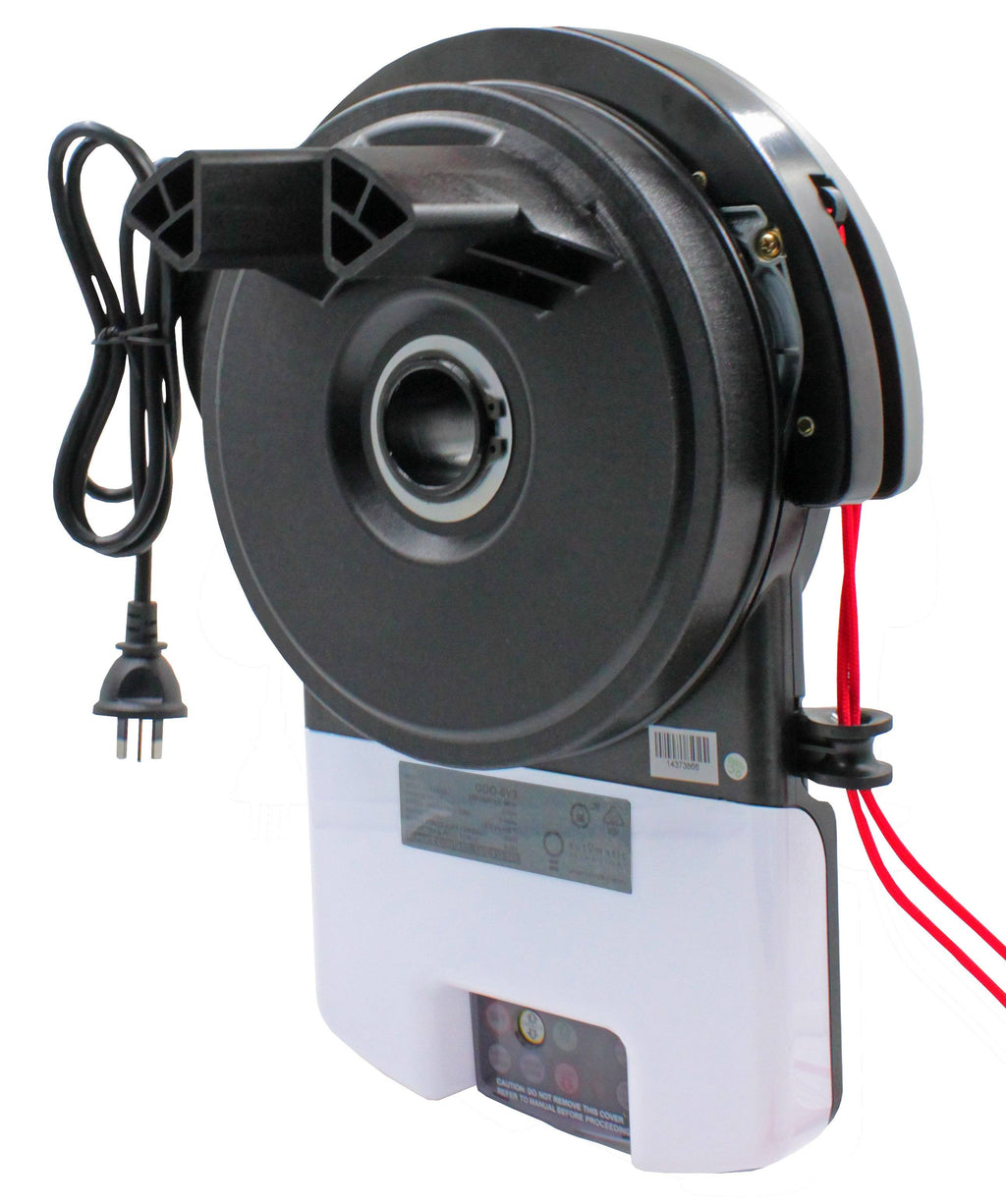

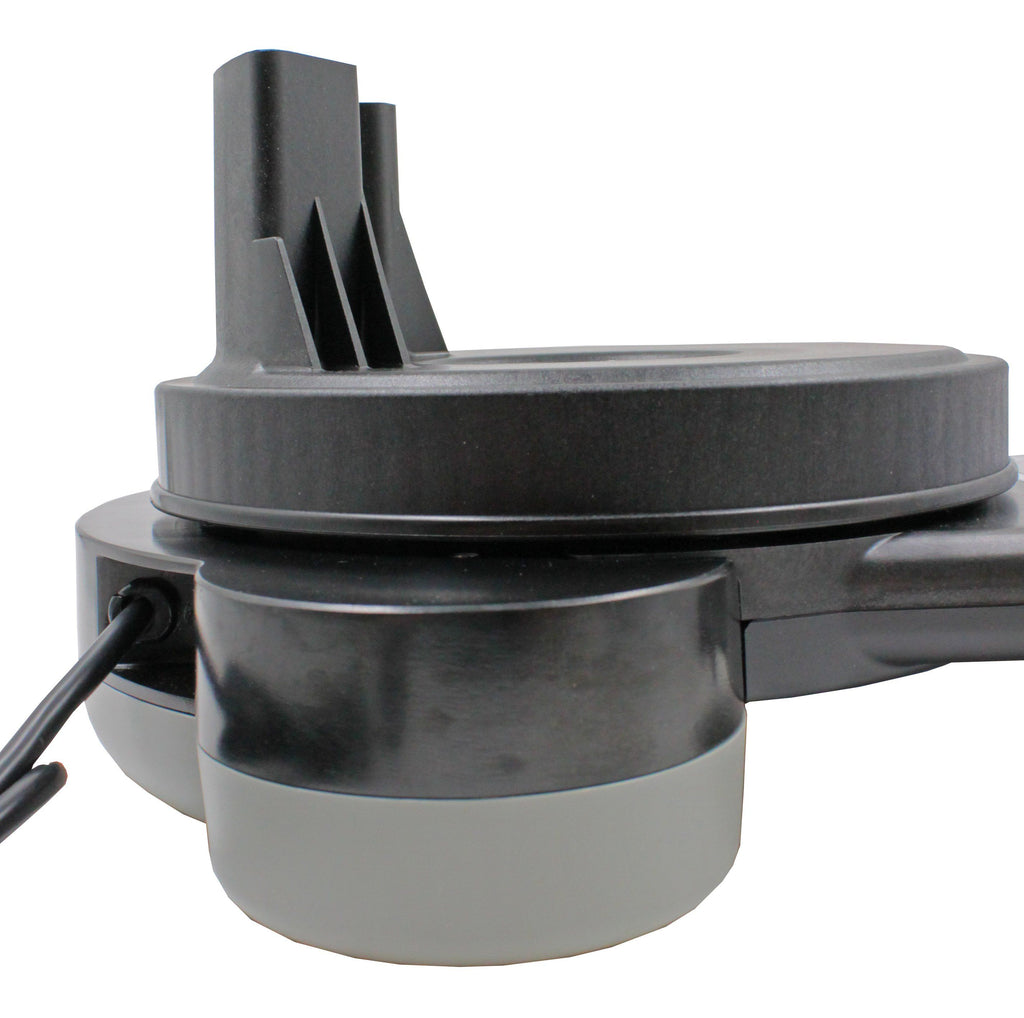

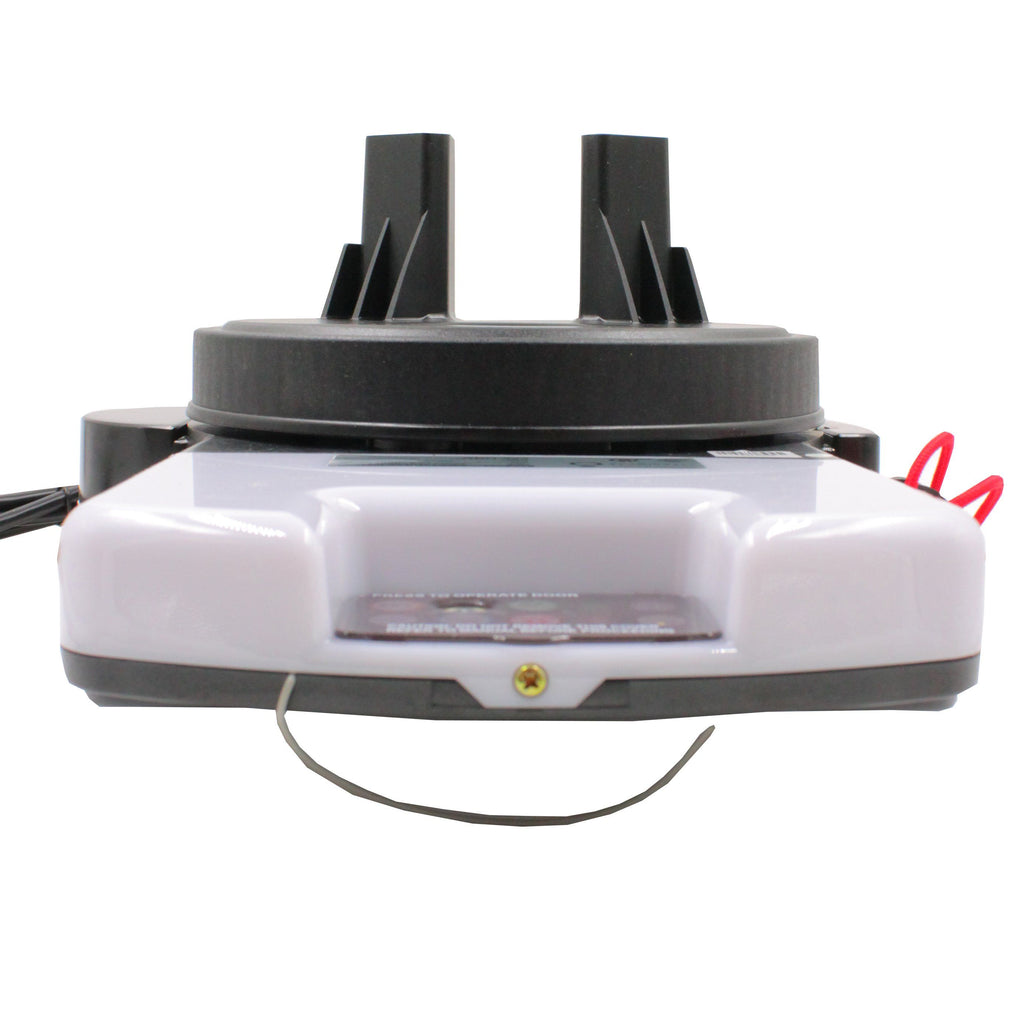

The Series 2 EasyRoller® takes forward the impressive reputation earned by this series of openers over the past decade. This version incorporates bright LED courtesy lighting and compatibility with Wireless Safety Beams. The Service Indicator lets you know when it is time to service your door. This is in addition to TrioCode128 transmitters, Soft Start/Soft Stop operation, advanced door profiling and obstruction sensing for secure and safe operation. With capability of fitting in tight spaces (40mm from door curtain) and suitable for up to 16.5m2 roller doors, the GDO-6v3 is suitable for most garage roller doors. But what about a GDO-6v3 remote? These Garage/Opener comes with 2 GDO 6V3 Remotes!
Features:
- Easy to install
- Quiet and efficient to run
- TrioCode 128 Technology
- Automatic Limit Positioning System
- Automatic courtesy light
- Vacation Mode
- Pedestrian Mode
- Automatic Close Function

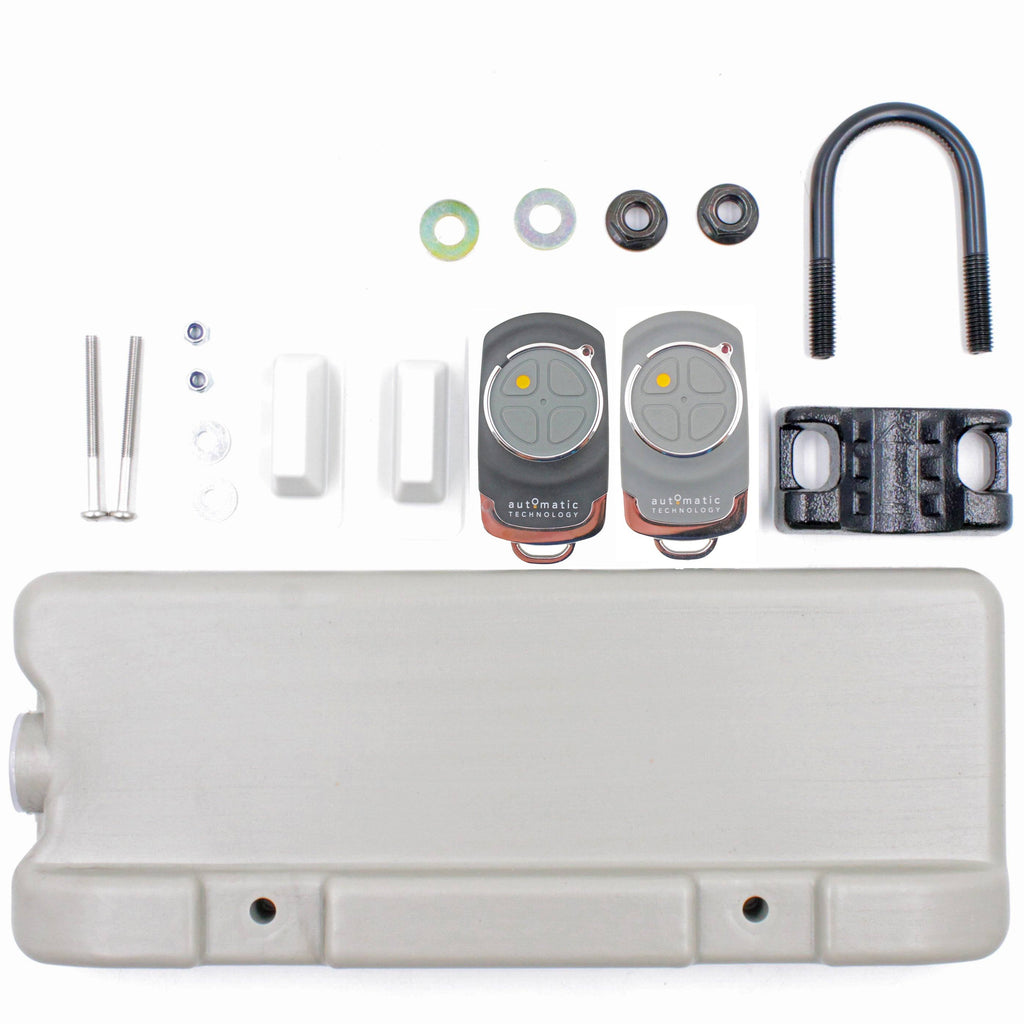

Included:
- 1 x GDO-6v3 Motor
- 1 x Mounting Hardware
- 2 x PTX-6 Remotes
- 1 x Weight Bar
- 1 x Installation Instructions
- 5 Years/10,000 Cycle Manufacturers Warranty*
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual
Specifications:
| Peak pulling force | 600N |
| Maximum Door Weight | Up to 110kg |
| Max Recommended Door Size | 16.5m2 |
| Minimum Side Room | 40mm (from edge of curtain to bracket) |
| Motor Type | 24V DC Permanent Magnet |
| Motor Power | 100W |
| Input Voltage |
230/240 Volts AC
|
| Operating Frequency |
Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz)
|
| Coding System | TrioCode128, code hopping |
| Code Combinations | 3.4x1038 code combinations |
| Storage Capacity |
Up to 64 memory registers
|
| Courtesy Light | 2 x LED |
| Safety Beam Compatibility | 3-wire Safety Beams |
